MPO/MTP COUPLER SINGLE MODE MPO FIBER COUPLER KEY UP-KEY DOWN

Name: MPO/MTP COUPLER SINGLE MODE MPO FIBER COUPLER KEY UP-KEY DOWN
Brand: STARTECH
SKU: 650V92
Price: 16.34 USD
Availability: InStock

STARTECH

PCN#

650V92

MFG#

MPOSMAPCGNCOUPLER

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$16.34

Extended & Accidental Damage Product Replacement Plan Available Details

1-Year $5.99

2-Year $7.99

Estimated Shipment:

Product Highlights:

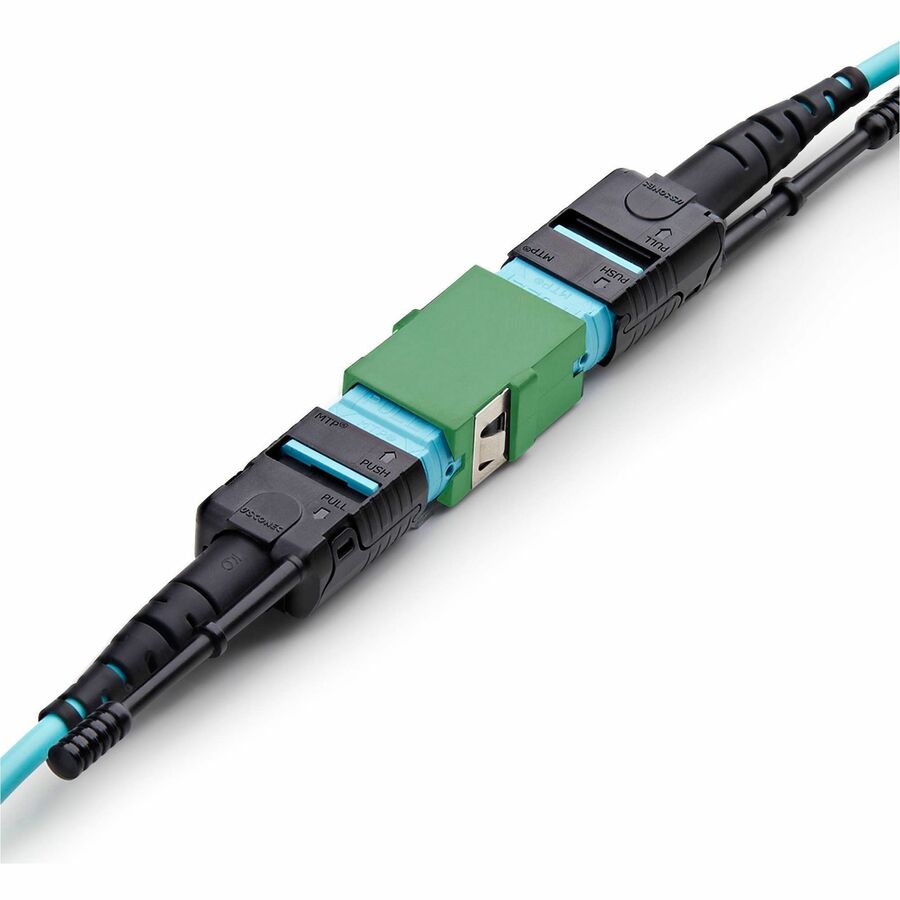

Connect two Single Mode MPO/MTP cables to extend a multi
fiber connection; Ideal for fiber patch panels/enclosures; Toolless setup; Insertion Loss rated at 0.2 dB; Supports 9/125um fiber cores; Best paired with APC polished ends; Includes dust covers

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 1 lbs.

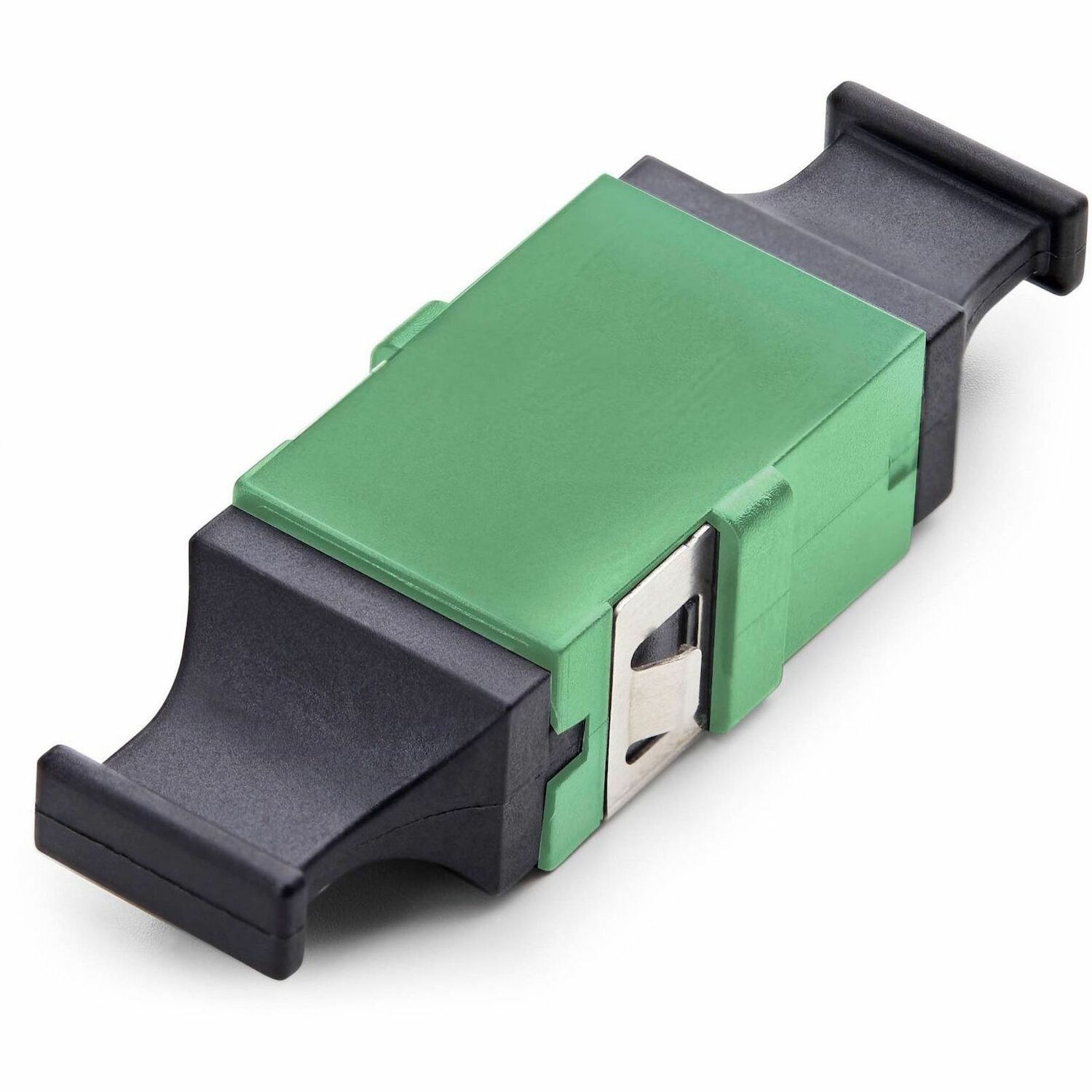

StarTech MPO/MTP Coupler, Single Mode MPO Fiber Coupler, Key Up-Key Down, Fiber Optic MPO/MTP-APC Coupler for Patch Panels/Enclosures

Overview

Tech Specs

Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	MPOSMAPCGNCOUPLER
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	MTP/MPO Fiber Coupler - Green
Marketing Information	Extend a Single Mode fiber connection by connecting two MPO/MTP trunk cables with this MPO/MTP to MPO/MTP Coupler. The female-to-female fiber coupler supports both male and female MPO/MTP connections, maintaining optimal signal integrity while achieving low insertion loss that exceeds industry standards. Toolless Installation for Quick Setup The MPO/MTP Fiber Coupler supports Single Mode OS1/OS2 (9/125 µm) fiber cables. The coupler features toolless setup to simplify installation into fiber patch panels and rackmount/wall enclosures. Ideal for fast deployment in data centers, enterprise networks, and telecom applications. Built to Last The MPO Coupler features a durable ABS housing and precision alignment structure for accurate multi-fiber mating, minimizing signal loss for long-lasting reliability and performance.
Packaged Quantity	1
Product Type	Network Adapter

Technical Information

Adapter Type	Fiber Optic
Connector Type on First End	MTP/MPO Network - Female
Connector Gender on First End	Female
Connector on First End Details	1 x MTP/MPO Network - Female
Connector Type on Second End	MTP/MPO Network - Female
Connector Gender on Second End	Female
Connector on Second End Details	1 x MTP/MPO Network - Female
Features	Plug and Play Passive

Physical Characteristics

Color Family	Green
Product Color	Green
Product Material	Metal
Housing Material	Acrylonitrile Butadiene Styrene (ABS)
Material Details	Metal - Mounting Tabs
Height	0.4"
Width	0.6"
Length	1.8"
Weight (Approximate)	0.10 oz

Miscellaneous

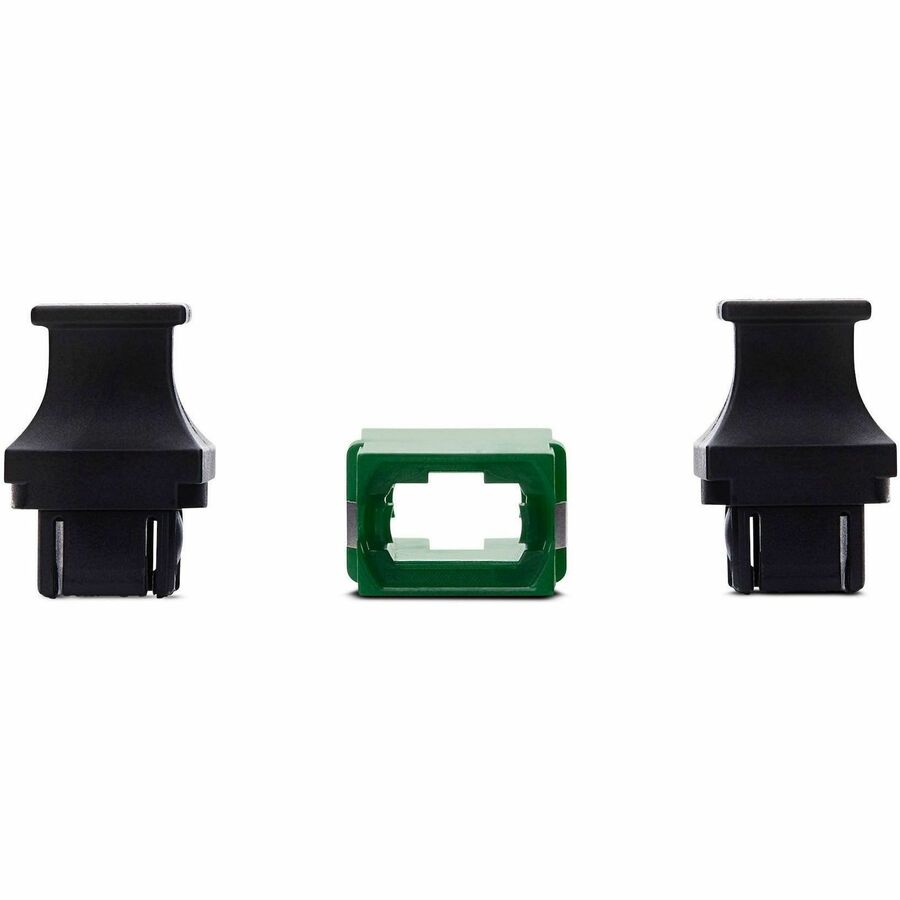

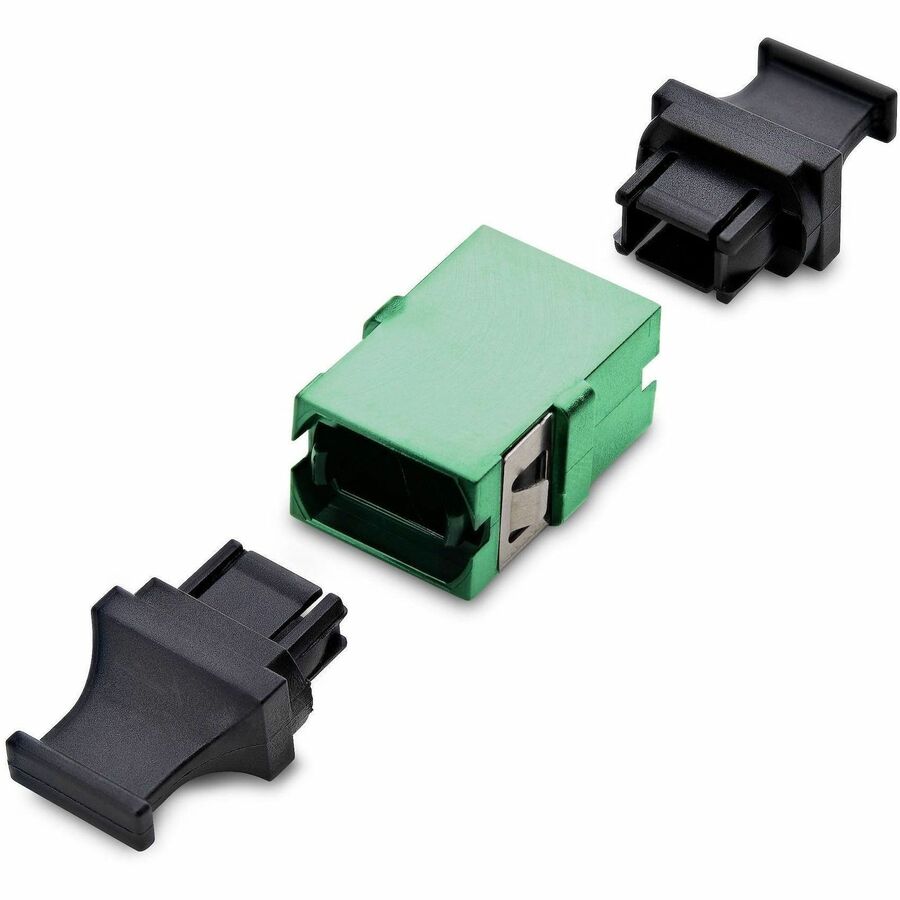

Package Contents	MTP/MPO Fiber Coupler - Green Dust Covers
Device Supported	Patch Panel Enclosure Network Device
TAA Compliant	Yes

Warranty

Limited Warranty

1 Year
