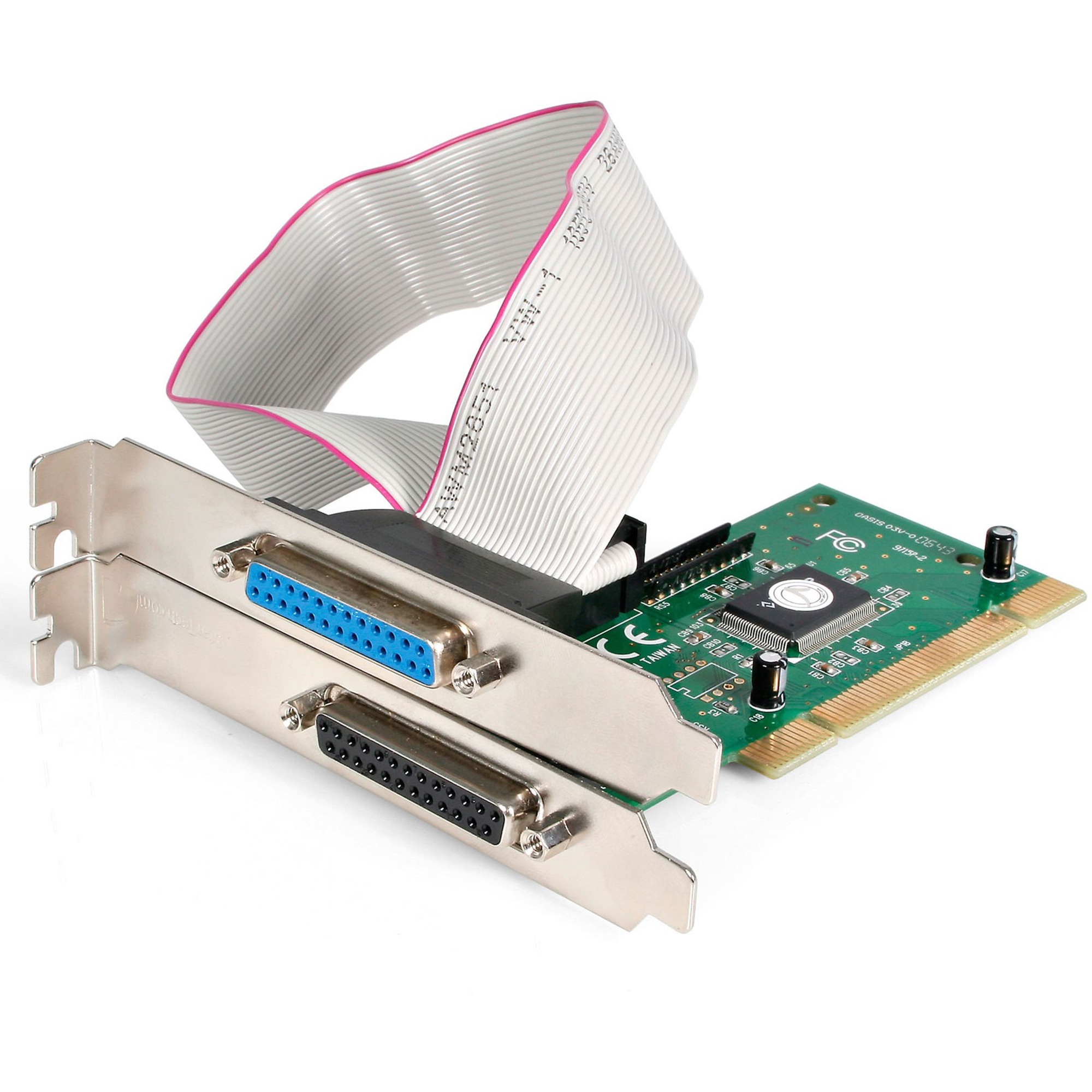

StarTech.com StarTech.com 2 Port PCI Parallel EPP/ECP Adapter Card

by
STARTECH
PCN#
536036
MFG#
PCI2PECP
$51.22
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Add 2 high
  • speed parallel ports (EPP/ECP/SPP) to your desktop computer through a PCI expansion slot
  • pci parallel card
  • Show more

Product Condition: New and Factory Fresh
Limited WarrantyLifetime
Shipping Weight: 1 lbs.
StarTech.com 2 Port PCI Parallel EPP/ECP Adapter Card
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

PCI2PECP

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

2 Port PCI Parallel EPP/ECP Adapter Card

Marketing Information

The PCI2PECP 2 Port EPP/ECP PCI Parallel Adapter Card can be installed in an available PCI slot, adding two IEEE 1284 ports to your PC and supporting data transfer speeds of up to 1.5 Mbps (up to 3 times faster than built-in parallel ports).

Installing the EPP/ECP parallel adapter card is easy, with support for Windows® 8, 7, Vista, XP, ME, 98SE, 95, DOS,Windows Server® 2012, and Linux. Plus, IRQ sharing and plug and play capabilities guarantee convenient, hassle-free connections to any parallel peripheral.

A complete dual profile solution, this parallel adapter card provides both a standard bracket and a low-profile/half-height bracket for adapting to slimline or small form factor system applications.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

Packaged Quantity

1

Product Type

Parallel Adapter
Technical Information

Host Interface

PCI

Data Transfer Rate

Up to 1.5MB/s Parallel Port

Parallel Port Modes

  • EPP
  • ECP
  • SPP
  • BPP
Interfaces/Ports

Number of Parallel Ports (Internal)

2
Physical Characteristics

Form Factor

Plug-in Card

Height

4.7"

Width

0.8"

Length

4.7"

Weight (Approximate)

2.50 oz
Miscellaneous

Package Contents

  • 2 Port PCI Parallel EPP/ECP Adapter Card
  • Low Profile Brackets

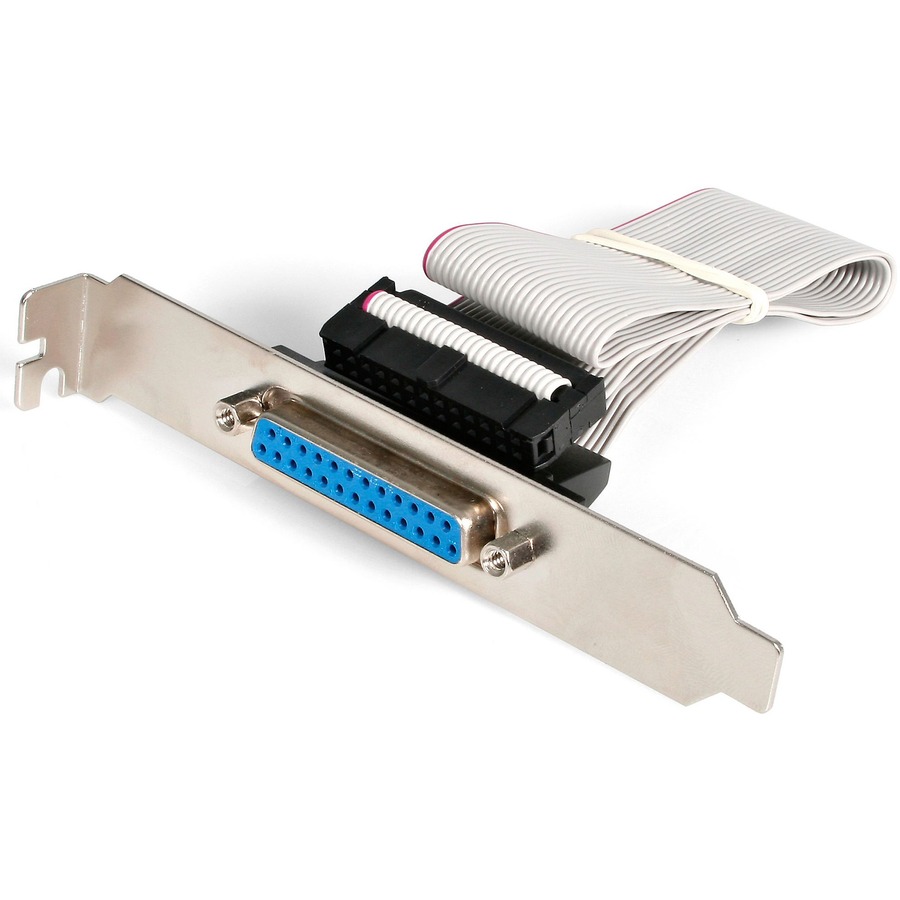

  • Ribbon Cable w/DB25F Plate
  • Driver CD
  • Instruction Manual

Additional Information

  • Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), ME, 98SE, 95, DOS
  • Windows Server® 2012, 2008 R2, 2003
  • Linux
  • Compatibility

    • Plug and Play
    • Printers
    • Scanners
    • CD-R/RWs
    • Zip drives
    • Memory Card Readers
    • Compatible with older parallel peripherals

    Environmentally Friendly

    Yes

    Environmental Certification

    • WEEE
    • REACH
    • RoHS

    Country of Origin

    Taiwan

    TAA Compliant

    Yes
    Warranty

    Limited Warranty

    Lifetime
