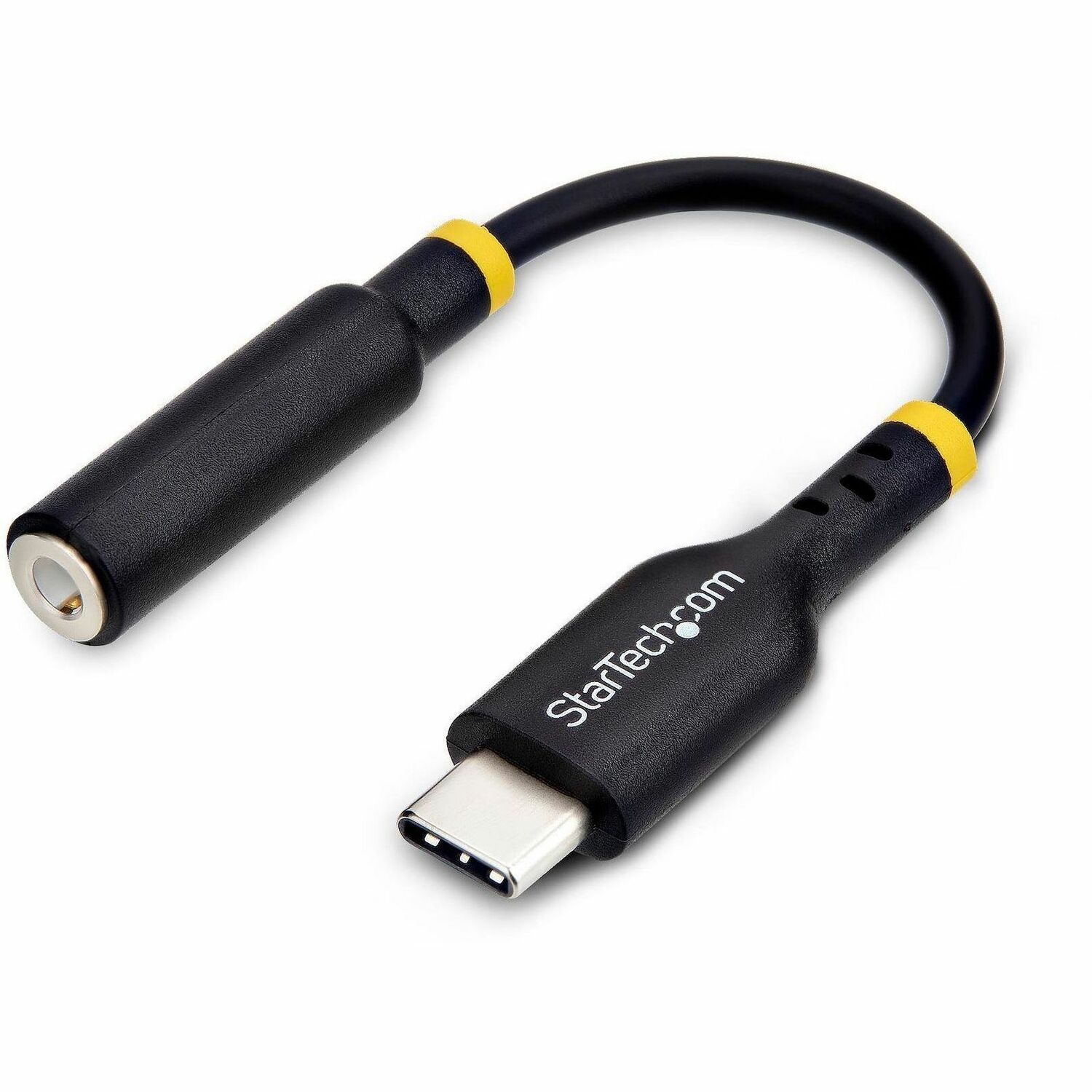

USB-C AUDIO ADAPTER TO 3.5MM TRRS HEADPHONE JACK - TYPE-C DONGLE

by
STARTECH
PCN#
S95438
MFG#
USBCAUDIO2
$18.53
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • USB
  • C to 3.5mm audio adapter for wired headphones on USB Type
  • C devices

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 1 lbs.
StarTech 5in (12.7cm) USB-C Audio Adapter to 3.5mm Headphone/Headset Jack, USB Type-C Aux Dongle, 32-bit DAC, For Laptop/Phone/Tablet
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

USBCAUDIO2

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

Mini-phone/USB-C Audio Cable

Marketing Information

Connect wired headphones or earphones to a USB Type-C-enabled device with this USB-C to 3.5mm audio adapter. The built-in 32-bit DAC supports stereo sound and microphone functionality via the TRRS jack for clear and immersive audio.

Superior Sound Quality

Experience excellent sound quality supporting audio ranges from 44.1 to 384kHz and 16, 24, and 32-bit sample rates, delivering a 105dBA signal-to-noise ratio for crisp and detailed output. The stereo ADC features a 94dB SNR for microphone input, with 48kHz and 16-bit sampling, all powered by the Realtek ALC4030U chipset.

Wide Compatibility

This versatile aux audio adapter is universally compatible with USB-C and Thunderbolt devices, including Windows, macOS, and Linux computers, as well as phones and tablets running iOS or Android. It supports wired headphones and headsets (including models with in-line controls), making it an ideal solution for using existing audio gear and eliminating the need for Bluetooth audio solutions.

Sleek and Portable Design

The compact, sleek adapter measures just 5 inches (127mm) and features a flexible and durable TPE jacket with a soft-touch finish. Use this adapter cable on the go or at a workstation for audio playback, recording, or calls.

Packaged Quantity

1 / Each

Product Type

Audio Cable
Technical Information

Cable Type

Mini-phone/USB-C

Cable Length

5"

Connector Type on First End

USB 2.0 Type C - Male

Connector Gender on First End

Male

Connector on First End Details

1 x 24-pin USB 2.0 Type C - Male

Connector Type on Second End

Mini-phone Stereo Audio - Female

Connector Gender on Second End

Female

Connector on Second End Details

1 x Mini-phone Stereo Audio - Female

Device Supported

  • Headphone
  • Headset
  • Notebook
  • Phone
  • Tablet
  • Microphone
  • Computer
  • Sound Card
  • Earphone
  • Smartphone
  • Audio Device

Data Transfer Rate

480 Mbit/s

Features

  • Flexible
  • Durable
Physical Characteristics

Color Family

Black

Product Color

Black

Product Material

Rubber

Jacket Material

Thermoplastic Elastomer (TPE)

Height

0.3"

Width

0.5"

Weight (Approximate)

0.02 lb
Miscellaneous

Operating System Compatibility

  • Windows 11
  • windows 11 (ARM)
  • Windows 10
  • mac OS 15 Sequoia
  • macOS Sonoma 14.0
  • macOS Ventura 13.0
  • iOS
  • Android
  • iPadOS

Environmentally Friendly

Yes

Environmental Certification

EU RoHS

Environmental Compliance

  • Restriction of Hazardous Substances (RoHS) 2
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Waste Electrical and Electronic Equipment Directive (WEEE)

REACH free of SVHC

Yes

REACH Declaration URL

https://media.startech.com/cms/pdfs/usbcaudio2_rohs.pdf

EU RoHS Declaration URL

https://media.startech.com/cms/pdfs/usbcaudio2_rohs.pdf

End of Life Manual Availability

Yes

WEEE Statement

https://media.startech.com/cms/pdfs/usbcaudio2_weee.pdf
Warranty

Limited Warranty

2 Year
