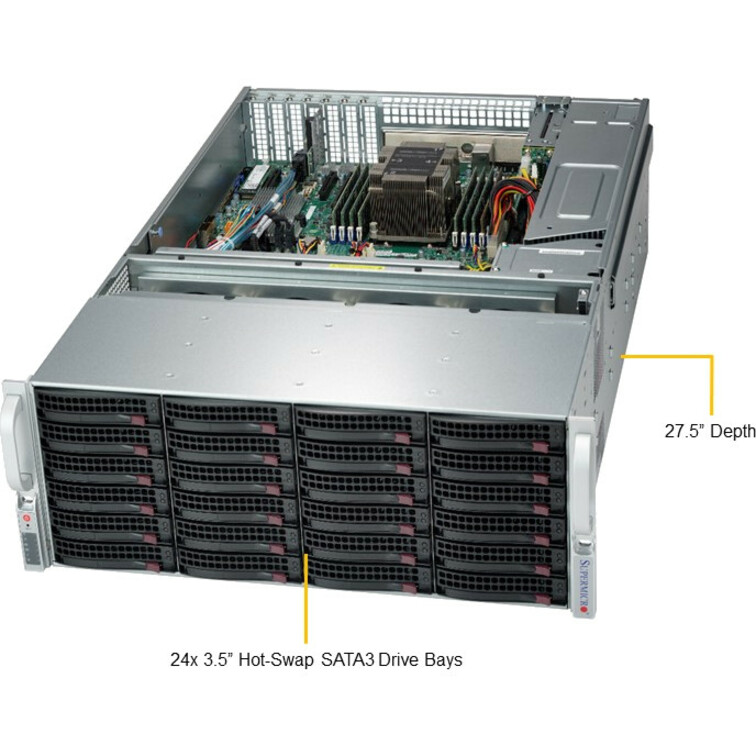

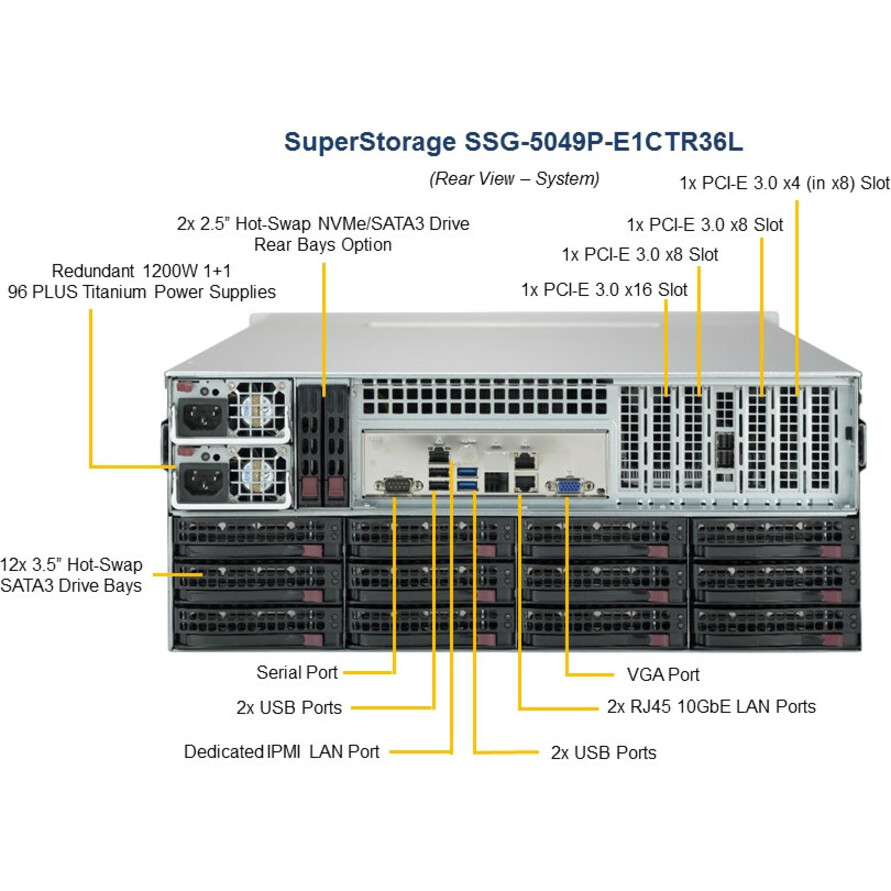

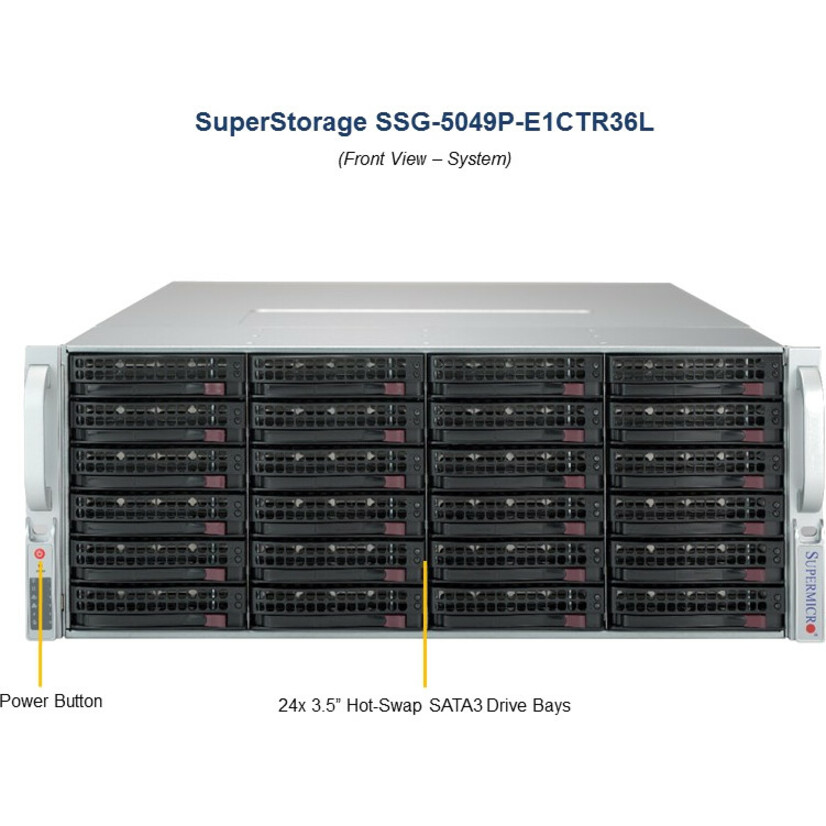

Supermicro SuperStorage 5049P-E1CTR36L Barebone System - 4U Rack-mountable - Socket P LGA-3647 - 1 x Processor Support

New-generation X11 Supermicro SuperStorage systems support node-based deployment strategies where CPU and HDD capacity scale together, or deployments can be expanded using JBODs for improved economy. Low-latency SSD applications, large media files requiring massive capacity and enterprise workloads looking for the highest performance will benefit from Supermicro's SAS 3.0 (12 Gbps) support which provides low-latency and maximum data bandwidth. The Supermicro SuperStorage systems offer a no-compromise storage platform with flexible market entry points from 2U, 3U, and 4U form factors using 2.5" or 3.5" SSDs/HDDs. SuperStorage servers support up to: 1TB 3DS ECC LRDIMM or 256GB ECC RDIMM memory, PCI-E 3.0 slots, NVMe, flexible networking options such as 10G SFP+, 10GBase-T LAN ports and IPMI 2.0 and KVM with dedicated LAN, and have support for the latest Intel^® Xeon^® Scalable processors.

Supermicro SuperStorage solutions present a number of key benefits to customers working with CPU-Intensive Storage, Virtual Storage, Single-Instance Storage and Data Deduplication, Data Replication and Business Continuity, and Virtual Tape Library customer environments.

• Xeon Platinum
• Xeon Gold
• Xeon Silver
• Xeon Bronze

• Serial ATA/600
• 12Gb/s SAS

• 120 V AC
• 230 V AC

• SuperServer 5049P-E1CTR36L (Black)

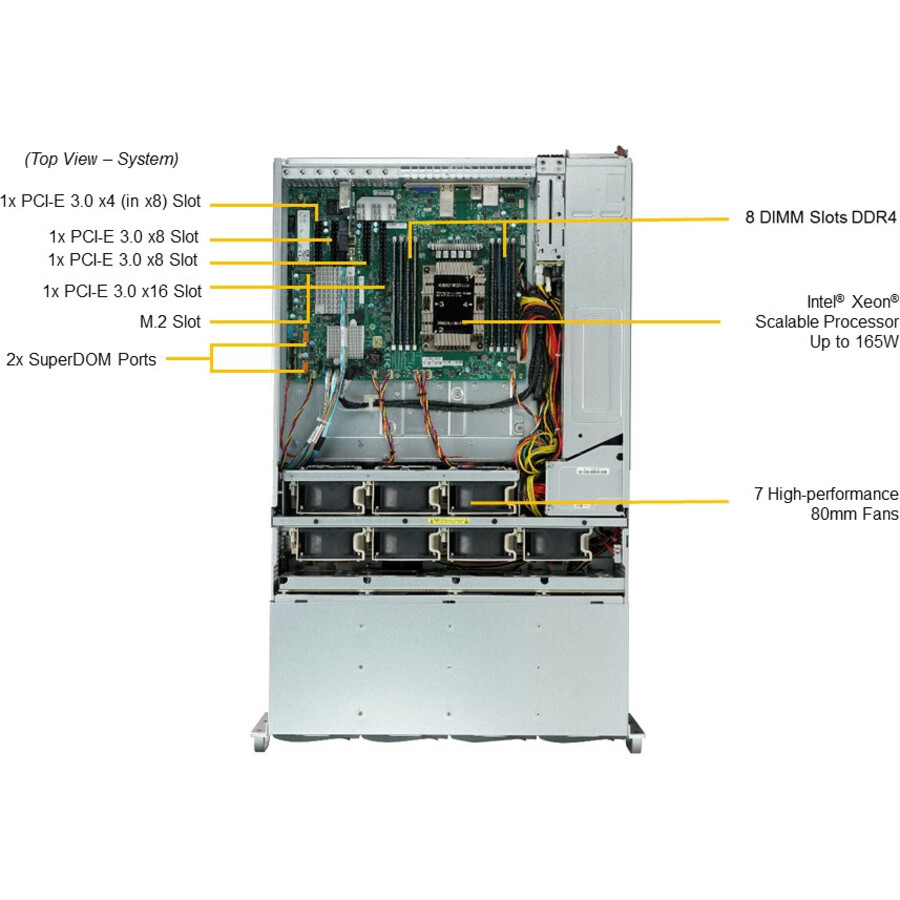

• 1 x Super X11SPH-nCTF Motherboard
• 1 x 4U Chassis
• 1 x 8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket,HF,RoHS/REACH
• 1 x 12-port 2U SAS3 12Gbps single-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD
• 1 x 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
• 4 x 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
• 6 x MINI SAS HD,12G,INT,80CM,30AWG
• 1 x Standard I/O Shield for X11SPM-TF with EMI Gasket
• 1 x 5049P-E1CR36L Quick Reference Guide
• 1 x 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
• 2 x AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
• 7 x 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH
