PCI-EXPRESS 3.1, X2, 5-PORT SATA 6G CARD, NON-RAID, JMICRON JMB585 CHIPSET, WITH

Name: PCI-EXPRESS 3.1, X2, 5-PORT SATA 6G CARD, NON-RAID, JMICRON JMB585 CHIPSET, WITH
Brand: SYBA MULTIMEDIA INC
SKU: 4212BW
Price: 42.21 USD
Availability: InStock

SYBA MULTIMEDIA INC

PCN#

4212BW

MFG#

SI-PEX40139

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$42.21

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $14.99

1-Year $10.99

Estimated Shipment:

Product Highlights:

Serial ATA/600
PCI Express x4
Plug
in Card
5 Total SAS Port(s)
5 SAS Port(s) Internal
PC, Linux

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

IO Crest 5 port Non-RAID SATA III 6Gbp/s PCI-e x4 Controller Card

Overview

Tech Specs

Specifications

Manufacturer	SYBA Multimedia, Inc
Manufacturer Part Number	SI-PEX40139
Manufacturer Website Address	http://www.syba.com
Brand Name	IO Crest
Product Name	5 port Non-RAID SATA III 6Gbp/s PCI-e x4 Controller Card
Marketing Information	Using the JMB585 chipset, the SI-PEX40139 can provide extra 5 Port SATA III to any free PCI-e x4 slot with PCIe Gen3 x2 bandwidth. For the storage solution based on data transfer of multiple hard drives, the newly added FIS-based switching design can overcome the bottlenecks created by operating multiple SATA storage devices simultaneously. The data transmission rate of the JMB585 can achieve to 1700MB/s, which is the maximum transfer speed of PCIe Gen3 x2.
Packaged Quantity	1
Product Type	SATA Controller

Technical Information

Host Interface	PCI Express x4
Controller Type	Serial ATA/600
RAID Supported	No

Interfaces/Ports

Total Number of SAS Ports	5
Number of SAS Ports (Internal)	5

Physical Characteristics

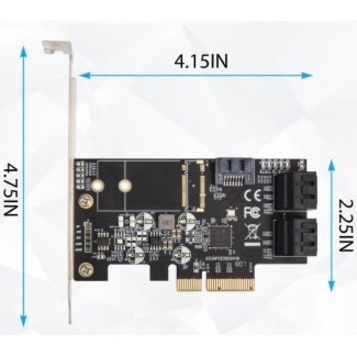

Height	4.8"
Width	4.2"
Form Factor	Plug-in Card

Miscellaneous

Package Contents	5 port Non-RAID SATA III 6Gbp/s PCI-e x4 Controller Card 5 x SATA Cables Manaul
Platform Supported	PC Linux
Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	China

Warranty

Limited Warranty

3 Year
