THUNDERBOLT 5 TRIPLE VIDEO 8K DOCKING STATION WITH 140W EPR

Name: THUNDERBOLT 5 TRIPLE VIDEO 8K DOCKING STATION WITH 140W EPR
Brand: TARGUS
SKU: 160H88
Price: 330.82 USD
Availability: InStock

TARGUS

PCN#

160H88

MFG#

DOCK230USZ

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$330.82

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

for Workstation, Microphone, Speaker, Headphone, Display Screen, Keyboard, Mouse, Monitor
Charging Capability
180 W
Thunderbolt 5
3 Displays Supported
8K
7680 x 4320
4 x USB Ports
4 x USB Type
A Ports
USB Type
A
1 x RJ
45 Ports
Network (RJ
45)
0 x HDMI Ports
0 x DisplayPorts
0 x Mini DisplayPort
Silver
Thunderbolt
Wired
2.5 Gigabit Ethernet
Windows, macOS
140W

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 5 lbs.

Targus Thunderbolt 5 Triple Video 8K EcoSmart Dock with 140W EPR

Overview

Tech Specs

Specifications

Manufacturer	Targus Group International
Manufacturer Part Number	DOCK230USZ
Manufacturer Website Address	http://www.targus.com
Brand Name	Targus
Product Model	DOCK230USZ
Product Name	Thunderbolt 5 Triple Video 8K EcoSmart Dock with 140W EPR

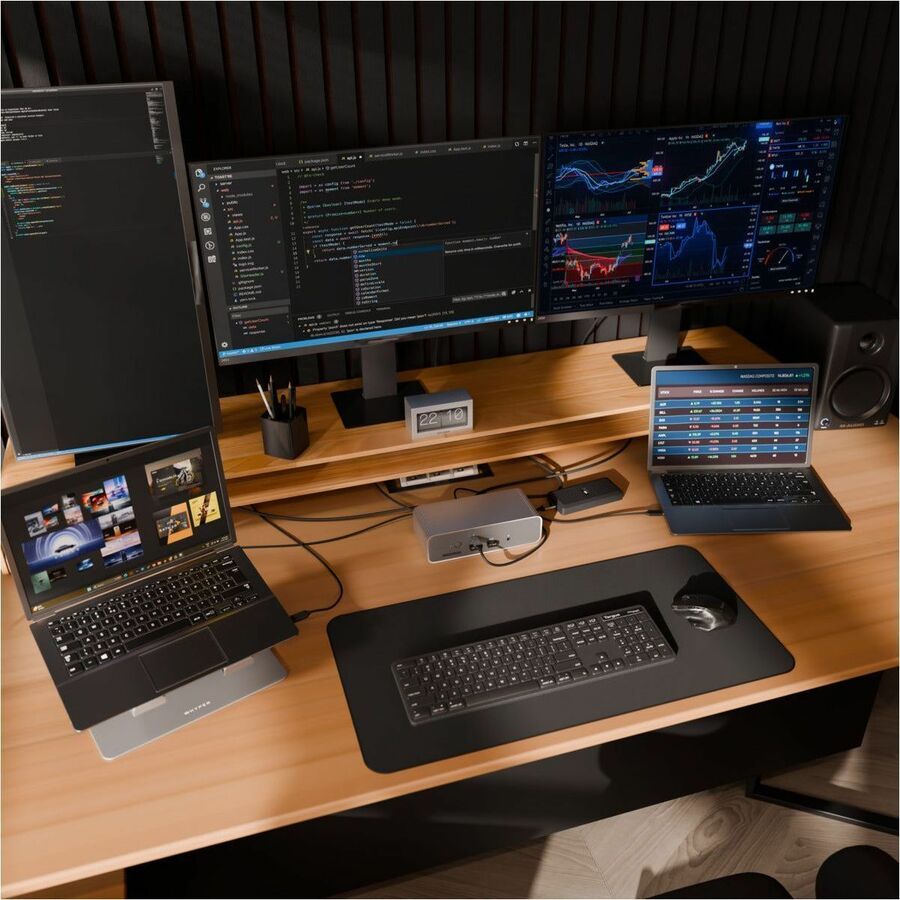

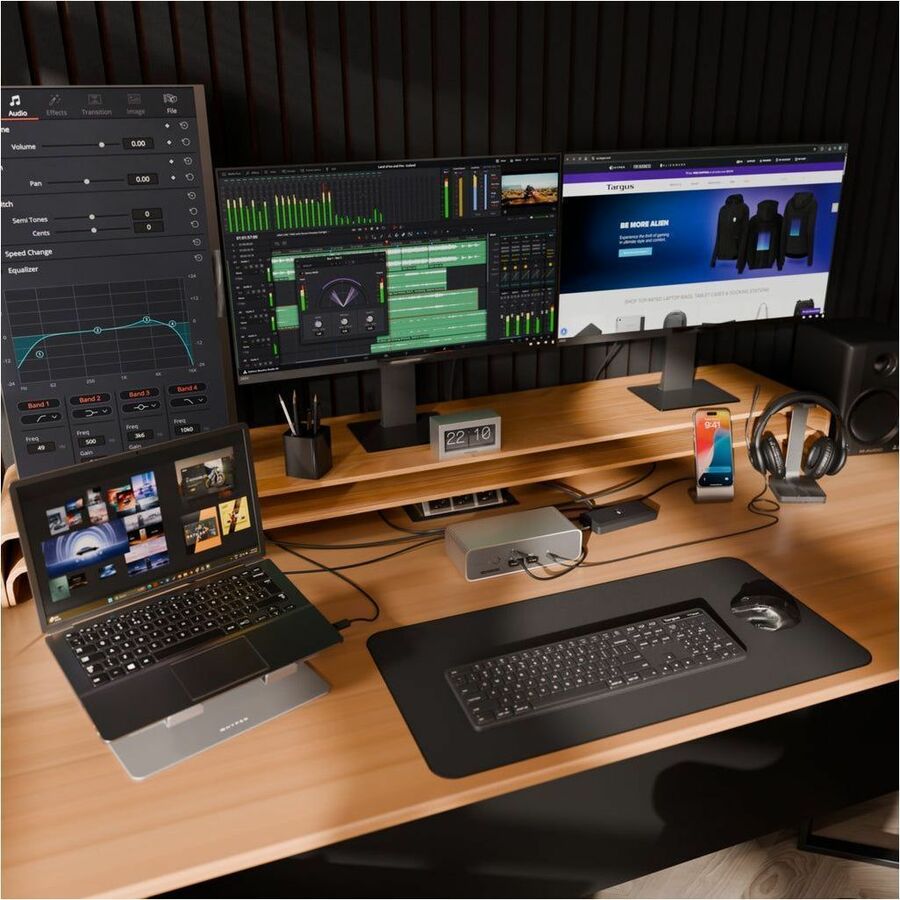

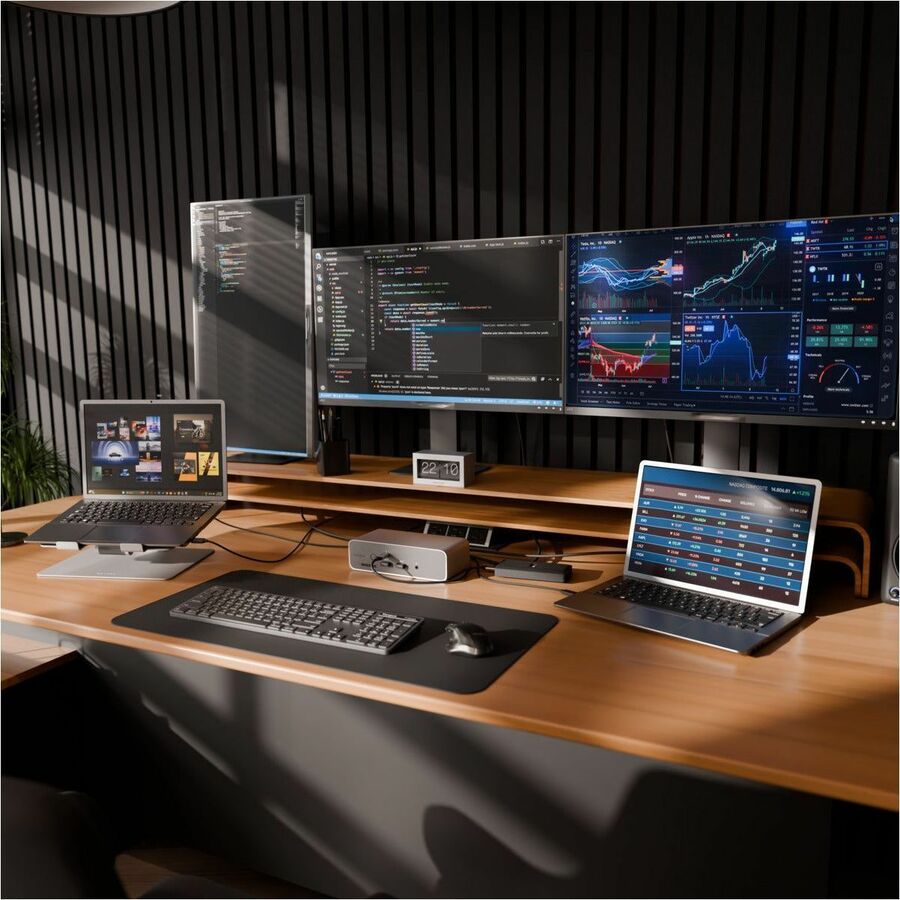

Marketing Information	Give your workspace the ultimate boost with the Thunderbolt™ 5 Triple Video 8K EcoSmart™ Docking Station with 140W EPR. Whether you're juggling a multi-monitor setup or need some serious charging power, this dock has it all. Zip through data transfers at a lightning-fast 80 Gbps and enjoy up to three video streams at 120 Gbps, all thanks to Thunderbolt 5 connectivity. Plus, enjoy ultra-fast network connections with 2.5G Ethernet, all while keeping it powered up with a robust 140W EPR. In addition to being speedy, this dock lets you multitask like a pro with two laptops by incorporating Intel's Thunderbolt Share™ technology for seamless sharing of displays and files with just one keyboard and mouse. And while a true powerhouse on the inside, it's designed with recycled materials on the outside, making it the sustainable choice for earth-conscious power users. Unmatched Speeds Move over Thunderbolt 4 and USB4 and make way for the unbeatable Thunderbolt™ 5 speeds. Experience the next generation of docking with up to 3x the bandwidth over TB4 and USB. But don't worry. It's fully compatible with both TB4 and USB4 - making it a true team player. Don't forget, it also supports elevated network speeds with its 2.5G Ethernet port - perfect for those high-performance needs. Triple Video Support Maximize your productivity with the capability to connect up to three monitors. Our docking station transforms your workspace, allowing for effortless multitasking with single, dual even triple 8K resolution support. Amped up Charging Equip your high-performance laptop with equally impressive power. With up to 140W EPR, DOCK230 will keep your laptop and accessories charged and ready for action. Ports for Peripherals While stacked with Thunderbolt™ 5 ports, this dock also features four USB 3.2 Gen 2 Type-A ports for connecting those latest keyboards, exterior drives, and other peripherals needed to customize your workspace. Eco-Friendly Exterior Crafted with 75% recycled post-consumer plastics and aluminum, this dock combines outstanding performance with a commitment to sustainability, contributing to a greener future without compromising on speed or reliability. Do More with Thunderbolt™ Share Elevate your productivity and collaboration with Intel's Thunderbolt™ Share. Effortlessly share screens, files, or peripherals between two PCs at lightning-fast Thunderbolt™ speeds. Unlock this seamless PC-to-PC connection by downloading the included Thunderbolt Share software.
Product Type	Docking Station

Technical Information

Connectivity Technology	Wired
Charging Capability	Yes
Device Supported	Workstation Microphone Speaker Headphone Display Screen Keyboard Mouse Monitor
Cable Length	3.28 ft
Features	Power Delivery Pass-through
Number of Displays Supported	3
Screen Mode Supported	8K
Supported Resolutions	7680 x 4320
Maximum Data Transfer Rate	15 GB/s
Security Slot Type	Nano Security Slot Kensington Security Slot

Network & Communication

Ethernet Technology

2.5 Gigabit Ethernet

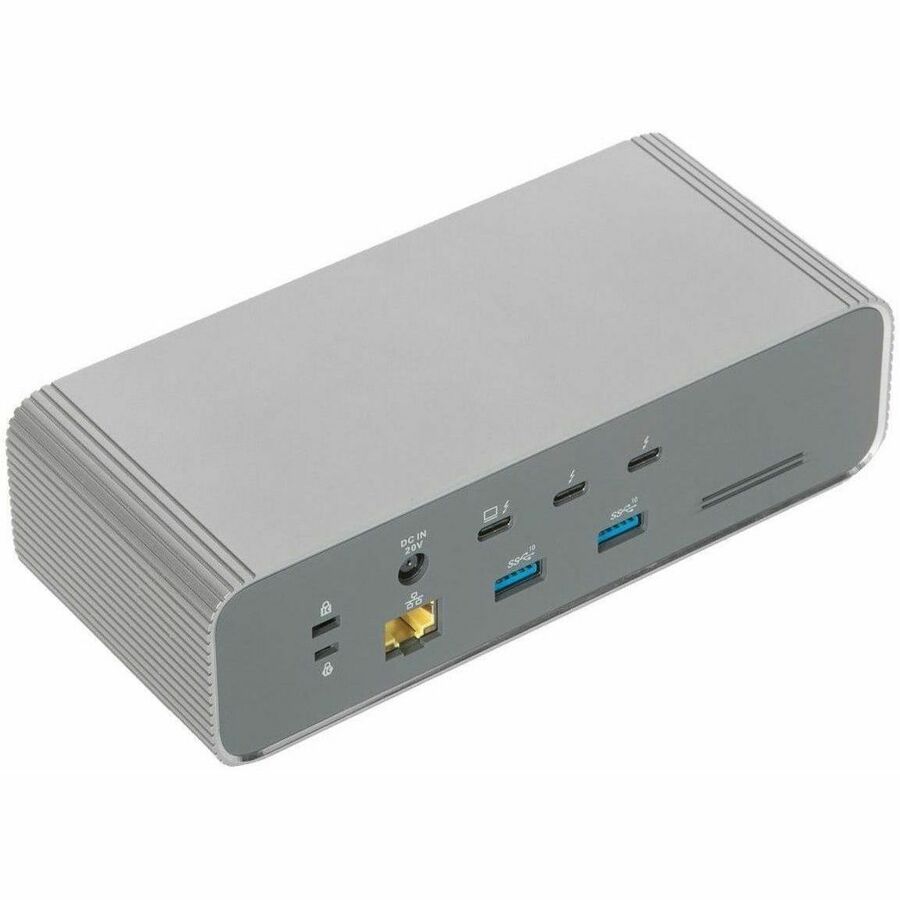

Interfaces/Ports

Host Interface	Thunderbolt 5
Total Number of USB Ports	4
USB Type-A	Yes
Number of USB 3.2 Gen 2 Type-A Ports	4
Number of USB Type-A Ports	4
Network (RJ-45)	Yes
Number of RJ-45 Ports	1
VGA	No
Number of VGA Outputs	0
DisplayPort	No
Number of DisplayPorts	0
Mini DisplayPort	No
Number of Mini DisplayPort	0
Headphone/Microphone Combo Port	Yes
HDMI	No
Number of HDMI Ports	0
Thunderbolt	Yes
Thunderbolt Ports Quantity	3
USB Power Delivery	140W

Software

Operating System Supported

Windows
macOS

Power Description

Maximum Power Supply Wattage	180 W
Power Source Type	Power Adapter

Physical Characteristics

Color Family	Silver
Product Color	Silver
Weight (Approximate)	2.33 lb

Miscellaneous

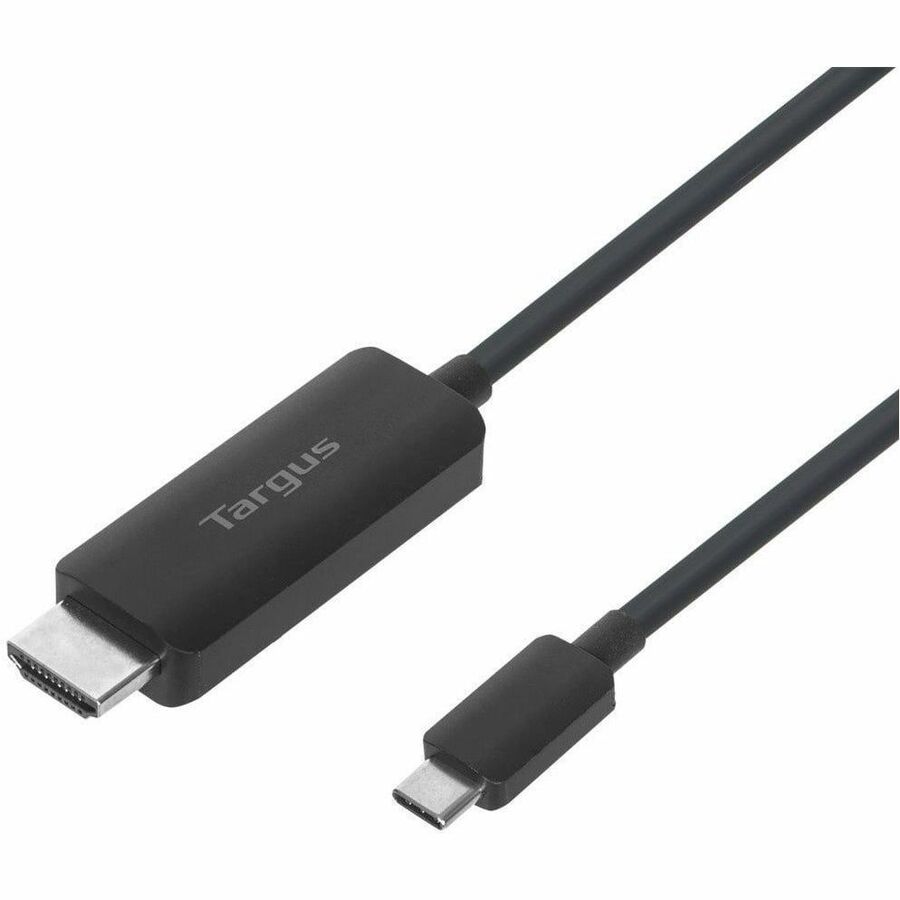

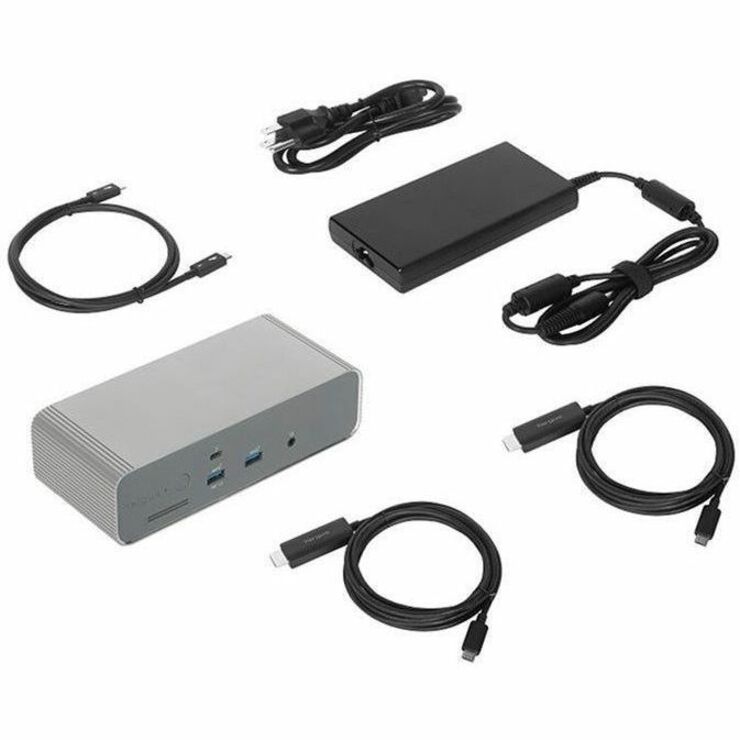

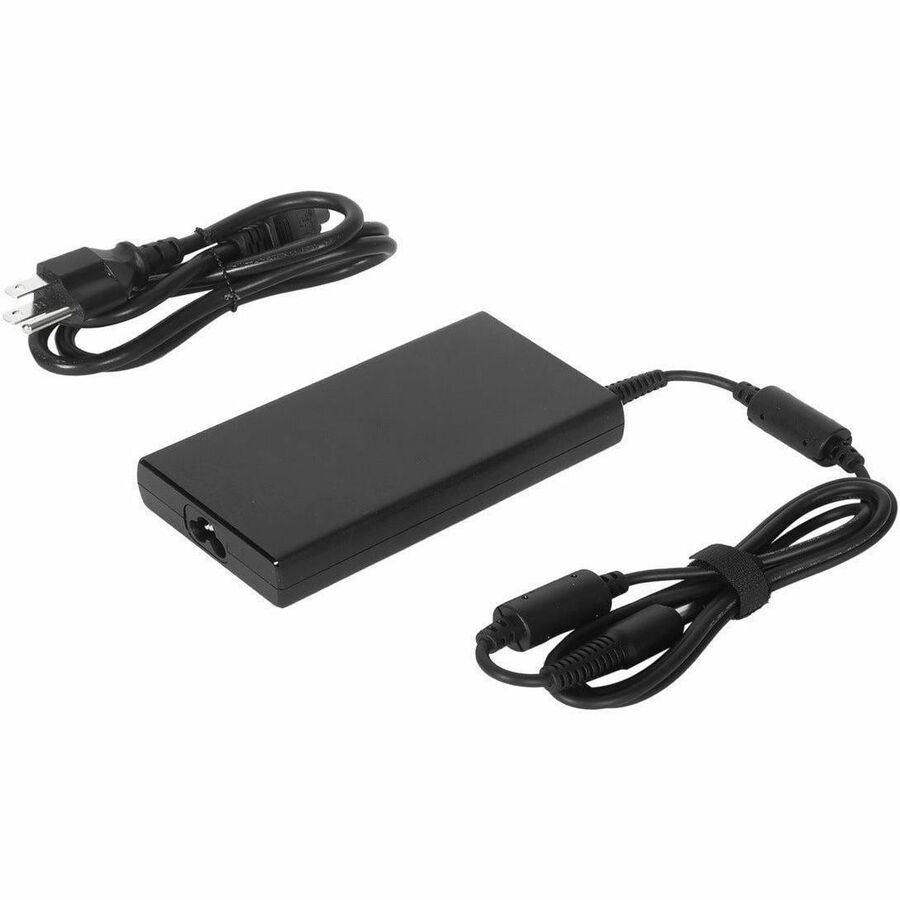

Package Contents	Thunderbolt 5 Triple Video 8K EcoSmart Dock with 140W EPR Quick Start Guide USB-C to HDMI Hi-Speed 8K video cables, Black; 2m, (part #: TBD) USB-C to HDMI Hi-Speed 8K video cables, Black; 2m, (part #: TBD) Adapter, AC to DC, output: 20V, 9A, 180W, Desk type (part #: TBD) Cable, Input US AC cable cord set, 3pins, 1.8M, C5 connector (part #: TBD) 1.0M passive (80 Gbps data transfer/120 Gbps of video bandwidth) Thunderbolt™ 5 detachable cable (C/M to C/M) (part #: TBD)
Kensington Security Slot	Yes
Post-consumer-waste%	75%
TAA Compliant	No

Warranty

Limited Warranty

3 Year
