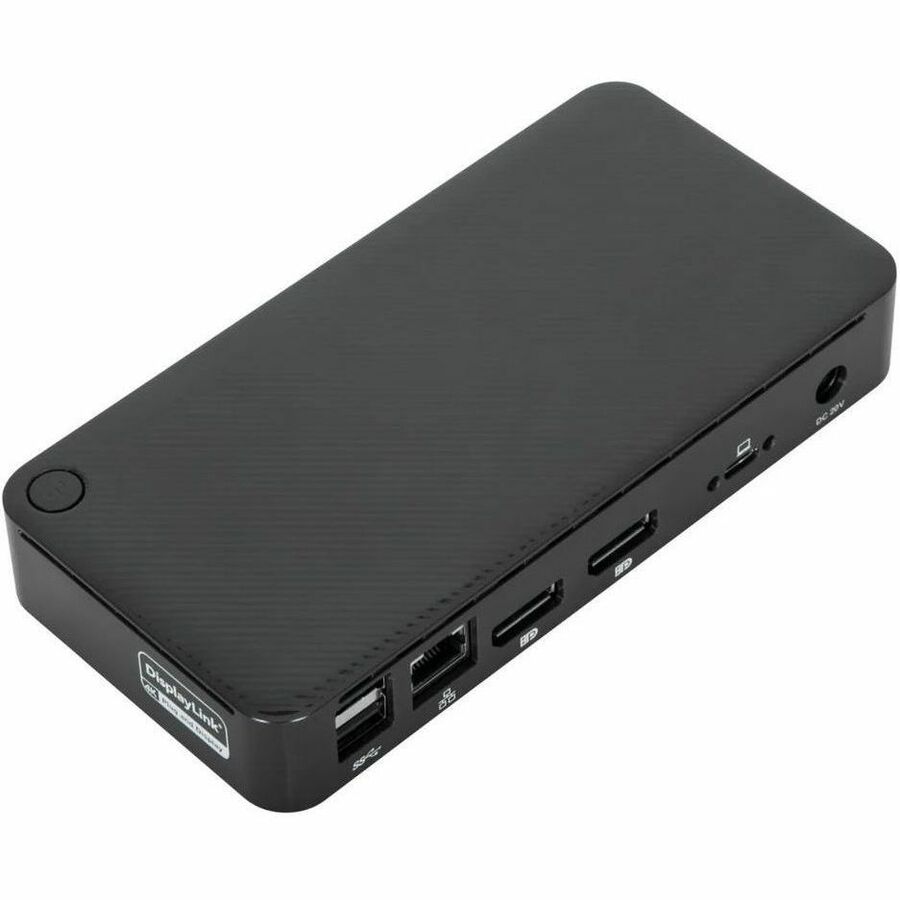

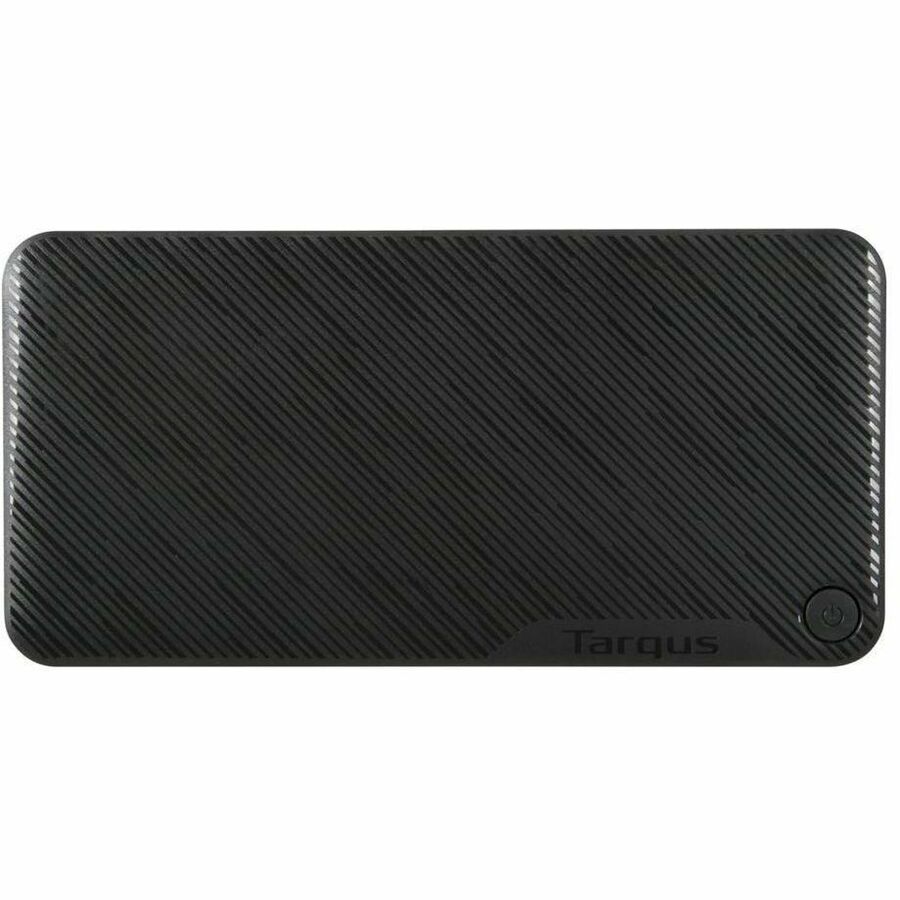

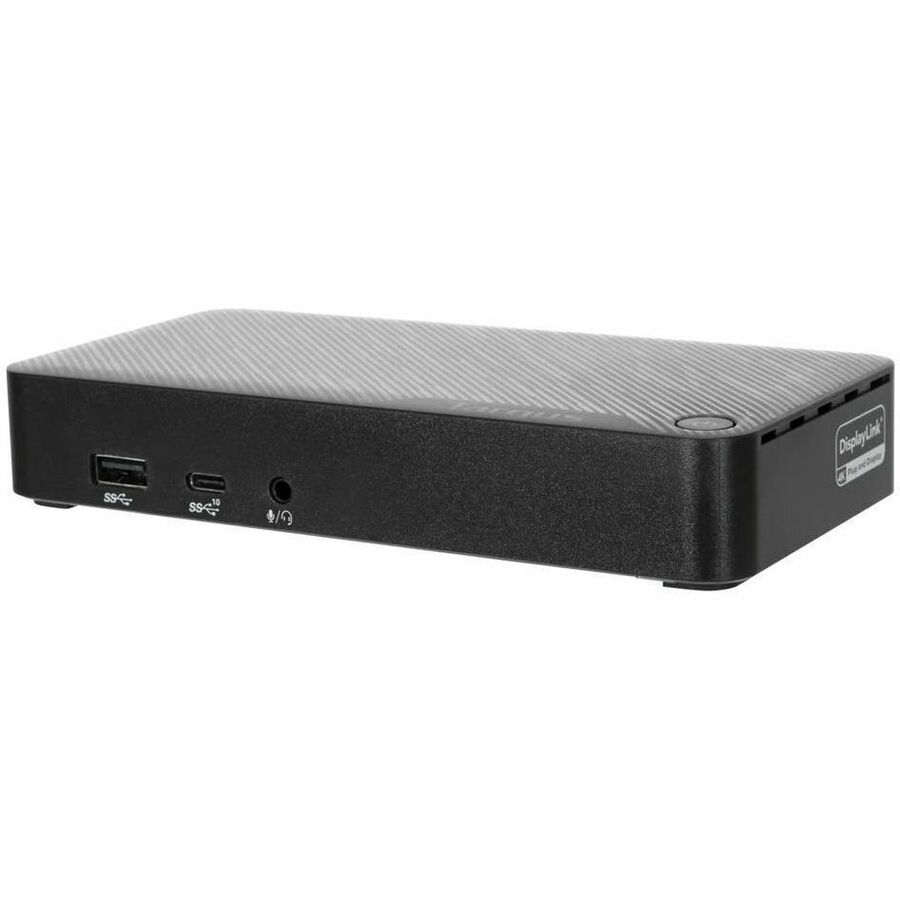

UNIVERSAL USB-C DV4K DP DOCKING STATION WITH 100W POWER DELIVERY

Name: UNIVERSAL USB-C DV4K DP DOCKING STATION WITH 100W POWER DELIVERY
Brand: TARGUS
SKU: Z39592
Price: 140.93 USD
Availability: InStock

TARGUS

PCN#

Z39592

MFG#

DOCK316USZ

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$140.93

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

for Keyboard, Hard Drive, Monitor, Workstation, Notebook
Charging Capability
100 W
USB Type A, USB Type C
2 Displays Supported
4K @ 60Hz, 5K @ 60Hz, 5K, 4K UHD
4096 x 2160, 5120 x 2880
4 x USB Ports
3 x USB Type
A Ports
USB Type
A
1 x USB Type
C Ports
USB Type
C
1 x RJ
45 Ports
Network (RJ
45)
2 x DisplayPorts
DisplayPort
Gray
Wired
Gigabit Ethernet
Windows, macOS, ChromeOS, Android, Ubuntu
100W
Desktop

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 3 lbs.

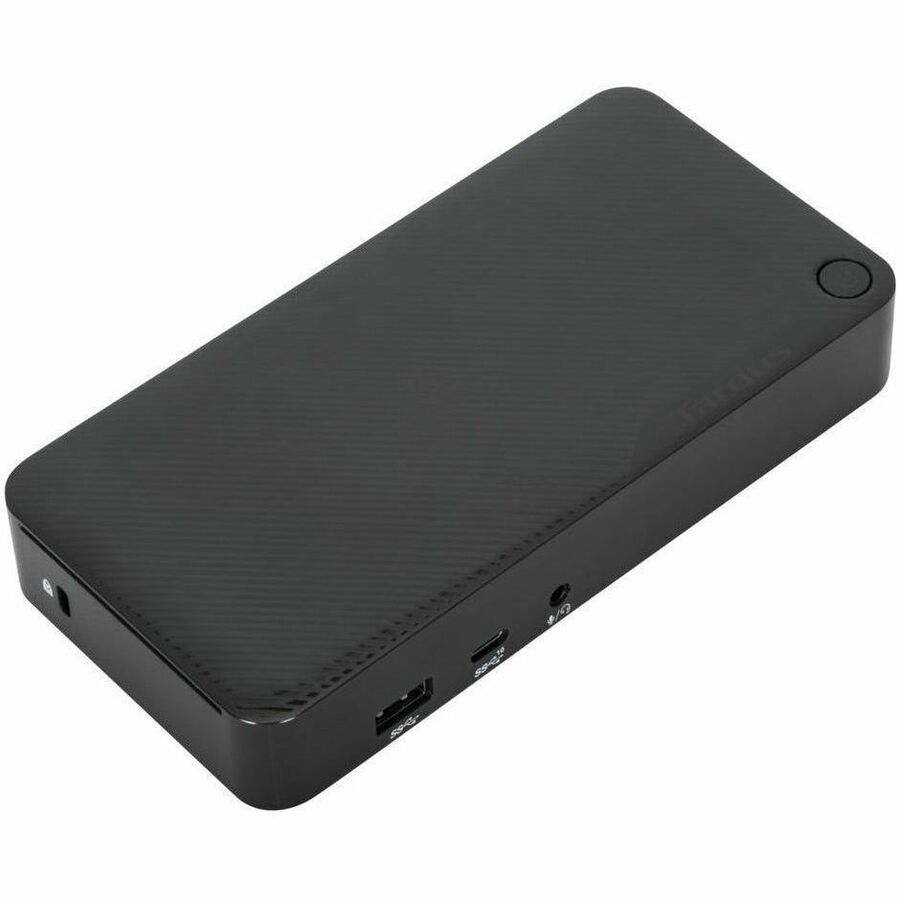

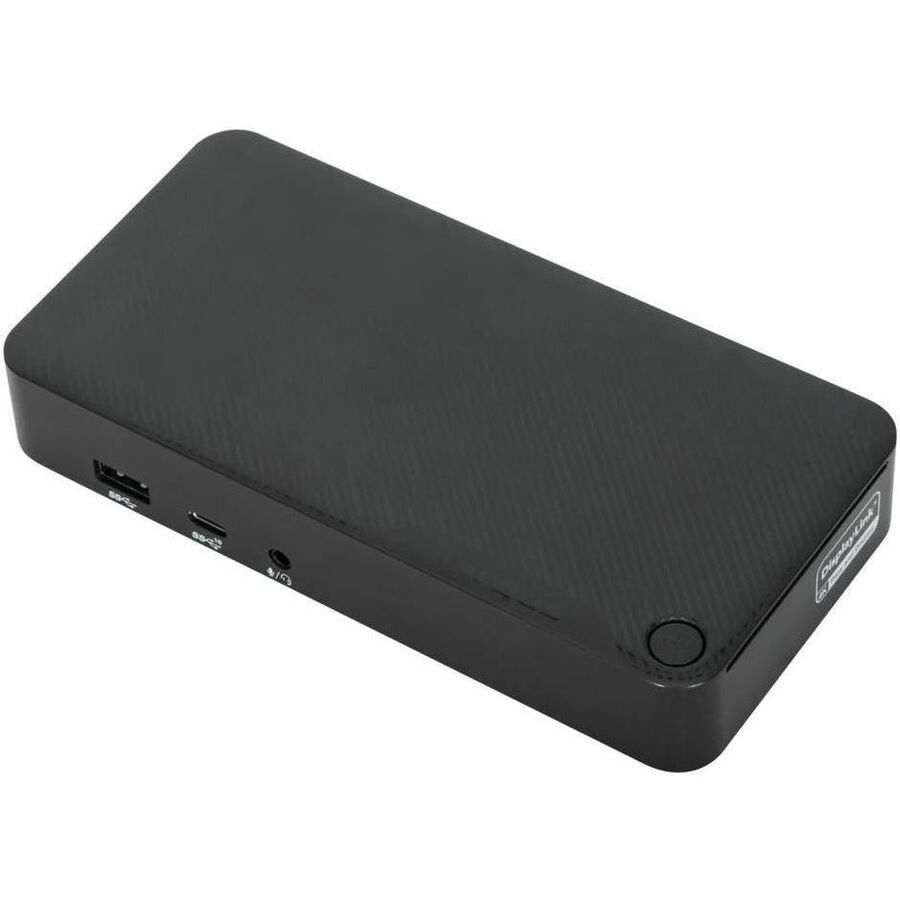

Targus Universal USB-C DV4K Docking Station with 100W Power Delivery

Overview

Tech Specs

Specifications

Manufacturer	Targus Group International
Manufacturer Part Number	DOCK316USZ
Manufacturer Website Address	http://www.targus.com
Brand Name	Targus
Product Line	Universal
Product Model	DOCK316USZ
Product Name	Universal USB-C DV4K DP Docking Station with 100W Power Delivery

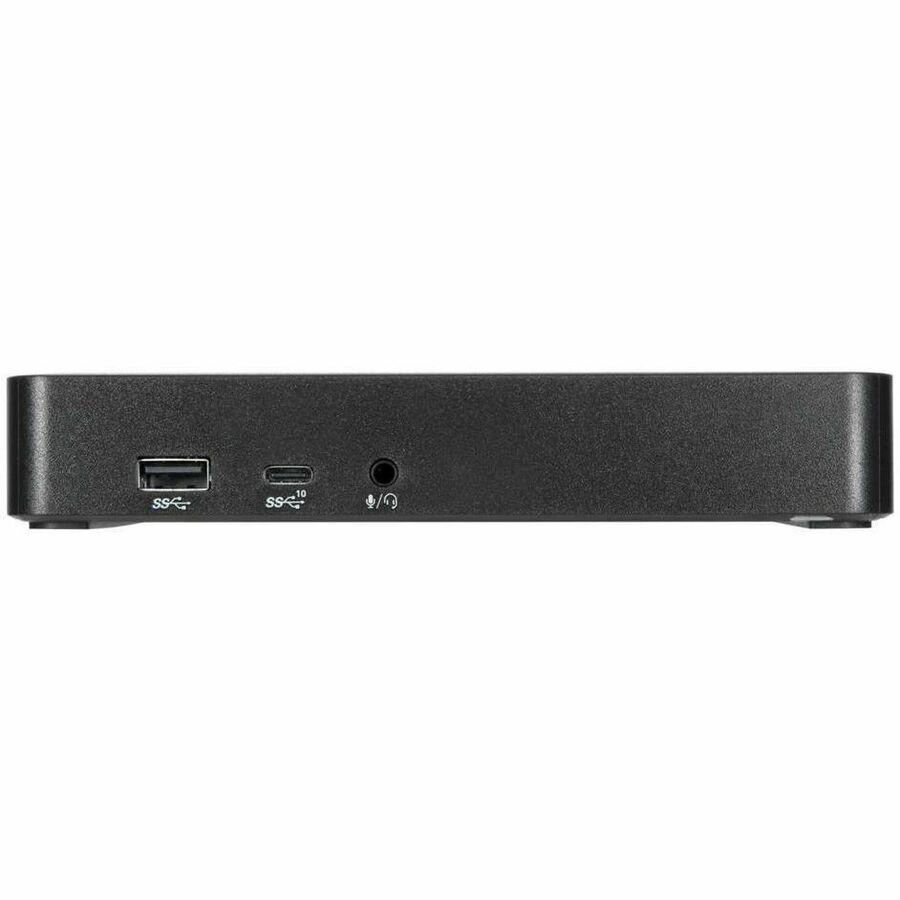

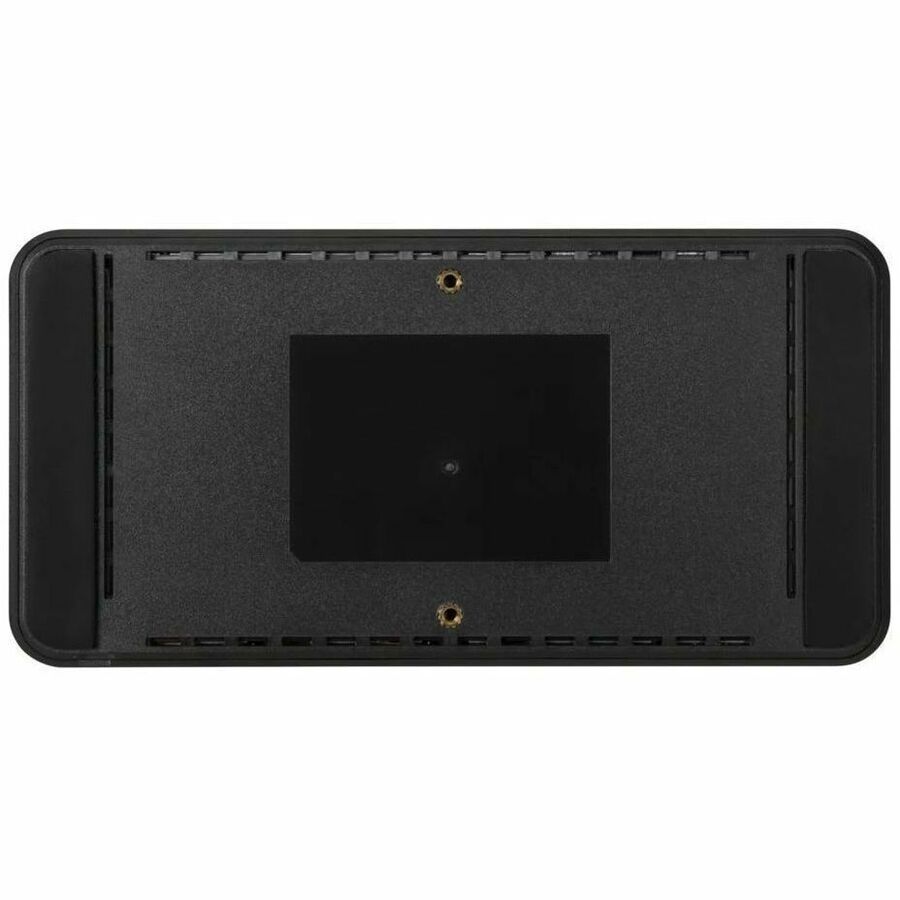

Marketing Information	Expand your workstation and connect to nearly any laptop with the Universal USB-C DV4K DP Docking Station with 100W Power Delivery. Designed to support and power a wide variety of laptop brands and operating systems, this dock packs all of the ports and power you need. With video performance up to 4096x2160 p60 for dual displays or single 5120x2880 p60 via DisplayPort, you are sure to get crisp and clear images. Connect all of your favorite accessories with a combination of USB-A (3x USB 3.2 Gen 1 Type-A ports) and USB-C (1x USB 3.2 Gen 2 Type-C), plus Ethernet and audio ports. Supports Two DisplayPort Monitors Access the latest display technology with two DisplayPort ports that creates a rich, ultra-high-definition viewing experience. Onboard USB 3.2 for Advanced Peripherals and Charging Three USB 3.2 Gen 1 Type-A ports and 1 USB 3.2 Gen 2 Type-C 10Gbps port make it simple to add the latest keyboards, exterior hard drives, and other peripherals to customize the workspace experience. Innovative Design Compact and sleek, this dock is a sure fit for shrinking desktops and tight spaces. The dock is also equipped with a VESA bracket mounting provision, which allows for use of the Targus VESA Mount Bracket (ACX003GLZ - sold separately) to hold your dock behind your display for even greater space savings. Enterprise Software Suite: A Targus Exclusive Enhance security and improve user experience with the Targus Enterprise Software Suite for DOCK316USZ. Wi-Fi Auto Switch: auto enables/disables Wi-Fi functionality when the dock's Ethernet connection is active, reducing unnecessary network traffic and enabling faster connection speeds. MAC Address Cloning: auto replaces the MAC address of the connected Targus Ethernet network adapter with any (Wired Ethernet, Wireless Ethernet, Bluetooth) MAC address of the local host, supporting device-based authentication methods.
Packaged Quantity	1
Product Type	Docking Station

Technical Information

Connectivity Technology	Wired
Charging Capability	Yes
Device Supported	Keyboard Hard Drive Monitor Workstation Notebook
Cable Length	3.28 ft
Features	Power Delivery Pass-through Compact Cable Lock Slot
Management Features	MAC Address Pass-through
Number of Displays Supported	2
Screen Mode Supported	4K @ 60Hz 5K @ 60Hz 5K 4K UHD
Supported Resolutions	4096 x 2160 5120 x 2880
Maximum Data Transfer Rate	1.25 GB/s

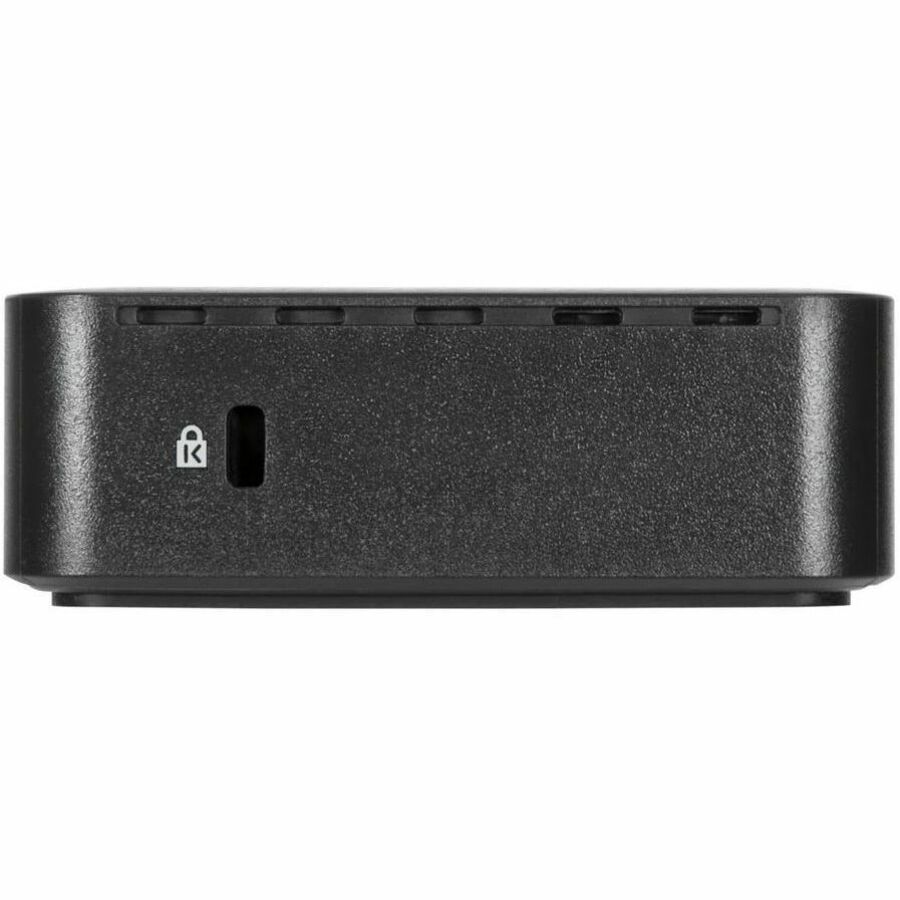

Security Slot Type	Kensington Security Slot

Network & Communication

Ethernet Technology

Gigabit Ethernet

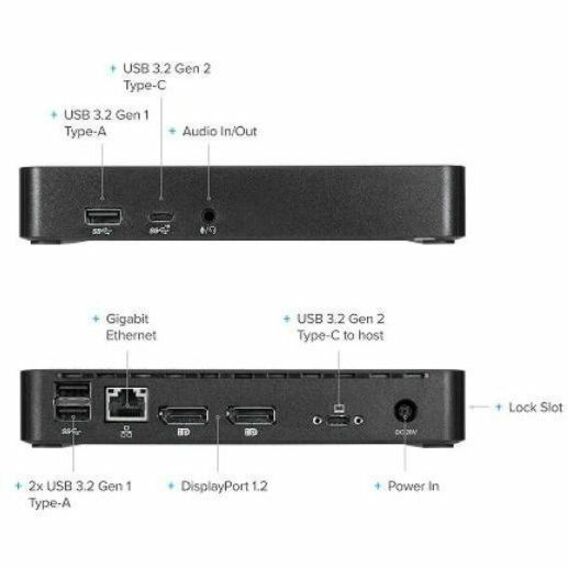

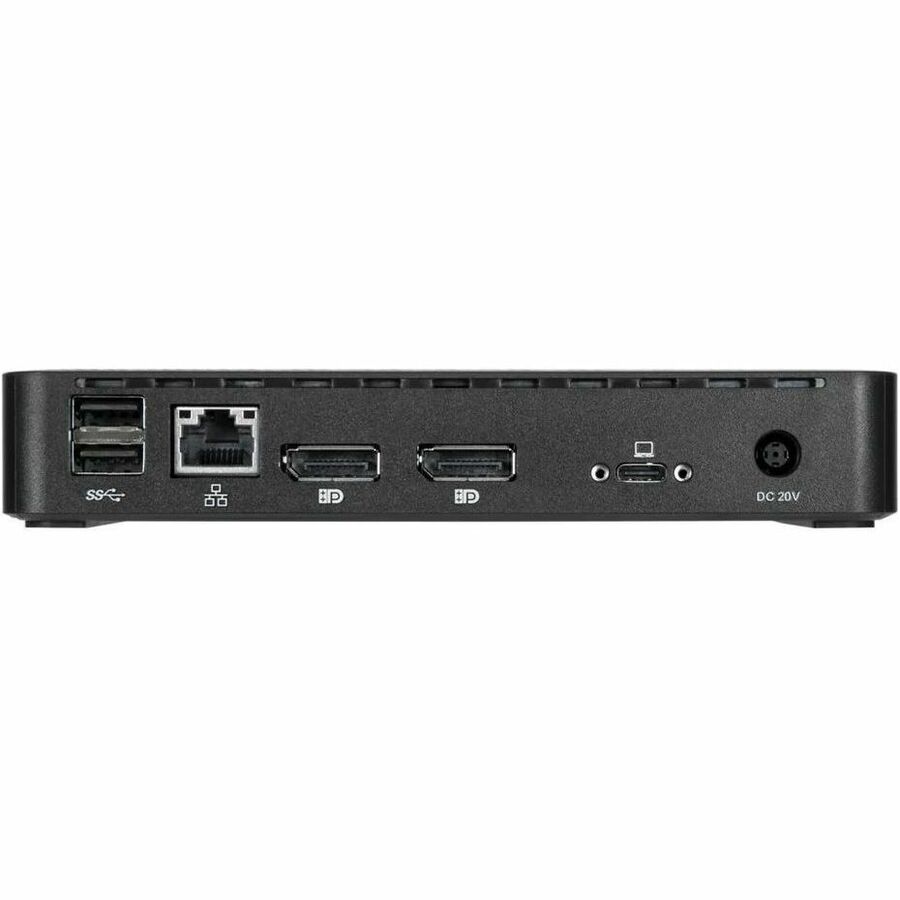

Interfaces/Ports

Host Interface	USB Type A USB Type C
Total Number of USB Ports	4
USB Type-A	Yes
Number of USB 3.2 Gen 1 Type-A Ports	3
Number of USB 3.2 Gen 2 Type-C Ports	1
Number of USB Type-A Ports	3
USB Type-C	Yes
USB Type-C Detail	1 x USB-C Ports / 3.2 Gen 2
Number of USB Type-C Ports	1
Network (RJ-45)	Yes
Number of RJ-45 Ports	1
VGA	No
DisplayPort	Yes
Number of DisplayPorts	2
DisplayPort Version	1.2
Mini DisplayPort	No
Number of Mini DisplayPort	0
Headphone/Microphone Combo Port	Yes
HDMI	No
Number of HDMI Ports	0
DVI	No
Thunderbolt	No
USB Power Delivery	100W

Software

Operating System Supported

Windows
macOS
ChromeOS
Android
Ubuntu

Power Description

Input Voltage Detail	20 V DC
Maximum Power Supply Wattage	100 W
Power Source Type	Power Adapter

Physical Characteristics

Color Family	Gray
Product Color	Gray
Form Factor	Desktop
Height	1.13"
Width	3.25"
Length	6.5"
Weight (Approximate)	1 lb

Miscellaneous

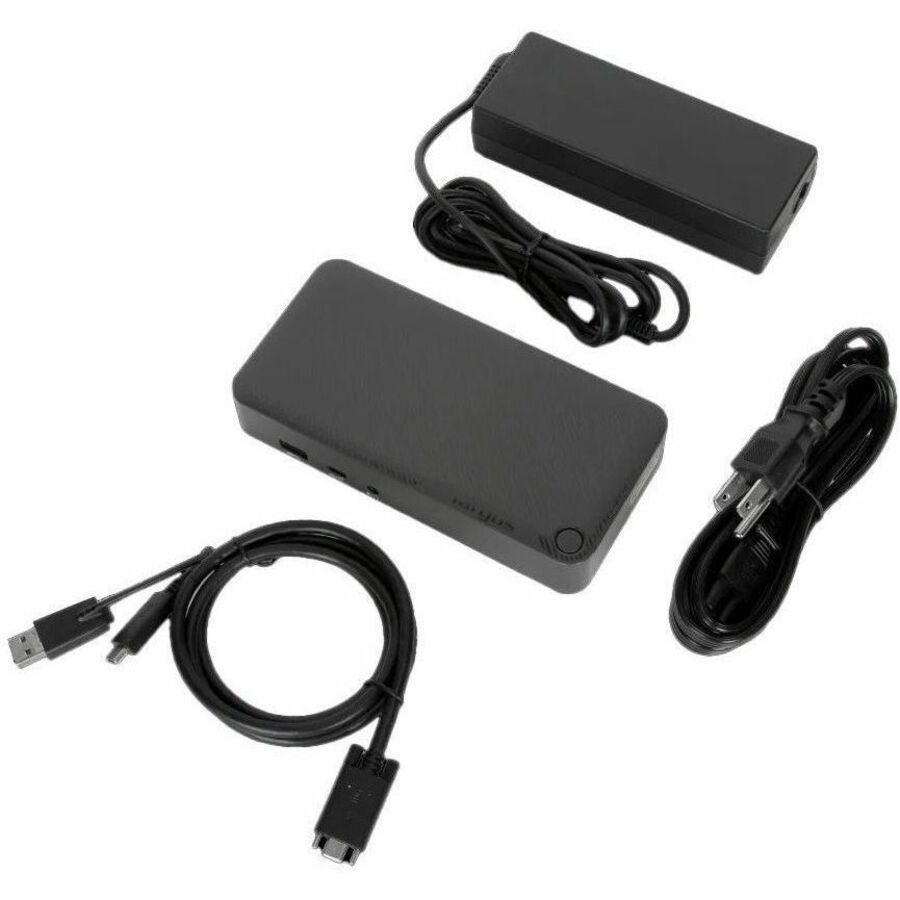

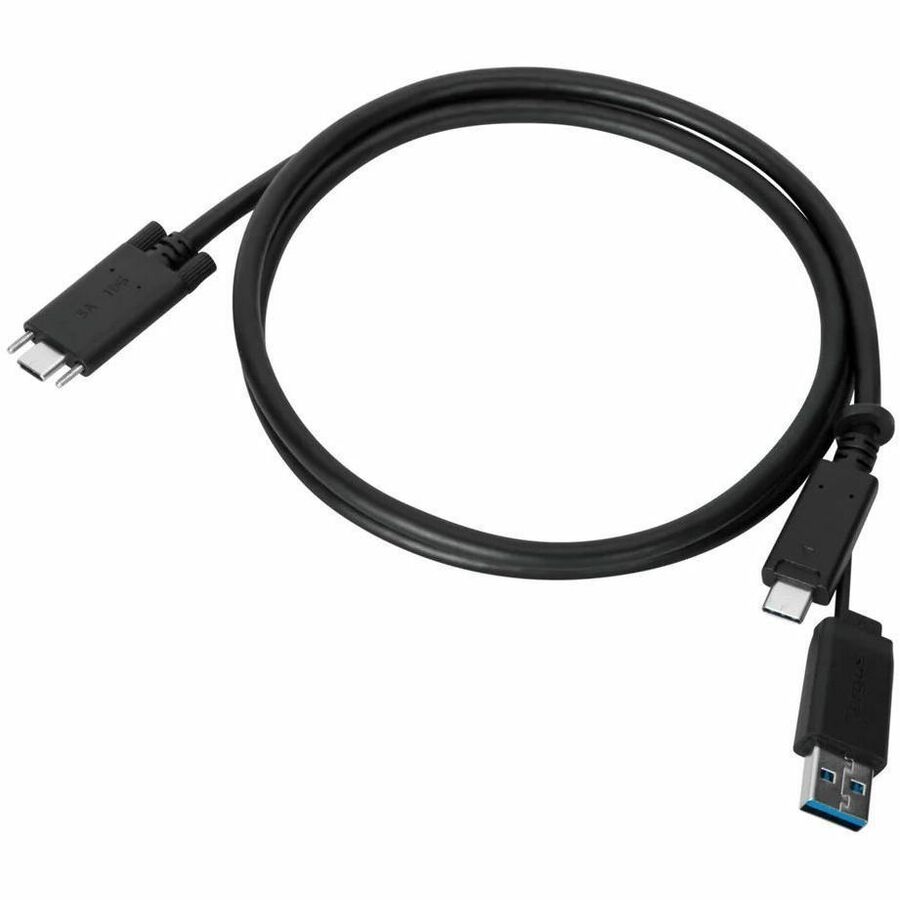

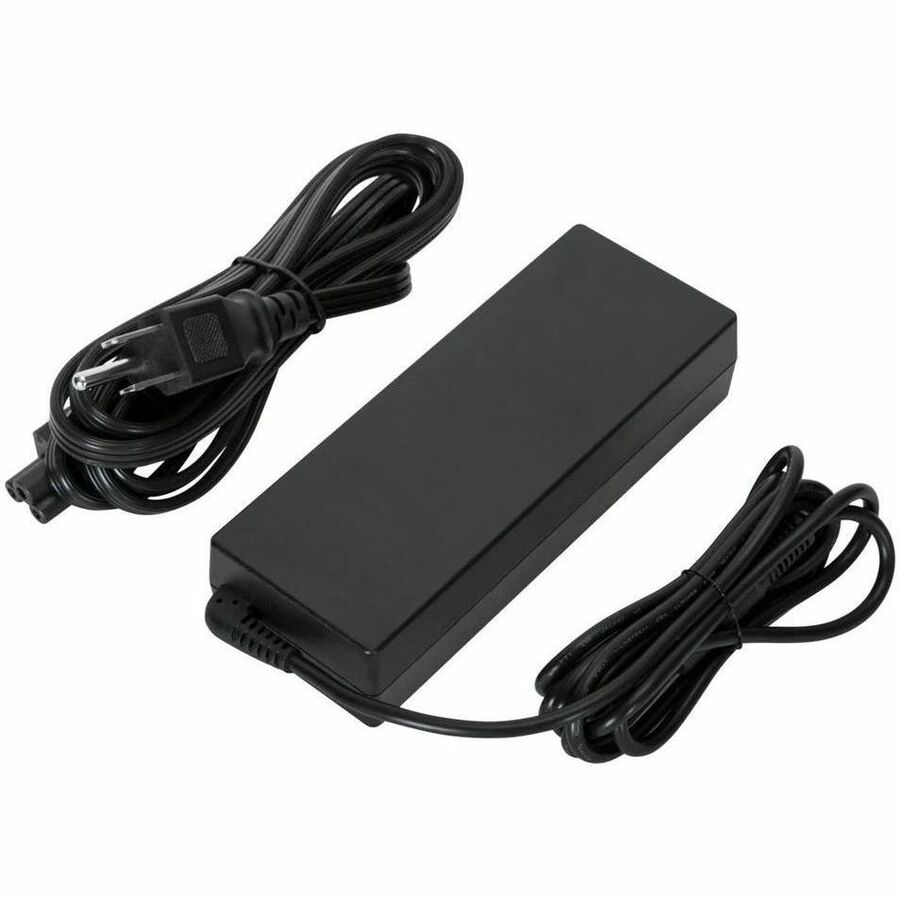

Package Contents	Universal USB-C DV4K DP Docking Station with 100W Power Delivery 1M USB-C Male with Screw to USB-C 10Gbps Male Cable with USB-A Tether (part #ACC1133GLX) Adapter, AC to DC, output: 20V, 5A, 100W, Input: C6, O/P Barrel: 7.5mm, Level VI (part #800-0491-001A) Cable, Input AC Cable Cord Set , 3pins, 1.8M, C5 Connector (part #511-0518-001A)
Kensington Security Slot	Yes
TAA Compliant	No

Warranty

Limited Warranty

5 Year
