TOSHIBA S300 PRO 8TB SURVEILLANCE 3.5 INTERNAL HDD CMR

by
TOSHIBA
PCN#
SJ8396
MFG#
HDWTA80UZSVA
$1,148.88
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Camera, Video Surveillance System, Network Video Recorder, Digital Video Recorder, Storage Array Device Supported
  • 7200rpm
  • 300 TB TBW

Show more

Product Condition: New and Factory Fresh
Limited Warranty5 Year
Shipping Weight: 1 lbs.

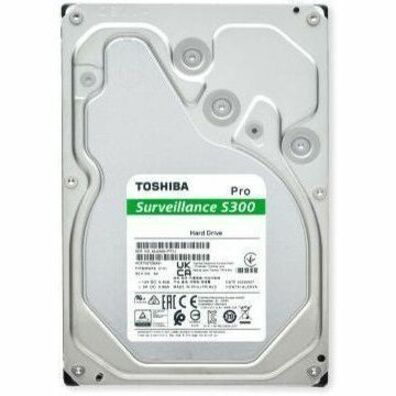

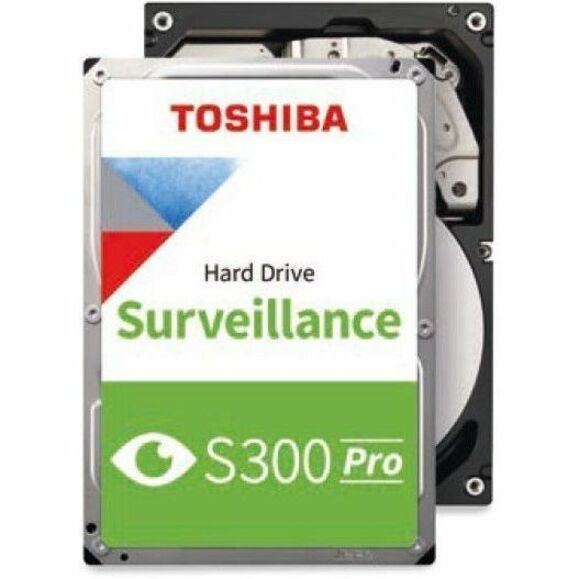

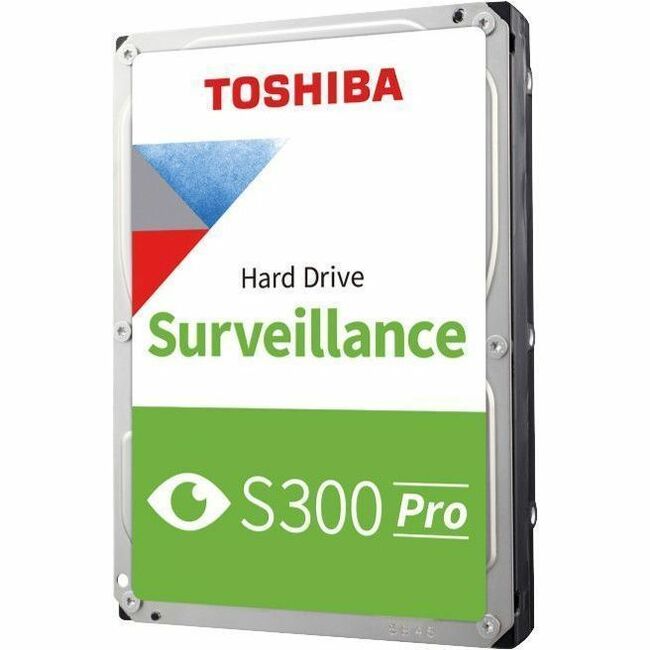

Toshiba S300 Pro HDWTA80UZSVA 8 TB Hard Drive - 3.5" Internal - SATA (SATA/600) - Conventional Magnetic Recording (CMR) Method
Tech Specs
Specifications

Manufacturer

Toshiba

Manufacturer Part Number

HDWTA80UZSVA

Manufacturer Website Address

http://www.toshiba.com

Brand Name

Toshiba

Product Line

S300 Pro

Product Model

HDWTA80UZSVA

Product Name

S300 Pro Surveillance Internal Hard Drive

Marketing Information

The Toshiba S300 Pro Surveillance Internal Hard Drives deliver up to 10 TB of storage capacity and support up to 64 high-definition surveillance video cameras for around-the-clock security.

The S300 Pro is designed for 24/7 operation, supporting up to 1.2 million hour MTTF/MTBF and up to 300 TB per year workloads rating, giving you peace of mind knowing that your surveillance stays vigilant.

With a range of available large capacities and 7,200 rpm performance, the S300 Pro offers real-time drive performance that supports high-resolution video recording and streaming and longer content retention periods.

For high reliability and scalability in RAID and multi-disk enclosures, the S300 Pro utilizes RV sensor technology to compensate for the effects of vibration from adjacent drives or cooling fans. Robust cache size helps to support smooth video recording and guard against frame drops.

Toshiba S300 Pro Surveillance Internal Hard Drive | Application

  • Surveillance Network Video Recorders (SNVR)
  • Surveillance Digital Video Recorders (sDVR)
  • Hybrid sDVR (analog and IP)
  • RAID Storage Arrays for Surveillance


Robust Performance

Workload rate of up to 300 TB/yr. MTTF/MTBF up to 1.2 million hours

Built to Last

Mitigate Rotational Vibration with built-in RV sensors. Designed to work in a wide temperature range.

Optimized Recording & Playback

Fast 7200 RPM speed with large cache size to help reduce frame loss

High Reliability

Designed for 24/7 security systems. CMR recording technology provides consistent performance and broad compatibility.

Rich Scalability

Support up to 64 HD cameras

Massive Capacity

Capture and retain surveillance-critical frame

Peace of Mind

Toshiba five-year limited warranty

Package Type

Bulk

Product Type

Hard Drive
Technical Information

Storage Capacity

8 TB

Recording Technology

Conventional Magnetic Recording (CMR)

Disk Format

512e
Drive Performance

Spindle Speed (rpm)

7200

Buffer

512 MB

Endurance (TBW)

300 TB

Mean Time Between Failures (MTBF)

136.9 Year
Interfaces/Ports

Drive Interface

SATA

Drive Interface Standard

SATA/600
Physical Characteristics

Drive Type

Internal

Form Factor

3.5"

Height

1"

Width

4"

Length

5.8"

Weight (Approximate)

1.61 lb
Miscellaneous

Device Supported

  • Camera
  • Video Surveillance System
  • Network Video Recorder
  • Digital Video Recorder
  • Storage Array

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Warranty

Limited Warranty

5 Year
