OMADA 4G+ AX3000 O/I GATEWAY OMADA 4G+ CAT6 AX3000 WI-FI 6 OUTDO

Name: OMADA 4G+ AX3000 O/I GATEWAY OMADA 4G+ CAT6 AX3000 WI-FI 6 OUTDO
Brand: TP-LINK SYSTEMS INC.
SKU: 040U07
Price: 249.99 USD
Availability: InStock

TP-LINK SYSTEMS INC.

PCN#

040U07

MFG#

ER703WP-4G-OUTDOOR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$249.99

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

4G+
LTE 2100, LTE 1800, LTE 850, LTE 2600, LTE 900, LTE 800, LTE 1450, LTE 2300, LTE 2500, WCDMA 2100, WCDMA 1800, ...
LTE, DC
HSDPA, HSPA+, HSDPA, HSUPA, WCDMA
Dual Band
2.40 GHz ISM Band
5 GHz UNII Band
4 x Antenna(2 x Internal/2 x External)
300.25 MB/s Wireless Speed
2 x Network Port
1 x Broadband Port
PoE Ports
Gigabit Ethernet
VPN Supported
Wall Mountable, Pole
mountable

Product Condition: New and Factory Fresh

Shipping Weight: 3 lbs.

TP-Link Omada ER703WP-4G-Outdoor Wi-Fi 6 IEEE 802.11 a/b/g/n/ac/ax 1 SIM Ethernet, Cellular Modem/Wireless Router

Overview

Tech Specs

Specifications

Manufacturer	TP-LINK Technologies Co., Ltd
Manufacturer Part Number	ER703WP-4G-OUTDOOR
Manufacturer Website Address	http://www.tp-link.com/us
Brand Name	TP-Link
Product Line	Omada
Product Model	ER703WP-4G-Outdoor
Product Name	ER703WP-4G-Outdoor Omada 4G+Cat6 AX3000 Outdoor/Indoor Gateway
Marketing Information	A Versatile Outdoor 4G+ Wi-Fi Gateway with Easy Deployment Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway 4G+ Cat6 Up to 300 Mbps Wi-Fi 6 Speeds up to 3.0 Gbps 802.3at/bt/Passive PoE/12V DC (Solar Compatible) 3× Gigabit Ports (2× PoE Out, 1× PoE In) & 1× Nano SIM Card Slot Centralized Cloud Management SSL/IPSec/GRE/ WireGuard/PPTP/ L2TP VPN & OpenVPN 4G and Ethernet WAN for Auto-Backup with Load Balancing IP55 Weatherproof Ideal for Remote Areas and Outdoor Use By integrating 4G network access, Wi-Fi expansion, and PoE supply into a single device, Omada delivers an all-in-one solution designed for reliable remote connectivity. Multiple Power Supply Options Powered by PoE or DC (compatible with solar panels) to overcome mains access limitations. Always-Online with AX3000 Wi-Fi 6 HE 160 Double the data at peak transmission times on a single stream OFDMA Enables different devices to share one transmission stream, increasing efficiency 1024 QAM 25% more data encoded at one time Easy Setup for both Standalone and Controller Modes \| Plug and Play Insert a Nano SIM card or connect to an Ethernet WAN Port to get gigabit Wi-Fi. Enjoy hassle-free connect to surveillance cameras via cable or wireless. Centralized Cloud Management Enables easy multi-site network setup without on-site configuration. Manage remotely via Omada app or web with free Essentials cloud services, cutting MSP/SI maintenance costs. Easy Installation Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the gateway flexibly. Specially Designed Weatherproof Enclosure for Outdoors Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the gateway against harsh outdoor conditions.
Packaged Quantity	1
Product Type	Modem/Wireless Router

Technical Information

Wi-Fi Generation	Wi-Fi 6
Network Band	Dual Band
MU-MIMO Technology	Yes
Memory Technology	DDR4 SDRAM
Standard Memory	512 MB

Wireless Specifications

Broadband Transmission Technology	Ethernet Cellular
Wireless LAN Standard	IEEE 802.11 a/b/g/n/ac/ax
ISM Band	Yes
UNII Band	Yes
ISM Maximum Frequency	2.40 GHz
UNII Maximum Frequency	5 GHz
Cellular Generation	4G+
Cellular Network Supported	LTE 2100 LTE 1800 LTE 850 LTE 2600 LTE 900 LTE 800 LTE 1450 LTE 2300 LTE 2500 WCDMA 2100 WCDMA 1800 WCDMA 850 WCDMA 900
Cellular Data Connectivity Technology	LTE DC-HSDPA HSPA+ HSDPA HSUPA WCDMA
Total Number of Antennas	4
Number of Internal Antennas	2
Number of External Antennas	2
Total Wireless Transmission Speed	300.25 MB/s
Encryption Standard	SHA-1 SHA-256 SHA-384 SHA-512 WPA-PSK WPA2-PSK WPA3-PSK WPA-ENT WPA2-ENT WPA3-ENT
Firewall Type	NAT
Wi-Fi Mesh System	Yes
Wireless Performance	AX3000

Interfaces/Ports

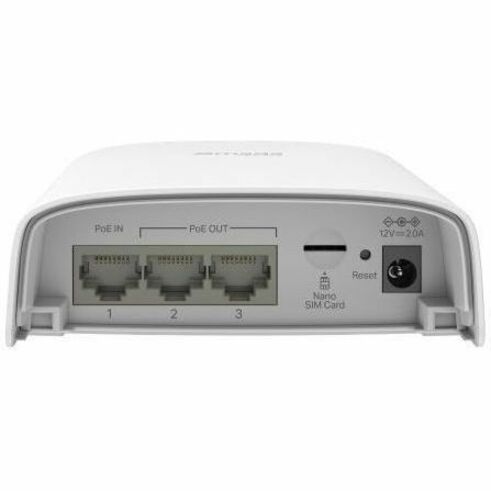

Total Number of Network Ports	3
Number of Network (RJ-45) Ports	2
PoE (RJ-45) Port	Yes
Number of Broadband (RJ-45) Ports	1

Network & Communication

Ethernet Technology	Gigabit Ethernet
VPN Supported	Yes
Multi-SIM Supported	No
Number of SIM Card Supported	1
SIM Size Supported	Nano

Storage

Flash Memory Capacity

256 MB

Physical Characteristics

Form Factor	Wall Mountable Pole-mountable
Height	6.9"
Width	4"
Depth	1.5"
Weight (Approximate)	15.17 oz

Miscellaneous

Package Contents	ER703WP-4G-Outdoor Gateway Antennas Mounting Kits Quick Installation Guide
Certifications & Standards	CE FCC
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
