OMADA 6-PORT INDUSTRIAL SWITCH 6G INDUSTRIAL SFP DIN FANLESS SW

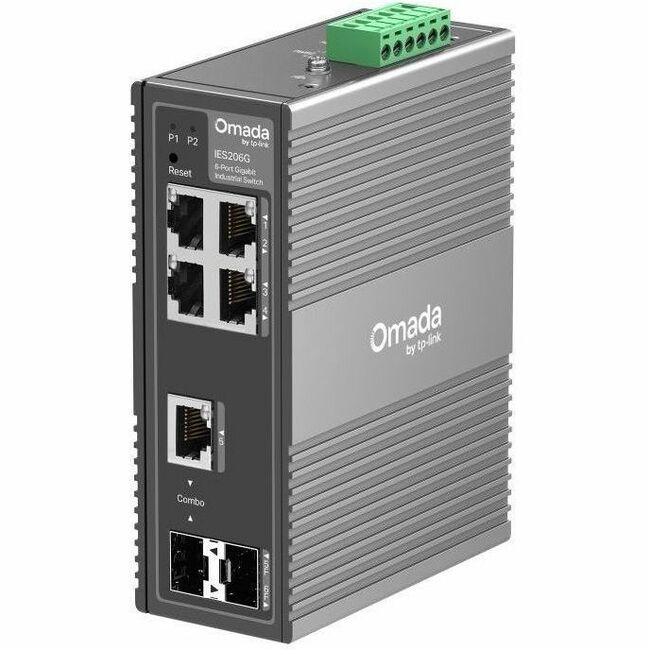

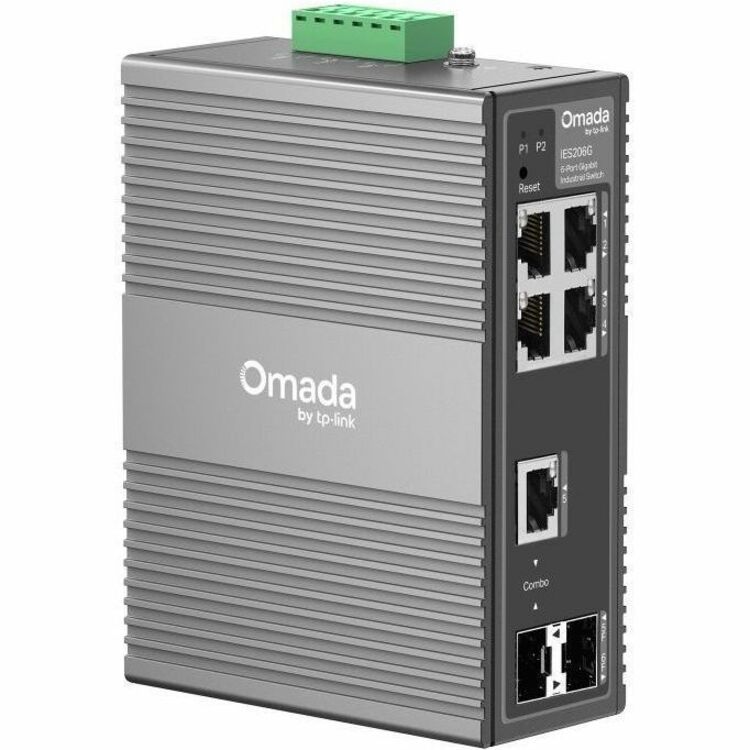

Name: OMADA 6-PORT INDUSTRIAL SWITCH 6G INDUSTRIAL SFP DIN FANLESS SW
Brand: TP-LINK SYSTEMS INC.
SKU: 510Q33
Price: 124.99 USD
Availability: InStock

TP-LINK SYSTEMS INC.

PCN#

510Q33

MFG#

IES206G

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$124.99

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

5 Ports
Manageable
Gigabit Ethernet
10/100/1000Base
T, 1000Base
X
2 Layer Supported
1 SFP Slots
Twisted Pair, Optical Fiber
DIN Rail Mountable, Wall Mountable

Product Condition: New and Factory Fresh

Shipping Weight: 2 lbs.

Omada 6-Port Gigabit Industrial Easy Managed Switch

Overview

Tech Specs

Specifications

Manufacturer	TP-LINK Technologies Co., Ltd
Manufacturer Part Number	IES206G
Manufacturer Website Address	http://www.tp-link.com/us
Brand Name	Omada
Product Model	IES206G
Product Name	6-Port Gigabit Industrial Easy Managed Switch
Marketing Information	Omada Industrial 6-Port Gigabit Easy Managed Switch 6× Gigabit Ports (4× RJ45, 1× RJ45/SFP Combo, 1× SFP) -40°C to 75°C Operating Temperature 9.6~60VDC 1+1 Redundant Power Input Industrial-Grade IP40 Aluminum Casing Easy Centralized Management VLAN for Traffic Separation STP/RSTP for Reliable Networking DIN-Rail & Wall Mounting Industrial-Grade Protection Built for Harsh Environments -40°C to 75°C Operating Temperature 6kV Lightning Protection Industrial-Grade IP40 Aluminum Casing Enhanced Networking Stability and Security \| 1+1 Redundant Power Input Equipped with dual power input ports and a wide 9.6-60V DC voltage range, ensuring continuous operation even if one power supply fails. Real-Time Fault Alarm \| Easy Operation and Maintenance with Omada's Free Cloud Management Easy to Use with Plug-and-Play Design and Simple Configuration Free and Easy Centralized Cloud Management via Omada Central Essentials Access Logs and Receive Alert Notifications at Any Time Intelligent Network Monitoring for Instant Topology Views and Effortless Troubleshooting Flexible Deployment Options DIN-rail Wall-mount Diverse Industry Applications Surveillance Industrial Automation Energy Smart Buildings
Packaged Quantity	1
Product Type	Ethernet Switch

Technical Information

Features

Fanless
Link Aggregation
Loopback Detection
Port Mirroring
Zero-Touch Provisioning (ZTP)
IP40
Plug and Play
Intelligent monitoring
Virtual LAN (VLAN)
Quality of Service (QoS)
Flow Control
Broadcast Storm Control
Unicast Storm Control
Multicast Storm Control
IGMP Snooping
Easy to Use

Interfaces/Ports

Total Number of Network Ports	5
Network (RJ-45)	Yes

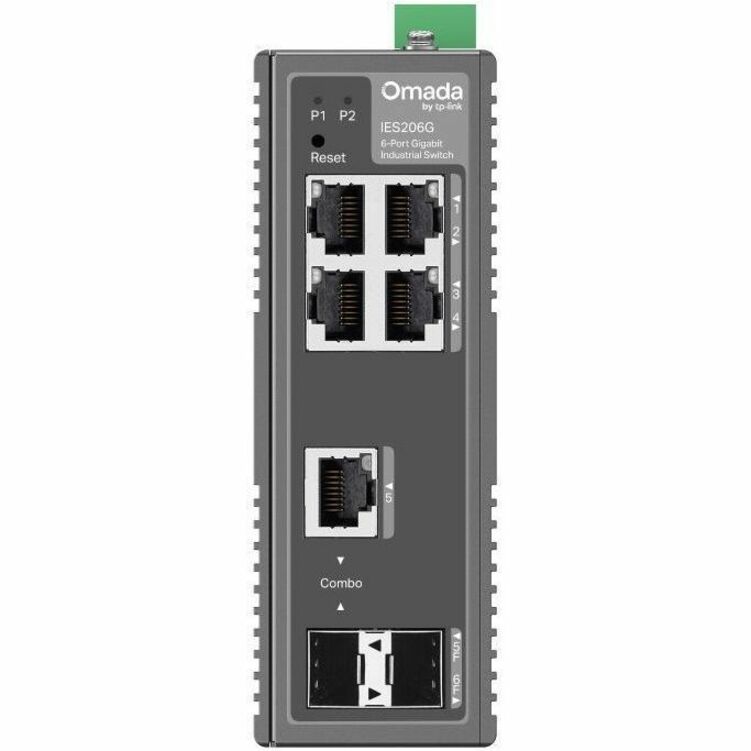

Port/Expansion Slot Details	4 x Gigabit Ethernet Network 1 × Gigabit Ethernet TP/SFP Combo 1 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 1000Base-X
Maximum Data Transfer Rate	128 MB/s

I/O Expansions

Total Number of Expansion Slots	1
Expansion Slot Type	SFP
Shared SFP Slot	Yes
Number of SFP Slots	1

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.1p IEEE 802.3x IEEE 802.1Q IEEE 802.1D IEEE 802.1w IEEE 802.3ab

Management & Protocols

Manageable	Yes
Switch Management Type	Easy Managed

Power Description

Input Voltage	9 V DC 60 V DC
Power Source	DC Power Supply

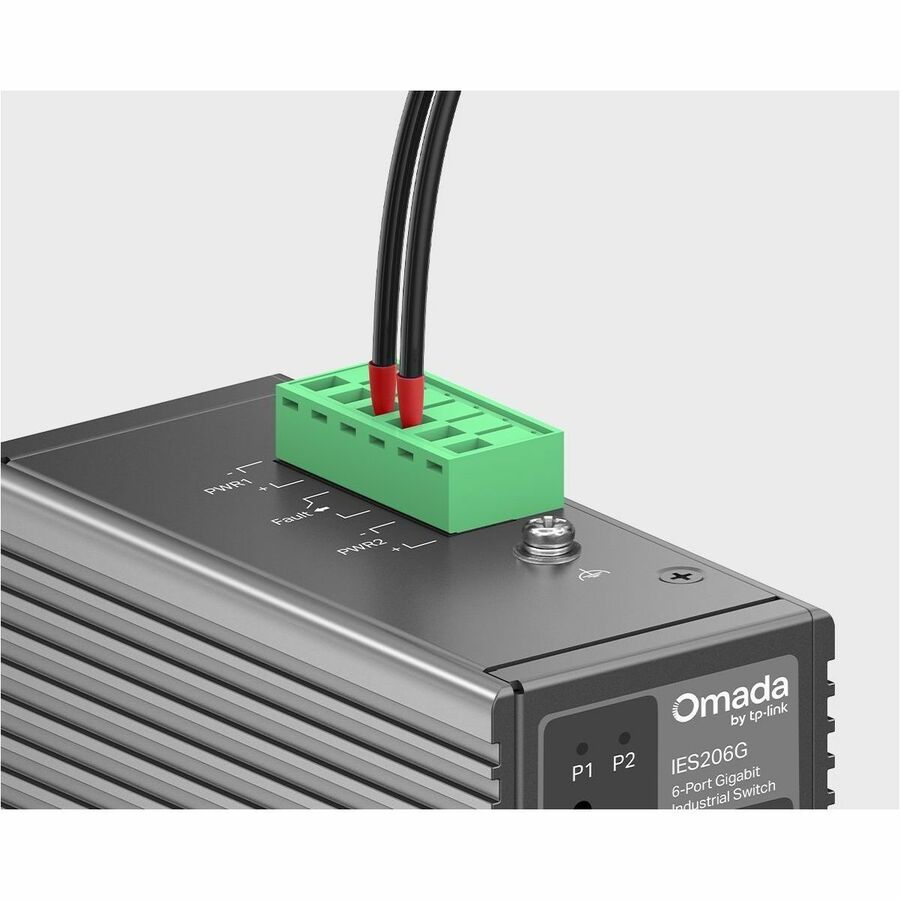

Redundant Power Supply Supported	Yes

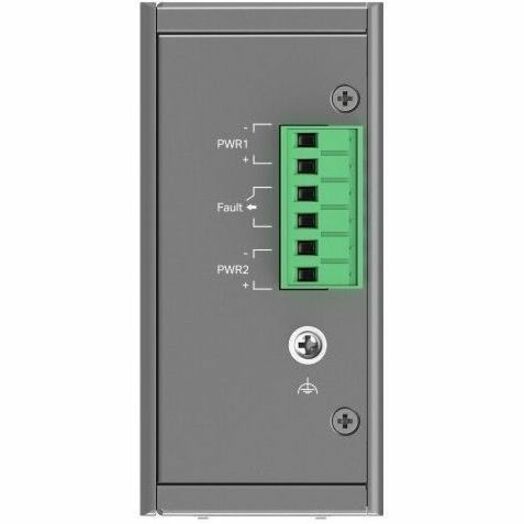

Plug/Connector Type	Terminal Block

Physical Characteristics

Product Material	Aluminum

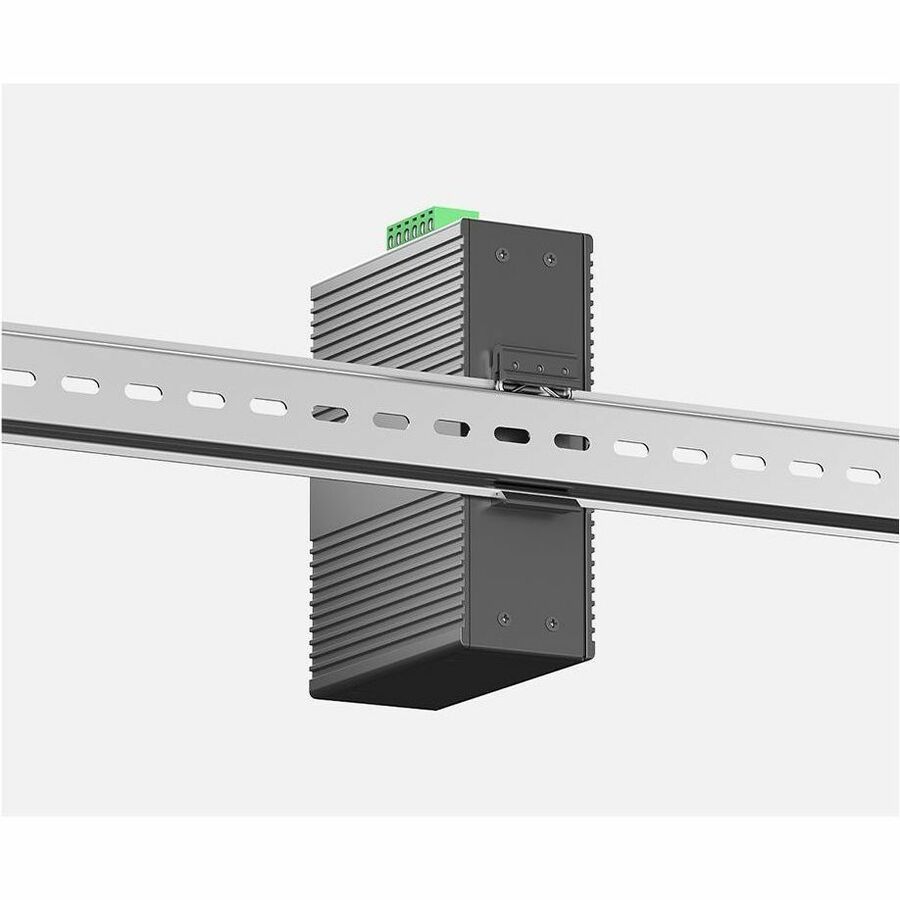

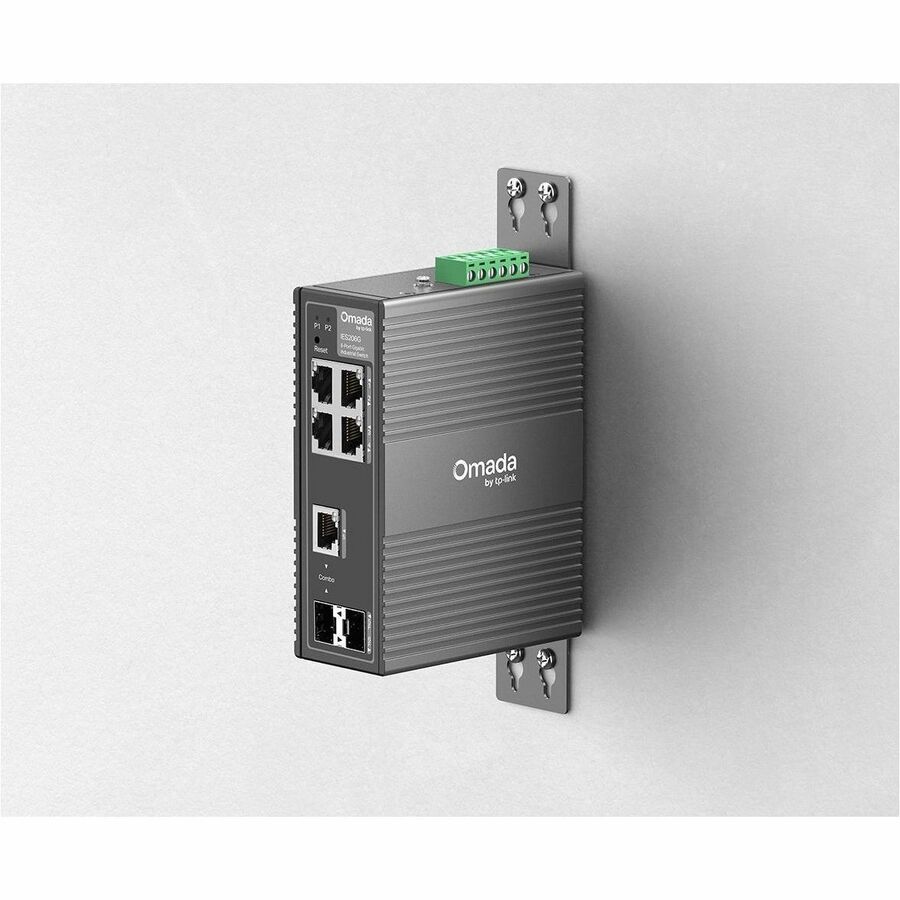

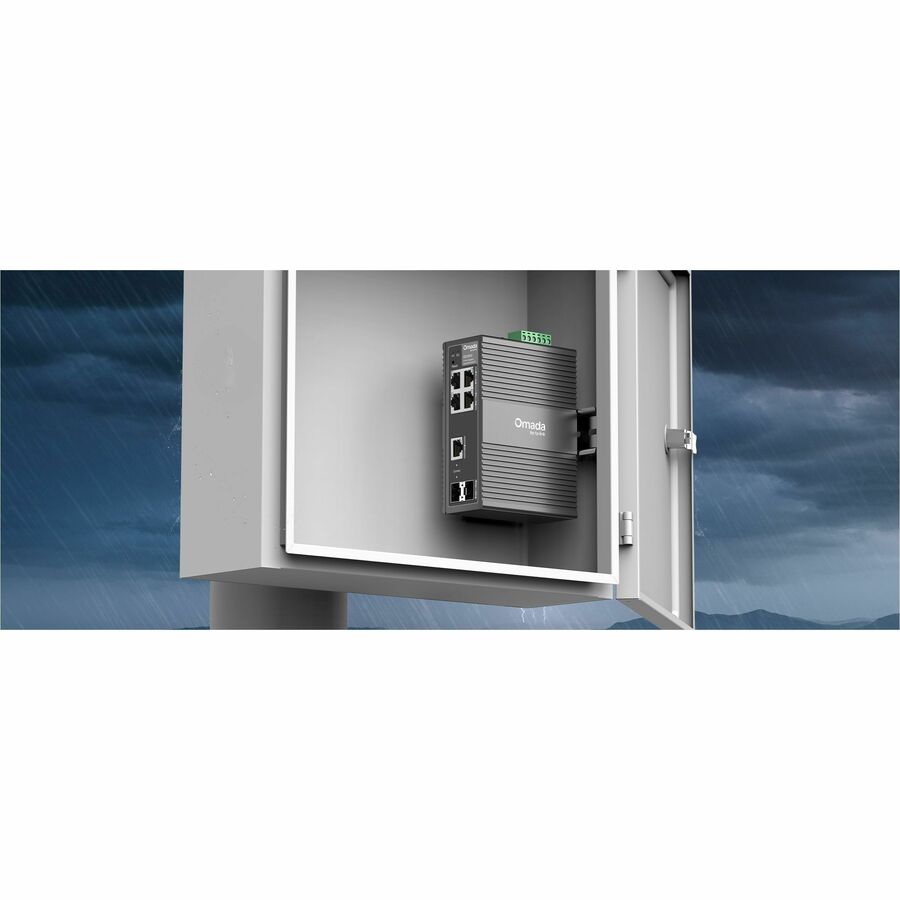

Form Factor	DIN Rail Mountable Wall Mountable
Height	1.8"
Width	5.1"
Depth	3.7"
Weight (Approximate)	1.10 lb

Miscellaneous

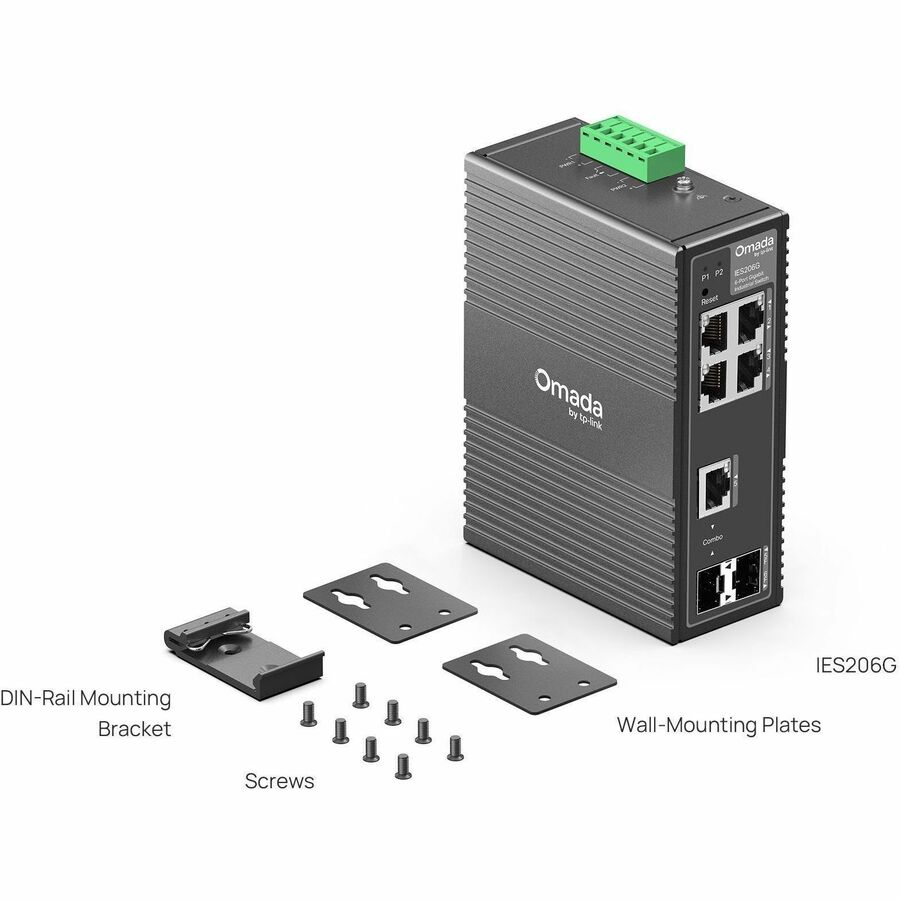

Package Contents	6-Port Gigabit Industrial Easy Managed Switch DIN-Rail Mounting Bracket Wall-Mounting Plates Installation Guide
Application/Usage	Industrial Traffic Security Camera Surveillance Automation Industry Building Network
Certifications & Standards	FCC CE
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
