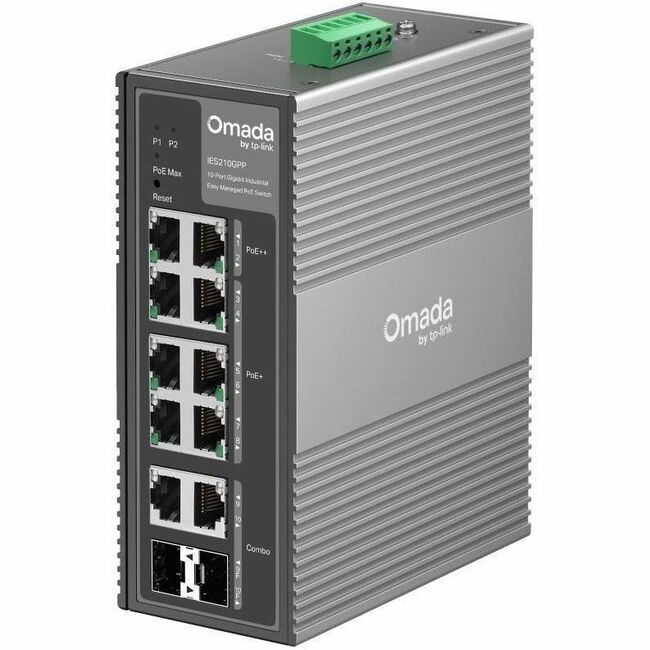

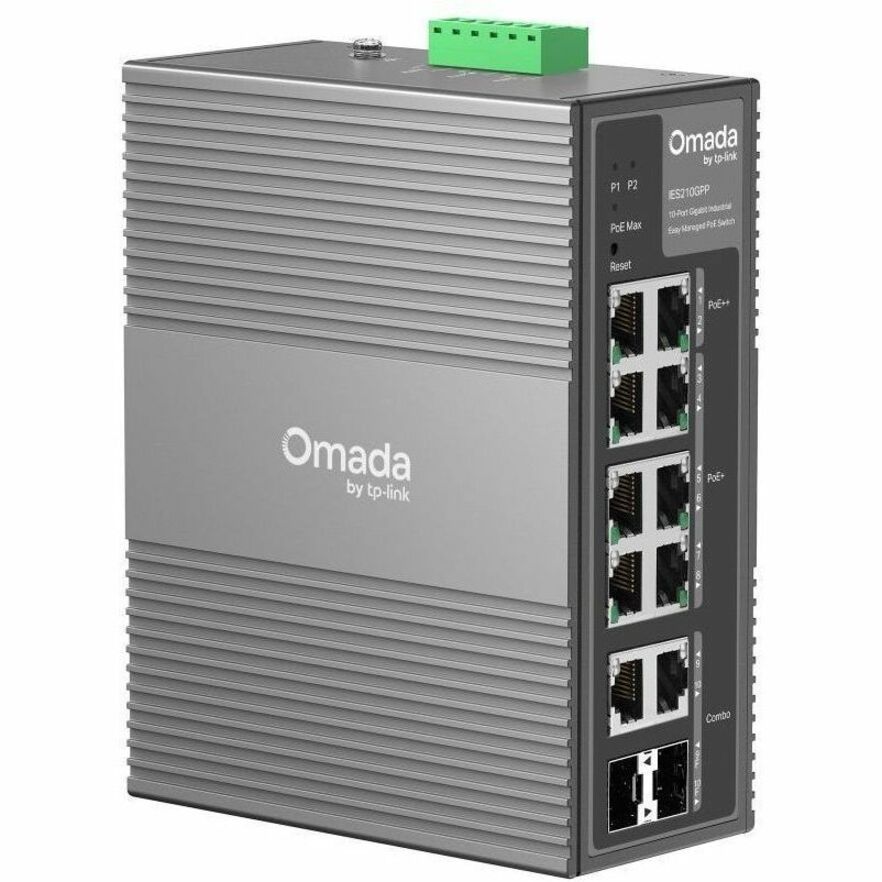

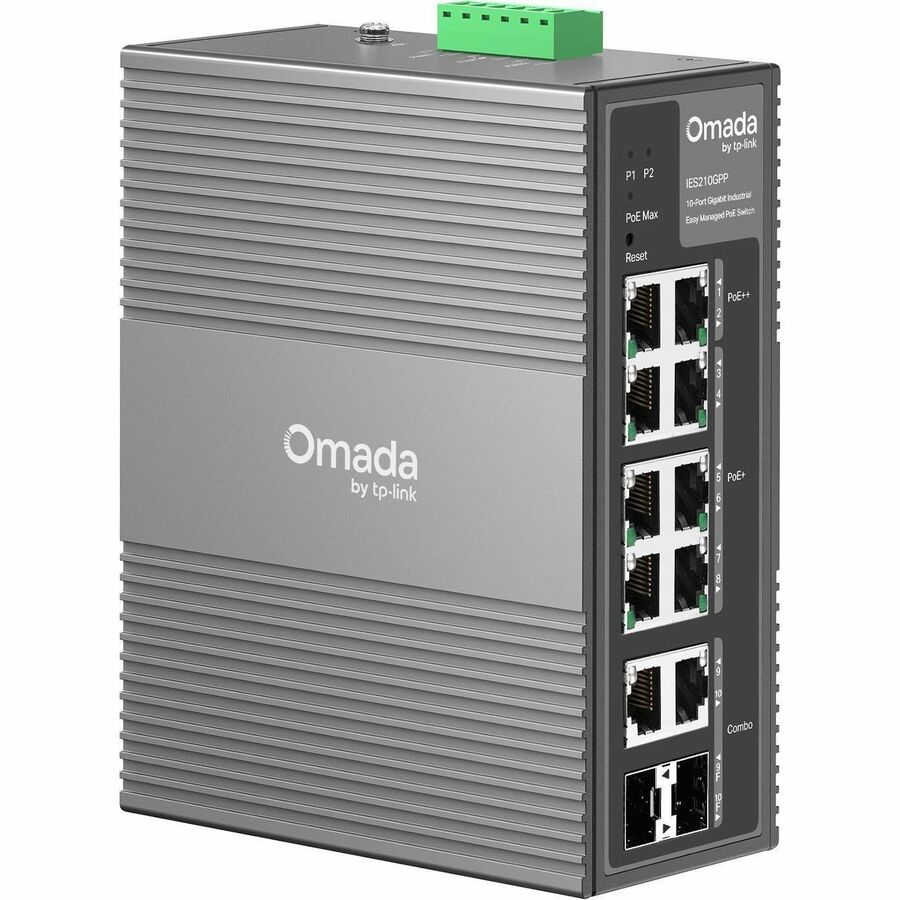

OMADA 10-P IND SWITCH 6 POE 2++ OMADA 10-P IND SWITCH 6 POE 2++

Name: OMADA 10-P IND SWITCH 6 POE 2++ OMADA 10-P IND SWITCH 6 POE 2++
Brand: TP-LINK SYSTEMS INC.
SKU: Z49416
Price: 339.99 USD
Availability: InStock

TP-LINK SYSTEMS INC.

PCN#

Z49416

MFG#

IES210GPP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$339.99

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

10 Ports
Manageable
Gigabit Ethernet
1000Base
T, 1000Base
X
2 Layer Supported
240 W PoE Budget
Twisted Pair, Optical Fiber
PoE Ports
DIN Rail Mountable, Wall Mountable

Product Condition: New and Factory Fresh

Shipping Weight: 4 lbs.

Omada Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++

Overview

Tech Specs

Specifications

Manufacturer	TP-LINK Technologies Co., Ltd
Manufacturer Part Number	IES210GPP
Manufacturer Website Address	http://www.tp-link.com/us
Brand Name	Omada
Product Model	IES210GPP
Product Name	Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++
Marketing Information	Omada Industrial10-Port Gigabit Easy Managed PoE++Switch 10× Gigabit Ports (2× PoE++, 6× PoE+, 2× RJ45/SFP Combo) 240W Total PoE Budget -40°C to 75°C Operating Temperature 12~57VDC 1+1 Redundant Power Input Industrial-Grade IP40 Aluminum Casing Abundant Functions for CCTV Networking Easy Centralized Management DIN-Rail & Wall Mounting Industrial-Grade Protection Built for Harsh Environments -40°C to 75°C Operating Temperature 6kV Lightning Protection Industrial-Grade IP40 Aluminum Casing Enhanced Networking Stability and Security \| 1+1 Redundant Power Input Equipped with dual power input ports and a wide 12-57V DC voltage range, ensuring continuous operation even if one power supply fails. Real-Time Fault Alarm Connected to an external alarm, the switch outputs an alarm signal promptly if a port is disconnected or power input is abnormal. Gigabit PoE++ Ports for Reliable High-PowerDevice Support 2× Gigabit PoE++ RJ45 Ports 6× Gigabit PoE+ RJ45 Ports Budget up to 60W per PoE++ Port Total 240W PoE Power Easy Operation andMaintenance with Omada'sFree Cloud Management Easy to Use with Plug-and-Play Design and Simple Configuration. Free and Easy Centralized Cloud Management via Omada Central Essentials Access Logs and Receive Alert Notifications at Any Time Easily Configure Surveillance Features Like 24/7 Camera Monitoring & Automatic Recovery Flexible Deployment Options DIN-rail Wall-mount Diverse Industry Applications Surveillance Industrial Automation Energy Smart Buildings
Product Type	Ethernet Switch

Technical Information

Features

IP40
Remote/Cloud Management
Plug and Play
Fanless

Interfaces/Ports

Total Number of Network Ports	10
Network (RJ-45)	Yes

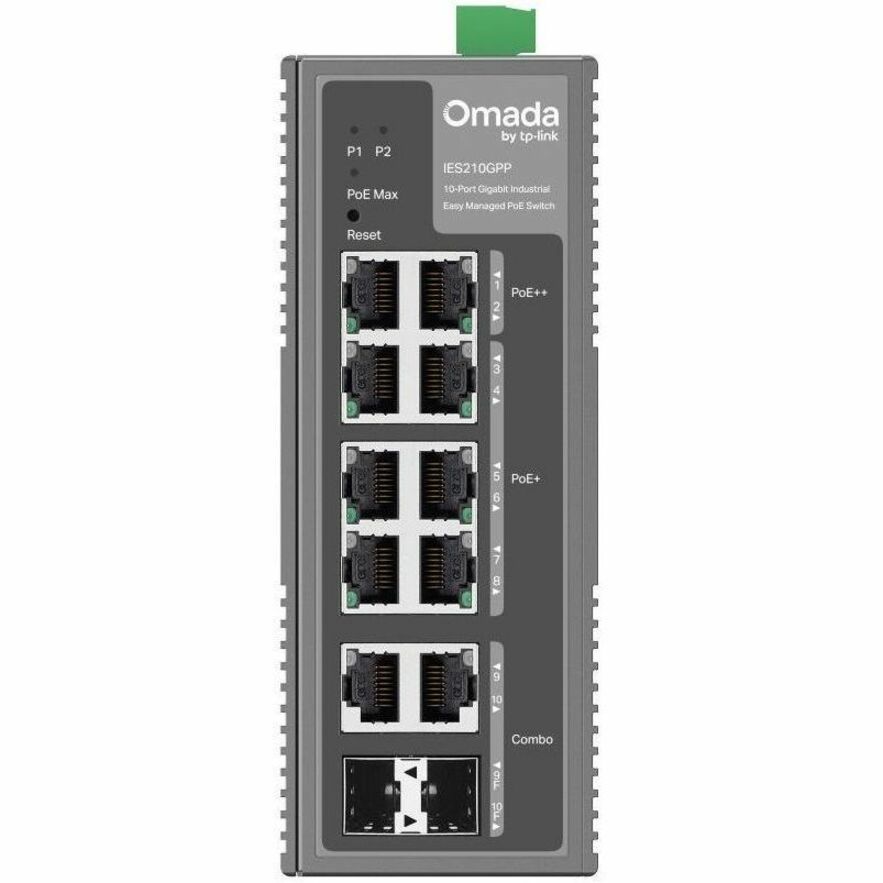

Port/Expansion Slot Details	2 × Gigabit Ethernet PoE++ RJ-45 Network Port 6 × Gigabit Ethernet PoE+ RJ-45 Network Port 2 × Gigabit Ethernet RJ-45/SFP Combo Port

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-T 1000Base-X
Maximum Data Transfer Rate	128 MB/s

I/O Expansions

Shared SFP Slot

Yes

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3af IEEE 802.3at IEEE 802.3bt IEEE 802.1p IEEE 802.3x IEEE 802.1ab IEEE 802.1D IEEE 802.1w IEEE 802.1Q

Management & Protocols

Manageable	Yes
Switch Management Type	Easy Managed

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	240 W
Input Voltage	57 V DC 46 V DC
Power Source	DC Power Supply
Redundant Power Supply Supported	Yes

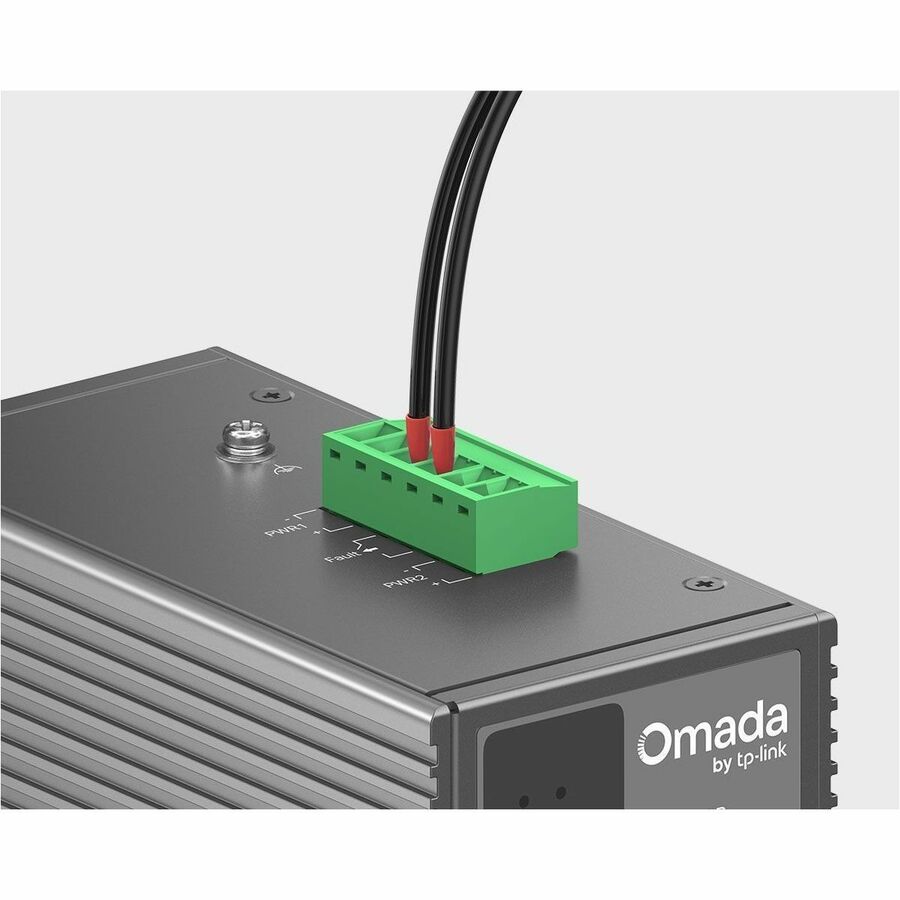

Plug/Connector Type	Terminal Block

Physical Characteristics

Product Material	Aluminum

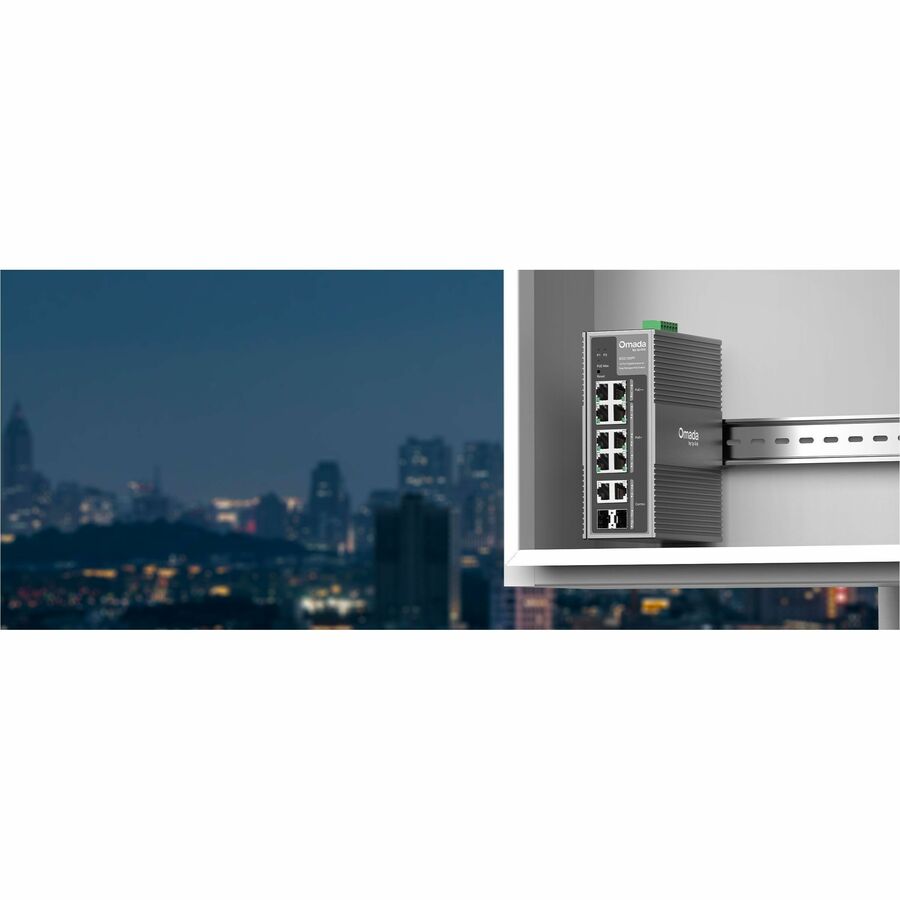

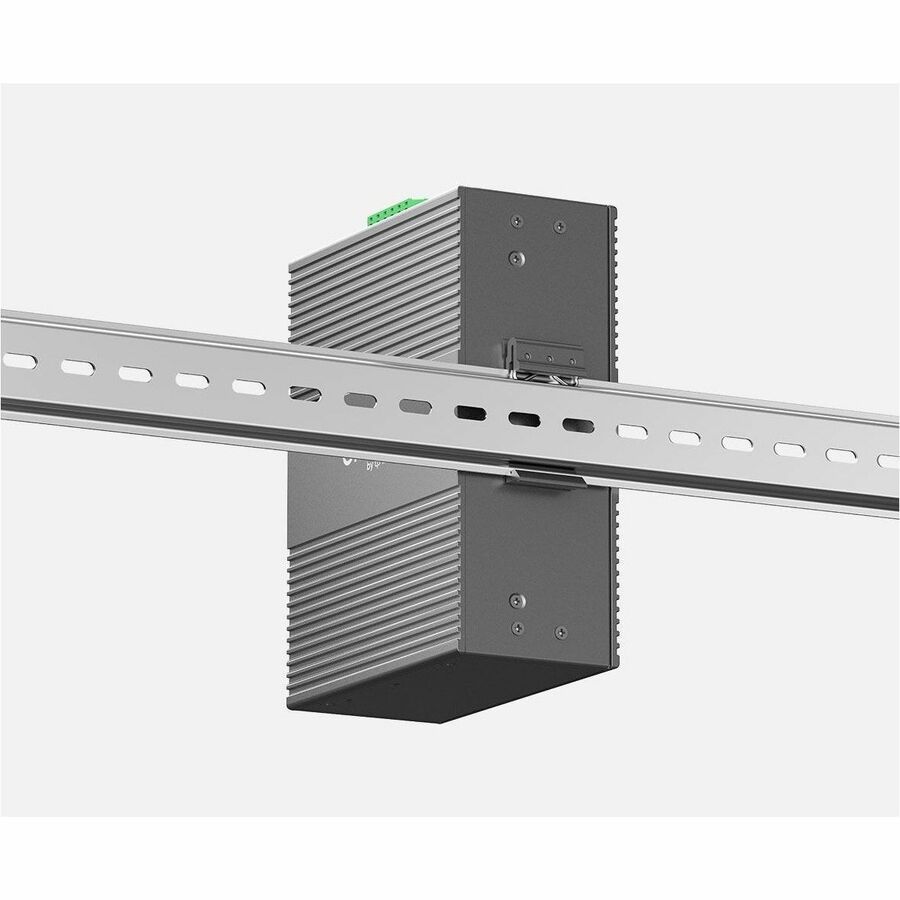

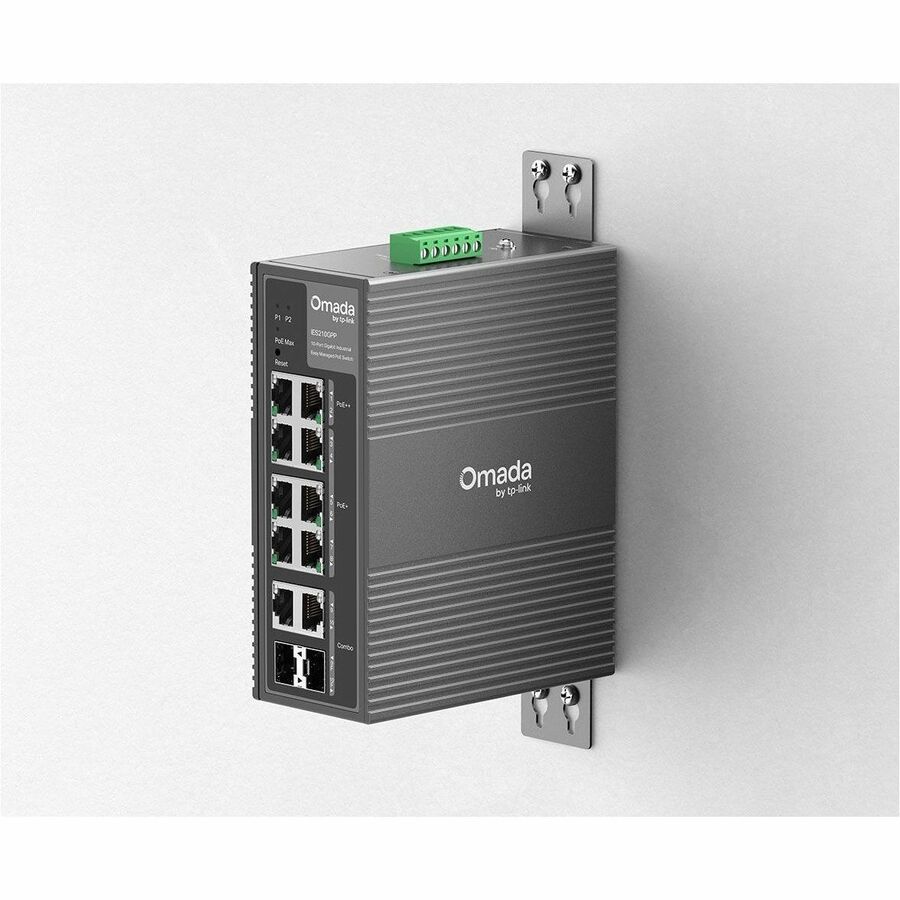

Form Factor	DIN Rail Mountable Wall Mountable
Height	2.4"
Width	6.1"
Depth	4.7"

Miscellaneous

Package Contents	Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++ DIN-Rail Mounting Bracket Wall-Mounting Plates Installation Guide

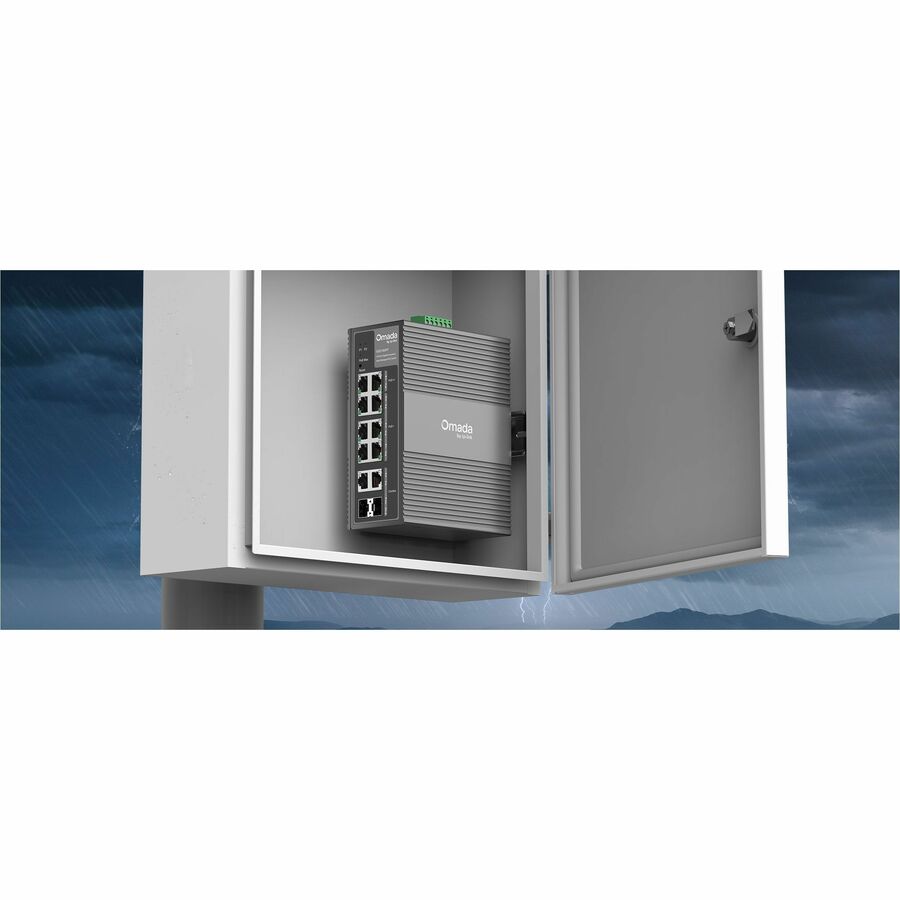

Application/Usage	Industrial Network CCTV System Security Camera Surveillance Traffic Automation Industry Building
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
