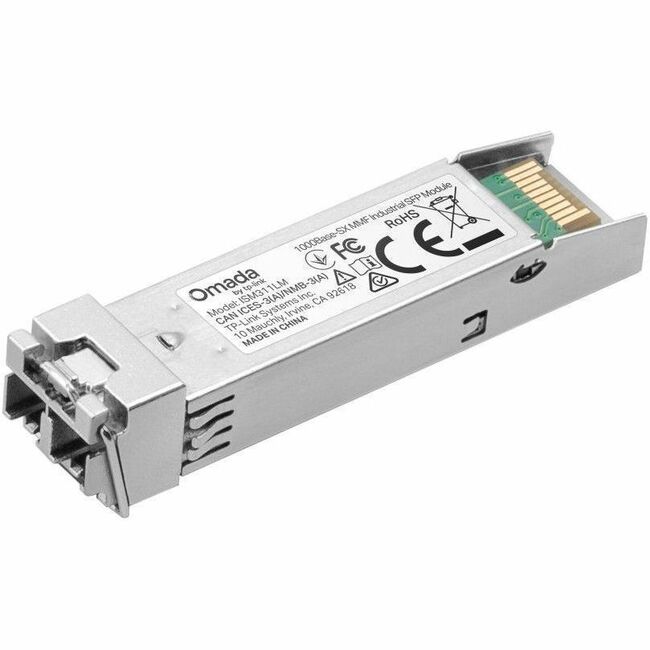

OMADA 1000BS-SX MMF IND SFP MOD OMADA 1000BS-SX MMF IND SFP MOD

Name: OMADA 1000BS-SX MMF IND SFP MOD OMADA 1000BS-SX MMF IND SFP MOD
Brand: TP-LINK SYSTEMS INC.
SKU: Z49418
Price: 42.35 USD
Availability: InStock

TP-LINK SYSTEMS INC.

PCN#

Z49418

MFG#

ISM311LM

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$42.35

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $14.99

1-Year $10.99

Estimated Shipment:

Product Highlights:

For Data Networking, Optical Network
1 x LC/UPC 1000Base
SX Network
Optical Fiber
50/125 µm, 62.5/125 µm
850 nm Wavelength
Multi
mode
1.25 Gigabit Ethernet
1000Base
SX
1.25 Gbit/s
0.55 km Maximum Distance
Hot
pluggable, Hot
swappable

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

Omada 1000Base-SX MMF Industrial SFP Module

Overview

Tech Specs

Specifications

Manufacturer	TP-LINK Technologies Co., Ltd
Manufacturer Part Number	ISM311LM
Manufacturer Website Address	http://www.tp-link.com/us
Brand Name	Omada
Product Model	ISM311LM
Product Name	1000Base-SX MMF Industrial SFP Module
Marketing Information	ISM311LM is an industrial SFP Module introduced for extending transfer distance. Attached to our industrial switches, ISM311LM can extend the distance to 550m. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
Product Type	SFP

Technical Information

Application/Usage	Data Networking Optical Network
Features	Digital Diagnostics Monitoring Interface (DDMI)

Interfaces/Ports

Total Number of Ports	1
Connector Type	LC/UPC
Interfaces/Ports Details	1 x LC/UPC 1000Base-SX Network

Media & Performance

Media Type Supported	Optical Fiber
Fiber Optic Cable Core/Cladding Specification	50/125 µm 62.5/125 µm
Fiber Optic Cable Wavelength	850 nm
Fiber Mode Supported	Multi-mode
Ethernet Technology	1.25 Gigabit Ethernet
Network Technology	1000Base-SX
Maximum Distance Supported	0.55 km
Maximum Data Transfer Rate	1.25 Gbit/s

Environmental Conditions

Minimum Operating Temperature	-40°F (-40°C)
Maximum Operating Temperature	185°F (85°C)

Physical Characteristics

Form Factor	Hot-pluggable Hot-swappable
Height	0.4"
Width	2.2"
Depth	0.5"

Miscellaneous

Package Contents	1000Base-SX MMF Industrial SFP Module Installation Guide
Compatibility	MSA Complaint
Country of Origin	China
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
