OMADA 1000BSE-BX WDM BI SFP MOD OMADA 1000BSE-BX WDM BI SFP MOD

Name: OMADA 1000BSE-BX WDM BI SFP MOD OMADA 1000BSE-BX WDM BI SFP MOD
Brand: TP-LINK SYSTEMS INC.
SKU: Z49470
Price: 43.99 USD
Availability: InStock

TP-LINK SYSTEMS INC.

PCN#

Z49470

MFG#

ISM321B-20

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$43.99

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $14.99

1-Year $10.99

Estimated Shipment:

Product Highlights:

For Data Networking, Optical Network
1 x LC 1000Base
BX Network
Optical Fiber
9/125 µm
1310 nm, 1550 nm Wavelength
Single
mode
1.25 Gigabit Ethernet
1000Base
BX
1.25 Gbit/s
20 km Maximum Distance
Hot
pluggable, Hot
swappable

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

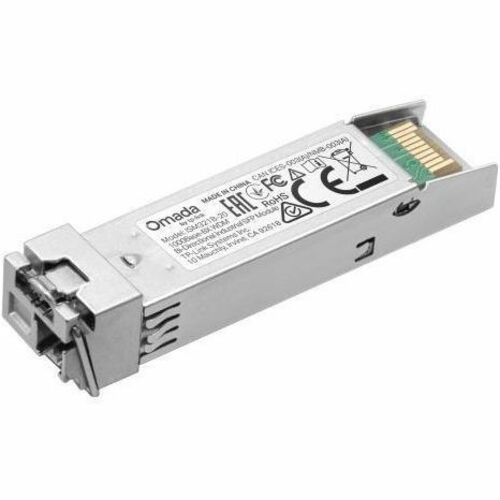

Omada 1000Base-BX WDM Bi-Directional Industrial SFP Module

Overview

Tech Specs

Specifications

Manufacturer	TP-LINK Technologies Co., Ltd
Manufacturer Part Number	ISM321B-20
Manufacturer Website Address	http://www.tp-link.com/us
Brand Name	Omada
Product Model	ISM321B-20
Product Name	1000Base-BX WDM Bi-Directional Industrial SFP Module
Marketing Information	ISM321B-20 is an industrial WDM SFP Module introduced for extending transfer distance. Attached to our industrial switches, ISM321B-20 can extend the distance to 20km with one single fiber. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
Product Type	SFP

Technical Information

Application/Usage	Data Networking Optical Network
Features	Digital Diagnostics Monitoring Interface (DDMI)

Interfaces/Ports

Total Number of Ports	1
Connector Type	LC
Interfaces/Ports Details	1 x LC 1000Base-BX Network

Media & Performance

Media Type Supported	Optical Fiber
Fiber Optic Cable Core/Cladding Specification	9/125 µm
Fiber Optic Cable Wavelength	1310 nm 1550 nm
Fiber Mode Supported	Single-mode
Ethernet Technology	1.25 Gigabit Ethernet
Network Technology	1000Base-BX
Maximum Distance Supported	20 km
Maximum Data Transfer Rate	1.25 Gbit/s

Environmental Conditions

Minimum Operating Temperature	-40°F (-40°C)
Maximum Operating Temperature	185°F (85°C)

Physical Characteristics

Form Factor	Hot-pluggable Hot-swappable
Height	0.4"
Width	2.2"
Depth	0.5"

Miscellaneous

Package Contents	1000Base-BX WDM Bi-Directional Industrial SFP Module Installation Guide
Compatibility	MSA Complaint
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS)
