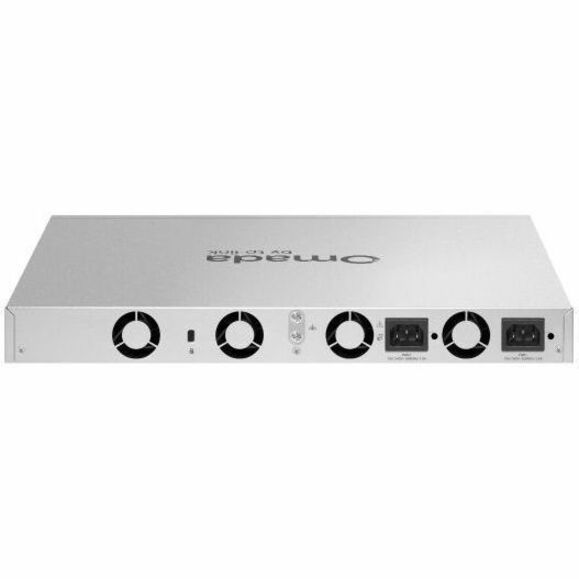

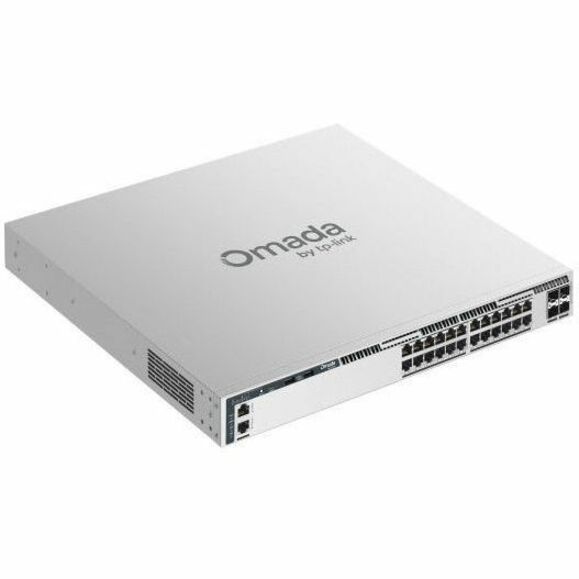

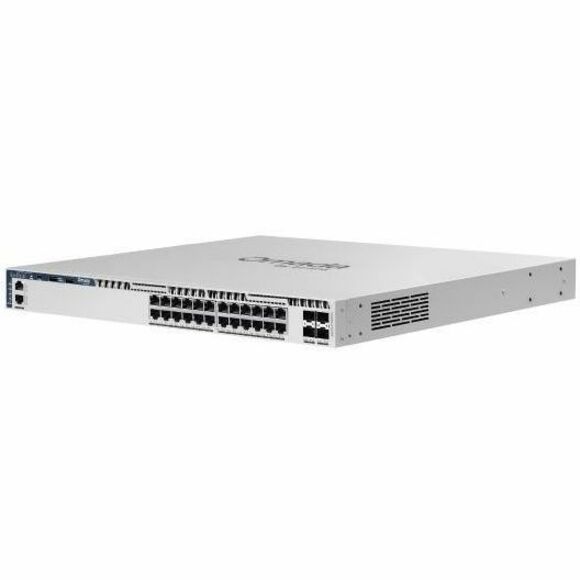

OMADA 24P GIG L3 STACK 4X 10G STACKABLE L3 MANAGED SWITCH WITH 4

High-speed Connectivity and Powerful Stacking24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Physical stacking of up to 12 units?enhances network performance and redundancy. Abundant Layer 3 CapabilitiesComes with abundant Layer 3 routing protocols that support a scalable network, such as OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, and PBR. In complex large-scale network environments, dynamic routing protocols automatically adapt to changes in network topology and select the best transmission path based on real-time network conditions to maintain stability. Comprehensive Security FunctionsDefend against a range of network threats with MACsec, Secure Boot, RADSEC, IMPB, SFTP, and 802.1X. MACsec works with the 802.1X protocol to ensure secure communication of all traffic on Ethernet links. Secure Boot protects the operating system from malicious attacks. Highly AvailableInternally fixed redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology, while BFD enables sub-second failure detection for rapid routing protocol rebalancing. Easy Operation and MaintenanceThe switch can be configured and managed based on the NETCONF protocol, reducing manual configuration errors and improving software upgrade efficiency. Configuration Rollback restores previous settings if errors occur. Hot patching technology allows software defects to be fixed without device restart, preventing business interruptions. Omada Pro IntegrationIntegration into the Omada Pro system brings centralized cloud management and a series of management features, such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection. Omada Pro's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network-all controlled from a single interface.Apart from central management via the web or Omada app, S6500-24G4XF can be managed through an intuitive web GUI or industry-standard CLI, both secured with SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support provide status polling and abnormal event notifications.Product TypeEthernet SwitchTechnical InformationFeatures

• Secure Boot
• Zero-Touch Provisioning (ZTP)
• Remote/Cloud Management
• DHCP Snooping
• Support Dual Image
• Remote Monitoring (RMON)
• Energy Efficient

High Availability SupportedYesInterfaces/PortsTotal Number of Network Ports24Uplink PortYesStack PortYesNetwork (RJ-45)YesPort/Expansion Slot Details

• 24 × 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port
• 4 × 1/10 Gigabit Ethernet SFP+ Expansion Slot
• 2 × USB 2.0 Port
• 1 × RJ-45 Console Port
• 1 × USB Type-C Console Port
• 1 × RJ-45 Management Port

Media & PerformanceMedia Type Supported

• Twisted Pair
• Optical Fiber

Ethernet Technology

• Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology

• 10/100/1000Base-T
• 1000Base-X
• 10GBase-X

Maximum Data Transfer Rate1.25 GB/sI/O ExpansionsTotal Number of Expansion Slots4Expansion Slot TypeSFP+Number of SFP+ Slots4Network & CommunicationLayer Supported3Networking Standards

• IEEE 802.1x
• IEEE 802.1p
• IEEE 802.3ah
• IEEE 802.1Q
• IEEE 802.3az

Management & ProtocolsManageableYesPower DescriptionPower SourcePower SupplyRedundant Power Supply SupportedYesNumber of Power Supplies Installed2Power Consumption28.40 WPhysical CharacteristicsColor FamilyGrayProduct ColorGrayCompatible Rack Unit1UForm FactorRack-mountableHeight1.7"Width17.3"Depth15"MiscellaneousApplication/Usage

• Security
• Network
• Enterprise
• Business
• Router

Country of OriginSwitzerland
