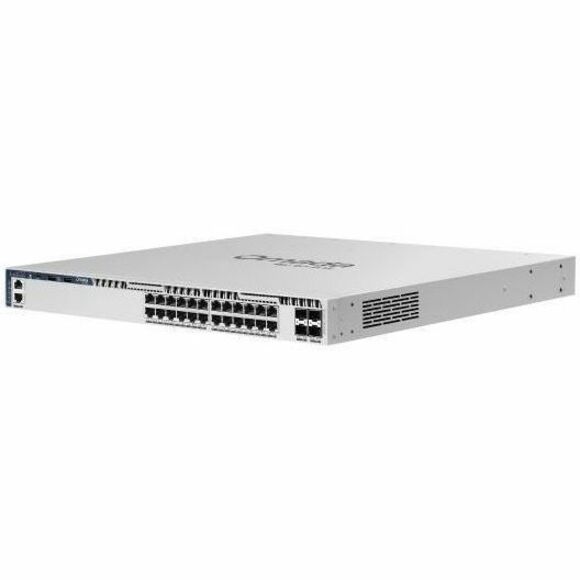

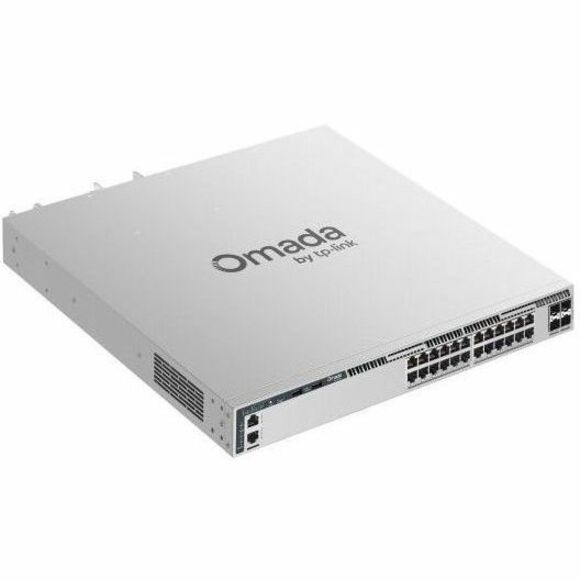

OMADA 24P GIG L3 POE+ 4X 10G STACKABLE L3 MANAGED POE+ SWITCH WI

IEEE 802.3at/af-compliant Power over Ethernet24× IEEE 802.3at/af-compliant PoE ports supply up to 720 W total power to 802.3at and 802.3af devices, with each port supplying up to 30 W power. Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling. Perpetual PoE ensures an uninterrupted power supply to connected devices even during switch reboots. Additionally, the switch retains PoE power settings across reboots, thanks to fast PoE functionality. High-speed Connectivity and Powerful Stacking24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Physical stacking of up to 12 units enhances network performance and redundancy. Abundant Layer 3 CapabilitiesComes with abundant Layer 3 routing protocols that support a scalable network, such as OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, and PBR. In complex large-scale network environments, dynamic routing protocols automatically adapt to changes in network topology and select the best transmission path based on real-time network conditions to maintain stability. Comprehensive Security FunctionsDefend against a range of network threats with MACsec, Secure Boot, RADSEC, IMPB, SFTP, and 802.1X. MACsec works with the 802.1X protocol to ensure secure communication of all traffic on Ethernet links. Secure Boot protects the operating system from malicious attacks. Highly AvailableTwo field-replaceable redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology, while BFD enables sub-second failure detection for rapid routing protocol rebalancing. Easy Operation and MaintenanceThe switch can be configured and managed based on the NETCONF protocol, reducing manual configuration errors and improving software upgrade efficiency. Configuration Rollback restores previous settings if errors occur. Hot patching technology allows software defects to be fixed without device restart, preventing business interruptions. Omada Pro IntegrationIntegration into the Omada Pro system brings centralized cloud management and a series of management features, such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection. Omada Pro's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network-all controlled from a single interface.Apart from central management via the web or Omada app, S6500-24GP4XF can be managed through an intuitive web GUI or industry-standard CLI, both secured with SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support provide status polling and abnormal event notifications.Product TypeLayer 3 SwitchTechnical InformationFeatures

• Energy Efficient
• Zero-Touch Provisioning (ZTP)
• DHCP Snooping

High Availability SupportedYesInterfaces/PortsTotal Number of Network Ports24Uplink PortYesModularYesStack PortYesNetwork (RJ-45)YesPort/Expansion Slot Details

• 24 × Gigabit Ethernet PoE+
• 4 x 10 Gigabit Ethernet Expansion Slot

Media & PerformanceMedia Type Supported

• Twisted Pair
• Optical Fiber

Ethernet Technology

• Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology

• 10/100/1000Base-T
• 10GBase-X

I/O ExpansionsTotal Number of Expansion Slots4Expansion Slot TypeSFP+Number of SFP+ Slots4Network & CommunicationLayer Supported3Networking Standards

• IEEE 802.1p
• IEEE 802.3x
• IEEE 802.3ah
• IEEE 802.1Q
• IEEE 802.1x
• IEEE 802.1ab
• IEEE 802.3az
• IEEE 802.3at
• IEEE 802.3af

Management & ProtocolsManageableYesPower DescriptionPoE (RJ-45) PortYesPoE Budget720 WInput Voltage

• 120 V AC
• 230 V AC

Frequency

• 50 Hz
• 60 Hz

Power SourcePower SupplyRedundant Power Supply SupportedYesNumber of Power Supplies Supported2Number of Power Supplies Installed1Power Consumption32.50 WPhysical CharacteristicsForm Factor

• Rack-mountable
• Desktop

Height1.7"Width17.3"Depth16.5"MiscellaneousApplication/Usage

• Business
• Enterprise
• Network
• Wireless Access Point
• Surveillance
• IP Phone
