OMADA 24PORT L2+ MANAGED SWITCH OMADA 24PORT SFP L2+ MANAGED SWITCH

Name: OMADA 24PORT L2+ MANAGED SWITCH OMADA 24PORT SFP L2+ MANAGED SWITCH
Brand: TP-LINK SYSTEMS INC.
SKU: SN7310
Price: 519.99 USD
Availability: InStock

TP-LINK SYSTEMS INC.

PCN#

SN7310

MFG#

SG3428XF

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$519.99

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

4 Ports
Manageable
Gigabit Ethernet, 10 Gigabit Ethernet
10GBase
X, 10/100/1000Base
T
2 Layer Supported
Modular
24 SFP Slots
35.70 W Power Consumption
Twisted Pair, Optical Fiber
1U
Rack
mountable, Desktop

Product Condition: New and Factory Fresh

Shipping Weight: 9 lbs.

Omada 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots

Overview

Tech Specs

Specifications

Manufacturer	TP-LINK Technologies Co., Ltd
Manufacturer Part Number	SG3428XF
Manufacturer Website Address	http://www.tp-link.com/us
Brand Name	Omada
Product Line	JetStream
Product Model	SG3428XF
Product Name	24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots
Marketing Information	Ideal for Use in Aggregation Layer 4× 10 Gbps SFP+ Slots 20× Gigabit SFP Slots, 4× SFP/RJ45 Combo Ports 1+1 Redundant Power Supply Centralized Management Omada App Ethernet Ring Protection Switching Static Routing Easily Build a Whole 10G Multi-gigabit Network \| Software Defined Networking (SDN) with Cloud Access Remotely manage your access points, switches, and gateways across multiple sites all from a single interface
Product Type	Ethernet Switch

Technical Information

Features

DHCP Snooping
DHCP Relay
Zero-Touch Provisioning (ZTP)
Built-in Fan
Remote Monitoring (RMON)

Interfaces/Ports

Total Number of Network Ports	4
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	20 x Gigabit Ethernet Expansion Slot 4 × Gigabit Ethernet TP/SFP Combo 4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet 10 Gigabit Ethernet
Network Technology	10GBase-X 10/100/1000Base-T

I/O Expansions

Total Number of Expansion Slots	28
Expansion Slot Type	SFP (mini-GBIC) SFP+
Shared SFP Slot	Yes
Number of SFP Slots	24
Number of SFP+ Slots	4

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.1p IEEE 802.3x IEEE 802.3ah IEEE 802.1Q IEEE 802.1x IEEE 802.1ab

Management & Protocols

Manageable	Yes
Data Link Protocols	HTTP HTTPS

Power Description

Input Voltage	120 V AC 230 V AC
Frequency	50 Hz 60 Hz
Power Source	Power Supply
Redundant Power Supply Supported	Yes
Number of Power Supplies Supported	2
Number of Power Supplies Installed	2
Power Consumption	35.70 W

Physical Characteristics

Product Material	Steel
Compatible Rack Unit	1U
Form Factor	Rack-mountable Desktop
Height	1.7"
Width	17.3"
Depth	8.7"

Miscellaneous

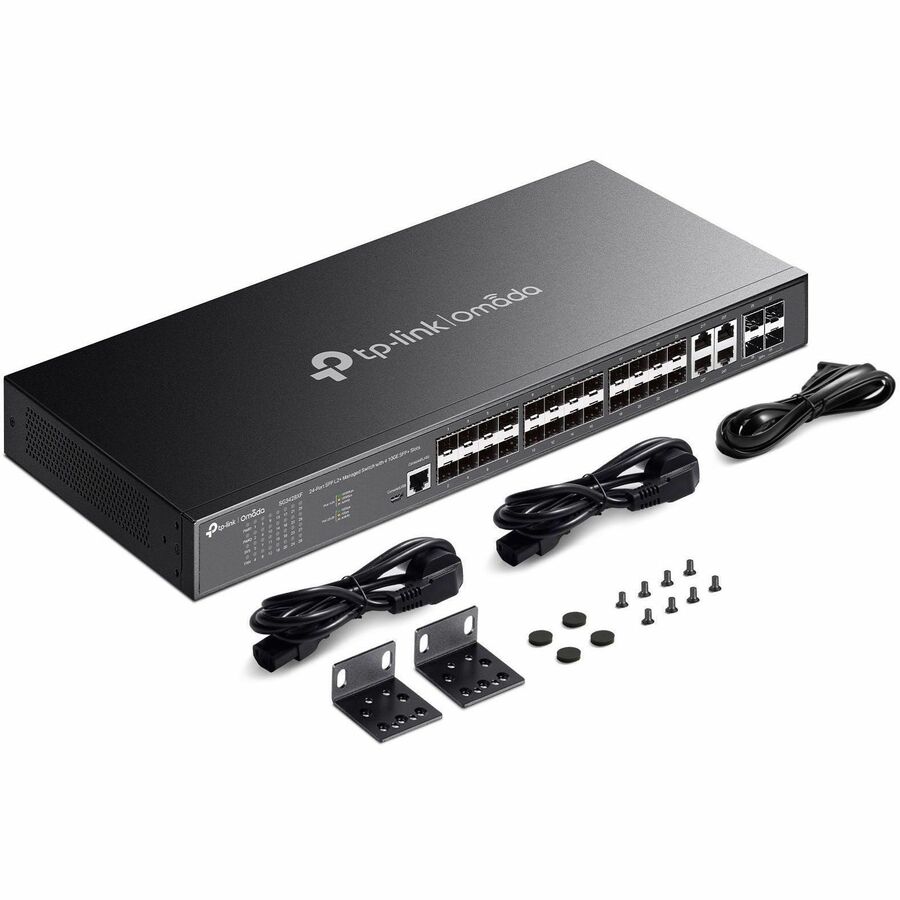

Package Contents	24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots Power Cord Quick Installation Guide Rackmount Kit Rubber Feet
Application/Usage	Network Server Security
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
