OMADA 10GBASE-BX WDM SFP+MODULE OMADA 10GBASE-BX WDM SFP+MODULE

Name: OMADA 10GBASE-BX WDM SFP+MODULE OMADA 10GBASE-BX WDM SFP+MODULE
Brand: TP-LINK SYSTEMS INC.
SKU: SN0445
Price: 43.99 USD
Availability: InStock

TP-LINK SYSTEMS INC.

PCN#

SN0445

MFG#

SM5110LSA-10

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$43.99

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $14.99

1-Year $10.99

Estimated Shipment:

Product Highlights:

For Data Networking, Optical Network
1 x LC/UPC 10GBase
BX BiDi Simplex Network
Optical Fiber
9/125 µm
1330 nm, 1270 nm Wavelength
Single
mode
10 Gigabit Ethernet
10GBase
BX BiDi
10.31 Gbit/s
10 km Maximum Distance
Hot
swappable, Hot
pluggable

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

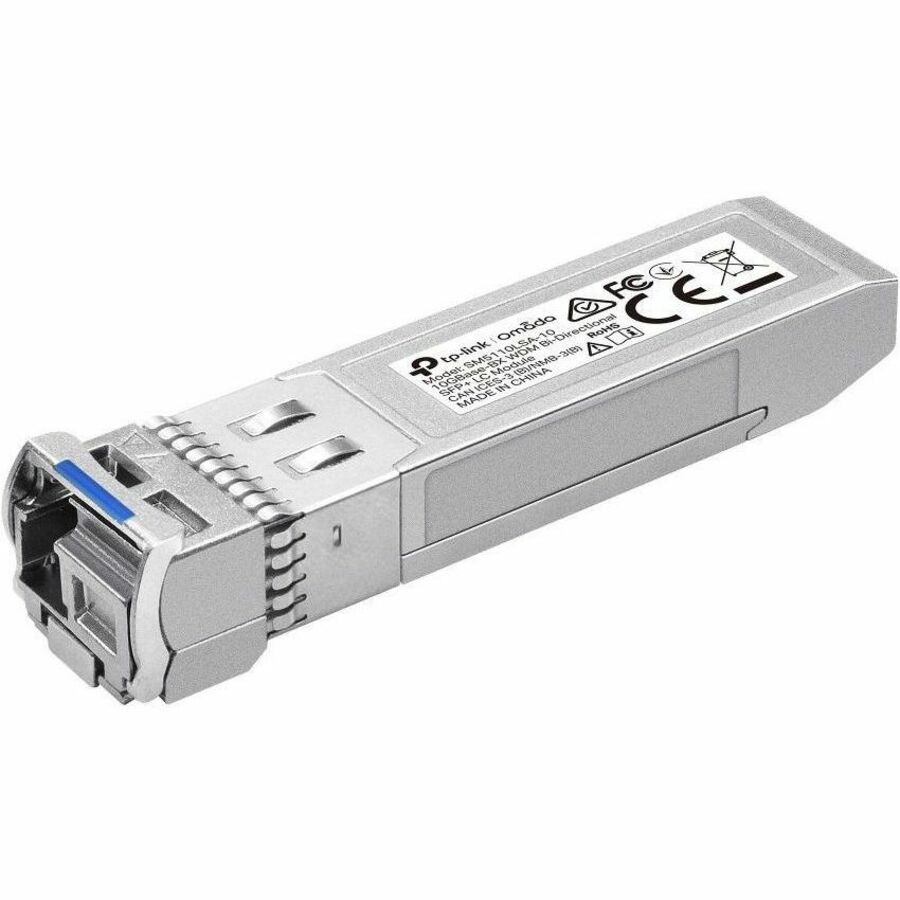

Omada Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module

Overview

Tech Specs

Specifications

Manufacturer	TP-LINK Technologies Co., Ltd
Manufacturer Part Number	SM5110LSA-10
Manufacturer Website Address	http://www.tp-link.com/us
Brand Name	Omada
Product Model	SM5110LSA-10
Product Name	Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module
Marketing Information	What This Product Does The SM5110LSA-10 is designed to extend transmission distance up to 10km with a maximum rate of 10Gbps. It is a single-mode SFP+ transceiver that supports bi-directional data transmission, which is cost-saving.
Product Type	SFP+

Technical Information

Application/Usage	Data Networking Optical Network
Features	Digital Diagnostics Monitoring Interface (DDMI)

Interfaces/Ports

Total Number of Ports	1
Connector Type	LC/UPC
Interfaces/Ports Details	1 x LC/UPC 10GBase-BX BiDi Simplex Network

Media & Performance

Media Type Supported	Optical Fiber
Fiber Optic Cable Core/Cladding Specification	9/125 µm
Fiber Optic Cable Wavelength	1330 nm 1270 nm
Fiber Mode Supported	Single-mode
Ethernet Technology	10 Gigabit Ethernet
Network Technology	10GBase-BX BiDi
Maximum Distance Supported	10 km
Maximum Data Transfer Rate	10.31 Gbit/s

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	158°F (70°C)

Physical Characteristics

Form Factor	Hot-swappable Hot-pluggable
Height	0.5"
Width	2.2"
Depth	0.6"

Miscellaneous

Compatibility	MSA Compliant TP-LINK Switches: SG3428X SG3452X
Country of Origin	China
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
