Transition Networks C2210-1040 Fast Ethernet Media Converter

Name: Transition Networks C2210-1040 Fast Ethernet Media Converter
Brand: LANTRONIX - IOT
SKU: DL6010
Price: 197.56 USD
Availability: InStock

LANTRONIX - IOT

PCN#

DL6010

MFG#

C2210-1040

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$197.56

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x Network (RJ
45)
Fast Ethernet
10/100Base
TX, 100Base
FX, 100Base
BX
0.10 km
1 x Expansion Slots
SFP
1 x SFP Slots
DC

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

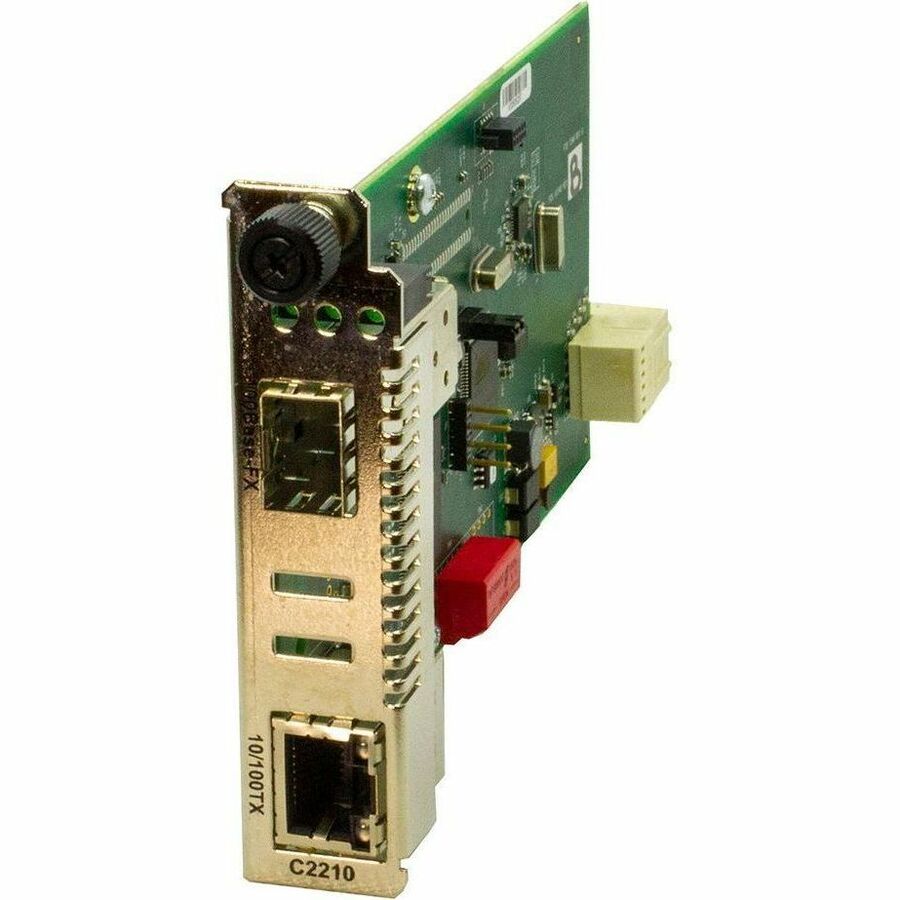

Transition Networks ION Fast Ethernet Media and Rate Converter Module

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	C2210-1040
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Transition Networks
Product Line	ION
Product Series	C2210
Product Name	ION Fast Ethernet Media and Rate Converter Module
Marketing Information	The ION C2210 is a media converter module that provides an interface between 10/100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 10/100 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber. The ION C2210 is a manageable device when installed in a managed ION chassis.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	1
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Maximum Distance Supported	0.10 km

I/O Expansions

Total Number of Expansion Slots	1
Expansion Slot Type	SFP
Number of SFP Slots	1

Network & Communication

Ethernet Technology	Fast Ethernet
Network Technology	10/100Base-TX 100Base-FX 100Base-BX

Power Description

Power Source	DC
Power Consumption	2.50 W

Physical Characteristics

Height	3.4"
Width	0.9"
Depth	6.5"
Weight (Approximate)	1 lb

Miscellaneous

Certifications & Standards	CISPR/EN55022 Class A FCC Class A CE Mark EN55024 IEEE 802.3u IEEE 802.3x NDAA
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

Lifetime
