RS232 (DCE) 5V,STANDALONE,SC MM W/BR

Name: RS232 (DCE) 5V,STANDALONE,SC MM W/BR
Brand: TRANSITION NETWORKS
SKU: 2298BX
Price: 180.13 USD
Availability: InStock

TRANSITION NETWORKS

PCN#

2298BX

MFG#

J/RS232-CF-01(SC)-BR

$180.13

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 2 lbs.

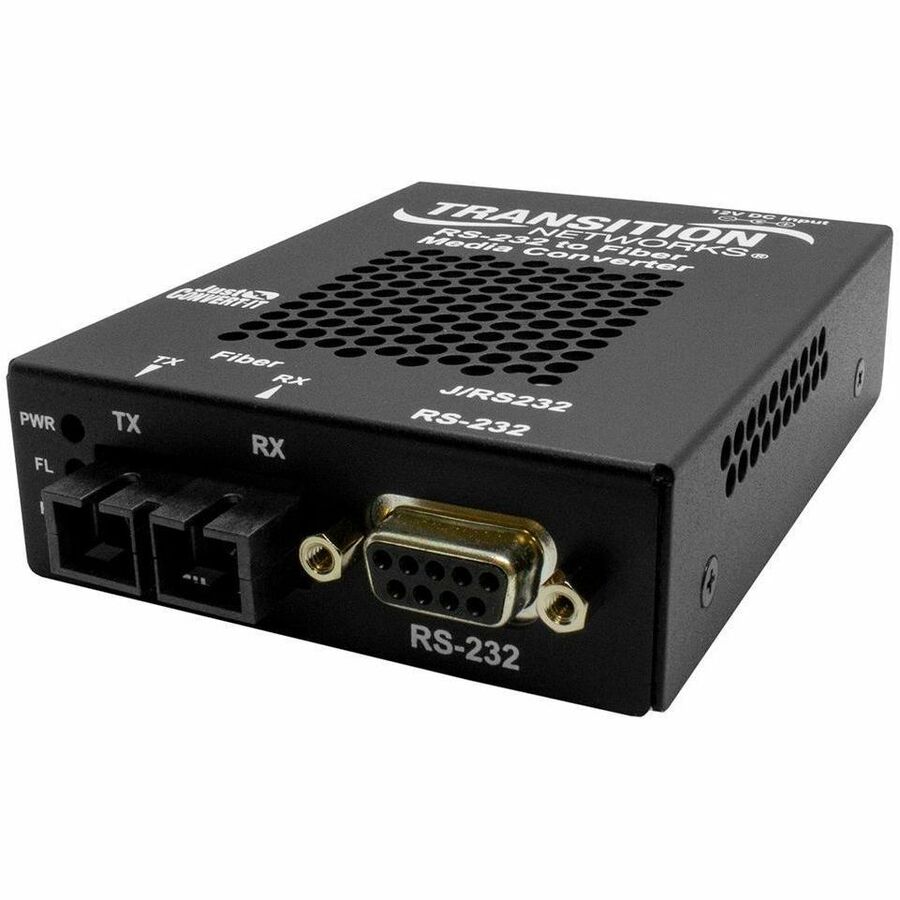

Transition Networks J/RS232-CF-01(SC) Transceiver/Media Converter

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	JRS232CF01SCBR
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Transition Networks
Product Series	J/RS232
Product Model	J/RS232-CF-01(SC)
Product Name	J/RS232-CF-01(SC) Transceiver/Media Converter
Marketing Information	Stand-alone RS232 Media Converter RS232 Copper to Fiber Link a remote terminal to a host computer: Connect multiple devices, such as security scanners, POS devices, remote terminals and building access/alarming systems to a host computer. Ideal for campus or business environments where remote devices can be networked in a point-to-point configuration where distances are greater than the 15 meter limitation of conventional copper serial cables. Lantronix's serial RS232 to Fiber Media Converter is an inexpensive way to extend the distance between serial connections with the use of fiber optic cable. This converter supports full or half-duplex data transmission at speeds up to 120 Kbps. Unit and Port LEDs allow for quick status information on the converter.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Media & Performance

Media Type Supported	Optical Fiber
Fiber Mode Supported	Multi-mode
Fiber Optic Cable Wavelength	1300 nm
Maximum Data Transfer Rate	120 kbit/s
Maximum Distance Supported	2 km

Power Description

Physical Characteristics

Form Factor	Standalone Rack-mountable Wall Mountable DIN Rail Mountable Shelf Mount
Height	1"
Width	3"
Depth	3.9"
Weight (Approximate)	2 lb

Miscellaneous

Package Contents	J/RS232-CF-01(SC) Transceiver/Media Converter Power Supply - Brazil
Application/Usage	Data Network
Additional Information	DB-9 (female) [15 m/49 ft.] to 1300nm multimode (SC) [2 km/1.2 mi.] Link Budget: 11.0 dB
Certifications & Standards	Safety: Wall Mount Power Supply: UL Listed and CSA certified Emissions: CISPR22/EN55022 Class A + EN55024, EN60950 Class A, FCC Class A, CE Mark
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
TAA Compliant	Yes
NDAA Compliant	Yes

Warranty

Limited Warranty

Lifetime
