POTS COPPER TO FIBER MC, ION SA, SFP, WITH -JP PWR

Name: POTS COPPER TO FIBER MC, ION SA, SFP, WITH -JP PWR
Brand: TRANSITION NETWORKS
SKU: 2633BX
Price: 510.4 USD
Availability: InStock

TRANSITION NETWORKS

PCN#

2633BX

MFG#

S6310-3340-JP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$510.40

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

5 km
1.0 x Expansion Slots
SFP
1 x SFP Slots
AC/DC
Standalone, Rack
mountable
TAA Compliant

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 2 lbs.

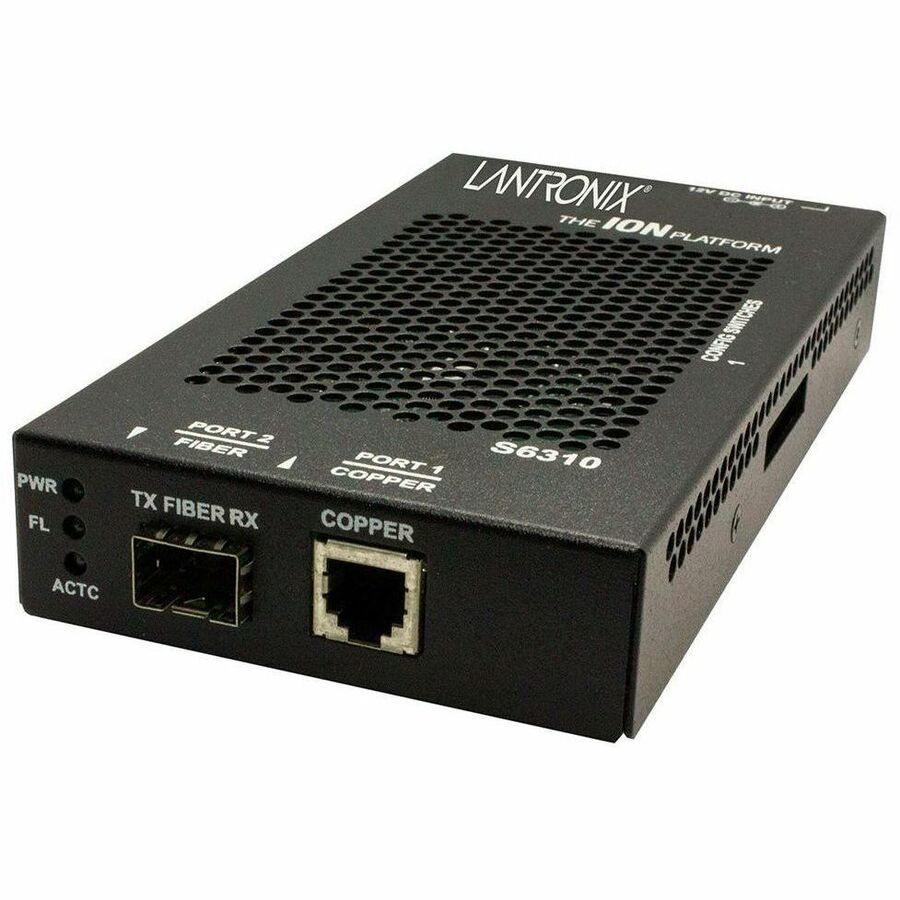

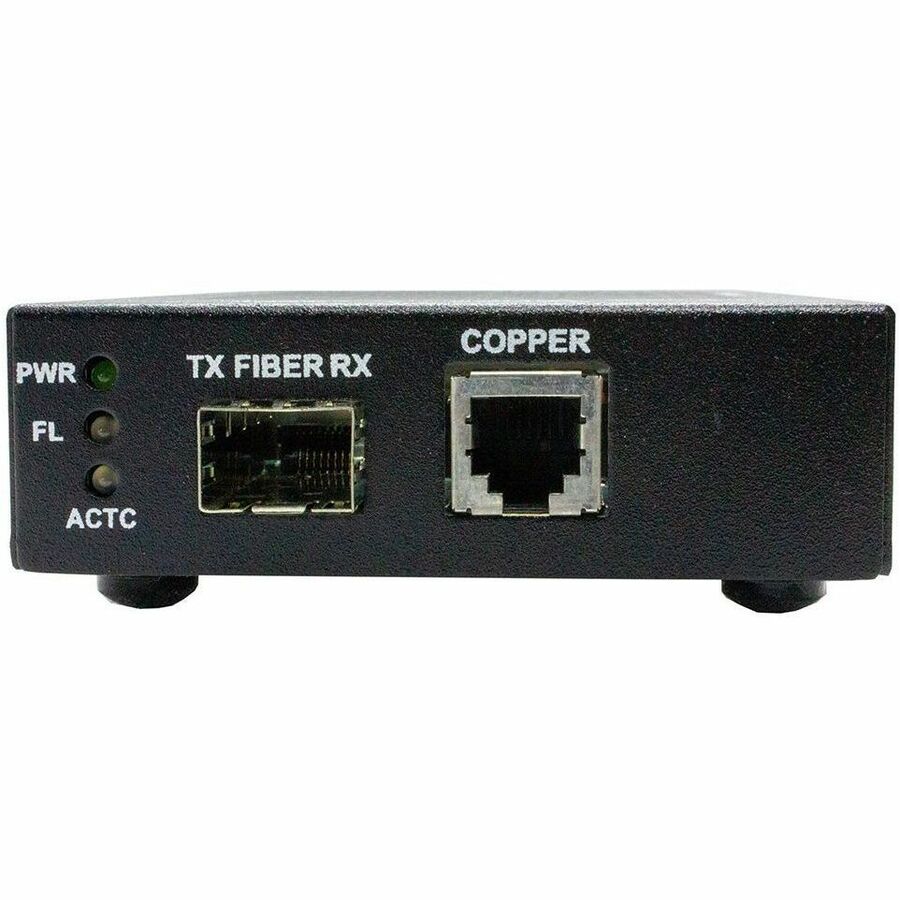

Lantronix S6310-3340 Transceiver/Media Converter

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	S63103340JP
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Line	ION
Product Model	S6310-3340
Product Name	S6310-3340 Transceiver/Media Converter
Marketing Information	The S6310-3340 is a stand-alone media converter that provides an interface between a twisted pair RJ-11 port and a fiber port, allowing users to connect central-office voice grade signals to distant Plain Old Telephone equipment (POTS) utilizing standard telephone signaling. Two units are required to implement an end to end system. The first unit connects to a telephone line or PBX and is configured to act as a telephone (FXO Mode) and has the ability to detect ringing voltages. The second unit is the reciprocal unit and is configured to have the ability to act as a Central Office and connects to a telephone device (FXS Mode). Together, the modules allow legacy analog phone lines to be extended over fiber for both permanent installations as well as temporary job-site installations.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	1
Number of RJ-11 Ports	1

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Maximum Distance Supported	5 km

I/O Expansions

Total Number of Expansion Slots	1.0
Expansion Slot Type	SFP
Number of SFP Slots	1

Power Description

Power Source	AC/DC
Input Voltage	12 V DC
Power Consumption	2 W

Physical Characteristics

Form Factor	Standalone Rack-mountable
Height	1"
Width	3.3"
Depth	6.5"
Weight (Approximate)	2 lb

Miscellaneous

Package Contents	S6310-3340 Transceiver/Media Converter Power Supply - Japan
Application/Usage	Network Data
Additional Information	Stand-alone Media Converter Twisted Pair (RJ-11) (5 km/3.1 mi.) to (1) SFP Slot (empty)
Certifications & Standards	Emissions: EN55032 Class A, FCC Part 15 Class A Immunity: EN55024 Safety: CE Mark
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
TAA Compliant	Yes
NDAA Compliant	Yes

Warranty

Limited Warranty

Lifetime
