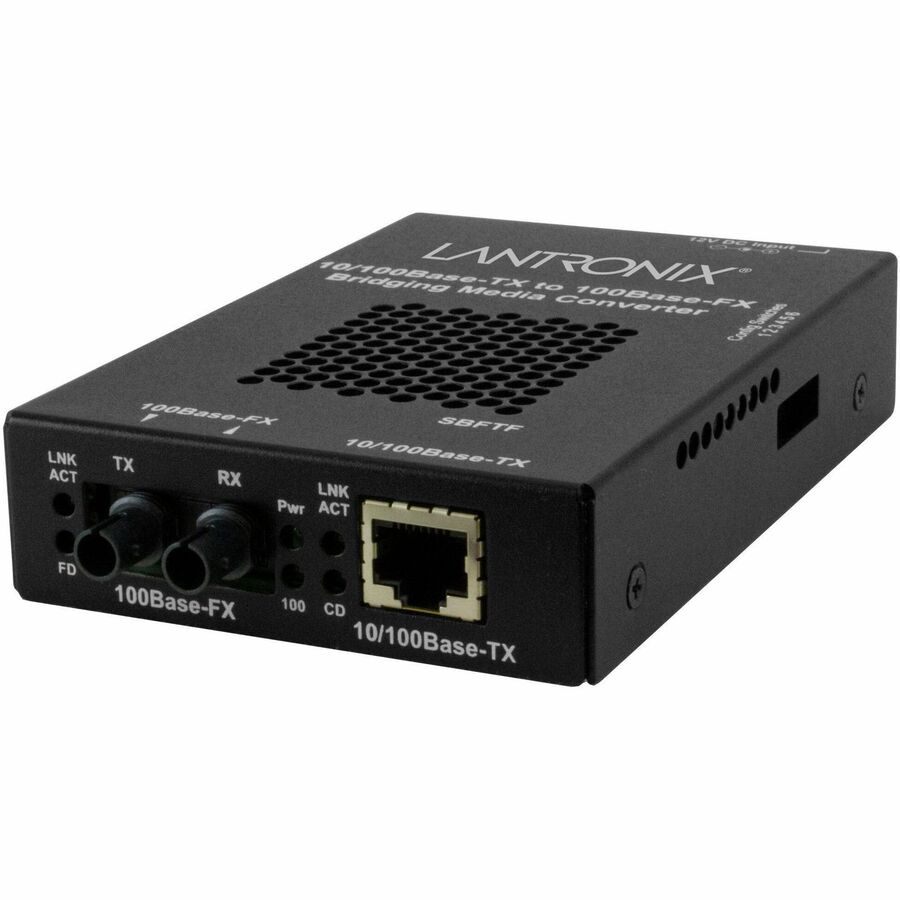

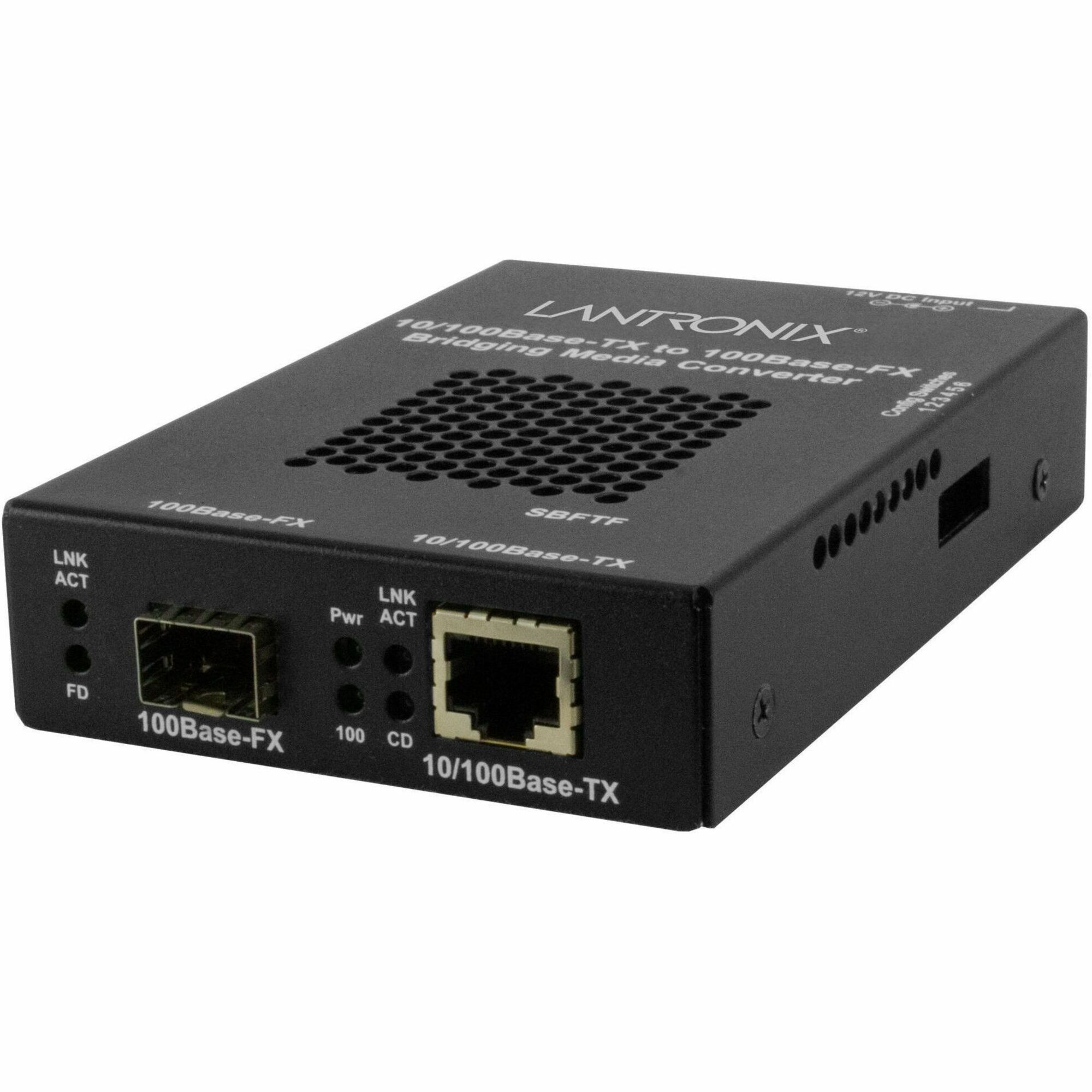

Transition Networks SBFTF1013-105 10/100 Bridging Media Converter

Name: Transition Networks SBFTF1013-105 10/100 Bridging Media Converter
Brand: TRANSITION NETWORKS
SKU: 2655BX
Price: 211.99 USD
Availability: InStock

TRANSITION NETWORKS

PCN#

2655BX

MFG#

SBFTF1013-105-EU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$211.99

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

10/100BTX to 100BFX, 1X9, SC MM, 3.3V
EU

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

Stand-alone Fast Ethernet Media and Rate Converter 10/100Base-TX to 100Base-FX

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	SBFTF1013-105-EU
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Series	SBFTF
Product Model	SBFTF1013-105
Product Name	SBFTF1013-105 10/100 Bridging Media Converter
Marketing Information	The SBFTF Series is a that provides an interface between 10/100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 10/100 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber. NDAA Compliant, TAA Compliant
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	1
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
Number of SC Ports	1
SC Port Type	Duplex

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Fiber Mode Supported	Multi-mode
Fiber Optic Cable Wavelength	1300 nm
Maximum Distance Supported	2 km

Network & Communication

Ethernet Technology	Fast Ethernet
Network Technology	10/100Base-TX 100Base-FX

Power Description

Power Source

Power Supply

Physical Characteristics

Form Factor	External Wall Mountable
Height	1"
Width	3.3"
Depth	4.8"
Weight (Approximate)	2 lb

Miscellaneous

Package Contents	SBFTF1013-105 10/100 Bridging Media Converter Power Supply (Europe)
Additional Information	Optical Wavelength : 1300 nm Supports Auto-Negotiation Features AutoCross Supports Link Pass Through Far End Fault Detection Features Automatic Link Restoration
Certifications & Standards	Safety: Wall Mount Power Supply: UL Listed; FCC Class A, VCCI Class 1, CISPR22/EN55022 Class A, EN55024, EN61000, CE Mark
TAA Compliant	Yes

Warranty

Limited Warranty

Lifetime
