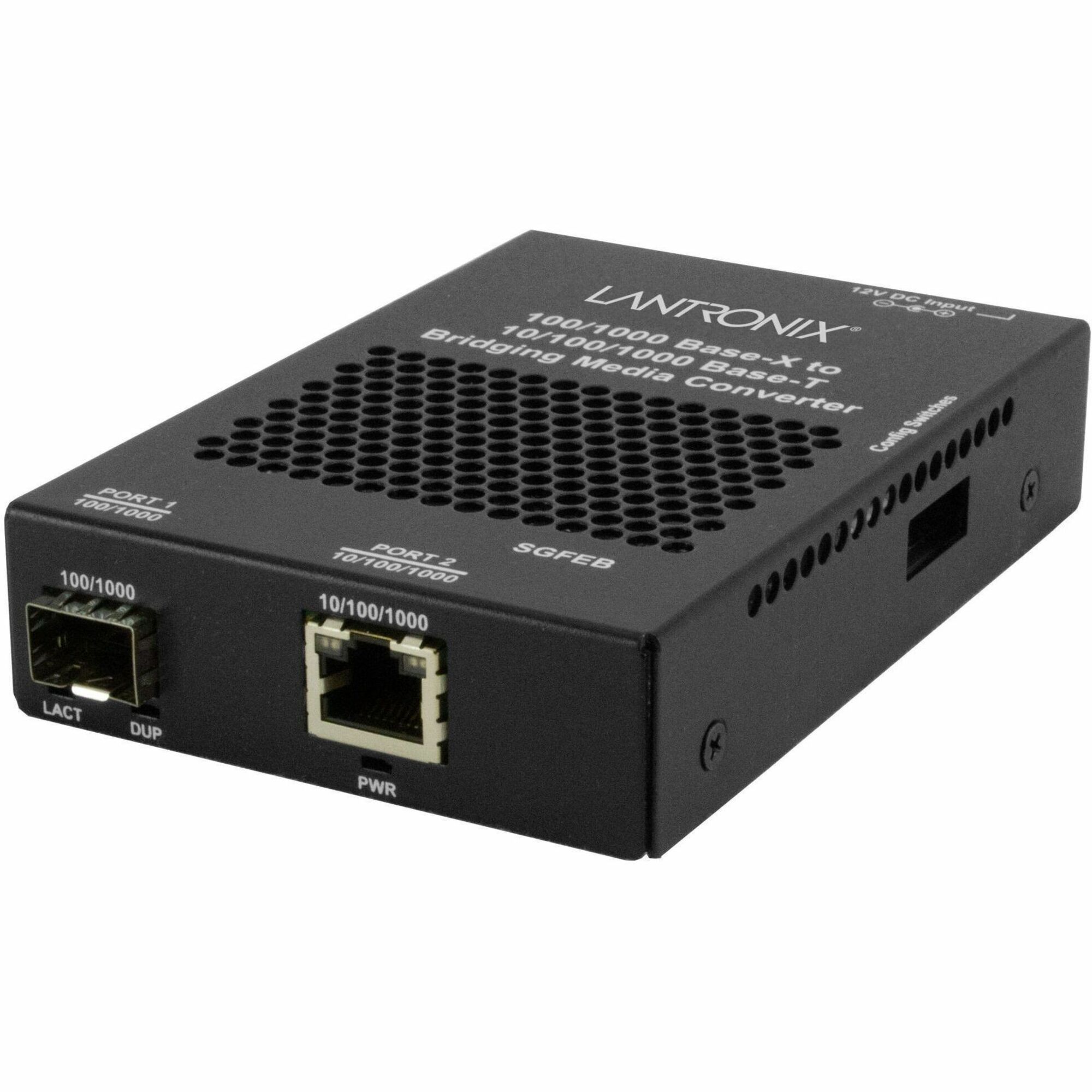

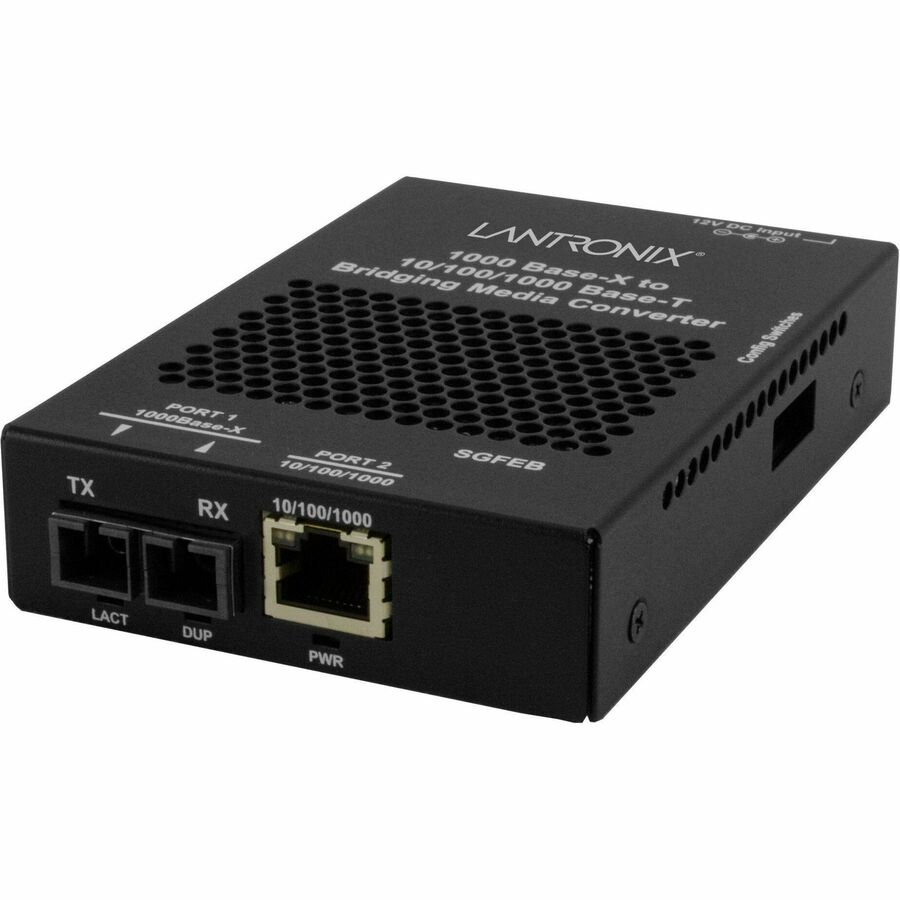

Lantronix SGFEB1040-130 Transceiver/Media Converter

Name: Lantronix SGFEB1040-130 Transceiver/Media Converter
Brand: TRANSITION NETWORKS
SKU: 2754BX
Price: 327.07 USD
Availability: InStock

TRANSITION NETWORKS

PCN#

2754BX

MFG#

SGFEB1040-130-EU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$327.07

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

10/100/1000BT TO 1000BX, SINGLE SFP with EU Pwr Supply

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

Stand-alone Gigabit Ethernet Media and Rate Converter 10/100/1000Base-T to 1000Base-SX/LX

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	SGFEB1040-130-EU
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Series	SGFEB
Product Model	SGFEB1040-130
Product Name	SGFEB1040-130 Transceiver/Media Converter
Marketing Information	The SGFEB Series is a stand-alone media converter that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 10/100/1000 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber. NDAA Compliant, TAA Compliant
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	1
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Maximum Data Transfer Rate	1000 Mbit/s
Maximum Distance Supported	0.10 km

I/O Expansions

Total Number of Expansion Slots	1
Expansion Slot Type	SFP
Number of SFP Slots	1

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 100/1000Base-X

Power Description

Power Source	AC Adapter
Input Voltage	7.5 V DC 24 V DC
Power Consumption	2.20 W

Physical Characteristics

Form Factor	Wall Mountable Rack-mountable Rail-mountable Standalone
Height	1"
Width	3.3"
Depth	4.8"
Weight (Approximate)	2 lb

Miscellaneous

Package Contents	SGFEB1040-130 Transceiver/Media Converter Power Supply - Europe
Application/Usage	Data Network
Additional Information	10/100/1000Base-T (RJ-45) [100 m/328 ft.] to 100/1000Base-X SFP Slot (empty)
Certifications & Standards	EN55022 Class A, EN55024, FCC Class A, CE Mark Safety: Wall Mounted Power Supply: UL Listed, UL60950 and CSA Certified
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
TAA Compliant	Yes
NDAA Compliant	Yes

Warranty

Limited Warranty

Lifetime
