HARDENED UNMANAGED SWITCH, 4-PORT GE POE++, (1) 10/100/1000BAST-T, 1 100/1000 SF

Name: HARDENED UNMANAGED SWITCH, 4-PORT GE POE++, (1) 10/100/1000BAST-T, 1 100/1000 SF
Brand: TRANSITION NETWORKS
SKU: 3204BX
Price: 551.43 USD
Availability: InStock

TRANSITION NETWORKS

PCN#

3204BX

MFG#

SISTP1040-551-LRT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$551.43

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

5 Ports
Gigabit Ethernet
10/100/1000Base
T, 100/1000Base
X
2 Layer Supported
Modular
5 W Power Consumption
360 W PoE Budget
Optical Fiber, Twisted Pair
PoE Ports
DIN Rail Mountable, Wall Mountable

Product Condition: New and Factory Fresh

Shipping Weight: 3 lbs.

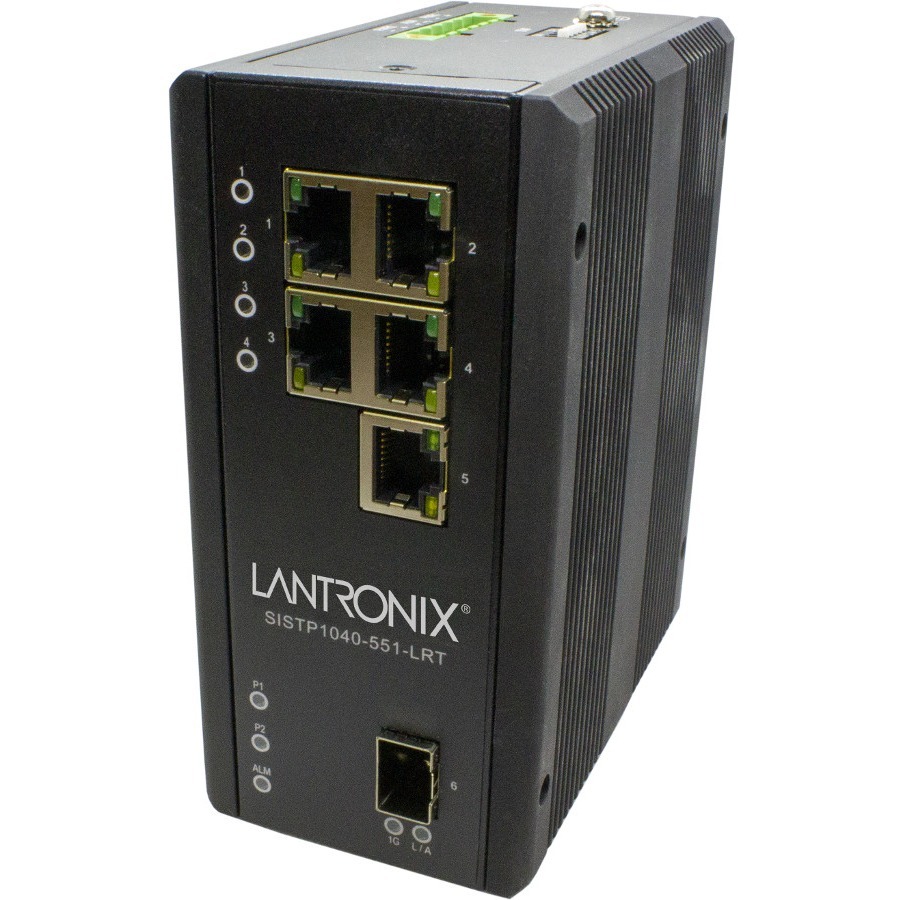

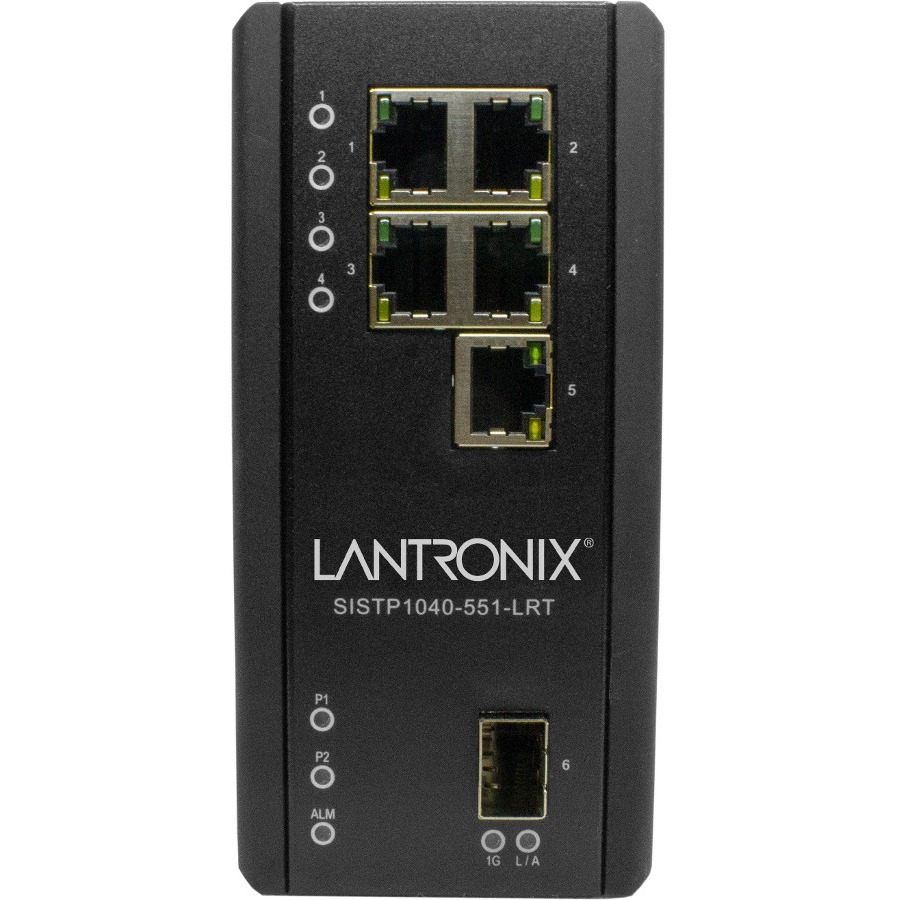

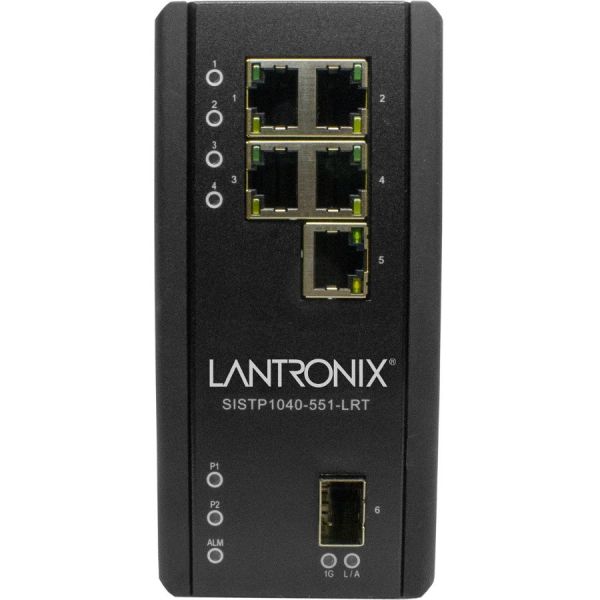

Lantronix Unmanaged Hardened Gigabit Ethernet PoE++ Switch

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	SISTP1040-551-LRT
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Model	SISTP1040-551-LRT
Product Name	Unmanaged Hardened Gigabit Ethernet PoE++ Switch

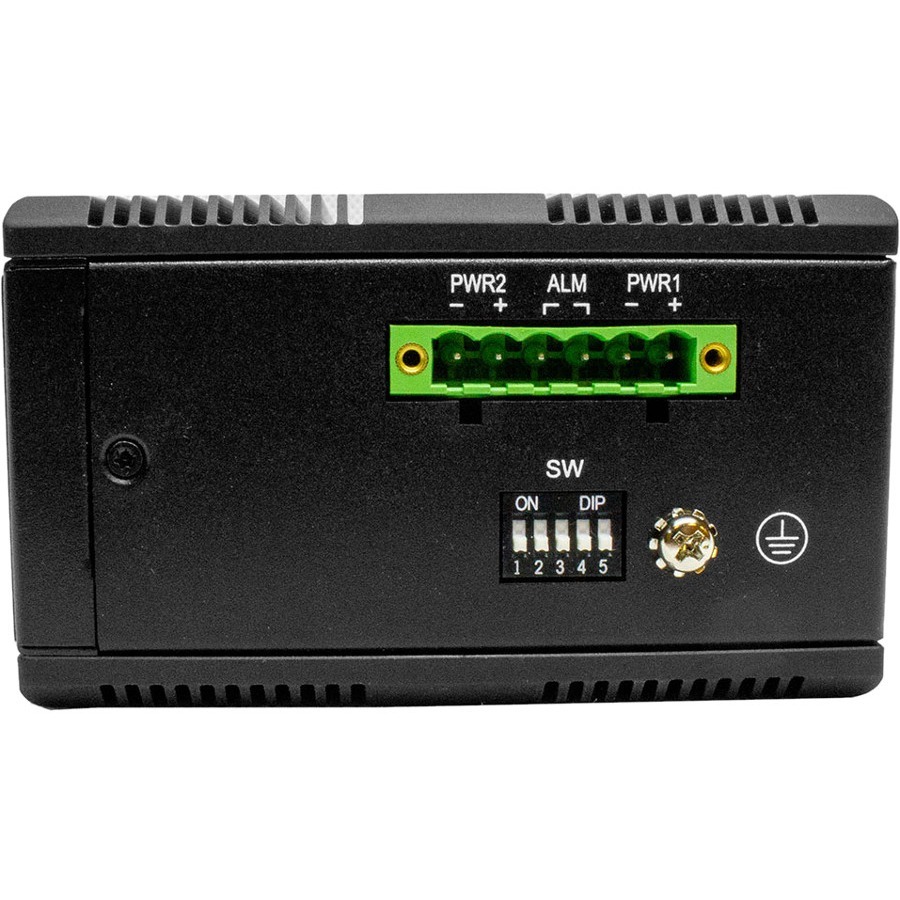

Marketing Information	This switch is an unmanaged full Gigabit Ethernet hardened PoE++ switch that complies with IEEE 802.3bt, IEEE 802.3at and IEEE 802.3af. The switch has (4) 10/100/1000Base-T PoE++ ports, (1) 10/100/1000Base-T port with (1) 100/1000 dual speed SFP slot. It can deliver up to 90 Watts on each PoE++ port simultaneously and also supports Power over HDBaseT (PoH) mode (95 Watts) when enabled by DIP switch. The SISTP1040-551-LRT can be used to power PoE lighting, high powered IP cameras and digital signage. It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C.
Product Type	Ethernet Switch

Technical Information

Features

Fanless

Interfaces/Ports

Total Number of Network Ports	5
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	1 x Gigabit Ethernet Network 4 x Gigabit Ethernet PoE++ 1 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 100/1000Base-X

I/O Expansions

Total Number of Expansion Slots	1.0
Expansion Slot Type	SFP (mini-GBIC)

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3bt IEEE 802.3at IEEE 802.3af IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.3x IEEE 802.1p

Management & Protocols

Manageable

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	360 W
Input Voltage	48 V DC 57 V DC 120 V AC 230 V AC
Power Source	AC/DC
Power Consumption	5 W

Physical Characteristics

Product Material	Metal
Form Factor	DIN Rail Mountable Wall Mountable
Height	5.1"
Width	2.4"
Depth	4.1"
Weight (Approximate)	2.10 lb
