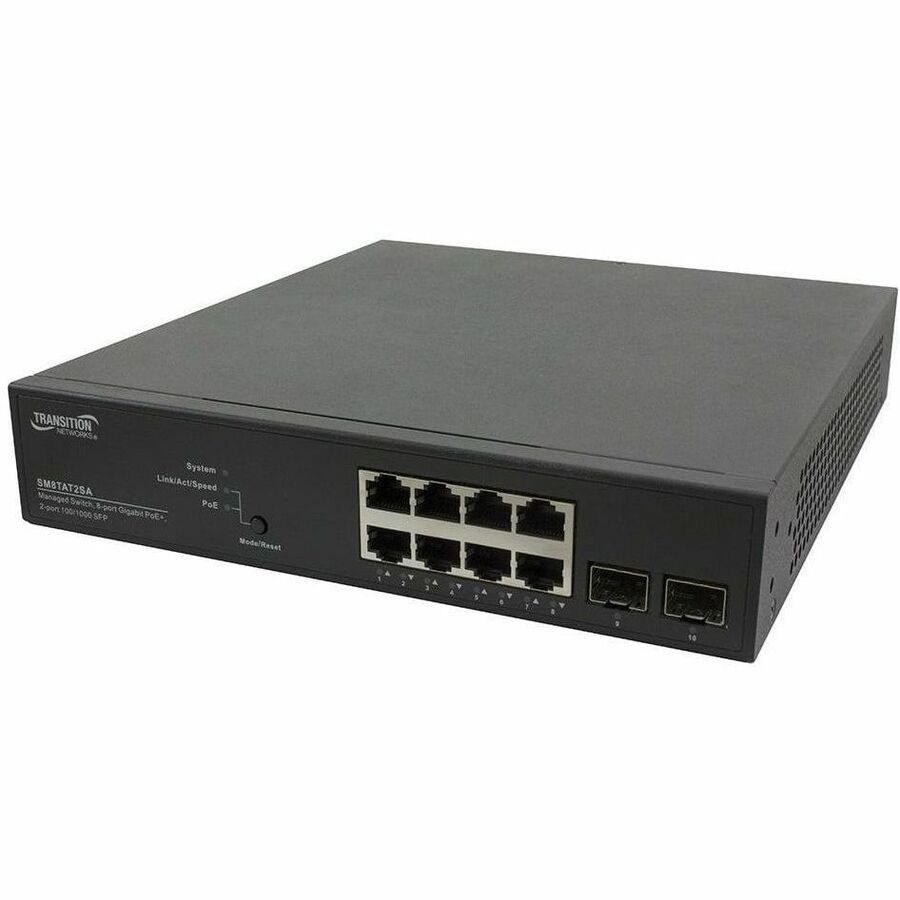

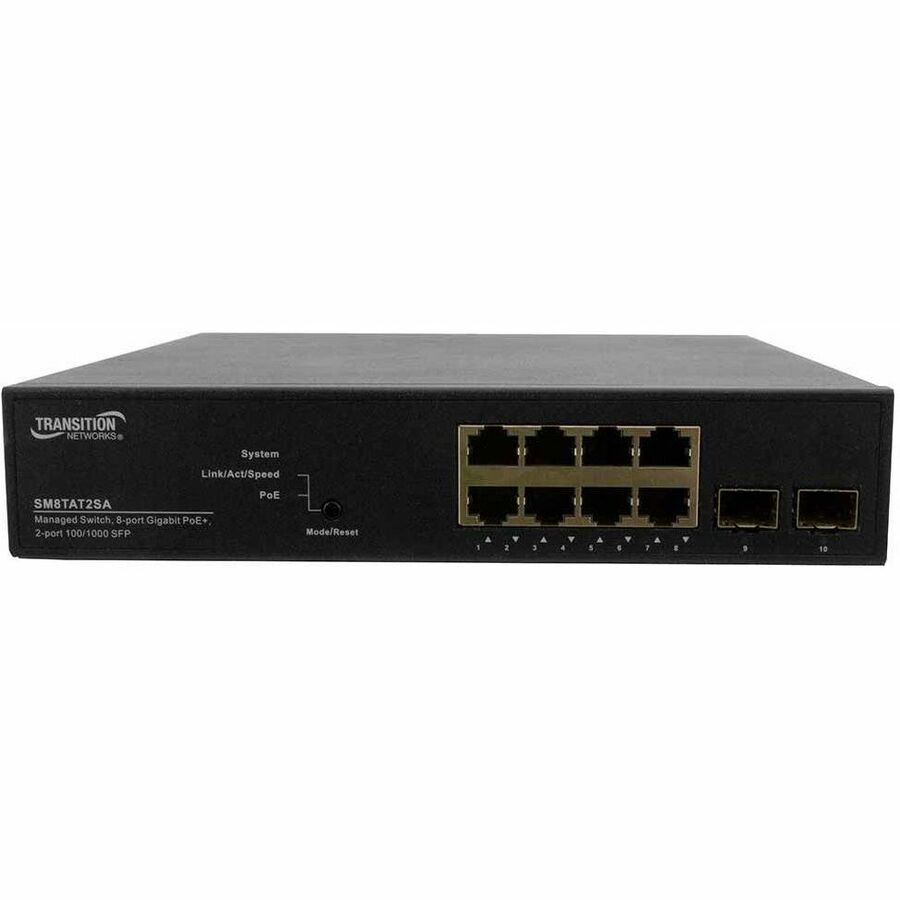

SMART MANAGED POE+ SWITCH, 8-PORT GIGABIT POE+, 2-PORT 100/1000 SFP

Name: SMART MANAGED POE+ SWITCH, 8-PORT GIGABIT POE+, 2-PORT 100/1000 SFP
Brand: TRANSITION NETWORKS
SKU: 3142BX
Price: 328.91 USD
Availability: InStock

TRANSITION NETWORKS

PCN#

3142BX

MFG#

SM8TAT2SA-LA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$328.91

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

8.0 Ports
Manageable
Gigabit Ethernet
100/1000Base
FX, 10/100/1000Base
TX
4 Layer Supported
Modular
2 SFP Slots
147 W Power Consumption
130 W PoE Budget
Twisted Pair, Optical Fiber
PoE Ports
Rack
mountable
5 Year Limited Warranty

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 6 lbs.

Lantronix SMTATSA Ethernet Switch

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	SM8TAT2SALA
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Series	SMTATSA
Product Name	SMTATSA Ethernet Switch
Marketing Information	(8/16/24) 10/100/1000Base-T PoE++ Ports + (2) 100/1000Base-X SFP Slots These Smart Managed PoE+ Switches with embedded Device Management System (DMS) software provides the benefits of ease of use in IP surveillance, Wireless Access Point and other applications. The DMS capability built into the switch provides time-saving features enabling security integrators or network administrators to establish and document a baseline deployment, automatically discover and remotely configure attached IP-powered devices (PDs).
Product Type	Ethernet Switch

Technical Information

Features

Fanless

Interfaces/Ports

Total Number of Network Ports	8.0
Modular	Yes
Stack Port	No
Network (RJ-45)	Yes
Port/Expansion Slot Details	8 x Gigabit Ethernet Network PoE+ 2 x Gigabit Ethernet SFP

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	100/1000Base-FX 10/100/1000Base-TX

I/O Expansions

Total Number of Expansion Slots	2.0
Expansion Slot Type	SFP (mini-GBIC)
Shared SFP Slot	No
Number of SFP Slots	2

Network & Communication

Layer Supported	4
Networking Standards	IEEE 802.3az IEEE 802.3x IEEE 802.3ab IEEE 802.1ad IEEE 802.1p IEEE 802.3at IEEE 802.1ab IEEE 802.3ad IEEE 802.1s IEEE 802.3u IEEE 802.3 IEEE 802.3z IEEE 802.1w IEEE 802.3af IEEE 802.1D IEEE 802.1Q

Management & Protocols

Manageable

Yes

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	130 W
Input Voltage	120 V AC 230 V AC
Power Source	PoE+ AC
Power Consumption	147 W

Physical Characteristics

Form Factor	Rack-mountable
Height	1.7"
Width	8.7"
Depth	9.5"
Weight (Approximate)	4.40 lb

Miscellaneous

Package Contents	SMTATSA Ethernet Switch Power Cord Latin America 19" Rack Mount Bracket
Application/Usage	Network Surveillance Wireless Access Point IP Camera Digitial Signage PoE Lighting Security
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

5 Year
