INDUSTRIAL 10G SFP+ TO 10G POE ++ MEDIA CONVERTER

Name: INDUSTRIAL 10G SFP+ TO 10G POE ++ MEDIA CONVERTER
Brand: TRENDNet
SKU: YS3178
Price: 149.99 USD
Availability: InStock

TRENDNet

PCN#

YS3178

MFG#

TI-BF711SFP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$149.99

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

Network (RJ
45)
1x PoE+ (RJ
45) Ports
10 Gigabit Ethernet
10GBase
T, 10GBase
X
20 Gbit/s
1 x Expansion Slots
SFP+
1 x SFP+ Slots
AC/DC
DIN Rail Mountable, Wall Mountable
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

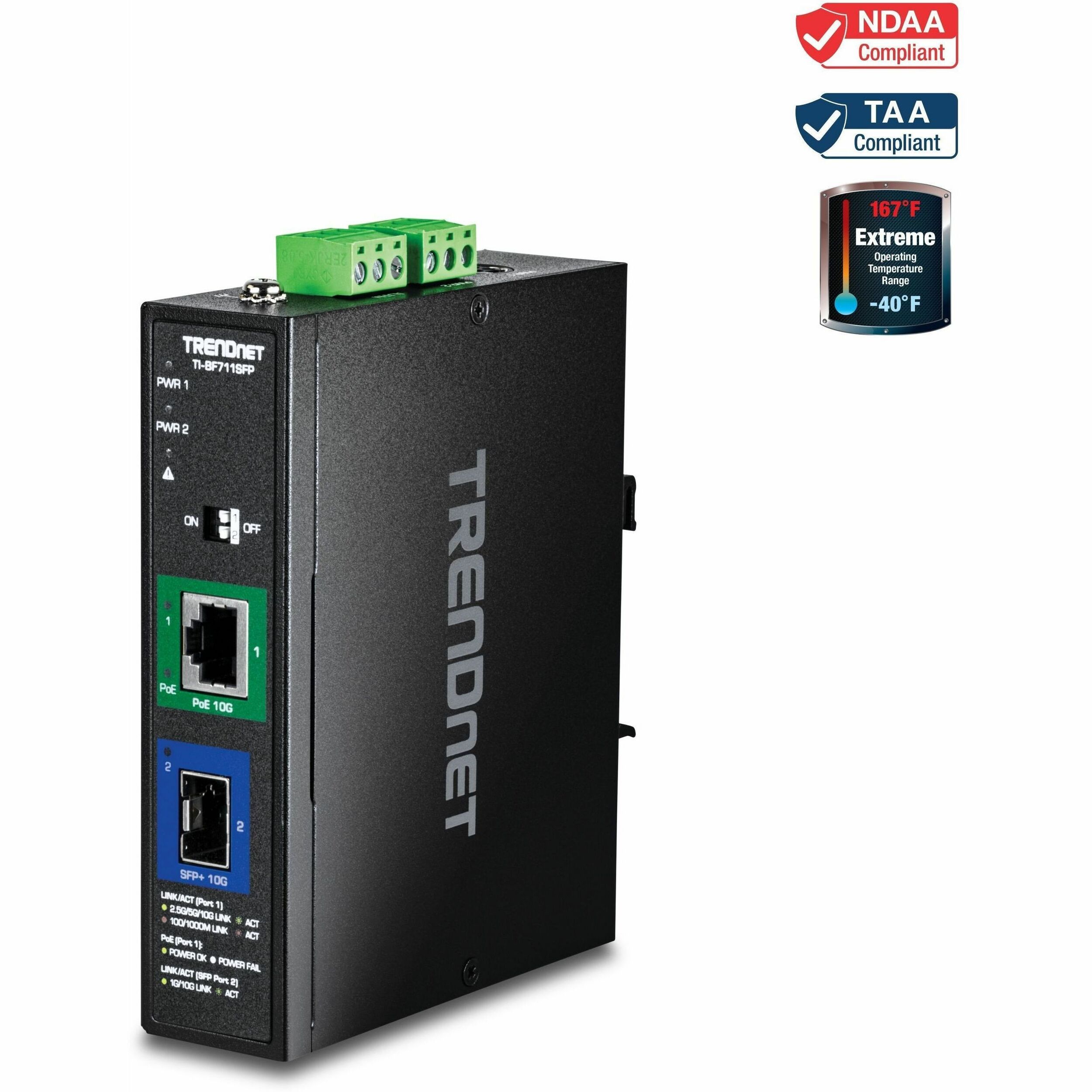

TRENDnet Industrial 10G SFP+ to 10G PoE++ Media Converter, TI-BF711SFP, Hardened IP50 Rated, NDAA & TAA Compliant for Government Use, Provides up to 95W, DIN-Rail and Wall Mounts Included

Overview

Tech Specs

PoE++ OutputConverts long-distance fiber to copper while providing power to PoE, PoE+, and PoE++ compliant devices, such as IP cameras and wireless APs. Industrial EnvironmentsHardened IP50 converter for industrial networking environments within a - 40°- 75° C (-40° - 167° F) operating temperature range. FEATURES | 10G PoE++ PortOne 10G PoE++ Ethernet port for high-power and high-speed devices Link Fault Pass ThroughEasily enable the LFPT (Link Fault Pass Through) feature on the industrial multi-mode media converter using the front panel DIP switch to identify a link fault to the remote LFPT enabled media converter Surge ProtectionProvides up to 6kV RJ45 Ethernet surge protection Electro Magnetic ComplianceComplies with industrial EMS certifications ESD (IEC 61000-4-2)
Contact
6kV, Air
8kV; EFT (IEC 61000-4-4)
Power
2kV, Signal
1kV; Surge (IEC 61000-4-5)
Power
2kV, Signal
2kV 10G SFP+ PortOne 10G SFP+ port for long distance applications Dust ProtectedThis industrial switch is IP50 rated for ingress dust protection Extreme Temperature RangeAn extreme operating temperature range of -40° - 75° C (-40° - 167°F) allows for installations in industrial environments with intense hot or cold conditions DIN-Rail / Wall MountsThe rugged PoE+ switch includes DIN-Rail mount and wall mount hardware Dip Switches1
LFPT (Link Fault Pass Through) on/off (default ON) 2
EEE (Energy Efficient Ethernet, IEEE 802.3az) on/off (default OFF) Fault ToleranceFeatures an output alarm relay to indicate an input power failure Shock and Vibration ResistantRated for shock (EN 60068-2-27), freefall (EN 60068-2-31), and vibration (EN 60068-2-6) Grounding PointThe industrial unmanaged PoE+ switch features a grounding point to protect equipment from external electrical surges Product TypeTransceiver/Media ConverterInterfaces/PortsTotal Number of Ports1Network (RJ-45)YesNumber of PoE+ (RJ-45) Ports1Media & PerformanceMedia Type Supported

Twisted Pair
Optical Fiber

Maximum Data Transfer Rate20 Gbit/sI/O ExpansionsTotal Number of Expansion Slots1Expansion Slot TypeSFP+Number of SFP+ Slots1Network & CommunicationEthernet Technology10 Gigabit EthernetNetwork Technology

10GBase-T
10GBase-X

Power DescriptionPower SourceAC/DCPower Consumption6.80 WPlug/Connector TypeTerminal BlockFrequency

50 Hz
60 Hz

Physical CharacteristicsForm Factor

DIN Rail Mountable
Wall Mountable

Height4.7"Width1.2"Depth3.9"Weight (Approximate)1.05 lbMiscellaneousPackage Contents

Industrial 10G SFP+ Media Converter
Removable Terminal Blocks
DIN-Rail and Wall Mount kit

Application/Usage

Industrial
Network
Camera
VoIP Phone
Wireless Access Point

Certifications & Standards

IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3an
IEEE 802.3ae
IEEE 802.3bz
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at
IEEE 802.3bt
CE
FCC
LVD
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-31)
Vibration (IEC 60068-2-6)
IEC 61000-4-2
IEC 61000-4-4
IEC 61000-4-5
NDAA

Environmentally FriendlyYesEnvironmental CertificationChina Environmental United Certification Center (CEC)Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

Country of OriginTaiwanTAA CompliantYesWarrantyLimited Warranty3 Year
