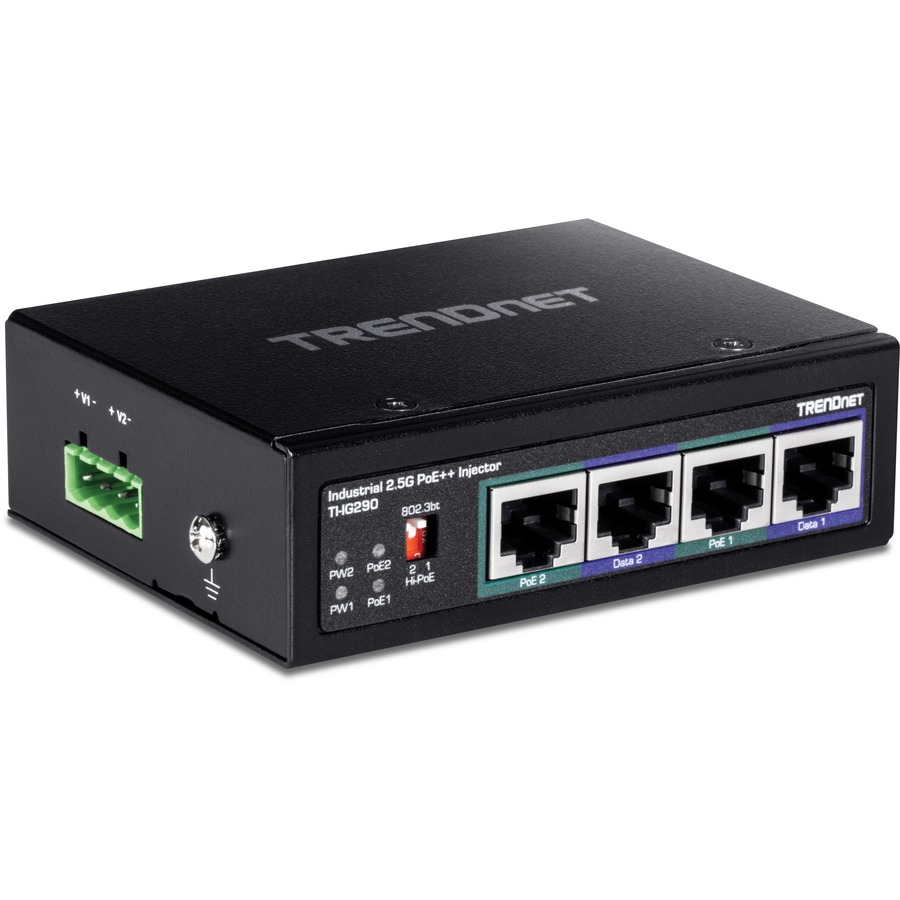

TRENDnet 95W 2-Port Industrial 2.5G PoE++ Injector, Supports PoE IEEE 802.3af, PoE+ IEEE 802.3at, And PoE++ IEEE 802.3bt, Not Compatible With Passive PoE Devices, Black, TI-IG290

by
TRENDNet
PCN#
00GR83
MFG#
TI-IG290
$199.99
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 56 V DC Input
  • 2 x 2.5 Gigabit Ethernet Input Port(s)
  • 2 x 2.5 Gigabit PoE++ Output Port(s)
  • Show more

Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 2 lbs.
TRENDnet 95W 2-Port Industrial 2.5G PoE++ Injector, Supports PoE IEEE 802.3af, PoE+ IEEE 802.3at, And PoE++ IEEE 802.3bt, Not Compatible With Passive PoE Devices, Black, TI-IG290
Tech Specs
Specifications

Manufacturer

TRENDnet

Manufacturer Part Number

TIIG290

Manufacturer Website Address

http://www.trendnet.com

Brand Name

TRENDnet

Product Model

TI-IG290

Product Name

95W 2-Port Industrial 2.5G PoE++ Injector

Marketing Information

TRENDnet's 95W 2-Port Industrial 2.5G PoE++ Injector, model TI-IG290, allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2-port industrial 2.5G PoE++ injector to a non-PoE 2.5G switch, and then run Ethernet cables up to 100 meters (328 ft.) to network two PoE/PoE++ devices. This multi-port industrial 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W. The fanless design conveniently eliminates operating noise and lowers unnecessary energy consumption. The dual port industrial 2.5G PoE++ injector is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 70° C (-40° - 167° F) for harsh industrial environments. NDAA / TAA compliant (U.S. and Canada only).

Product Type

PoE++ Injector
Technical Information

Protection Type

  • Surge Protection
  • ESD Protection
  • Overload Protection
  • Over Current
Power Description

Input Voltage

56 V DC

Maximum Output Power

180 W
Interfaces/Ports

Input Ports

2 x 2.5 Gigabit Ethernet

Output Ports

2 x 2.5 Gigabit PoE++
Physical Characteristics

Form Factor

DIN Rail/Wall Mountable

Height

1.2"

Width

3.2"

Length

4.1"

Weight (Approximate)

6 oz
Miscellaneous

Package Contents

  • 95W 2-Port Industrial 2.5G PoE++ Injector
  • Quick Installation Guide
  • Removable Terminal Block
  • DIN-rail and Wall Mount Kit
  • IP30 Rated Metal Enclosure

Certifications & Standards

  • CE
  • FCC
  • IEC EN60950-1
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)

Country of Origin

Taiwan

TAA Compliant

Yes
Warranty

Limited Warranty

3 Year
