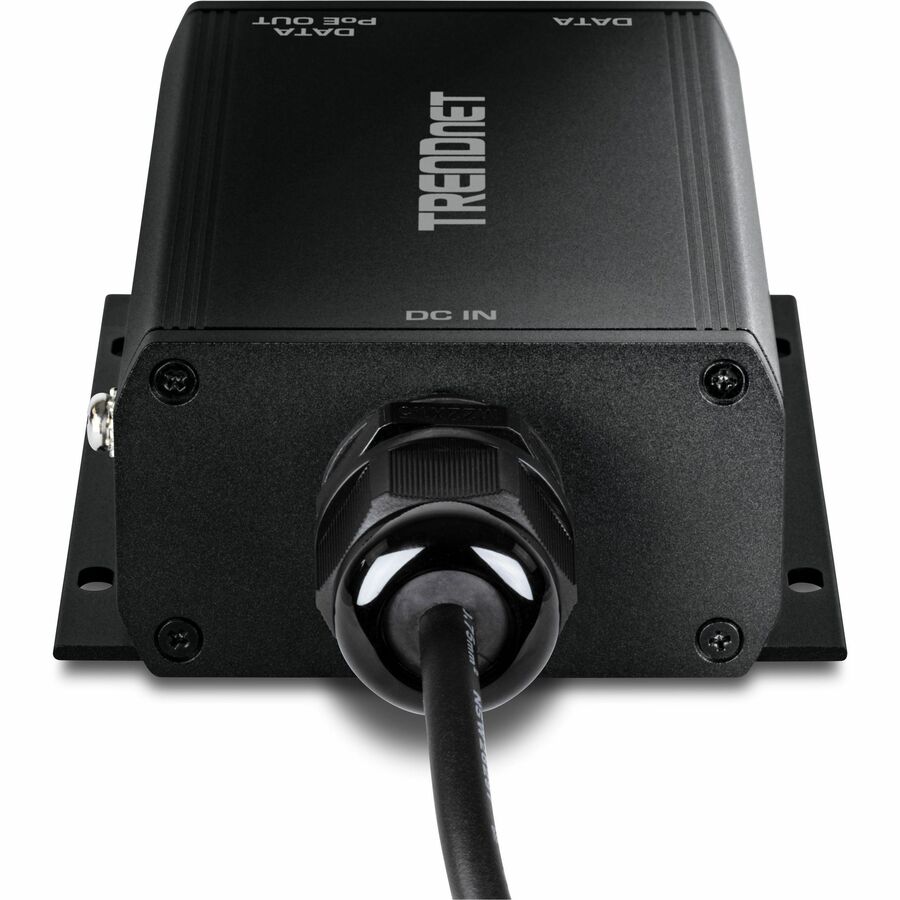

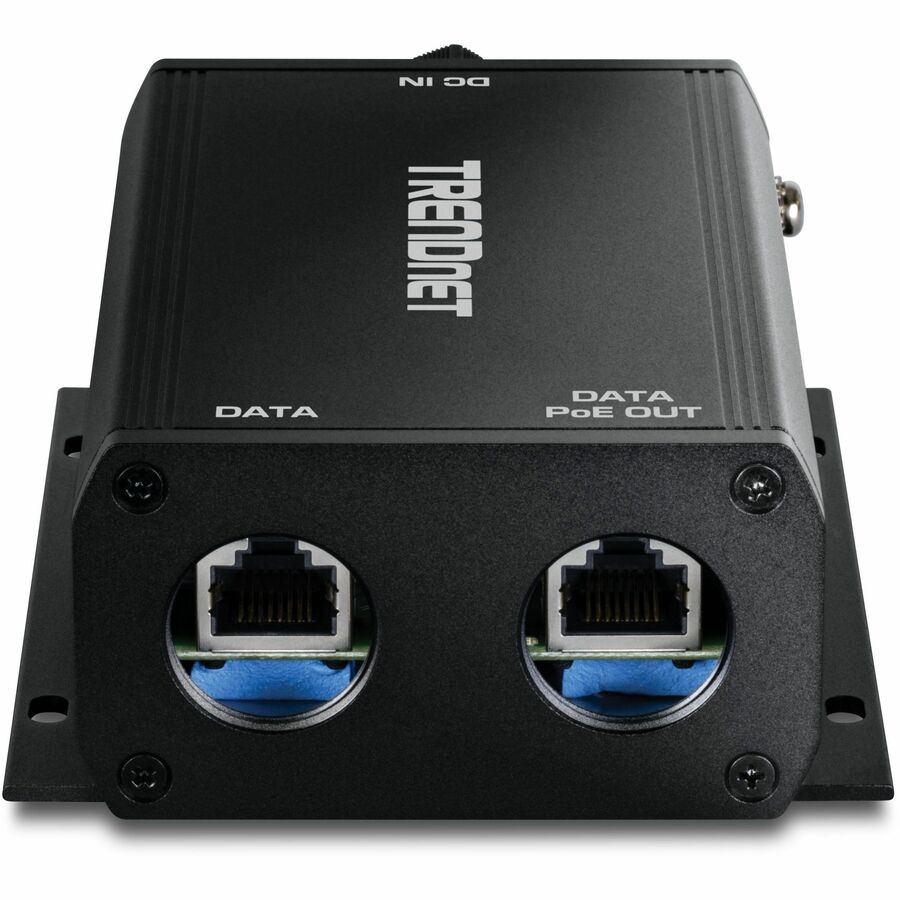

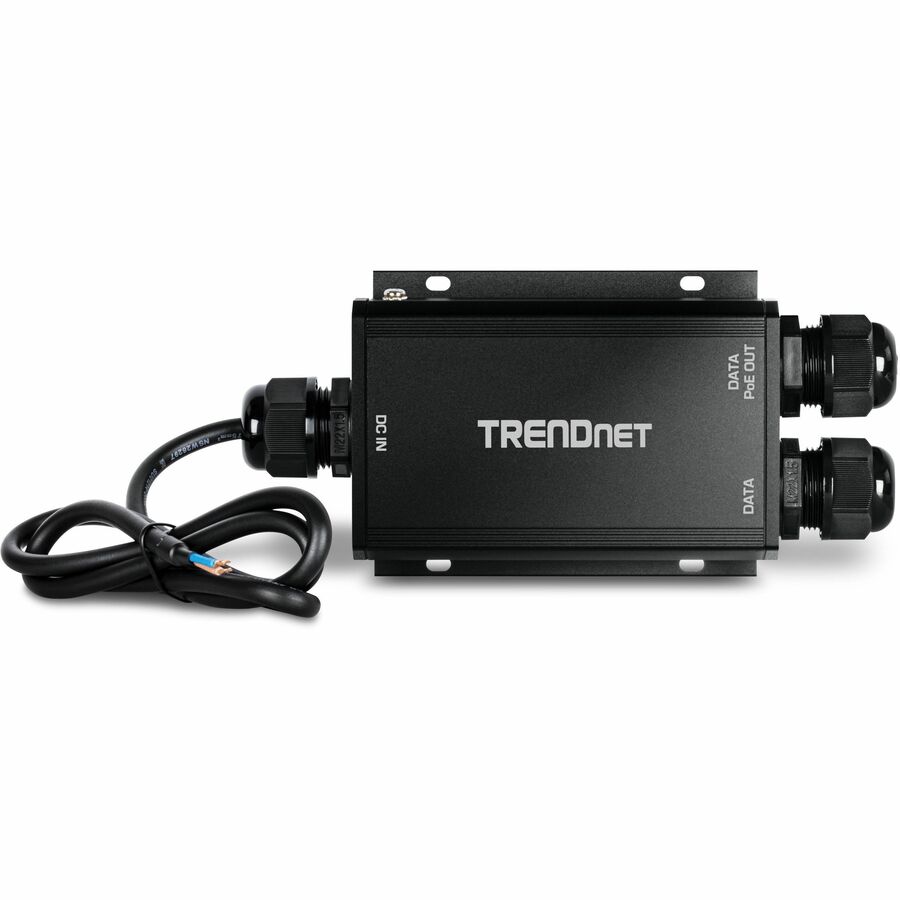

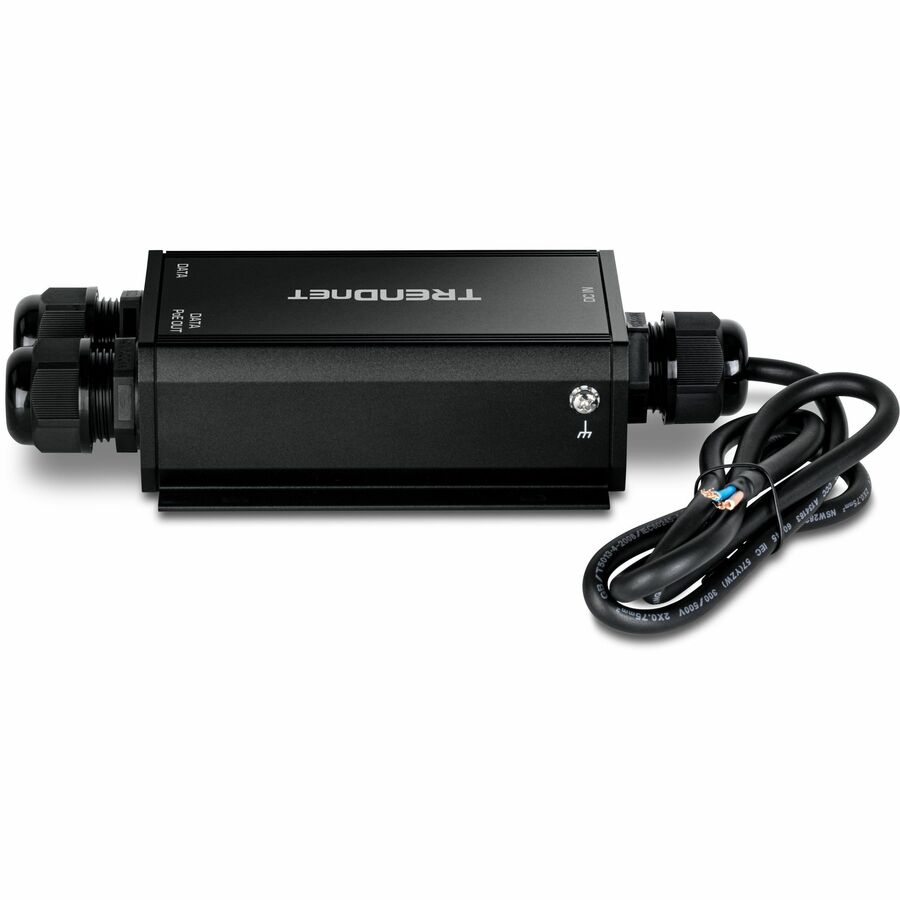

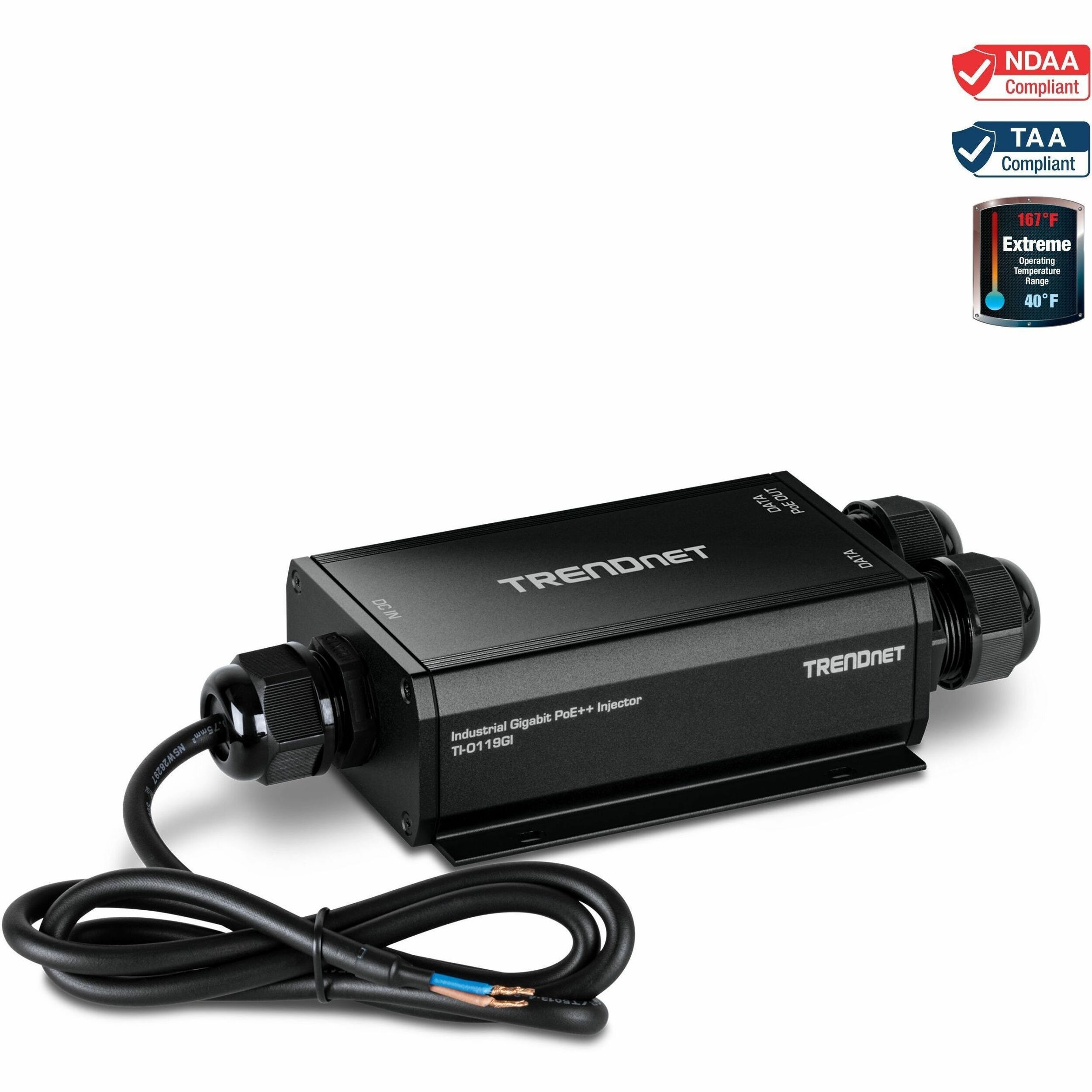

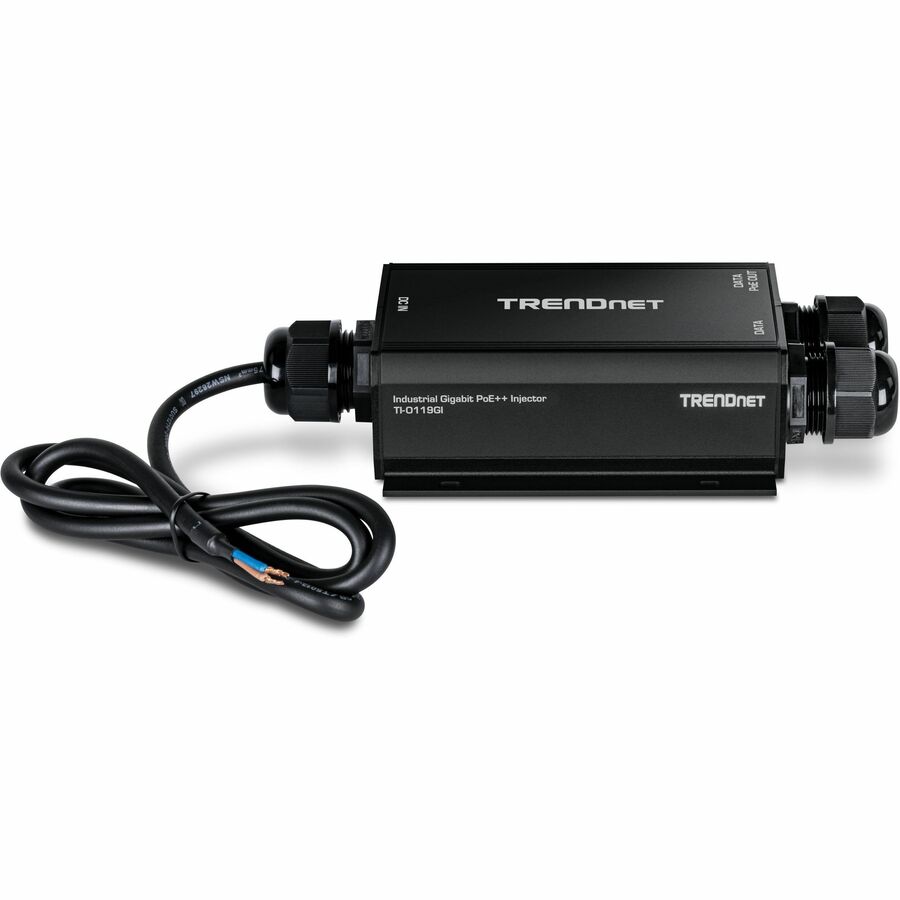

IP67 OUTDOOR GIGABIT POE++ INJ SECTOR 24 - 60V

TRENDnet's Outdoor IP67 Gigabit PoE++ Injector, model TI-O119GI, is an 802.3bt PoE++ injector that combines electrical power with a gigabit network connection to produce a high-powered 95W PoE++ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE, PoE+, and PoE++ device. Connect the outdoor PoE++ injector to a nonPoE switch, and then run an Ethernet cable with data + power to network a PoE device up to 100 meters (328 ft.) away. The outdoor PoE++ injector is equipped with an IP67 outdoor rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° - 75° C (-40° - 167° F) for outdoor environments.

PoE++

This outdoor PoE++ injector supplies up to 95W of power to one PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), or PoE++ (IEEE 802.3bt) device.

Gigabit Ports

Features one high-speed gigabit data in port and one high-speed gigabit PoE++ data out port.

Industrial Design

IP67 rated metal enclosure with a high degree of vibration and shock resistance, and a wide operating temperature range of - 40° - 75° C (-40° - 167° F).

FEATURES | PoE++

This industrial 802.3bt outdoor PoE++ injector supplies up to 95W of power to one PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), or PoE++ (IEEE 802.3bt) device.

Extreme Operating Temperature

Operating temperature range of - 40° - 75° C (-40° - 167° F) allows for installations in environments with extreme hot or cold conditions

Ethernet Surge Protection

Supports RJ-45 surge protection up to 6kV

Grounding Point

Grounding point on the outdoor PoE++ injector protects equipment from external electrical surges

Waterproof Design

This waterproof PoE++ injector features a durable enclosure with an IP67 outdoor weather rating

Gigabit Ports

Features one high-speed gigabit data in port and one high-speed gigabit PoE++ data out port

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-31), and vibration (EN 60068-2-6)

Industrial Design

Designed to withstand a high degree of vibration and shock

PoE Distance

The outdoor-rated PoE++ injector provides PoE network connections up to 100m (328 ft.) away

Electro Magnetic Compliance

The outdoor PoE++ injector complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power to ground: 2kV, Signal: 6kV

• ESD Protection
• Surge Protection

• 24 V DC
• 57 V DC

• Outdoor IP67 Gigabit PoE++ Injector (24 - 57V)
• Mounting Kit

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3bt
• IP67
• EN 60068-2-27
• EN 60068-2-31
• EN 60068-2-6
• CE
• FCC
• LVD
• Shock (IEC 60068-2-27)
• Freefall (IEC 60068-2-31)
• Vibration (IEC 60068-2-6)
