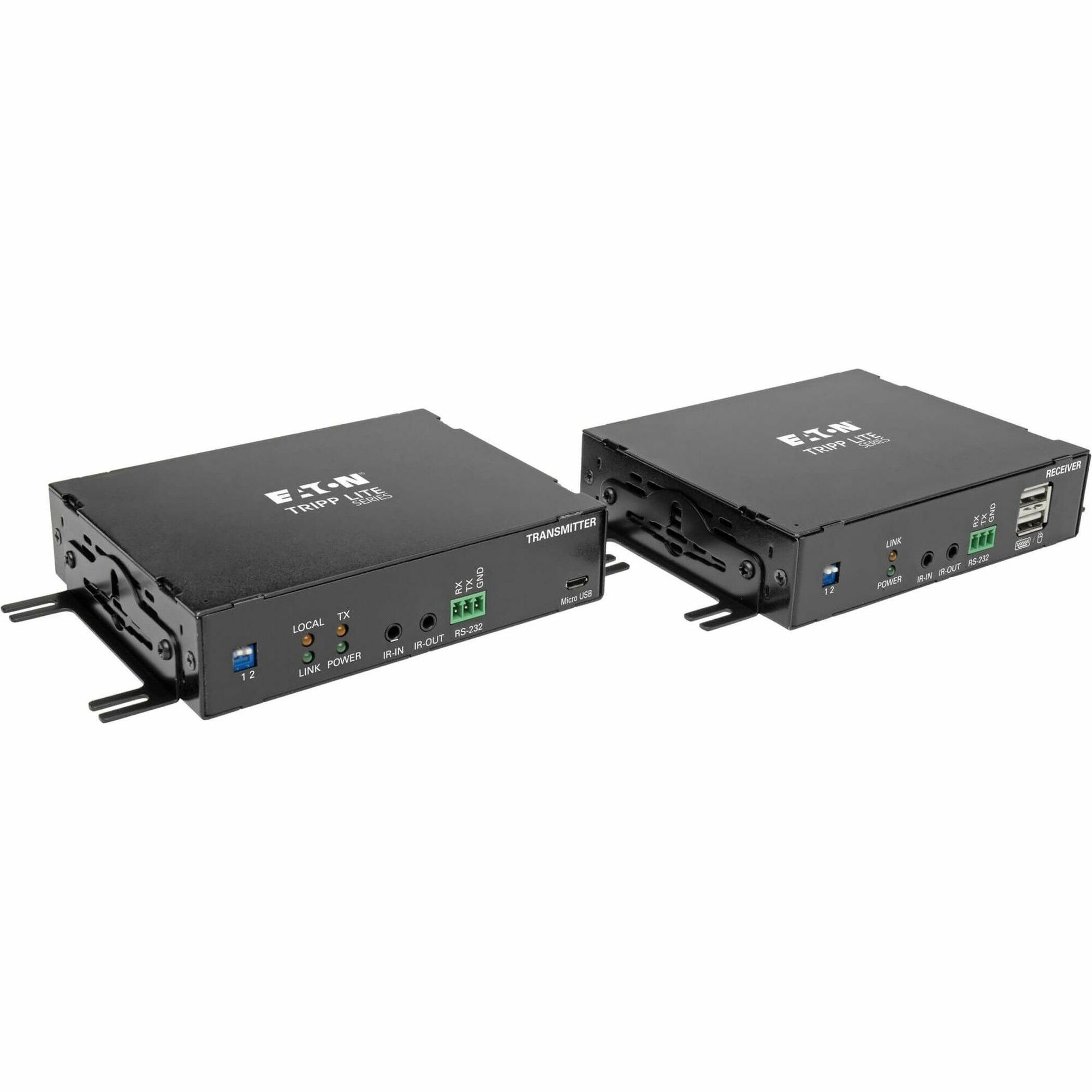

DISPLAYPORT OVER FIBER EXTENDER KIT TRANS/REC 4K60HZ MMF LC TAA

Transmits Crystal-Clear 4K DisplayPort Video with Multi-Channel Audio and 4
4

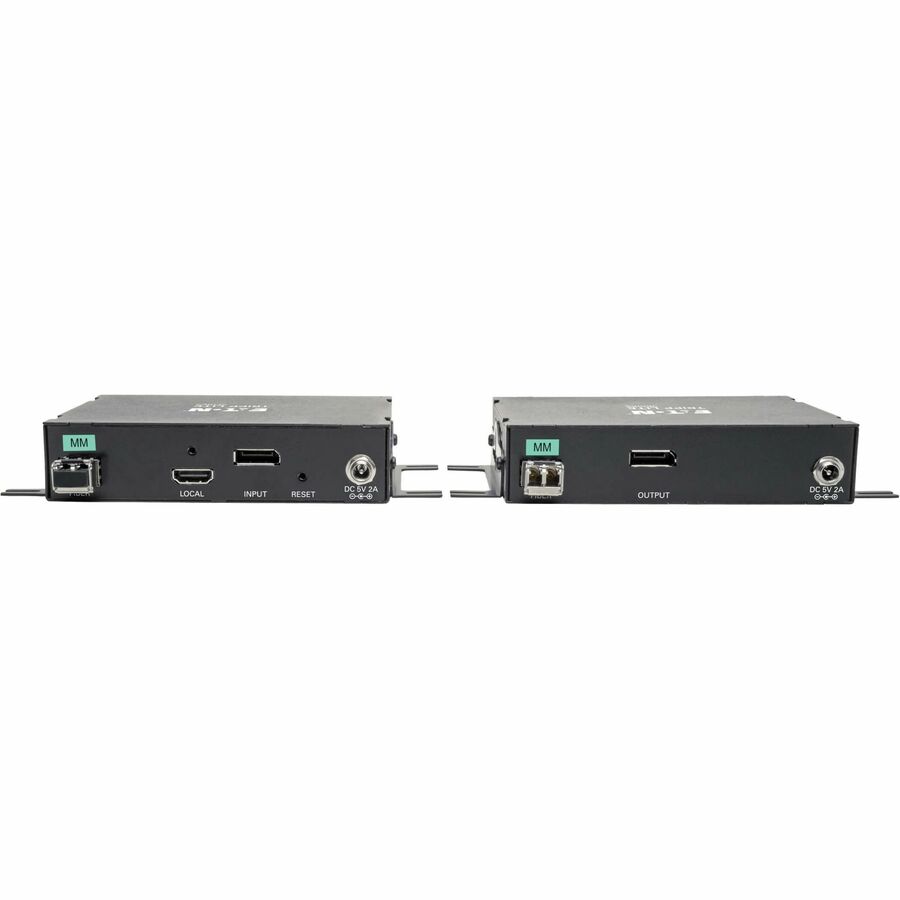

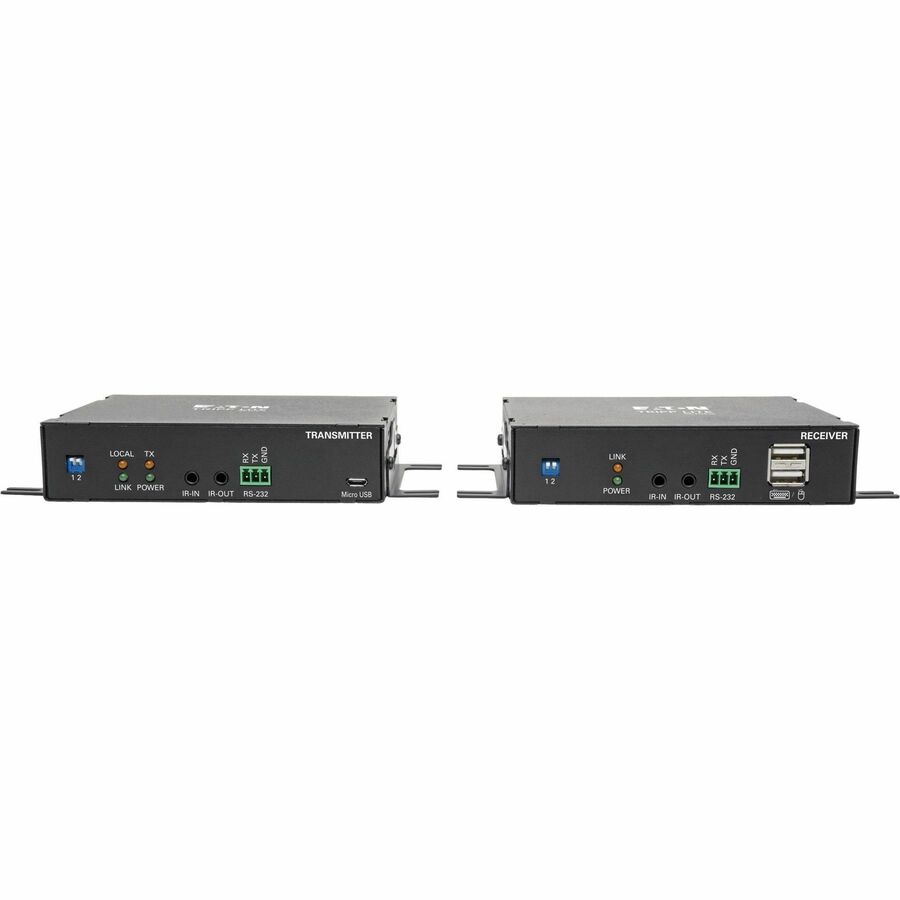

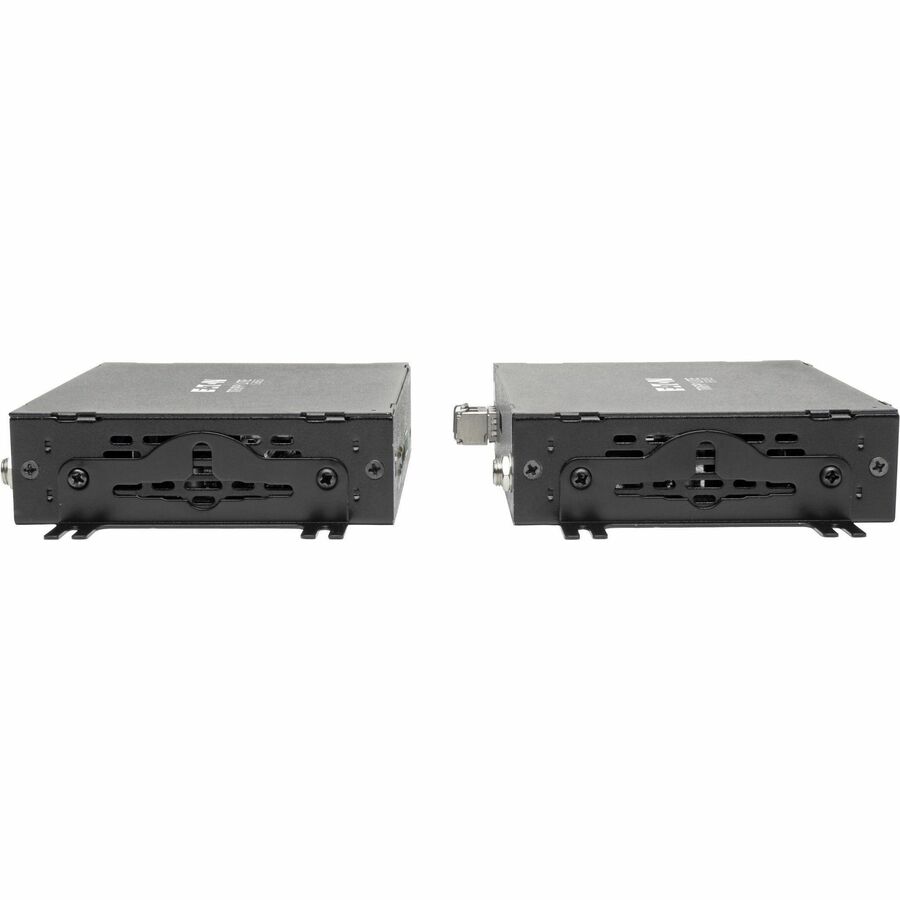

4 ColorThe B127F-1A1-MMDDA supports Ultra HD 4K video resolutions up to 3840 x 2160 at 60 Hz with full, rich uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. It supports HDR (High Dynamic Range), providing a wide range of vibrant colors with riche DIP Switches Extend Your Choice of USB, IR or RS-232 SignalsThe DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1, bi-directional IR and RS-232 functions. Only one function can be extended at a time. Plug-and-Play Operation for Quick Setup and Immediate UseThe included transmitter and receiver work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with DisplayPort cables (such as P580-Series). Then, connect the two units using a duplex multimode LC fiber cable (N820-Series). Connect an optional display to the transmitter's local HDMI output to monitor the image connected to the remote receiver. The local port allows connection of displays with lower resolutions, such as 720p and 1080p, without affecting the 4K 60 Hz signal transmission to the receiver. TAA-Compliant for GSA Schedule PurchasesThe B127F-1A1-MMDDA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.Product TypeKVM Console/ExtenderTechnical InformationConnectivity TechnologyWiredMaximum Operating Distance985 ftVideoGraphic Mode4KMaximum Video Resolution3840 x 2160Interfaces/PortsUSBYesHDMIYesDisplayPortYesNumber of HDMI Ports1Number of USB Ports3Power DescriptionInput Voltage

• 120 V AC
• 240 V AC

Input Voltage Range100V AC to 240V ACPhysical CharacteristicsColor FamilyBlackProduct ColorBlackForm Factor

• Rack-mountable
• Wall Mountable

Transmitter Height5.04"Transmitter Width1.17"Transmitter Depth3.94"Receiver Height5.04"Receiver Width1.17"Receiver Depth3.94"Transmitter Weight (Approximate)8.11 ozReceiver Weight (Approximate)8.11 ozMiscellaneousPackage Contents

• Transmitter
• Receiver
• 2 x External Power Supplies (Input
  100-240V, 50/60 Hz, 0.35A; Output
  5V 2A) with 4.5 ft. (1.4 m) cord
• 8 x International Plug Adapters (North America, Europe, Australia, United Kingdom)
• 2 x Sets of Mounting Hardware
• Owner's Manual

Environmental Compliance

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Country of OriginTaiwanTAA CompliantYesWarrantyLimited Warranty1 Year
