DESKTOP GIGABIT ETHERNET SWITCH UNMANAGED POE+ 5-PORT 2.5 GBPS 70W

Name: DESKTOP GIGABIT ETHERNET SWITCH UNMANAGED POE+ 5-PORT 2.5 GBPS 70W
Brand: EATON
SKU: S95959
Price: 235.85 USD
Availability: InStock

EATON

PCN#

S95959

MFG#

NG5POE-M2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$235.85

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

6 Ports
2.5 Gigabit Ethernet, 10 Gigabit Ethernet
2.5GBase
T, 10GBase
X
TAA Compliant
2 Layer Supported
Modular
90.20 W Power Consumption
70 W PoE Budget
Twisted Pair, Optical Fiber
PoE Ports
Black
Desktop, Wall Mountable
3 Year Limited Warranty

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 3 lbs.

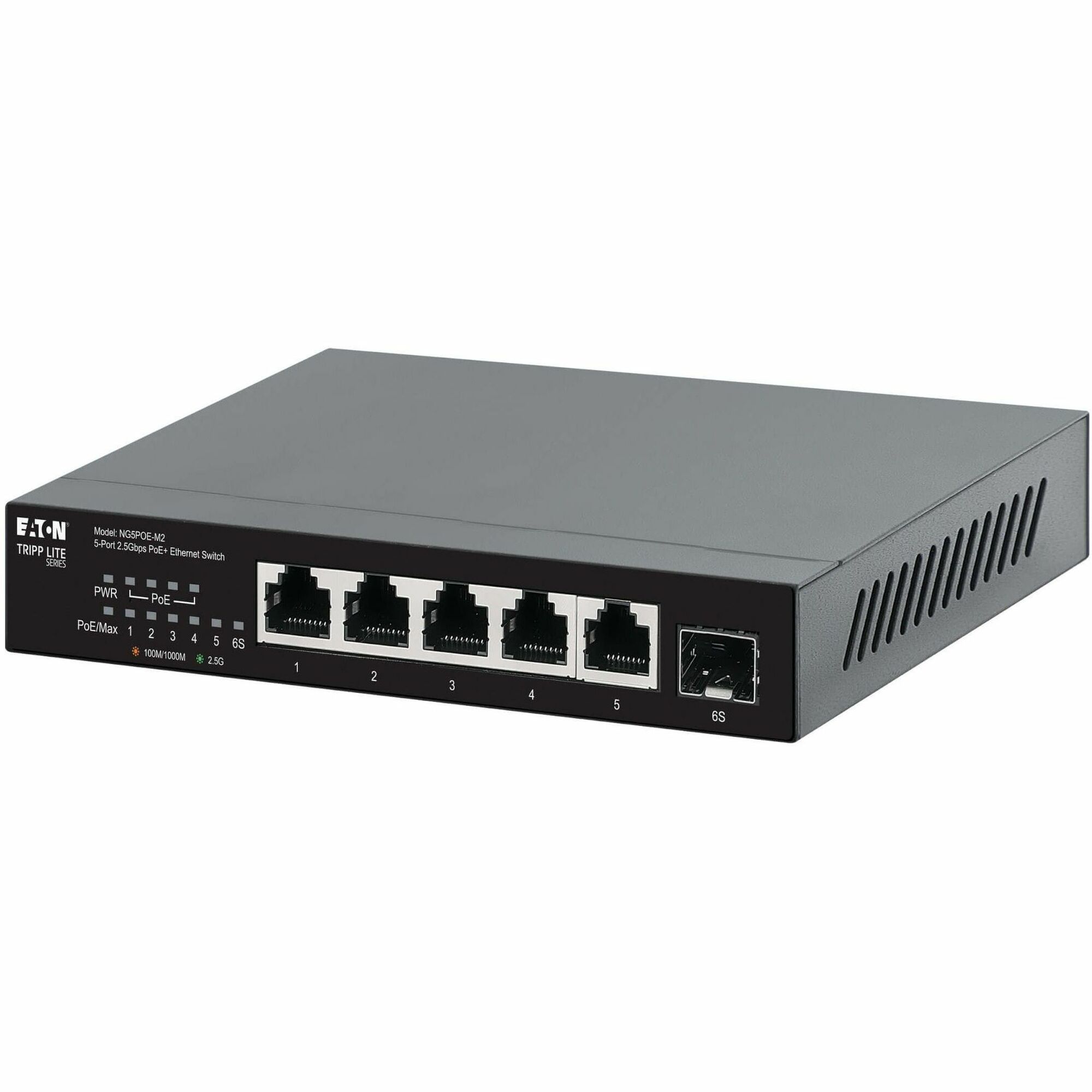

Eaton Tripp Lite Series 5-Port 2.5 Gbps Desktop Gigabit Ethernet Unmanaged Switch with PoE+ Pass-Through, 70W, Metal Enclosure, TAA

Overview

Tech Specs

Supports Power over Ethernet to Save You Money and Give You More Installation ChoicesBecause this network switch supports PoE, it can supply the power to operate compatible PoE devices, such as wireless LAN access points and bridges, VoIP phones and IP video cameras. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings. Four RJ45 ports support up to 30W each with a total PoE budget of 70W when using the included AC power adapter. Complies with IEEE Energy Efficient Ethernet StandardsThe NG5POE-M2 supports IEEE 802.3az Energy Efficient Ethernet standards by automatically shifting unused ports into a low-power state without interrupting network connections. It also meets IEEE 802.3ab, 802.3i and 802.3u standards. Plug-and-Play Functionality for Easy UseNo configuration is required in setting up the unmanaged NG5POE-M2, so you can have your 2.5 Gbps network up and running immediately. Cat5/5e/6/6a UTP/STP cables (sold separately) provide optimal performance. Easy-to-read LEDs indicate connection and activity status for each port. The NG5POE-M2 supports MAC address auto-learning and auto-aging for efficient routing.Product TypeEthernet SwitchTechnical InformationFeatures

Energy Efficient
Fanless

Interfaces/PortsTotal Number of Network Ports6Uplink PortYesModularYesNetwork (RJ-45)YesPort/Expansion Slot Details

5 x 2.5 Gigabit Ethernet Network
1 x 10 Gigabit Ethernet Expansion Slot

Media & PerformanceMedia Type Supported

Twisted Pair
Optical Fiber

Ethernet Technology

2.5 Gigabit Ethernet
10 Gigabit Ethernet

Network Technology

2.5GBase-T
10GBase-X

I/O ExpansionsTotal Number of Expansion Slots1Expansion Slot TypeSFP+Number of SFP+ Slots1Network & CommunicationLayer Supported2Networking Standards

IEEE 802.3at
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3az
IEEE 802.3bt
IEEE 802.3u

Management & ProtocolsManageableNoPower DescriptionPoE (RJ-45) PortYesPoE Budget70 WInput Voltage

120 V AC
230 V AC

Frequency

50 Hz
60 Hz

Power Source

Power Adapter
AC
DC

Power Consumption90.20 WPlug/Connector TypeC14Input ReceptaclesNEMA 5-15PPhysical CharacteristicsColor FamilyBlackProduct ColorBlackProduct MaterialMetalForm Factor

Desktop
Wall Mountable

Height1"Width6.3"Depth4.3"Weight (Approximate)1.10 lbMiscellaneousPackage Contents

NG5POE-M2 Ethernet Switch
AC Power Adapter
External Power Supply
NEMA 5-15P to C13 Power Cord, 5 ft. (1.5 m)
Schuko to C13 Power Cord, 5 ft. (1.5 m)
Rubber Mounting Feet
Owner's Manual

Application/Usage

Network
Small Office
Wireless Access Point
VoIP Phone
IP Camera
Router
PC

Certifications & Standards

EN 55032
EN 55035
NOM (Mexico)

Country of OriginTaiwanTAA CompliantYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)WarrantyLimited Warranty3 Year
