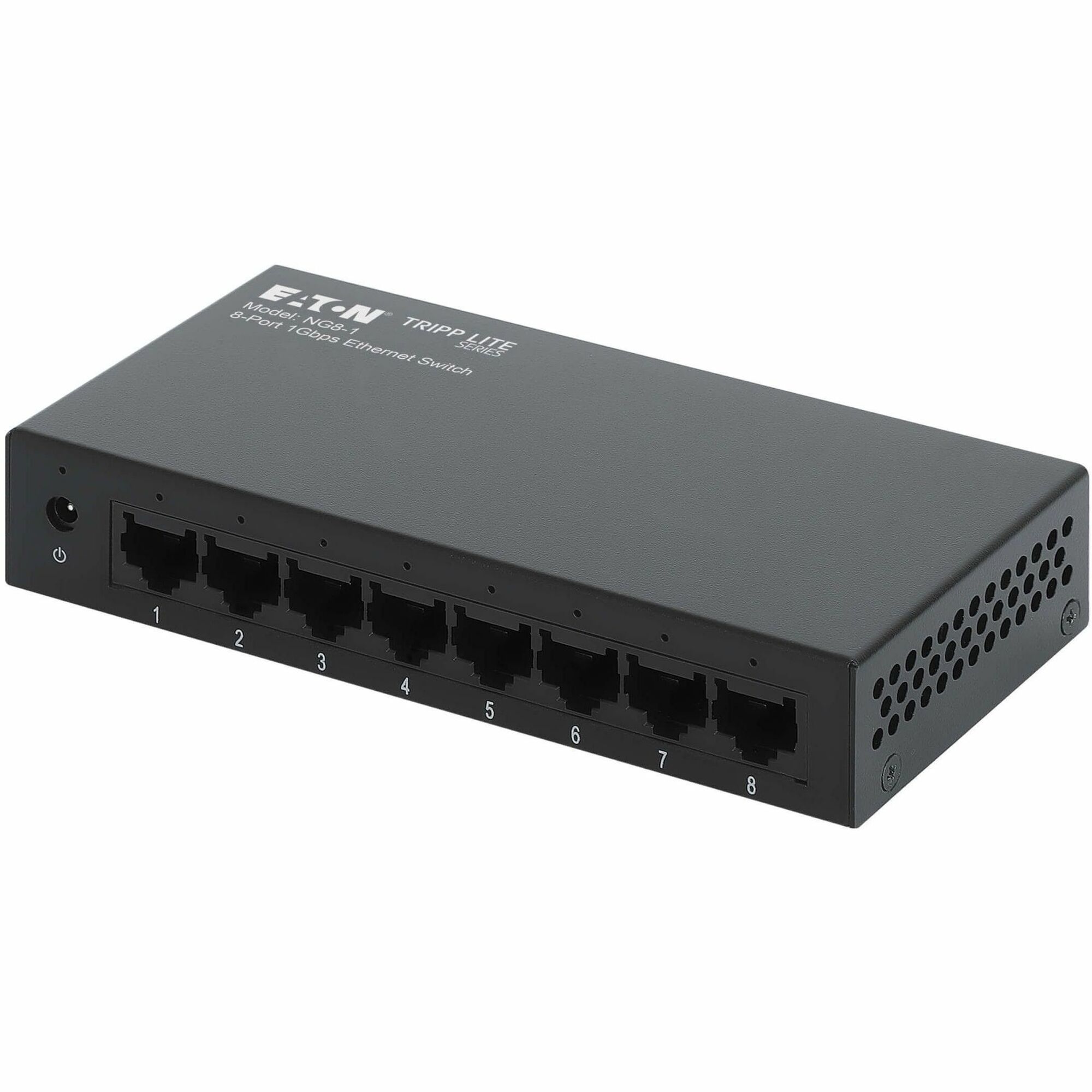

DESKTOP GIGABIT ETHERNET SWITCH UNMANAGED 8-PORT 10/100/1000 MBPS

Maximum Network FunctionalityThe NG8-1 features eight twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX functionality, so crossover cables and uplink ports are not needed for connections to PCs, routers and other switches. No configuration is required, so you can have your Gigabit network up and running immediately. IEEE 802.3x flow control (full duplex) and back pressure (half duplex) allow smooth transmission of large files. Complies with IEEE Energy Efficient Ethernet StandardsThe NG8-1 supports IEEE 802.3az Energy Efficient Ethernet standards by automatically shifting unused ports into a low-power state without interrupting network connections. It consumes very little input power-just 2.75W. It also meets IEEE 802.3ab, 802.3i and 802.3u standards. Plug-and-Play Functionality for Easy UseNo configuration is required in setting up the unmanaged NG8-1, so you can have your 10/100/1000 Mbps network up and running immediately. Cat5/5e/6/6a UTP/STP cables (sold separately) provide optimal performance. Easy-to-read LEDs indicate connection and activity status for each port. The NG8-1 supports MAC address auto-learning and auto-aging for efficient routing. Heavy-Duty Metal Enclosure with Versatile Installation OptionsThis rugged switch features a detachable five-foot (1.5-meter) power cord with NEMA 1-15P plug that connects to a protected UPS or standard AC outlet. The housing contains no fan, resulting in silent operation. The NG8-1 is designed for desktop placement, but also features keyhole tabs for optional wall mounting.Product TypeEthernet SwitchTechnical InformationFeatures

• Energy Efficient
• Fanless

Interfaces/PortsTotal Number of Network Ports8Network (RJ-45)YesPort/Expansion Slot Details8 x Gigabit Ethernet NetworkMedia & PerformanceMedia Type SupportedTwisted PairEthernet TechnologyGigabit EthernetNetwork Technology10/100/1000Base-TMaximum Data Transfer Rate128 MB/sNetwork & CommunicationLayer Supported2Networking Standards

• IEEE 802.3x
• IEEE 802.3ab
• IEEE 802.3az
• IEEE 802.3u
• IEEE 802.3i

Management & ProtocolsManageableNoPower DescriptionInput Voltage

• 120 V AC
• 230 V AC

Frequency

• 50 Hz
• 60 Hz

Power SourcePower AdapterPower Consumption2.75 WPhysical CharacteristicsColor FamilyBlackProduct ColorBlackProduct MaterialMetalForm Factor

• Wall Mountable
• Desktop

Height1.1"Width5.5"Depth3"Weight (Approximate)8.48 ozMiscellaneousPackage Contents

• NG8-1 Ethernet Switch
• External Power Supply (Input
  100-240V, 50/60 Hz, 0.25A; Max Output
  5V 1000mA) with NEMA 1-15P plug
• Owner's Manual

Application/Usage

• Network
• Small Office
• Router
• PC
• Data Center
• Printer
• Server

Certifications & Standards

• CAN/CSA-C22.2 No. 62368-1 (Canada)
• EN 55032
• EN 55035
• NOM (Mexico)
• UL 62368-1

Country of OriginPhilippinesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)WarrantyLimited Warranty3 Year
