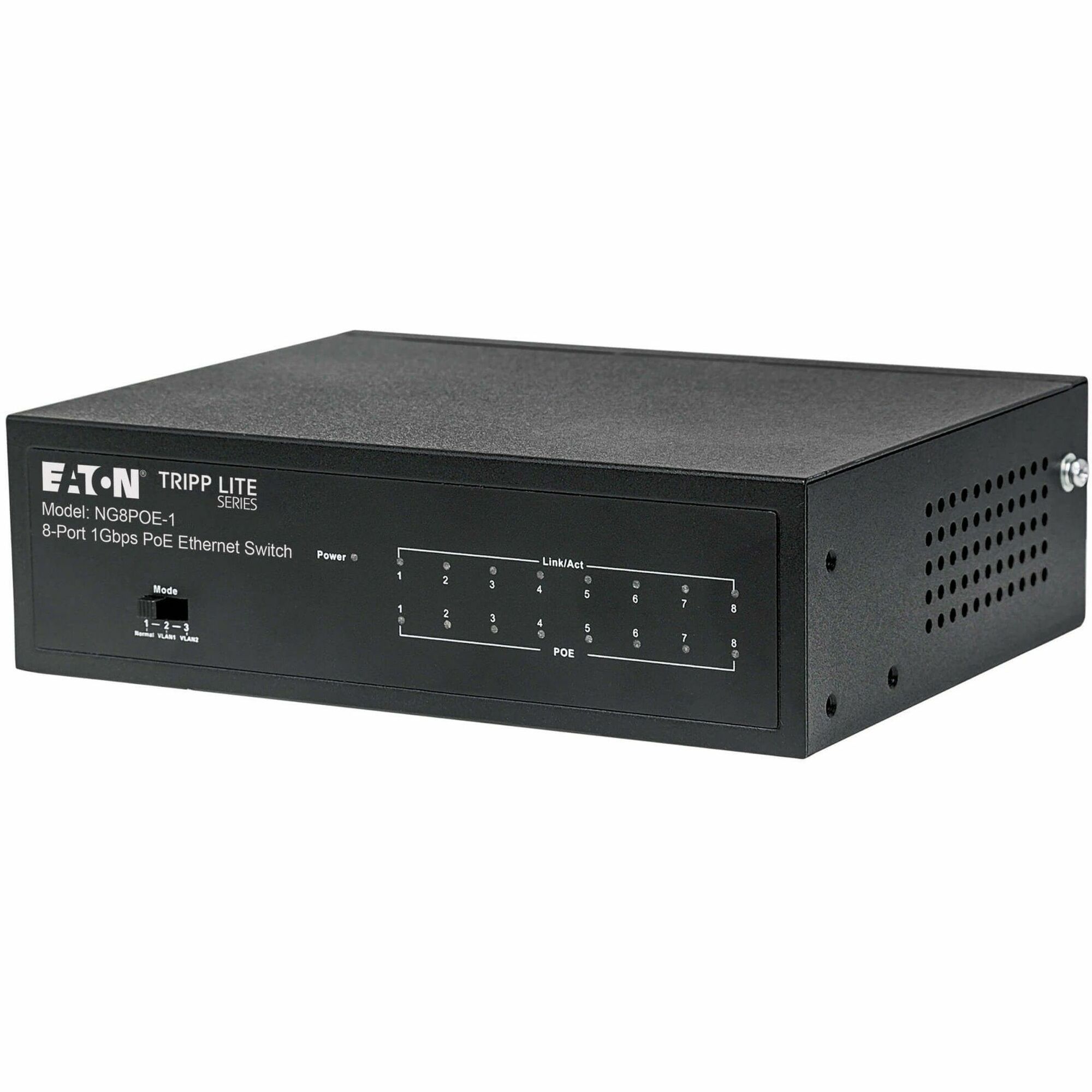

DESKTOP GIGABIT ETHERNET SWITCH UNMANAGED POE+ 8-PORT 10/100/1000

Maximum Network FunctionalityThe NG8POE-1 features eight twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX functionality, so crossover cables and uplink ports are not needed for connections to PCs, routers and other switches. No configuration is required, so you can have your Gigabit network up and running immediately. IEEE 802.3x flow control (full duplex) and back pressure (half duplex) allow smooth transmission of large files. Supports Power over Ethernet to Save You Money and Give You More Installation ChoicesBecause this network switch supports PoE, it can supply the power to operate compatible PoE devices, such as wireless LAN access points and bridges, VoIP phones and/or IP video cameras. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings. Eight RJ45 ports support up to 30W each with a total PoE budget of 60W when using the included AC power adapter. Complies with IEEE Energy Efficient Ethernet StandardsThe NG8POE-1 supports IEEE 802.3az Energy Efficient Ethernet standards by automatically shifting unused ports into a low-power state without interrupting network connections. It also meets IEEE 802.3ab, 802.3i and 802.3u standards. VLAN Mode?The NG8POE-1 features port isolation, also referred to as "Private VLAN." It isolates all ports from each other and only allows access to the uplink port, which increases privacy. This is useful in VLAN applications such as hotels, where each room has access to the internet, but rooms are prevented from accessing one another.Product TypeEthernet SwitchTechnical InformationFeatures

• Energy Efficient
• Fanless

Interfaces/PortsTotal Number of Network Ports8Network (RJ-45)YesPort/Expansion Slot Details8 x Gigabit Ethernet NetworkMedia & PerformanceMedia Type SupportedTwisted PairEthernet TechnologyGigabit EthernetNetwork Technology10/100/1000Base-TNetwork & CommunicationLayer Supported2Networking Standards

• IEEE 802.3at
• IEEE 802.3x
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3az
• IEEE 802.3bt
• IEEE 802.3u
• IEEE 802.3i

Management & ProtocolsManageableNoPower DescriptionPoE (RJ-45) PortYesPoE Budget60 WInput Voltage

• 120 V AC
• 230 V AC

Frequency

• 50 Hz
• 60 Hz

Power SourcePower AdapterPower Consumption81 WPlug/Connector TypeC14Input ReceptaclesNEMA 5-15PPhysical CharacteristicsColor FamilyBlackProduct ColorBlackProduct MaterialMetalCompatible Rack Unit1UForm Factor

• Wall Mountable
• Desktop
• Rack-mountable

Height1.8"Width6.1"Depth4.6"Weight (Approximate)3.31 lbMiscellaneousPackage Contents

• NG8POE-1 Ethernet Switch
• External Power Supply (Input
  100-240V, 50/60 Hz, 2A; Max Output
  54V 1.5A)
• NEMA 5-15P to C13 power cord, 5 ft. (1.5 m)
• Schuko to C13 Power Cord, 5 ft. (1.5 m)
• 4 x Rubber Mounting Feet
• Wall-mounting Hardware
• Owner's Manual

Application/Usage

• Network
• Small Office
• VoIP Phone
• Router
• PC
• Security Camera

Certifications & Standards

• EN 55032
• EN 55035
• NOM (Mexico)

Country of OriginPhilippinesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)WarrantyLimited Warranty3 Year
