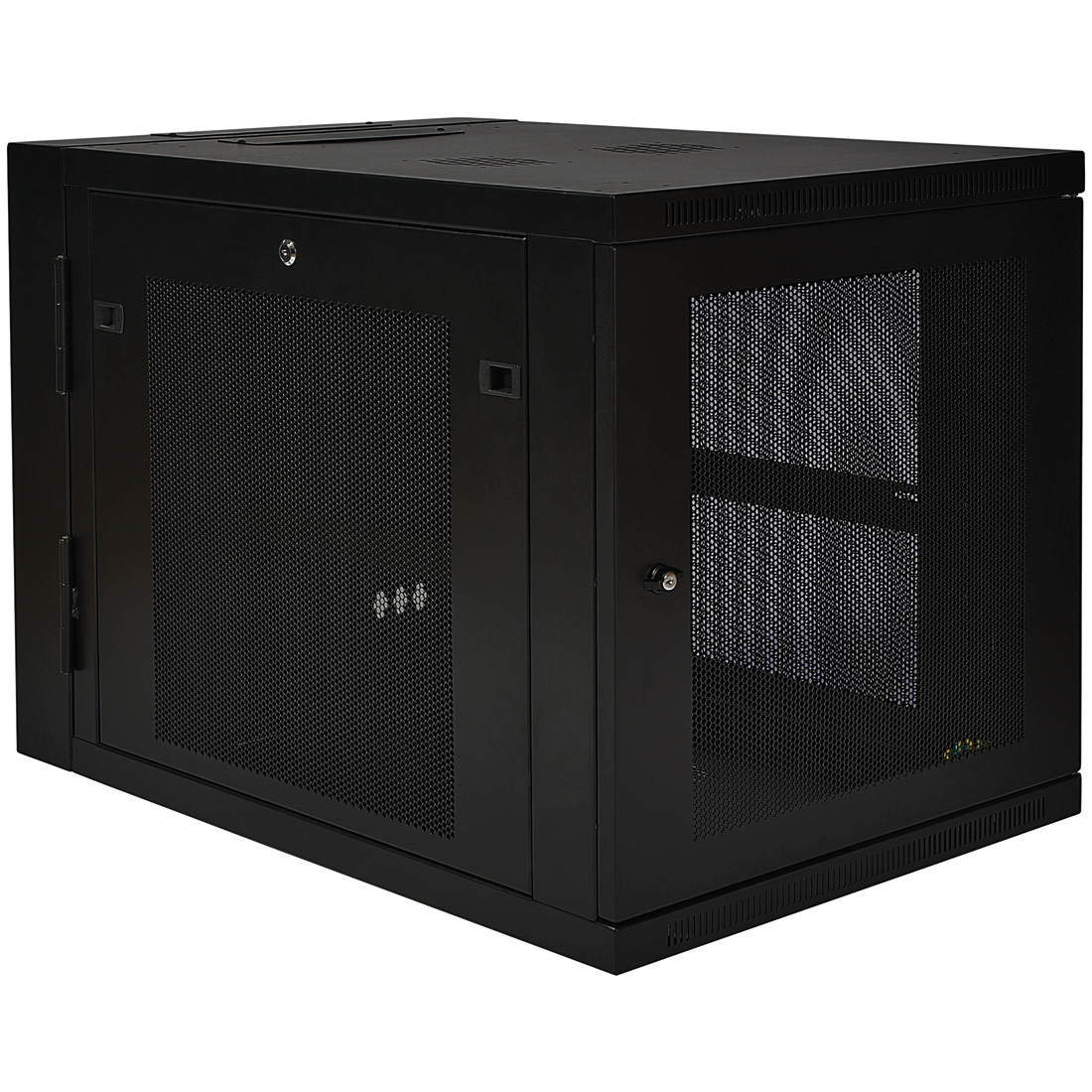

The SRW12US33 12U Extended-Depth Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Extended depth to 33" accommodates most 1U servers and provides extra clearance for cable management. It has a heavy-duty steel construction to handle the added leverage. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 12U of standard 19" rackmount equipment. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for easy access to equipment and cabling. Top and bottom panels include convenient cutouts for cable routing.

• SmartRack 12U Extended-Depth Wall-Mount Rack Enclosure Cabinet
• 36 x M6 Screws
• 36 x M6 Cage Nuts
• 36 x M6 Washers
• 2 x Keys
• Owner's Manual

• Grounding lug: Front and Back door frames
• 12U with adjustable front and rear vertical rackmount rails
• 33" depth accommodates most 1U servers and simplifies cable management
• Heavy duty construction supports the added leverage
• Hinged cabinet swings away from wall bracket for easy equipment access (swing direction is reversible)
• Adjustable mounting depths from 3" to 33" - accommodates most 1U servers and simplifies cable management
• Ventilated front door and side panels for increased airflow
• Hinged cabinet swings away from wall bracket for easy equipment and cable access
• Heavy duty construction to handle added leverage
• Top and bottom panel cable access openings
• Fully assembled for quick installation
• PCI-Compliant: meets stringent physical security requirements

Approvals:

• EIA-310-D
• IEC 60297-3-100
• DIN 41494
• IP250 Protection Rating
