PCA M3577 WHITE 750 212674

Name: PCA M3577 WHITE 750 212674
Brand: ULTIMAKER ACC
SKU: SB6143
Price: 62.83 USD
Availability: InStock

ULTIMAKER ACC

PCN#

SB6143

MFG#

1642

$62.83

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $23.99

1-Year $17.99

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Shipping Weight: 3 lbs.

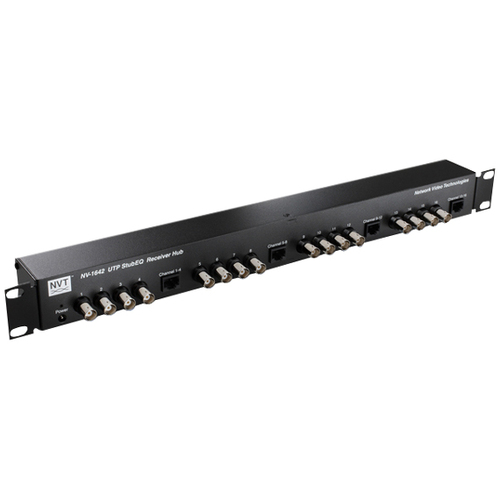

NVT Phybridge NV-1642 Video Console

Tech Specs

Specifications

Manufacturer	Network Video Technologies
Manufacturer Part Number	1642
Manufacturer Website Address	http://www.nvt.com
Brand Name	NVT Phybridge
Product Model	NV-1642
Product Name	NV-1642 Video Console
Marketing Information	Employing NVT's latest generation StubEQTM technology, the NV-1642 is a 16-channel active (amplified) hub that allows the transmission of full-motion monochrome or color video for distances up to 2,000ft (600m) using Category 2 or better unshielded twisted-pair (UTP) wire. The receiver hub continuously and automatically conditions the video signal, compensating for cable attenuation, ground loops, and voltage transients, independent of video signal content. The unparalleled interference rejection and low emissions allow long run video to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. this allows the use of shared or existing cable plant. Ground-lifting ensures no annoying "hum-bars" when ground-potential differences exist. With built-in transient protection, damaging voltage spikes are eliminated.
Product Type	Video Extender Receiver

Technical Information

Connectivity Technology	Wired
Number of Input Devices Supported	1
Number of Output Devices Supported	16
Maximum Operating Distance	2000 ft

Video

Video Signal Format

Interfaces/Ports

Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1

Media & Performance

Media Type Supported

Twisted Pair

Power Description

Input Voltage	12 V DC
Frequency	60 Hz

Physical Characteristics

Receiver Height	1.70"
Receiver Width	17"
Receiver Depth	1.88"
Form Factor	Rack-mountable Wall Mountable Desktop
Receiver Weight (Approximate)	2.45 lb

Miscellaneous

Package Contents	NV-1642 Video Console Rack Mount Brackets Wall Installations Rubber Feet for Desk Application 4 x RJ45 to Screw-Terminal
Certifications & Standards	CE UL per ANSI/IEEE 587 C62.41
