V7 DOCKUCPT01 Docking Station

Name: V7 DOCKUCPT01 Docking Station
Brand: V7
SKU: 8NV757
Price: 91.95 USD
Availability: OutOfStock

PCN#

8NV757

MFG#

DOCKUCPT01

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 1 lbs.

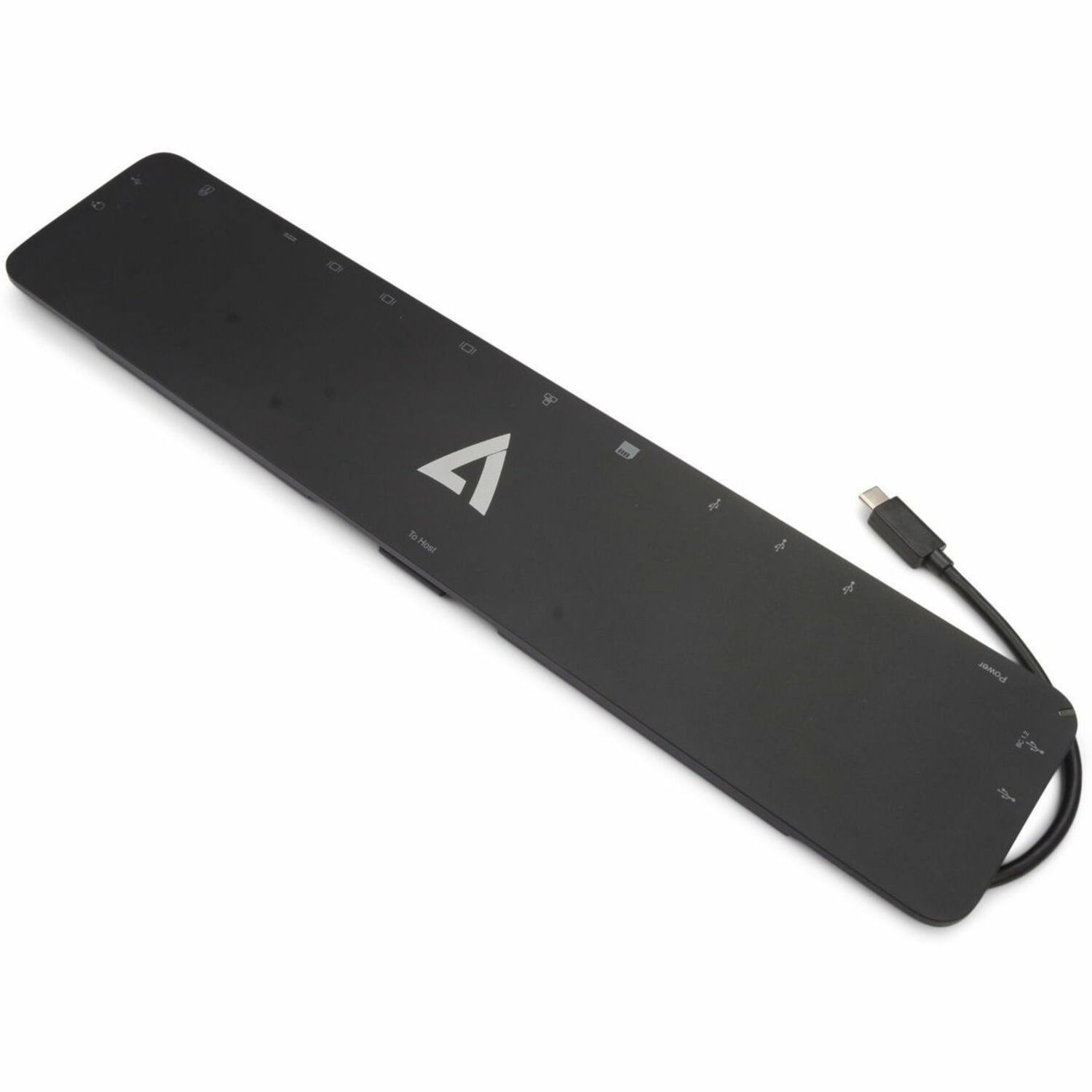

V7 DOCKUCPT01 Docking Station

Tech Specs

Specifications

Manufacturer	V7
Manufacturer Part Number	DOCKUCPT01
Manufacturer Website Address	http://www.v7-world.com
Brand Name	V7
Product Model	DOCKUCPT01
Product Name	DOCKUCPT01 Docking Station
Marketing Information	The DOCKUCPT01 USB-C Pass Through Alt-Mode Docking Station from V7 allows you to add up to 3 displays, Audio, Gigabit Ethernet, SD/Micro SD/MMC memory cards, and extra USB ports to almost any USB-C enabled device. It features HDMI, DisplayPort and VGA display outputs that can be used to expand or mirror your device for multitasking productivity. It has a USB-C PD charging port to connect a USB-C Power supply (sold separately) which can supply up to 100 Watts of USB-C Charging to your computer at the same time as providing all the extra connectivity. It is compatible with DisplayPort Alt mode, USB-C and Thunderbolt™ 3 host computers, mobile devices, or other devices.
Product Type	Docking Station

Technical Information

Connectivity Technology	Wired
Charging Capability	Yes
Device Supported	Notebook Desktop PC Monitor
Memory Card Reader	Yes
Memory Card Supported	SD microSD MultiMediaCard (MMC)
Features	Security Lock
Number of Displays Supported	3
Screen Mode Supported	4K Full HD
Supported Resolutions	3840 x 2160 1920 x 1200
Maximum Data Transfer Rate	128 MB/s
Security Slot Type	Kensington Security Slot

Network & Communication

Ethernet Technology

Gigabit Ethernet

Interfaces/Ports

Host Interface	USB Type C
Total Number of USB Ports	5
Number of USB 2.0 Ports	2
Number of USB 3.0 Ports	3
Number of USB Type-C Ports	2
USB Type-C	Yes
USB Type-C Detail	USB-C PD 100W IN
Network (RJ-45)	Yes
Number of RJ-45 Ports	1
VGA	Yes
Number of DisplayPorts	1
DisplayPort	Yes
Headphone/Microphone Combo Port	Yes
Number of HDMI Ports	1
HDMI	Yes
USB Power Delivery	100W

Software

Operating System Supported

Power Description

Input Voltage Detail

Physical Characteristics

Miscellaneous

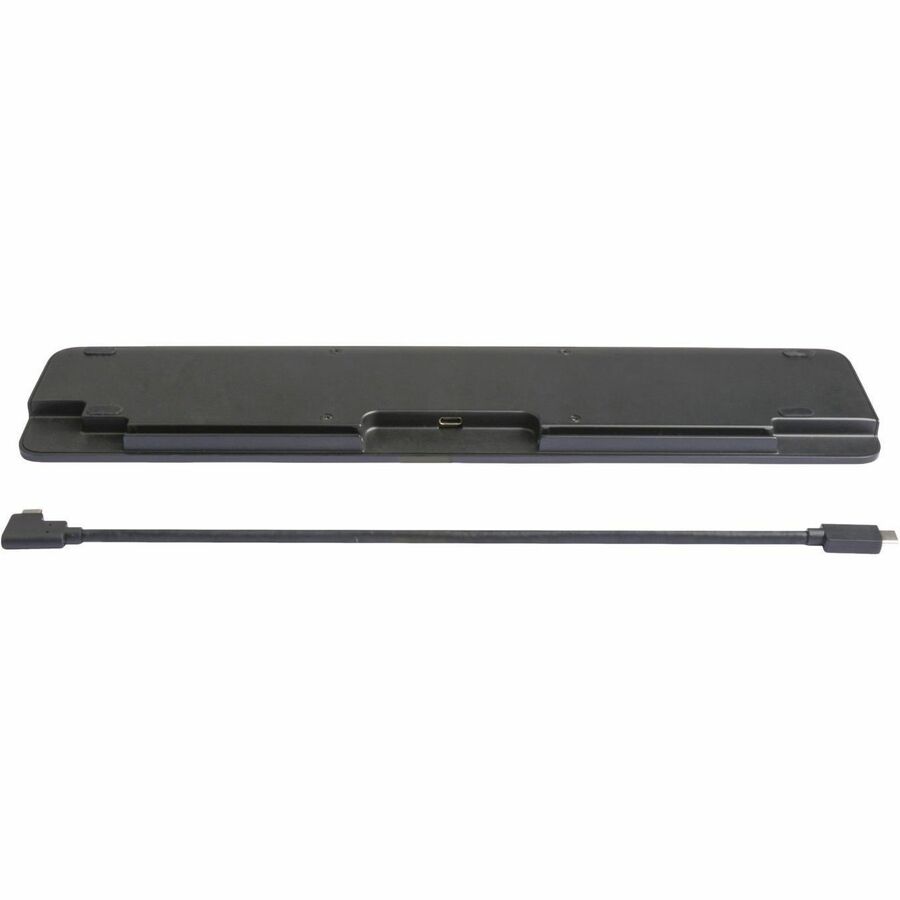

Package Contents	Docking Station USB-C Cable User Manual Warranty
Kensington Security Slot	Yes
Additional Information	Compliance: CE,FCC,UKCA Docking Type: Alt Mode Material: ABS Maximum Output Power: 20V 5A Operating Temperature: 0 to 45 C Output Voltage: DC 20V 5A Package Dimensions (L/W/H): 15.35 x 4.53 x 1.38 in (390 x 115 x 35 mm) Shipping Weight: 0.44 lbs (0.19784 kg) Storage Temperature: -10 to 70 C USB Display Type: Alt-Mode Input Voltage Detail: USB-C PD Charging 20V 5A DC
Compatibility	DisplayPort Alt mode, USB-C and Thunderbolt™ 3 host computers, mobile devices, or other devices.
Brand Compatibility	Acer Apple Asus Dell HP Lenovo Microsoft Samsung Sony
Country of Origin	Vietnam

Warranty

Limited Warranty

2 Year
