GXT5-5KL630RT3UXLN UPS UL

Name: GXT5-5KL630RT3UXLN UPS UL
Brand: VERTIV
SKU: Z29520
Price: 5086.98 USD
Availability: InStock

VERTIV

PCN#

Z29520

MFG#

GXT5-5KL630RT3UXLN

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$5,086.98

Extended & Accidental Damage Protection Plans Available Details

3-Year $471.99

2-Year $354.99

Estimated Shipment:

Product Highlights:

Rack/Tower
230 V AC Input
200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output
Single Phase
Pure Sine Wave
Serial Port
USB
LCD Display
2 x NEMA L6
20R, 2 x NEMA L6
30R Receptacle(s)
RDU120 Card, RS232/RS485/USB (Modbus), Network Interface Card, Intelligent Card Slot, BACnet/Modbus

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information3-year warranty Complete coverage on UPS including batteries.Directly Connected Equipment Guarantee500000

Shipping Weight: 203 lbs.

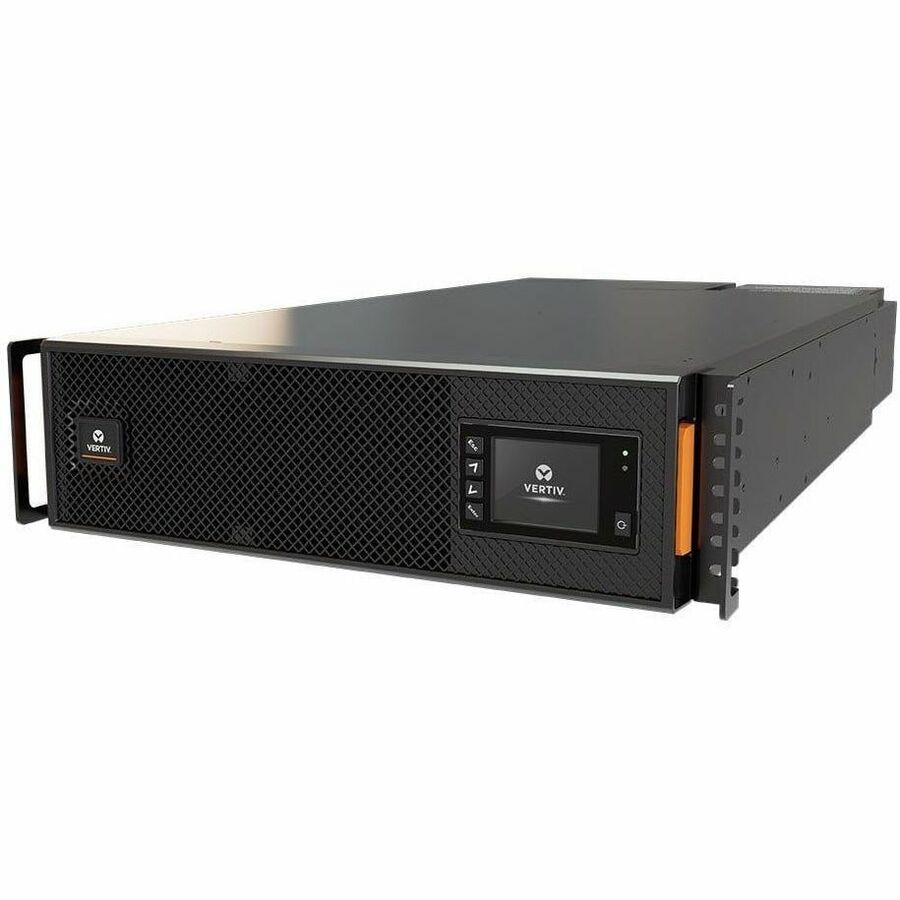

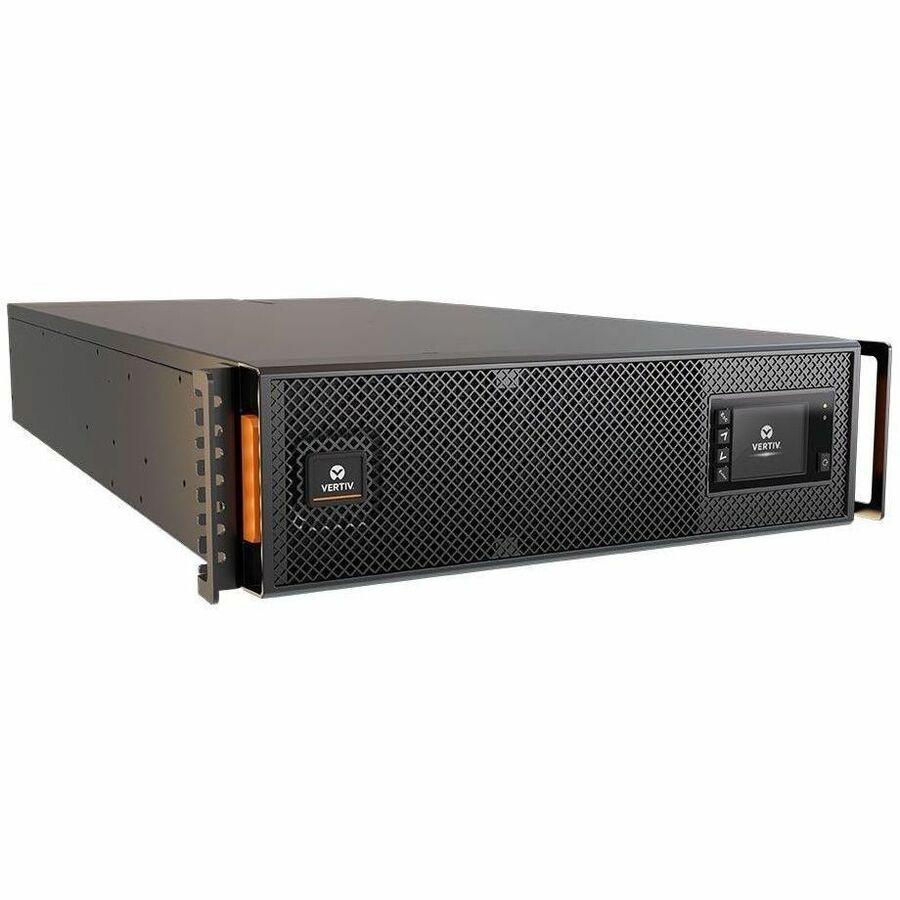

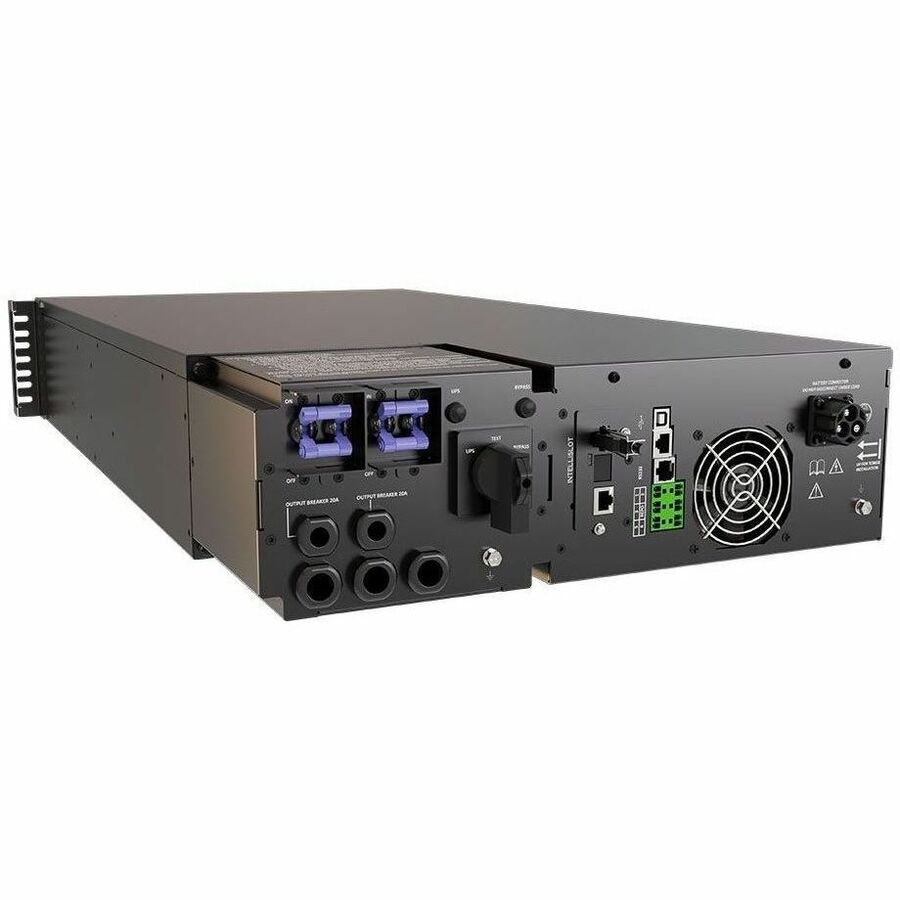

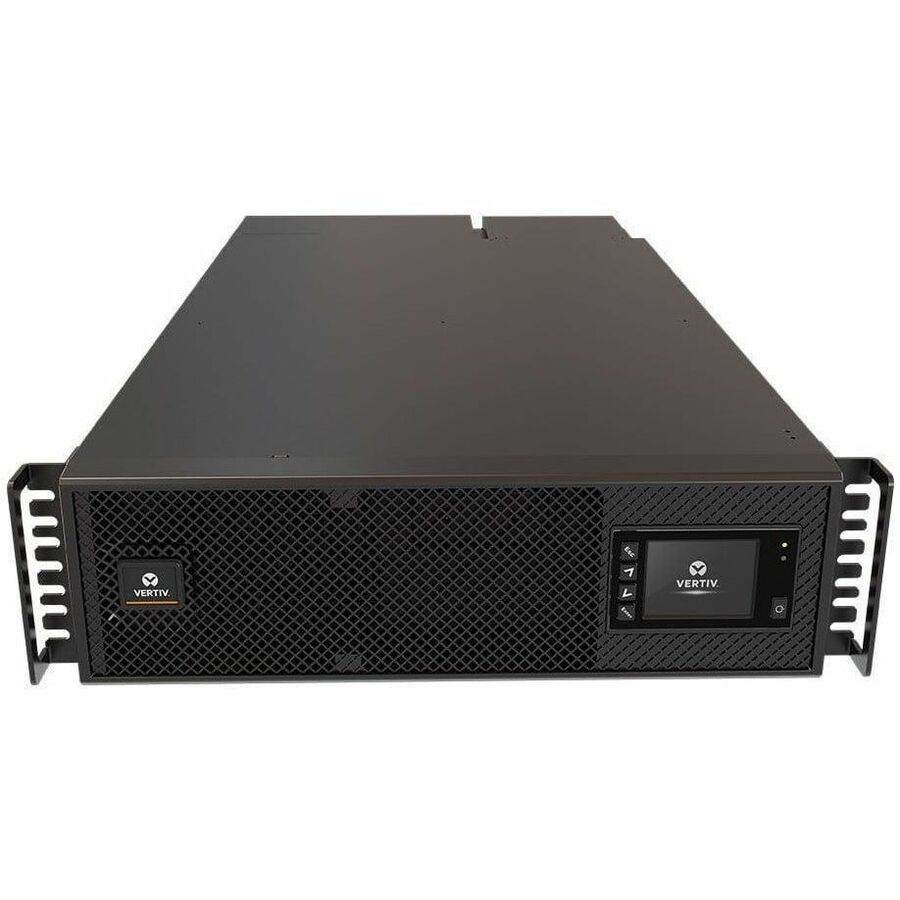

Vertiv Liebert GXT5-5KL630RT3UXLN 4900VA Rack/Tower UPS

Overview

Tech Specs

Specifications

Manufacturer	Vertiv
Manufacturer Part Number	GXT5-5KL630RT3UXLN
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Vertiv Liebert
Product Series	GXT5
Product Model	GXT5-5KL630RT3UXLN
Product Name	GXT5-5KL630RT3UXLN 4900VA Rack/Tower UPS
Marketing Information	The Vertiv™ Liebert® GXT5 Online Double Conversion UPS family offers the highest level of power conditioning and power protection for critical business IT systems. Continuous power conditioning, zero transfer time, pure sinewave output, and scalable runtime make it ideally suited to protect critical infrastructure in both centralized and edge network applications.
Product Type	Double Conversion Online UPS

Technical Information

Plug/Connector Type	NEMA L6-30P
Receptacle Type	NEMA L6-20R NEMA L6-30R
Receptacle Detail	2 x NEMA L6-20R 2 x NEMA L6-30R
Overload Protection	Yes
Phase	Single Phase
Efficiency Detail	98% (ECO Mode) 95% (Online Mode)
Application/Usage	Critical System Business IT System Infrastructure Network Banking Financial Insurance Education Healthcare Retail and Wholesale Generator
Surge Suppression	Yes
Features	Built-in Bypass Switch

Power Description

Load Capacity (VA)	4900 VA
Load Capacity (Watt)	4600 W
Input Voltage	230 V AC
Input Voltage Range	175 V AC - 280 V AC
Output Voltage	200 V AC 208 V AC 220 V AC 230 V AC 240 V AC
Waveform Type	Pure Sine Wave
Circuit Breaker	Yes
Output Power Factor	0.9

Display & Graphics

Display

LCD

Management

Network Management	SNMP/Webcard RS232/RS485/USB (Modbus) Network Interface Card Intelligent Card Slot BACnet/Modbus
Alarm	Alarm

Controls/Indicators

Status Indicators

LCD Display:

UPS status
Power metrics
Configuration options
Alarms
Fault codes to manage the UPS

Interfaces/Ports

Serial Port	Yes
USB	Yes
EPO Port	Yes

Battery Information

Battery Characteristics	External Battery System
Battery Chemistry	Sealed Lead Acid (VRLA)
Hot Swappable	Yes
Replaceable Battery	Yes

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)

Physical Characteristics

Form Factor

Rack/Tower

Miscellaneous

Certifications & Standards	UL1778 c-UL listed
Energy Star	Yes
Energy Efficiency Certification	ENERGY STAR 2.0
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	3-year warranty Complete coverage on UPS including batteries.
Directly Connected Equipment Guarantee	500000
