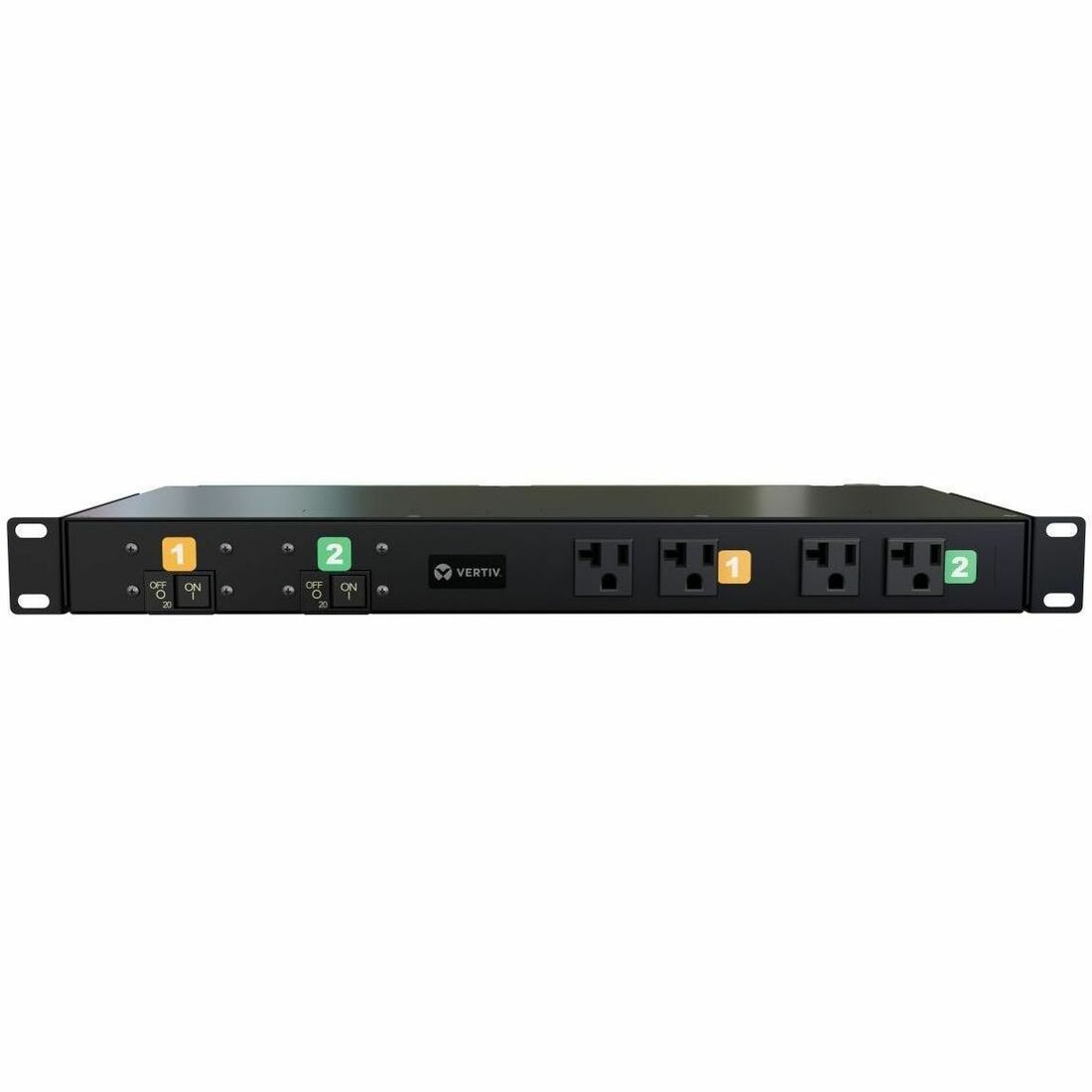

RPDU BASIC STANDARD 30A 120 /208V 5.7KW HORIZONTAL 12 COMB

Name: RPDU BASIC STANDARD 30A 120 /208V 5.7KW HORIZONTAL 12 COMB
Brand: VERTIV
SKU: SN8107
Price: 679.89 USD
Availability: InStock

VERTIV

PCN#

SN8107

MFG#

VP0N3100

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$679.89

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

Basic
NEMA L14
30P

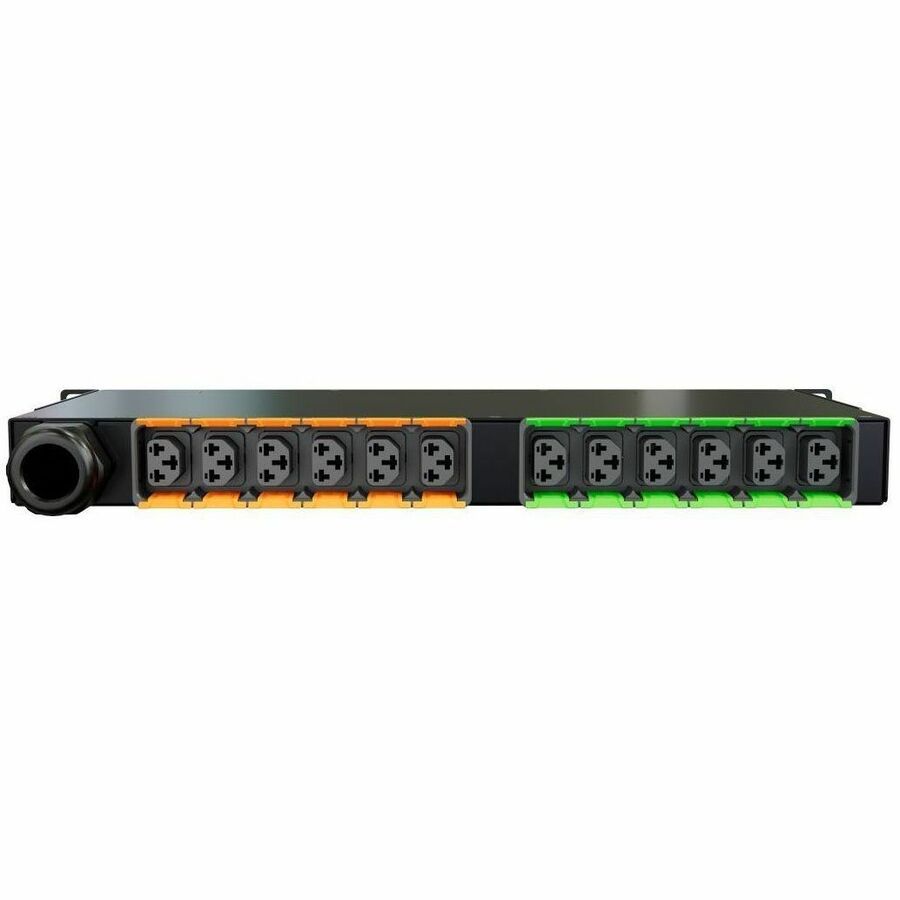

12 x Combination C13/C19, 4 x NEMA 5
20R
120 V AC, 230 V AC
Overcurrent Protection, Double Pole, Overload Protection
10 ft Cord Length
1U
Horizontal
Rack
mountable, Cabinet
mountable
Rack, Cabinet
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 15 lbs.

VERTIV PowerIT rPDU MN00X1R1-16MCQ9-3TL14A0A10-S 16-Outlets PDU

Overview

Tech Specs

Specifications

Manufacturer	Vertiv
Manufacturer Part Number	VP0N3100
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	VERTIV
Product Line	PowerIT
Product Series	rPDU
Product Model	MN00X1R1-16MCQ9-3TL14A0A10-S
Product Name	PowerIT rPDU MN00X1R1-16MCQ9-3TL14A0A10-S 16-Outlets PDU
Marketing Information	Basic rPDUs deliver reliable power to critical IT equipment within a rack or cabinet. Benefits Reliable rack power distribution. Every unit is 100% tested for reliability and functionality. Simple and convenient configuration options for cord lengths and chassis colors. Standard five-year limited warranty.
Product Type	PDU

Technical Information

PDU Type	Basic
Plug/Connector Type	NEMA L14-30P
Plug/Connector Detail	1 x NEMA L14-30P
Receptacle Type	Combination C13/C19 NEMA 5-20R
Receptacle Detail	12 x Combination C13/C19 4 x NEMA 5-20R
Protection Type	Overcurrent Protection Double Pole Overload Protection
Load Capacity (Watt)	5700 W

Power Description

Input Voltage	120 V AC 230 V AC
Input Voltage Range	100 V AC - 120 V AC 200 V AC - 240 V AC
Output Voltage	208 V AC 120 V AC
Input Current	30 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Steel
Finishing	Powder Coated
Mounting Orientation	Horizontal
Mount Type	Rack-mountable Cabinet-mountable
Form Factor	Rack Cabinet
Rack Height	1U
Cord Length	10 ft
Height	1.7"
Width	17"
Depth	8.5"

Environmental Conditions

Maximum Operating Temperature

140°F (60°C)

Miscellaneous

Application/Usage	IT Equipment Server Rack/Cabinet
Certifications & Standards	UL c-UL Listed 62368-1
Country of Origin	United States
TAA Compliant	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
UL Listed	Yes

Warranty

Limited Warranty

5 Year
