RPDU BASIC UPGRADEABLE 60/63A 240/415V WYE 43.4KW HORIZONTAL

Name: RPDU BASIC UPGRADEABLE 60/63A 240/415V WYE 43.4KW HORIZONTAL
Brand: VERTIV
SKU: SN8085
Price: 1659.74 USD
Availability: InStock

VERTIV

PCN#

SN8085

MFG#

VP1U62A1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,659.74

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

Rack power distribution unit, 43.4kW, 3P+N+E (IP44) plug, TAA Compliance, RoHS, China RoHS, UL/CE dual listed, 3
year warranty extending to 5
year warranty if registered within 120 days of purchase

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty Information5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years

Shipping Weight: 19 lbs.

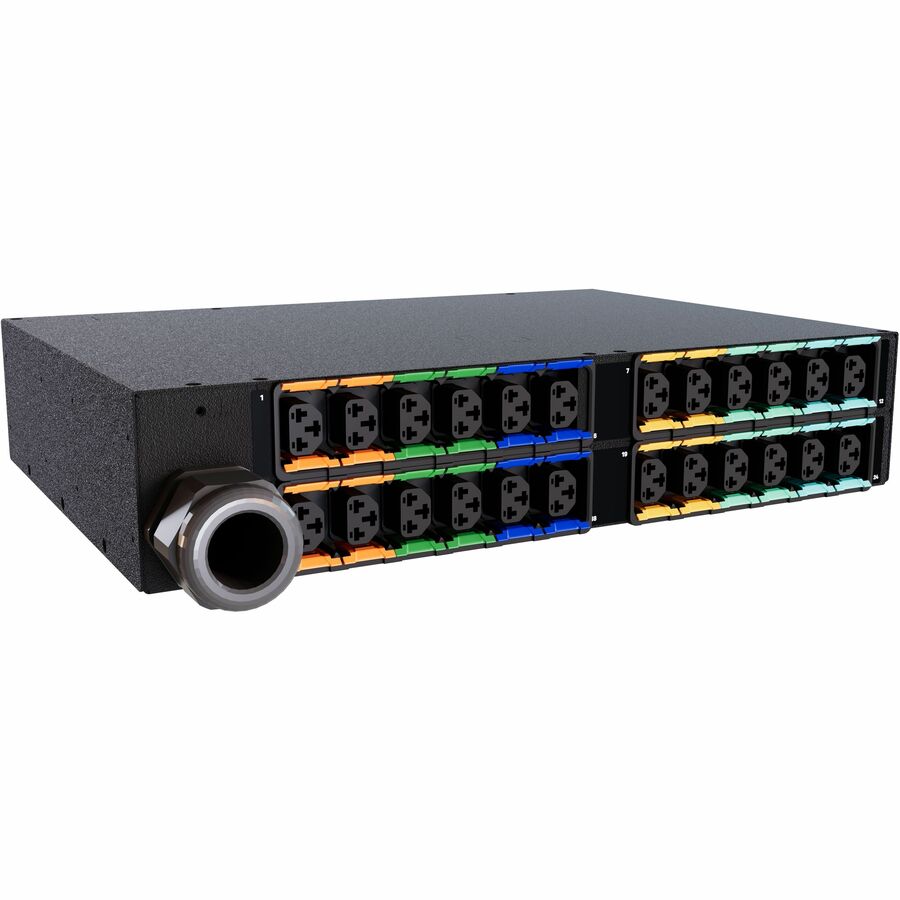

Vertiv PowerIT VP1U62A1 Basic High Density rPDU, Horizontal, Three Phase, 24 Combination C13/C19 Outlets, 60/63A, 240/415V WYE, 2U

Overview

Tech Specs

Specifications

Manufacturer	Vertiv
Manufacturer Part Number	VP1U62A1
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Vertiv Geist
Product Line	Geist Upgradeable
Product Series	G
Product Name	Basic VP1U62A1 PDU
Marketing Information	The Vertiv PowerIT VP1U62A1 is a basic high density rack power distribution unit (rPDU). It is a 60/63A, 240/415V WYE, 2U, horizontal rPDU with 24 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. This unit also comes with a 3P+N+E (IP44) plug providing 43.4kW of power capacity. This model is UL/CE dual listed, meeting an important requirement for data centers. It is also RoHS-certified and individually tested for functionality to ensure your network is powered by a reliable power distribution unit. Plus, it includes a three-year warranty that is extendable to five years if registered within 120 days of purchase.
Product Type	PDU

Technical Information

PDU Type	Basic
Phase	Three Phase
Plug/Connector Type	3P+N+E (IP44)
Plug/Connector Detail	1 x 3P+N+E (IP44)
Receptacle Type	Combination C13/C19
Receptacle Detail	24 x Combination C13/C19
Protection Type	Overcurrent Protection

Power Description

Input Voltage	230 V AC 415 V AC
Output Voltage	240 V AC
Power Rating (Watt)	43.40 kW
Input Current	63 A

Management

Management	No
Remote Outlet Switching	No

Interfaces/Ports

Serial Port	No
Modem (RJ-11)	No
Modem (RJ-12)	No
Modem (RJ-22)	No
Network (RJ-45)	No
USB	No

Physical Characteristics

Color Family	Black
Product Color	Black
Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Form Factor	Rack
Rack Height	2U
Cord Length	10 ft
Height	3.5"
Width	17.1"
Depth	12"

Miscellaneous

Certifications & Standards	UL Listed RCM Mark(EMC Only) CE Marked UKCA Marked Complies with IEC 62368-1
Country of Origin	United States
TAA Compliant	Yes
Environmental Compliance	China Restriction of Hazardous Substances (China RoHS) Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	5 Year
Additional Warranty Information	5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
