RPDU MONITORED UNIT LEVEL 100A 208V DELTA 28.8KW

Name: RPDU MONITORED UNIT LEVEL 100A 208V DELTA 28.8KW
Brand: VERTIV
SKU: SN8096
Price: 3347.48 USD
Availability: InStock

VERTIV

PCN#

SN8096

MFG#

VP4NA0A2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$3,347.48

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

Rack power distribution unit, 28.8kW, 3P+E (IP67), TAA Compliance, RoHS, China RoHS, UL
listed, 3
year warranty extending to 5
year warranty if registered within 120 days of purchase

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty Information5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years

Shipping Weight: 19 lbs.

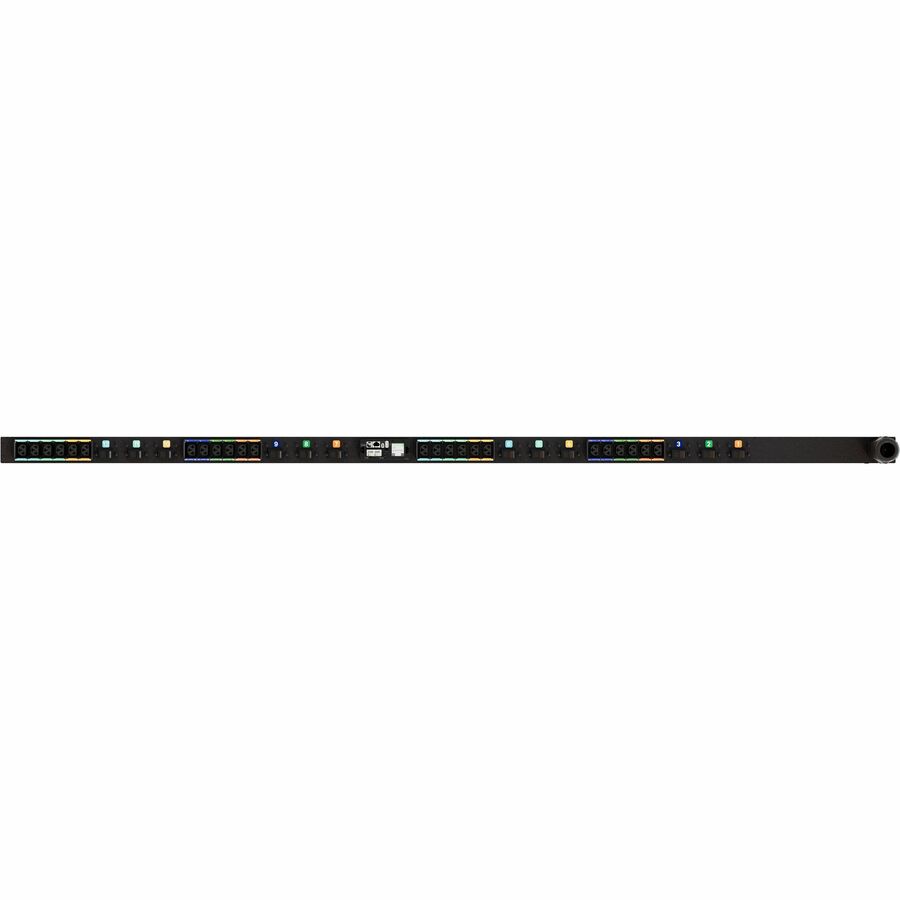

Vertiv PowerIT VP4NA0A2 Upgradeable Monitored Input Level HD rPDU, Vertical, Three Phase, 24 Combination C13/C19 Outlets, 80A, 1~ 240V/3~ 208V, 0U

Overview

Tech Specs

Specifications

Manufacturer	Vertiv
Manufacturer Part Number	VP4NA0A2
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Vertiv Geist
Product Line	Geist Upgradeable
Product Series	G
Product Name	Monitored Input Level VP4NA0A2 PDU
Marketing Information	The Vertiv PowerIT Monitored High Density Rack Power Distribution Unit (rPDU) VP4NA0A2 is an upgradeable, 80A, 1~ 240V/3~ 208V, 0U, vertical rPDU with input monitoring. It has 24 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. This unit also comes with a 3P+E (IP67) plug providing 28.8kW of power capacity. The hot-swappable Interchangeable Monitoring Device (IMD-5M) has ports for serial communication and environmental monitoring, while the dual gigabit ethernet ports simplify the management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. This model is UL-listed, meeting an important requirement for data centers. It is also RoHS-certified and individually tested for functionality to ensure your network is powered by a reliable power distribution unit. Plus, it includes a three-year warranty that is extendable to five years if registered within 120 days of purchase.
Product Type	PDU

Technical Information

PDU Type	Monitored
Phase	Three Phase
Plug/Connector Type	3P+E (IP67)
Plug/Connector Detail	1 x 3P+E (IP67)
Receptacle Type	Combination C13/C19
Receptacle Detail	24 x Combination C13/C19
Protection Type	Overcurrent Protection
Features	LCD Display Touch Screen Display

Power Description

Input Voltage	230 V AC
Output Voltage	208 V AC
Power Rating (Watt)	28.80 kW
Input Current	80 A

Management

Management	DHCP HTTP HTTPS IPv4 IPv6 LDAP NTP RADIUS RSTP SSH SMTP SNMP (v1/v2c/v3) Syslog TACACS+
Remote Outlet Switching	No

Interfaces/Ports

Serial Port	Yes
Modem (RJ-11)	No
Modem (RJ-12)	Yes
Modem (RJ-22)	No
Network (RJ-45)	Yes
USB	Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Form Factor	Rack
Rack Height	0U
Cord Length	10 ft
Width	3.8"
Depth	3"
Length	66.3"

Miscellaneous

Certifications & Standards	UL Listed 62368-1
Country of Origin	United States
TAA Compliant	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) China Restriction of Hazardous Substances (China RoHS)

Warranty

Limited Warranty	5 Year
Additional Warranty Information	5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
