RPDU SWITCHED UNIT LEVEL MONIT ORING 60/63A 240/415V WYE 43.4KW

Name: RPDU SWITCHED UNIT LEVEL MONIT ORING 60/63A 240/415V WYE 43.4KW
Brand: VERTIV
SKU: SN8068
Price: 2958.91 USD
Availability: InStock

VERTIV

PCN#

SN8068

MFG#

VP5U60A3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,958.91

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

Rack power distribution unit, 43.4kW, 3P+N+E (IP44) plug, TAA Compliance, RoHS, China RoHS, UL
listed, CE
marked, 3
year warranty extending to 5
year warranty if registered within 120 days of purchase

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty Information5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years

Shipping Weight: 22 lbs.

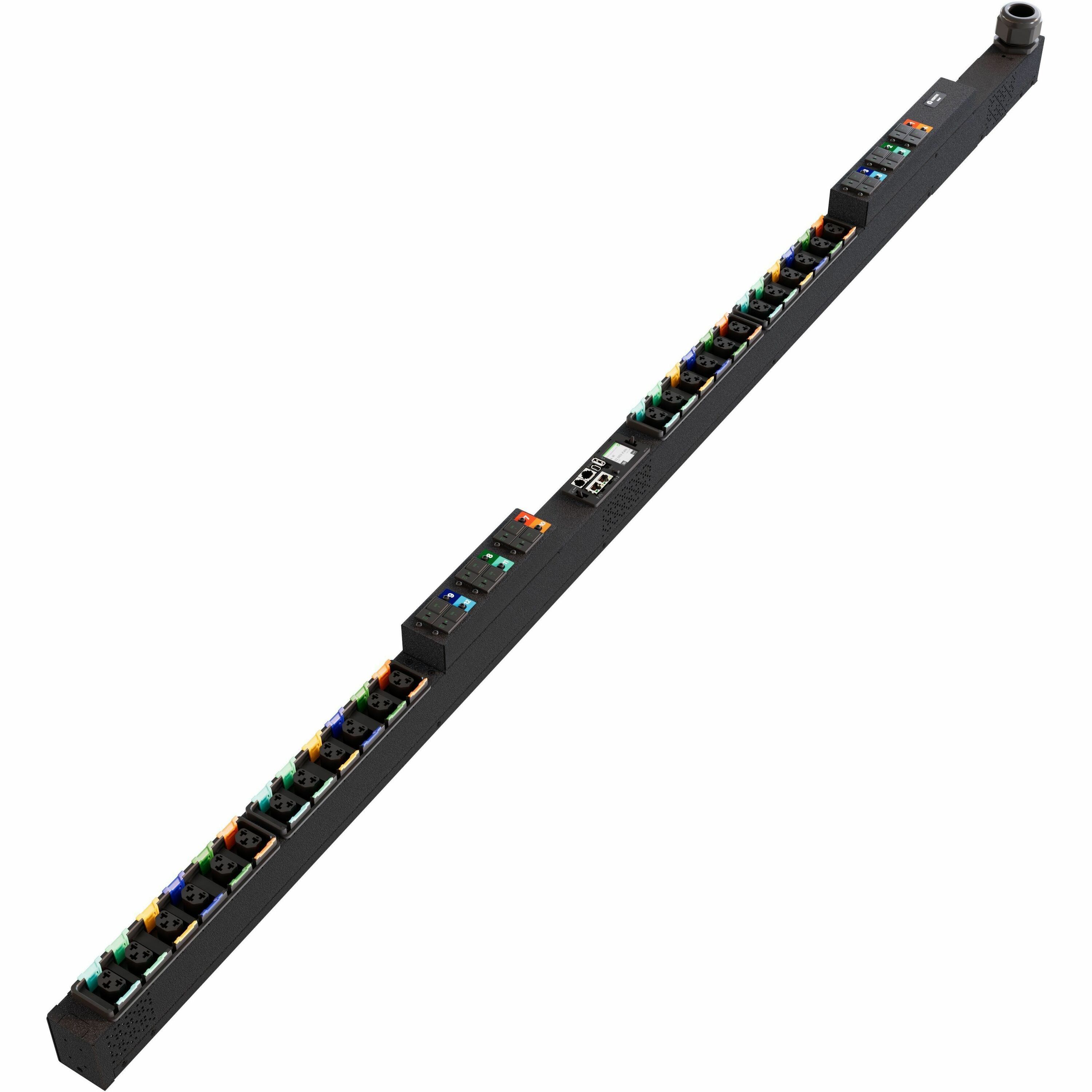

Vertiv PowerIT VP5U60A3 Switched Unit Level Monitoring HD rPDU, Vertical, Three Phase, 24 Combination C13/C19 Outlets, 60/63A, 240/415V WYE, 0U

Overview

Tech Specs

Specifications

Manufacturer	Vertiv
Manufacturer Part Number	VP5U60A3
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Vertiv Geist
Product Line	Geist Upgradeable
Product Series	G
Product Name	Switched Unit Level VP5U60A3 PDU
Marketing Information	The Vertiv PowerIT Switched Unit Level Monitored High Density Rack Power Distribution Unit (rPDU) VP5U60A3 is an upgradeable, 60/63A, 240/415V WYE, 0U, vertical rPDU with input monitoring and outlet level switching. It has 24 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. This unit also has a 3P+N+E (IP44) plug providing 43.4kW of power capacity. This model allows you to turn off outlets to avoid accidental overloads and remotely power cycle equipment to reboot unresponsive critical IT equipment. The hot-swappable Interchangeable Monitoring Device (IMD-5M) has ports for serial communication and environmental monitoring, while the dual gigabit ethernet ports simplify the management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. Plus, it includes a three-year warranty that is extendable to five years if registered within 120 days of purchase.
Product Type	PDU

Technical Information

PDU Type	Switched
Phase	Three Phase
Plug/Connector Type	3P+N+E (IP44)
Plug/Connector Detail	1 x 3P+N+E (IP44)
Receptacle Type	Combination C13/C19
Receptacle Detail	24 x Combination C13/C19
Protection Type	Overcurrent Protection
Features	LCD Display Touch Screen Display

Power Description

Input Voltage	230 V AC 415 V AC
Output Voltage	240 V AC
Power Rating (Watt)	43.40 kW
Input Current	63 A

Management

Management	DHCP HTTP HTTPS IPv4 IPv6 LDAP NTP RADIUS RSTP SSH SMTP SNMP (v1/v2c/v3) Syslog TACACS+
Remote Outlet Switching	No

Interfaces/Ports

Serial Port	Yes
Modem (RJ-11)	No
Modem (RJ-12)	Yes
Modem (RJ-22)	No
Network (RJ-45)	Yes
USB	Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Form Factor	Rack
Rack Height	0U
Cord Length	10 ft
Width	2"
Depth	2.6"
Length	72"

Miscellaneous

Application/Usage	IT Equipment
Certifications & Standards	UL Listed RCM Mark(EMC Only) CE Marked UKCA Marked Complies with IEC 62368-1
Country of Origin	United States
TAA Compliant	Yes
Environmental Compliance	China Restriction of Hazardous Substances (China RoHS) Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	5 Year
Additional Warranty Information	5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
