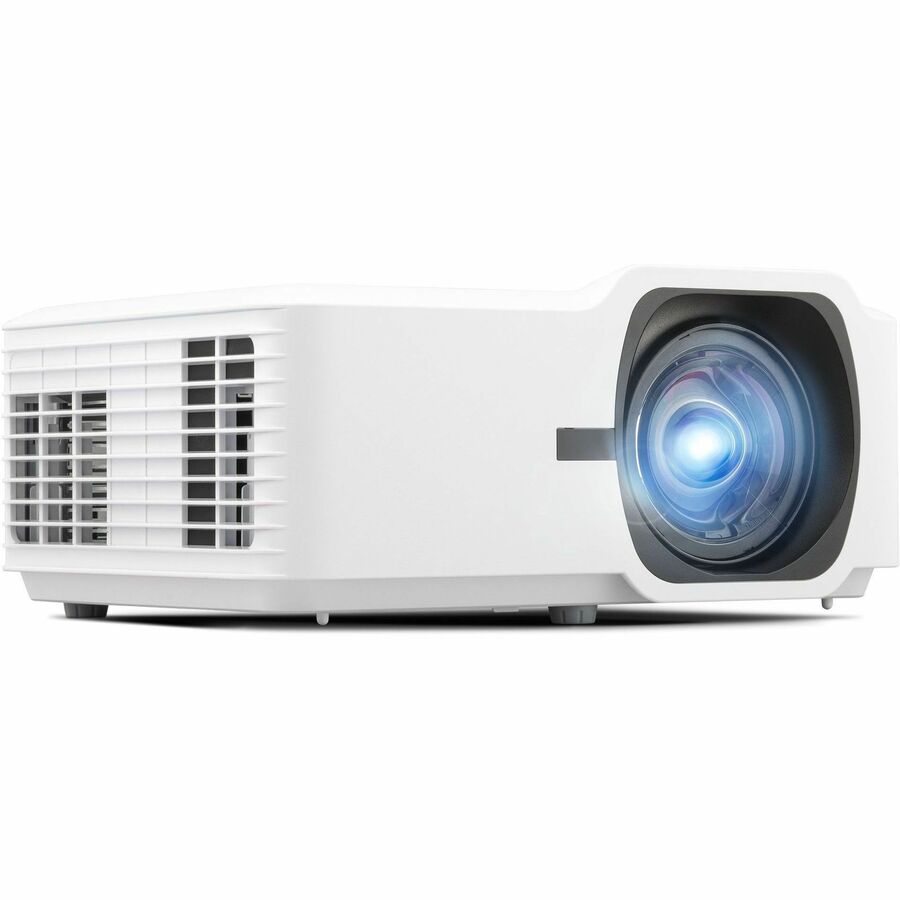

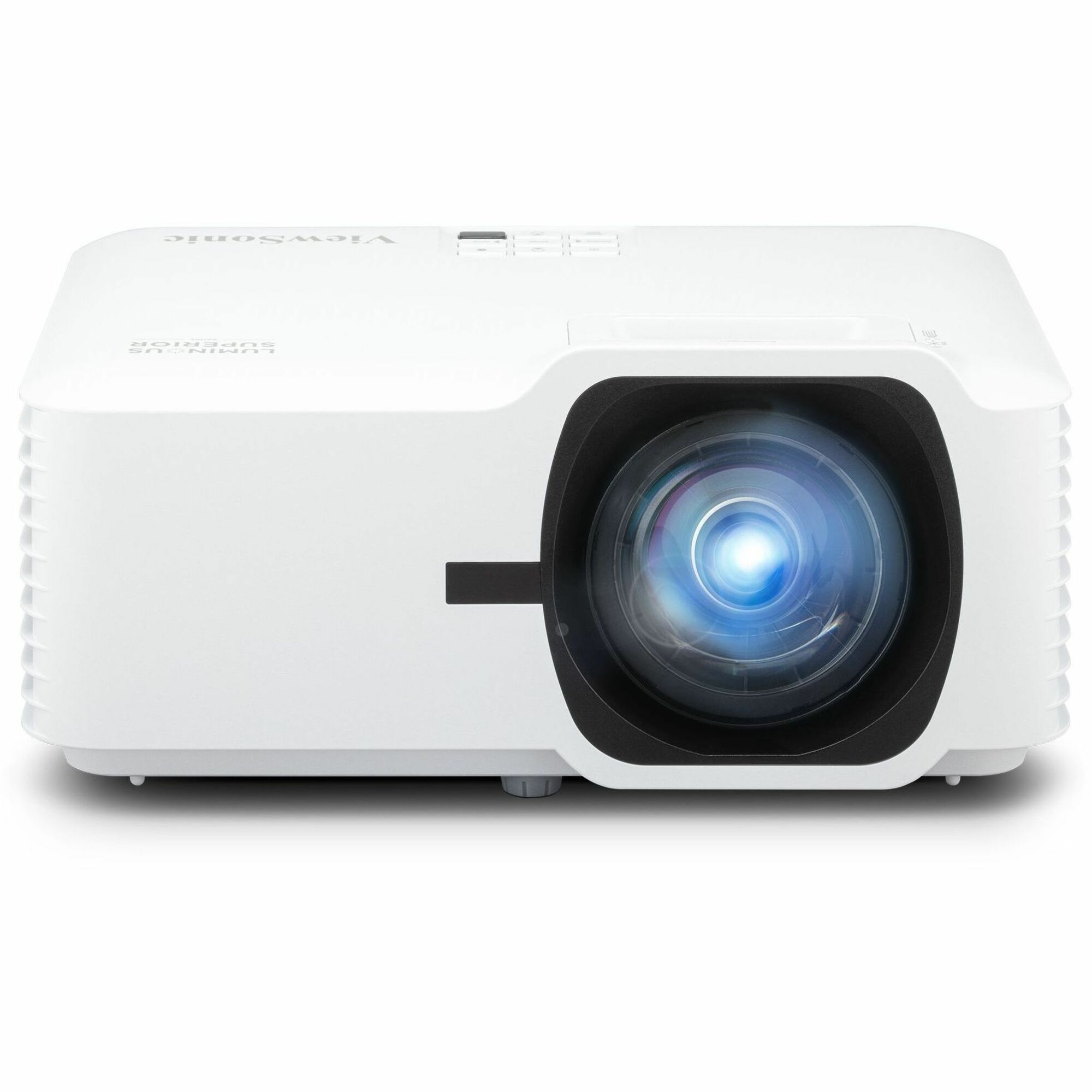

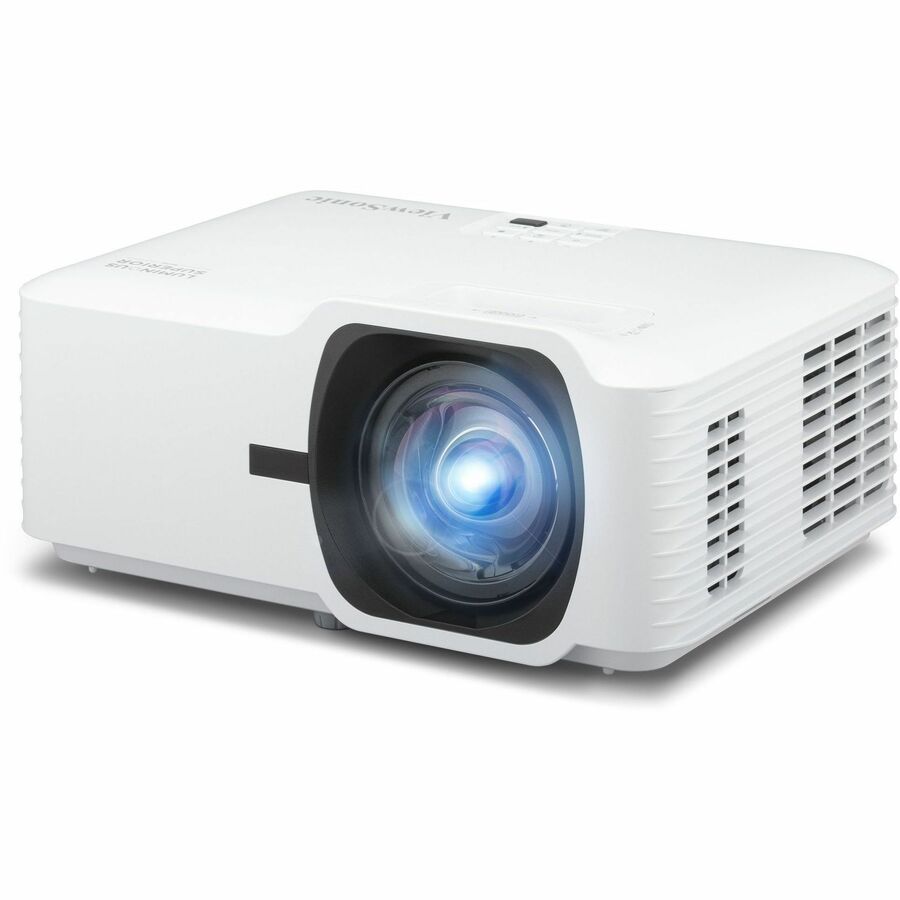

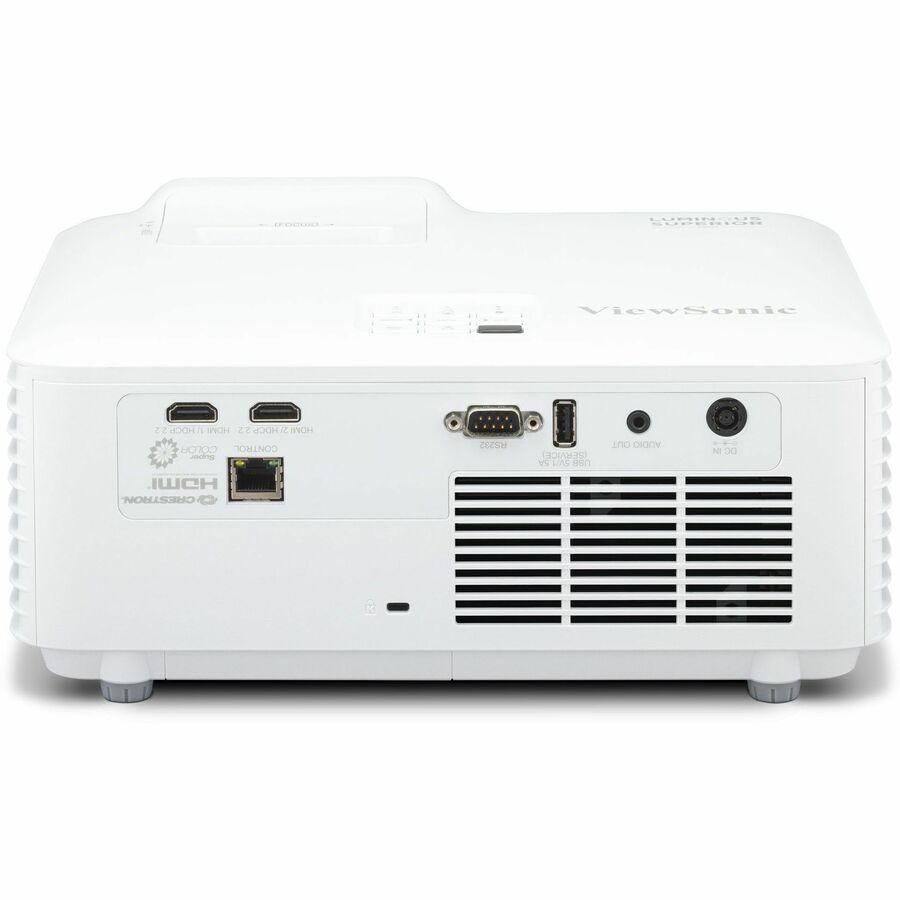

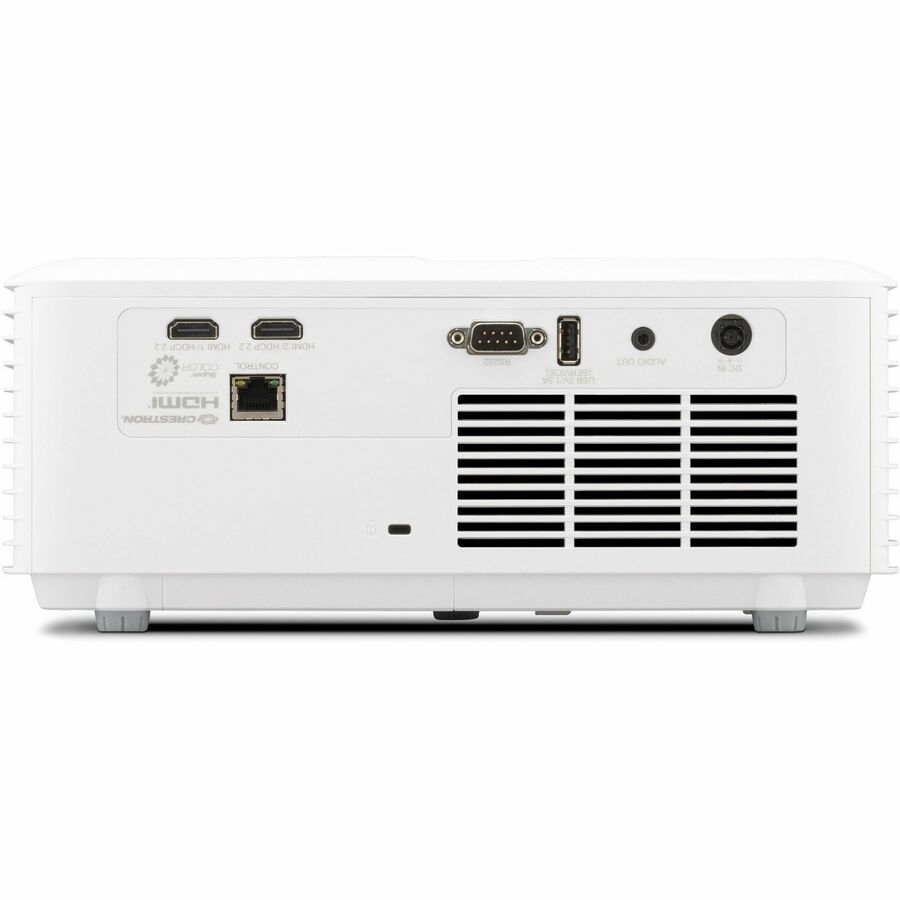

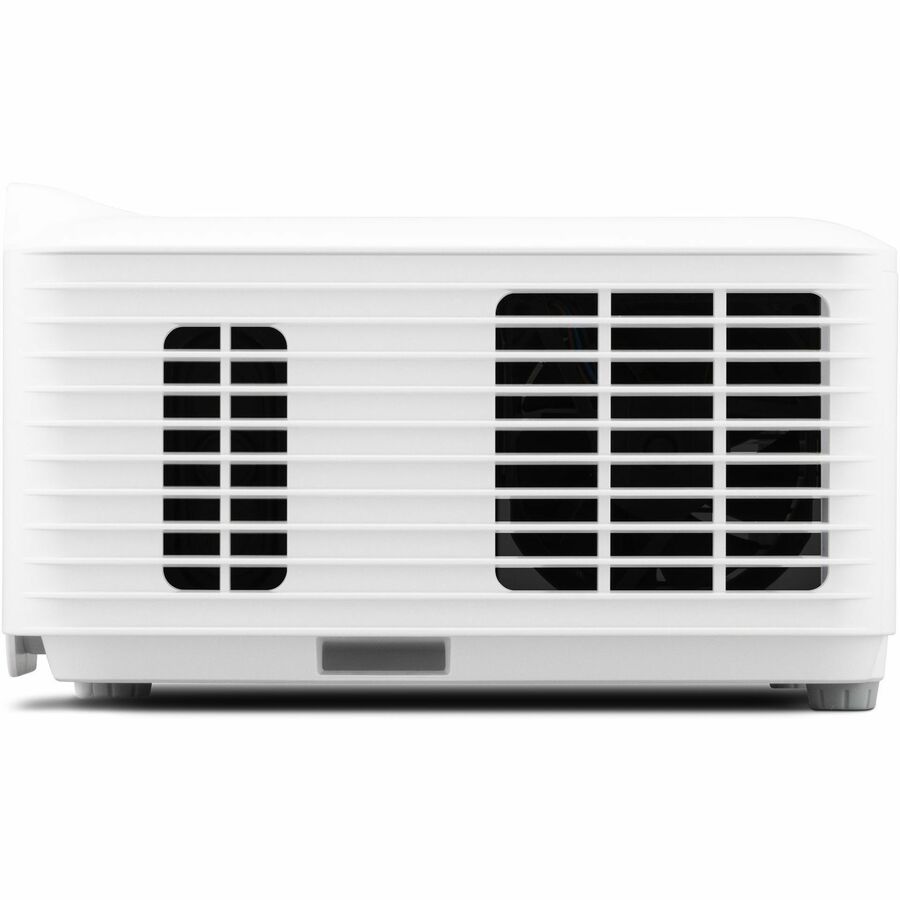

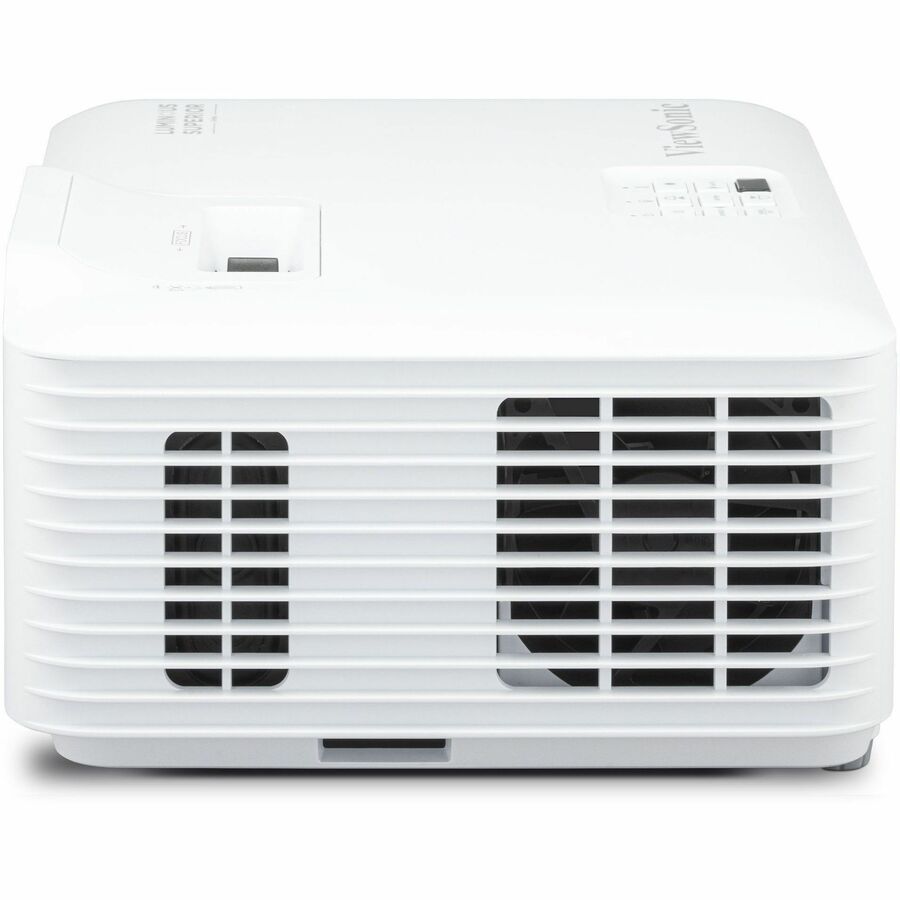

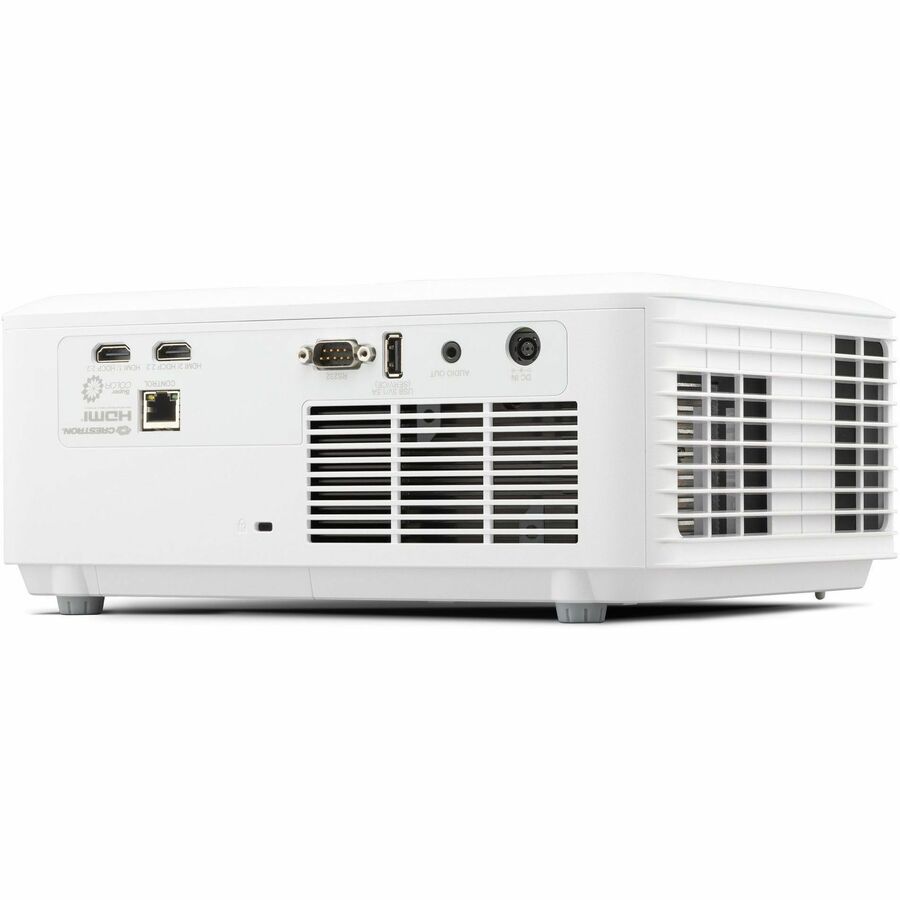

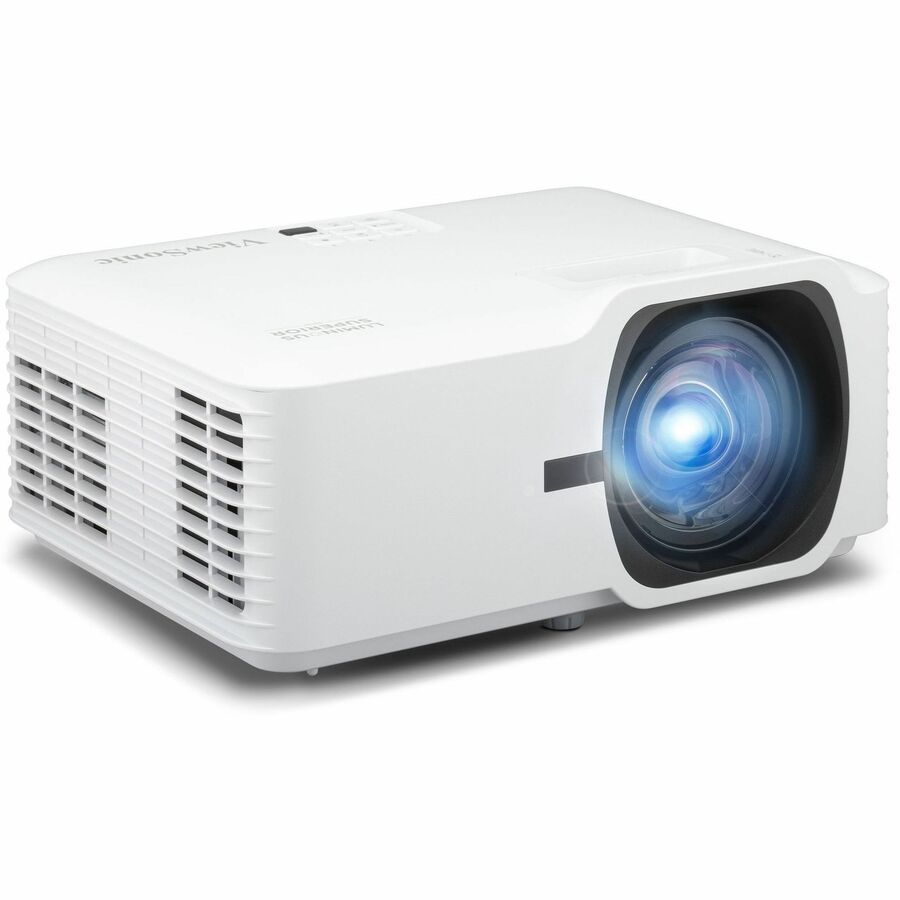

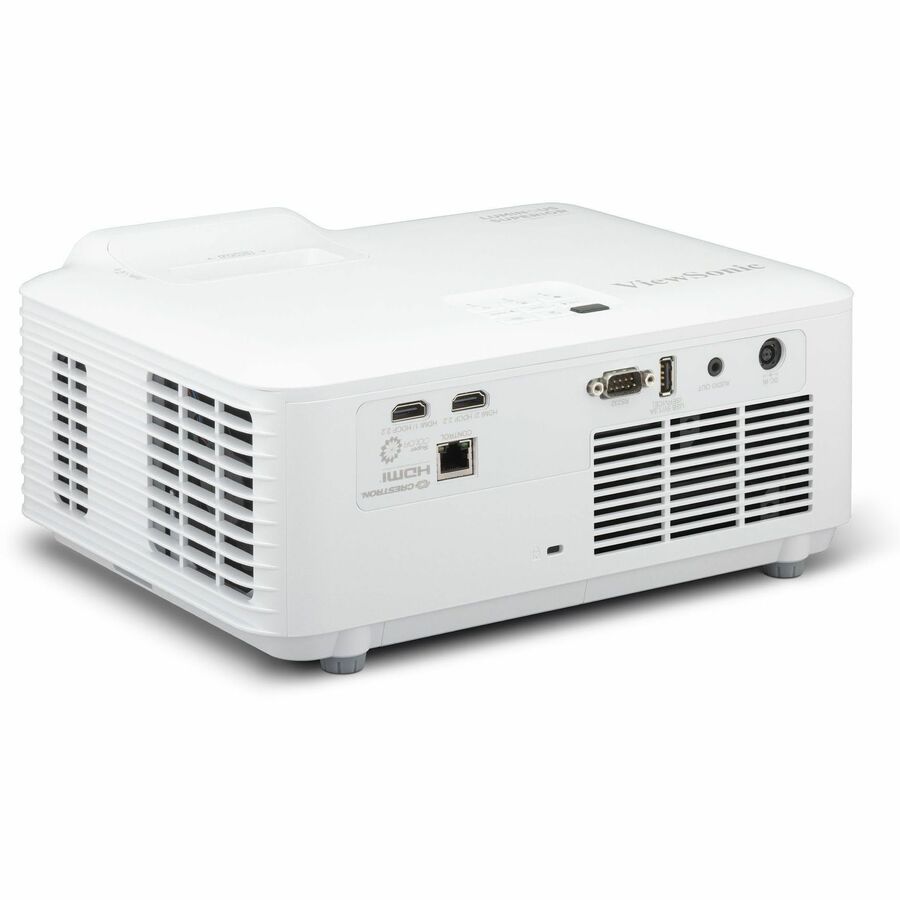

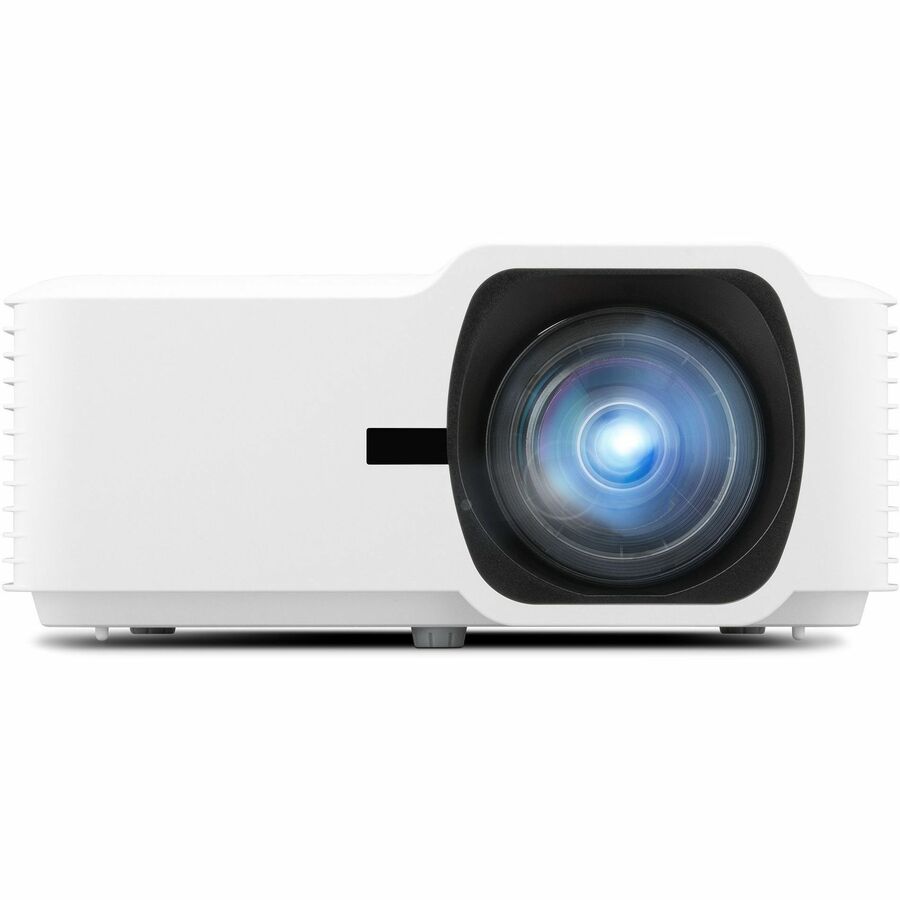

0.65 1080P DLP LASER PROJECTOR WITH 4000LMTR 0.5 FIXED LENS

Name: 0.65 1080P DLP LASER PROJECTOR WITH 4000LMTR 0.5 FIXED LENS
Brand: VIEWSONIC
SKU: 540Q41
Price: 1267.57 USD
Availability: InStock

VIEWSONIC

PCN#

540Q41

MFG#

LSD400HD-ST

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,267.57

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

1920 x 1080
Front, Ceiling
2160p
20000 Hour Normal Mode
30000 Hour Economy Mode
Full HD
3,000,000:1
4000 lm
HDMI
USB
Network (RJ
45)
Commercial, Education, Sports, Simulator, Large Venue, Retail, Exhibition
3 Year Warranty

Product Condition: New and Factory Fresh

Limited Warranty3 YearParts Warranty/Labor3 Year

Shipping Weight: 11 lbs.

ViewSonic LSD400HD-ST 4000 Lumens 1080p Short Throw Laser Projector, H/V Keystone and 360-Degree Projection for Flexible Setup, Maintenance-Free Laser Phosphor, HDR Support, and HDMI

Overview

Tech Specs

Specifications

Manufacturer	ViewSonic Corporation
Manufacturer Part Number	LSD400HD-ST
Manufacturer Website Address	http://www.viewsonic.com
Brand Name	ViewSonic
Product Line	Luminous Superior
Product Model	LSD400HD-ST
Product Name	Luminous Superior LSD400HD-ST DLP Projector
Marketing Information	The ViewSonic® LSD400HD-ST is a high-brightness, lamp-free 1080p projector designed for modern professional and educational environments. Utilizing advanced 3rd generation laser phosphor technology, it delivers 4,000 ANSI Lumens of brightness for up to 30,000 hours, eliminating the need for frequent bulb changes and the maintenance downtime associated with traditional lamp projectors. This sustainable "fit and forget" solution is significantly more energy-efficient, reducing power usage by up to 49%. With its 0.5 short throw lens, the LSD400HD-ST projects massive, shadow-free images in tight spaces, while the IP6X sealed optical engine and high-contrast 0.65" DMD chip ensure durable, professional-grade performance. Featuring 360° projection, portrait mode, and centralized LAN control, it offers the installation flexibility required for everything from corporate boardrooms to creative digital signage.
Product Type	DLP Projector

Technical Information

Projection Method

Front
Ceiling

Display & Graphics

Native Resolution	1920 x 1080
Graphic Mode	Full HD

Projection Lens

Throw Type	Short Throw
Maximum Focal Length	7.51 mm
Minimum Diagonal Image Size	40"
Maximum Diagonal Image Size	25 ft
Minimum Projection Distance	17.32"
Maximum Projection Distance	10.79 ft

Lamp

Number of Lamps	1
Lamp Type	Laser
Normal Mode Lamp Life	20000 Hour
Economy Mode Lamp Life	30000 Hour


Standard Mode Brightness	4000 lm
Color Supported	1.07 Billion Colors
Throw Ratio	0.5
Contrast Ratio	3,000,000:1

Video

Video Signal Standard	HDTV
Output Scan Format	2160p

Audio

Speaker Output Power	15 W
Speaker Included	Yes

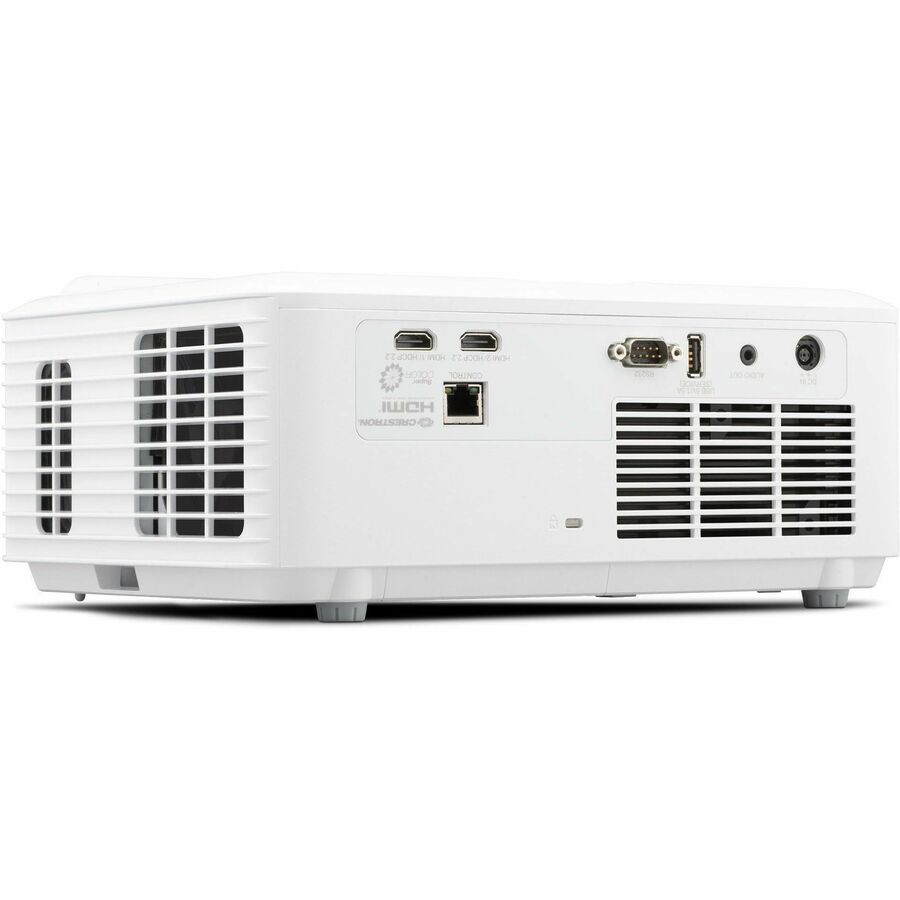

Interfaces/Ports

HDMI	Yes
Number of HDMI Ports	2
USB	Yes
USB Connector Type	Type-A
Network (RJ-45)	Yes
Audio Line Out	Yes

Power Description

Operating Power Consumption

143 W

Physical Characteristics

Product Color	White
Color Family	White
Form Factor	Wall Mountable Ceiling Mountable
Height	5.1"
Width	11.3"
Depth	8.5"
Weight (Approximate)	6.83 lb

Miscellaneous

Application/Usage	Commercial Education Sports Simulator Large Venue Retail Exhibition
Energy Star	Yes
Environmental Certification	Electronic Product Environmental Assessment Tool (EPEAT)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	China

Warranty

Limited Warranty	3 Year
Parts Warranty/Labor	3 Year
