VT8100DL UNIVERSAL QUAD 4K DOCKING STATION

Name: VT8100DL UNIVERSAL QUAD 4K DOCKING STATION
Brand: VISIONTEK
SKU: 400F66
Price: 226.18 USD
Availability: OutOfStock

VISIONTEK

PCN#

400F66

MFG#

901800

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Estimated Shipment:

Product Highlights:

for Notebook, Mobile Device, Monitor
Charging Capability
Memory Card Reader
SD, microSD
USB Type C, USB Type A
4 Displays Supported
4K, 4K UHD, 4K @ 60Hz
3840 x 2160
5 x USB Ports
2 x USB Type
A Ports
USB Type
A
3 x USB Type
C Ports
USB Type
C
Network (RJ
45)
HDMI
DisplayPort
Audio Line Out
Wired
2.5 Gigabit Ethernet
Windows, macOS, ChromeOS
100W

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

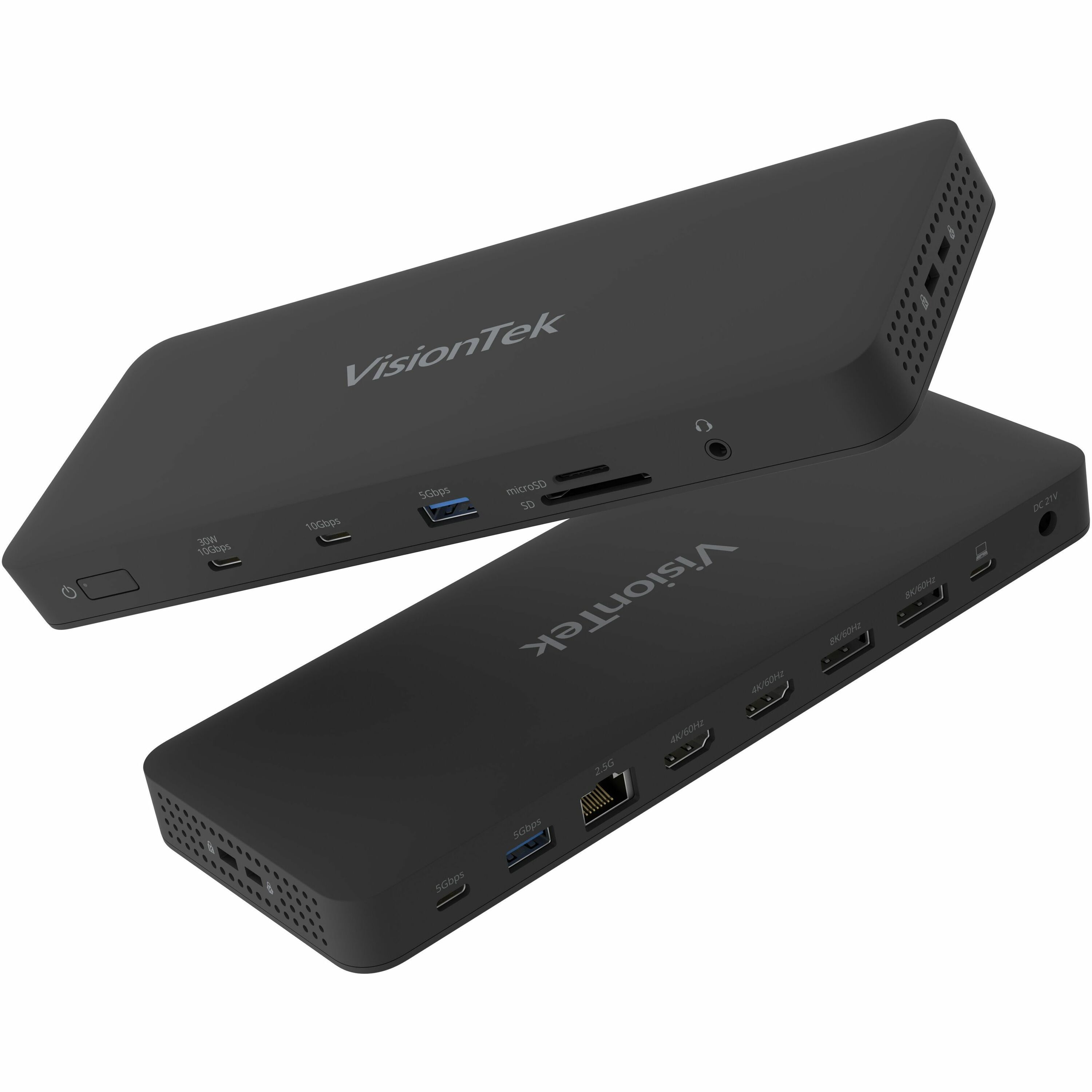

VisionTek VT8100DL Docking Station

Overview

Tech Specs

Specifications

Manufacturer	VisionTek Products, LLC
Manufacturer Part Number	901800
Manufacturer Website Address	http://www.visiontek.com
Brand Name	VisionTek
Product Model	VT8100DL
Product Name	VT8100DL Docking Station
Marketing Information	Transform your laptop and enhance productivity Connect four 4K displays, 2.5Gb Ethernet, and your essential accessories through a single cable. With up to 100W power delivery, your laptop stays charged while you stay productive. Quad 4K Display Support: Connect up to four 4K UHD monitors via 2x HDMI and 2x DisplayPort outputs - perfect for multitasking and boosting productivity. Universal Compatibility: Works with Windows, macOS & ChromeOS laptops via USB-C, Thunderbolt 5/4/3 or USB-A. Powered by DisplayLink for reliable cross-platform performance. Multi Device Charging: Reduce cable clutter and power your laptop up to 100W and 30W mobile device power delivery directly through the dock with no extra charger needed. Your Life Connected: Transform your setup into a workstation with 2x HDMI, 2x DisplayPort, 2x USB-A, 3x USB-C, 2.5Gb Ethernet, SD Card Reader and 3.5mm audio - connect all your devices through one powerful, all-in-one docking station. Smart Tek. Real Support: Package includes VT8100 Quad Display Docking Station, USB-C Cable, USB-C to USB-A Adapter, and Power Supply. Designed with purpose, functionality, durability and compatibility in mind. Backed by a 3-Year Warranty and an expert Tek Support team who's always ready to help.
Product Type	Docking Station

Technical Information

Connectivity Technology	Wired
Charging Capability	Yes
Device Supported	Notebook Mobile Device Monitor
Memory Card Reader	Yes
Memory Card Supported	SD microSD
Features	Power Delivery Pass-through

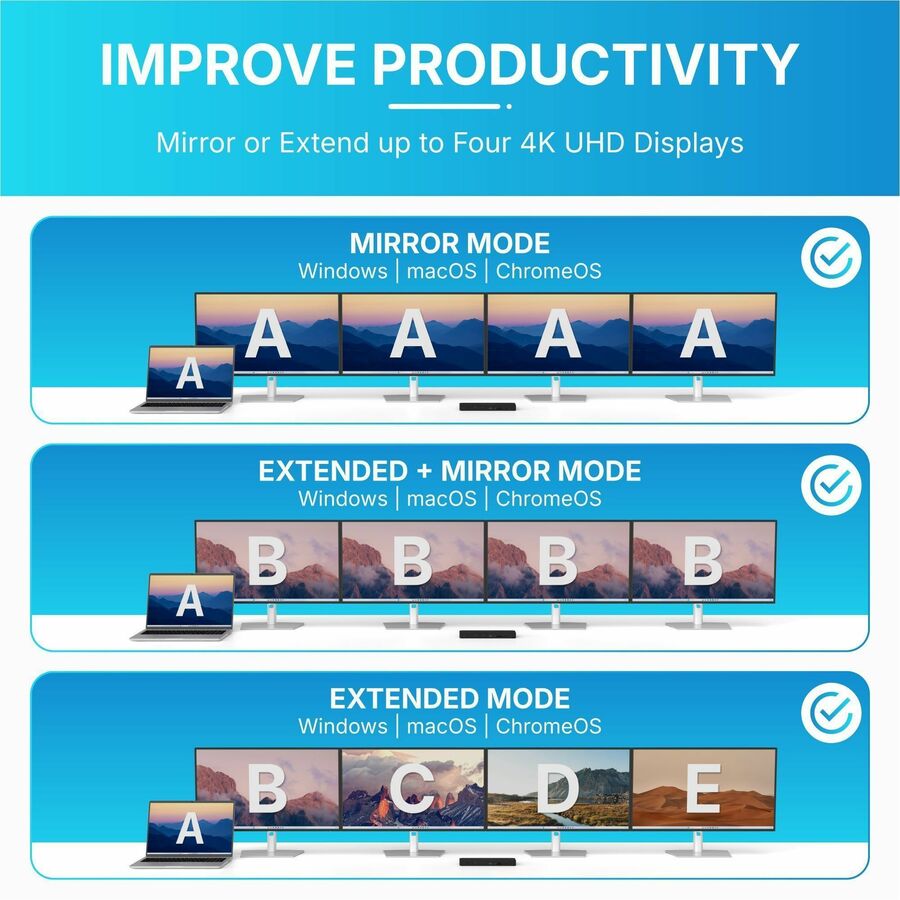

Number of Displays Supported	4
Screen Mode Supported	4K 4K UHD 4K @ 60Hz
Supported Resolutions	3840 x 2160
Maximum Data Transfer Rate	1.25 GB/s

Network & Communication

Ethernet Technology

2.5 Gigabit Ethernet

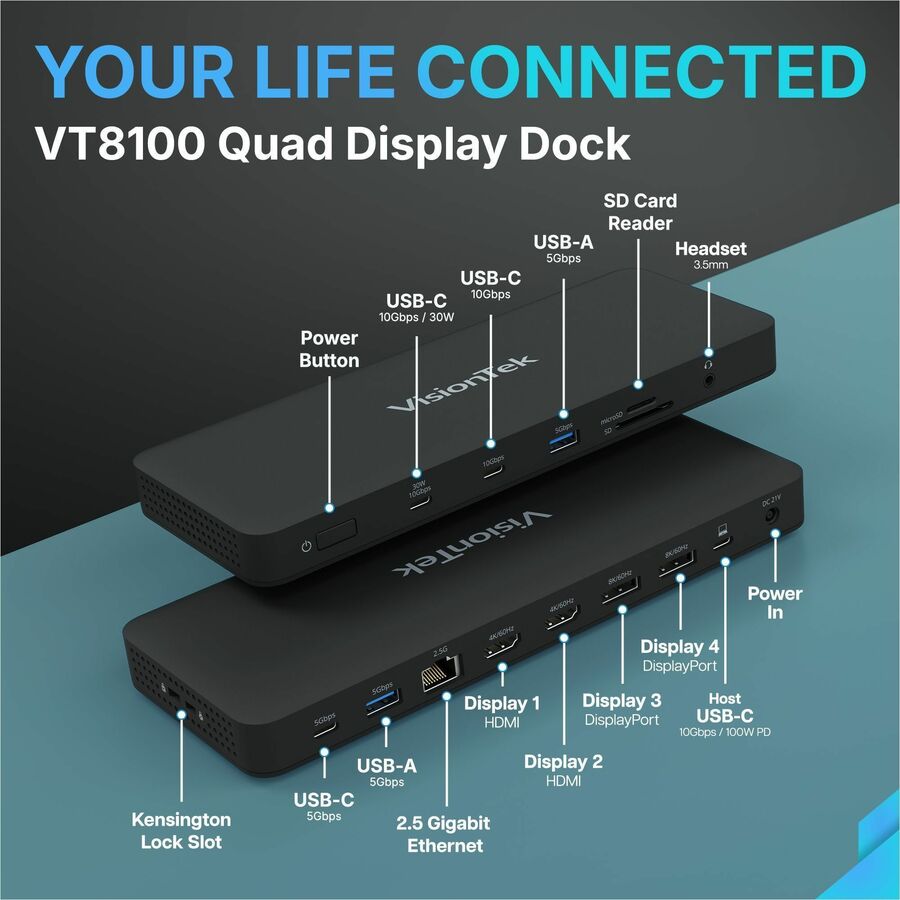

Interfaces/Ports

Host Interface	USB Type C USB Type A
Audio Line Out	Yes
Total Number of USB Ports	5
USB Type-A	Yes
Number of USB Type-A Ports	2
USB Type-C	Yes
USB Type-C Detail	1 x USB-C 10Gbps (30W), 1 x USB-C 10Gbps, 1 x USB-C 5Gbps
Number of USB Type-C Ports	3
Network (RJ-45)	Yes
DisplayPort	Yes
Number of DisplayPort Outputs	2
HDMI	Yes
Number of HDMI Outputs	2
USB Power Delivery	100W

Software

Operating System Supported

Windows
macOS
ChromeOS

Power Description

Power Source Type

Power Supply

Miscellaneous

Package Contents

VT8100DL Docking Station
USB-C Cable
USB-C to USB-A Adapter
Power Supply

Warranty

Limited Warranty

3 Year
