2MP INDOOR COMPACT CUBE, 1.66MM LENS, 180 DEGREES HORIZONTAL PANORAMIC VIEW, 30

Name: 2MP INDOOR COMPACT CUBE, 1.66MM LENS, 180 DEGREES HORIZONTAL PANORAMIC VIEW, 30
Brand: VIVOTEK USA INC.
SKU: 8173BY
Price: 383.22 USD
Availability: InStock

VIVOTEK USA INC.

PCN#

8173BY

MFG#

CC9160-H

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$383.22

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

H.265, H.264, MJPEG
1920 x 1080
1.66 mm Fixed Lens
30 fps
CMOS
Wall Mount, Desk Mount

Product Condition: New and Factory Fresh

Shipping Weight: 2 lbs.

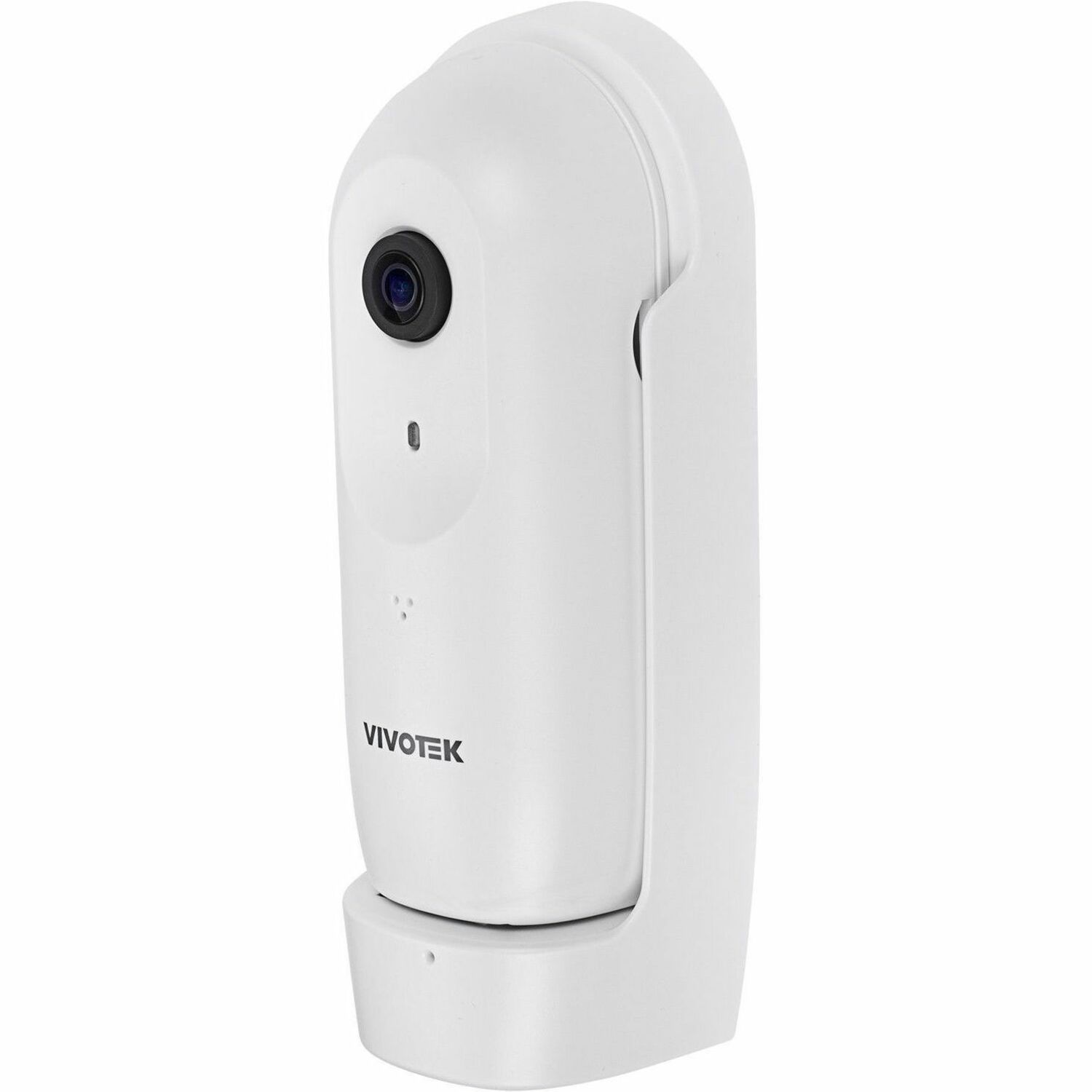

Vivotek CC9160-H 2 Megapixel Indoor Full HD Network Camera - Color - White

Overview

Tech Specs

Specifications

Manufacturer	Vivotek, Inc
Manufacturer Part Number	CC9160-H
Manufacturer Website Address	http://www.vivotek.com
Brand Name	Vivotek
Product Series	C
Product Model	CC9160-H
Product Name	CC9160-H Network Camera
Marketing Information	VIVOTEK's CC9160-H is a low-profile network camera especially designed for 180° panoramic indoor surveillance. The inconspicuous design makes it a great choice for retail, convenience stores, hotels, classrooms, and cafes. With 120 dB WDR Pro for high contrast lighting environments, the 180° panoramic views in 1080P provides amazing situational surveillance coverage. The unique mounting design facilitates easy installation onto any wall. A built-in microphone further increases the level of surveillance while recording sound within a 5 meter radius. Included digital input and digital output connections also add to the CC9160-H's security capabilities.
Product Type	Network Camera

Technical Information

Recording Formats	Full HD
HD Recording	Yes

Display & Graphics

Image Sensor Type	CMOS
Image Sensor Size	1/2.8"
Color Supported	Color
Field of View	180° (Horizontal) 100° (Vertical) 180° (Diagonal)
Effective Camera Resolution	2 Megapixel

Video

Video Formats	H.265 H.264 MJPEG
Maximum Video Resolution	1920 x 1080
Maximum Frame Rate	30 fps

Lens

Lens Type	Fixed
Maximum Focal Length	1.66 mm
Lens Included	Yes
Maximum Aperture	f/1.95

Exposure

Shortest Shutter Speed	1/32000 Second
Longest Shutter Speed	1/5 Second

Network & Communication

Connectivity Technology	Wired
Remote Management	Yes

Storage

Storage Type

Memory Card

Interfaces/Ports

Network (RJ-45)

Yes

Power Description

Power Source Type

PoE

Physical Characteristics

Mount Type	Wall Mount Desk Mount
Product Color	White
Height	4.7"
Width	2"
Depth	1.5"
Weight (Approximate)	2.86 oz

Environmental Conditions

Minimum Operating Temperature	14°F (-10°C)
Maximum Operating Temperature	113°F (45°C)

Miscellaneous

Features	Wide Dynamic Range Smart Stream Built-in Microphone Auto Flip Mirror White Balance 3D Digital Noise Reduction Highlight Compensation (HLC) Back Light Compensation (BLC) Gain Control Privacy Masking Defog
Indoor/Outdoor	Indoor
Package Contents	CC9160-H Network Camera Quick installation guide Mounting bracket Tilt bracket Screw pack
