2MP 40X ZOOM H.265 WDR PRO NEMA 4X OUTDOOR PTZ SPEED DOME, 250 M SMART IR, 4.25

Name: 2MP 40X ZOOM H.265 WDR PRO NEMA 4X OUTDOOR PTZ SPEED DOME, 250 M SMART IR, 4.25
Brand: VIVOTEK USA INC.
SKU: 8188BY
Price: 2175.36 USD
Availability: InStock

VIVOTEK USA INC.

PCN#

8188BY

MFG#

SD9368-EHL

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$2,175.36

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

820.21 ft Infrared Night Vision
H.264, H.265, MJPEG
1920 x 1080
4.25 mm
170 mm Varifocal Lens
40x Optical
60 fps
CMOS
Wall Mount
IK10
IP66
Weather Resistant, Weather Proof, Vandal Proof, Rain Resistant, Dust Resistant, Corrosion Resistant

Product Condition: New and Factory Fresh

Limited Warranty36 Month

Shipping Weight: 24 lbs.

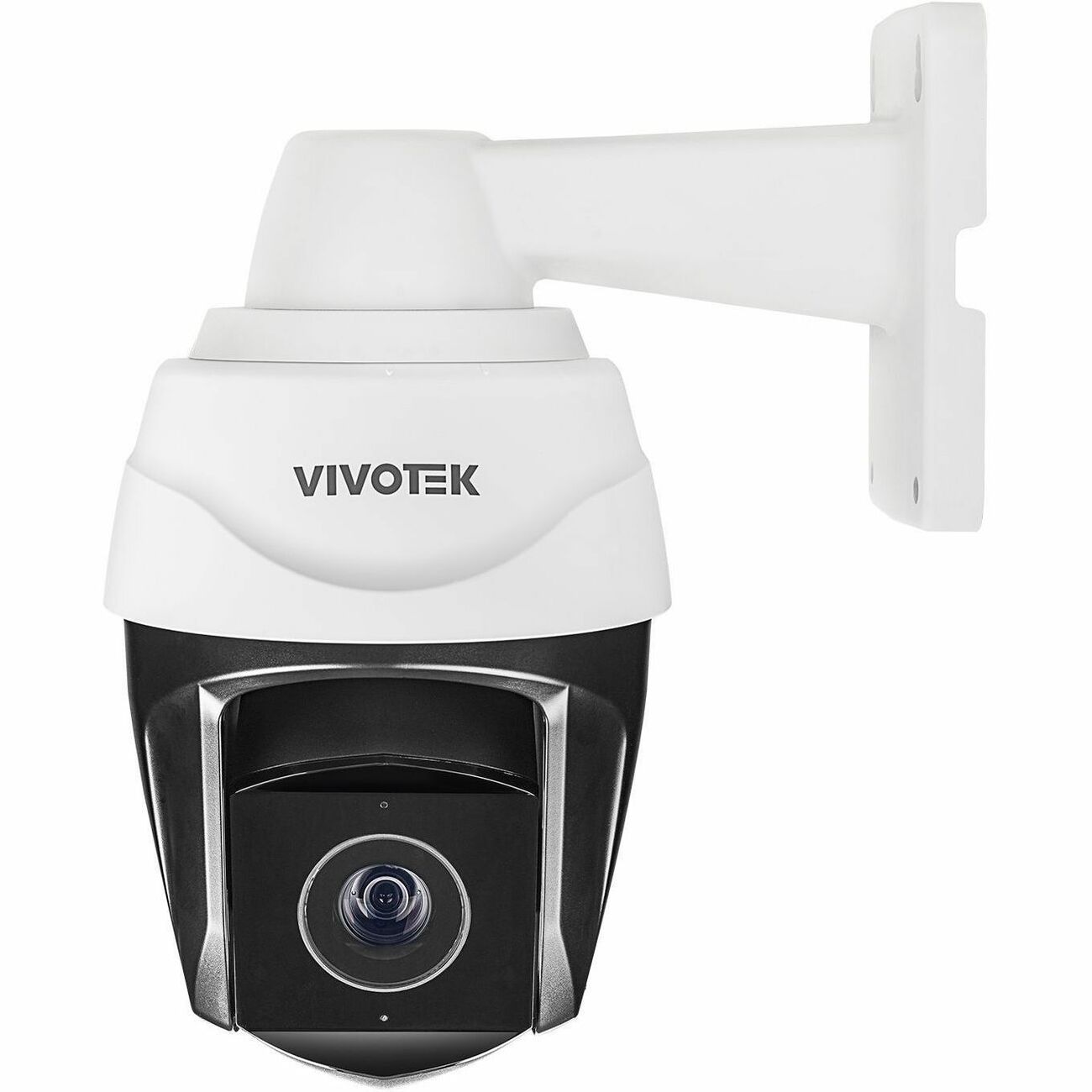

Vivotek SD9368-EHL 2 Megapixel Full HD Network Camera - Color - Dome - White

Overview

Tech Specs

Specifications

Manufacturer	Vivotek, Inc
Manufacturer Part Number	SD9368-EHL
Manufacturer Website Address	http://www.vivotek.com
Brand Name	Vivotek
Product Series	S
Product Model	SD9368-EHL
Product Name	SD9368-EHL Speed Dome Network Camera
Marketing Information	The new VIVOTEK SD9368-EHL is a professional IR speed dome camera (PTZ) with 2MP resolution at 60fps, excellent for video surveillance in wide coverage areas such as airports, city surveillance, and manufacturing facilities. SD9368-EHL is equipped with 250M IR illuminators and a 40x optical zoom to gain more details in any scene. The smart IR technology allows broad coverage FOV and highly uniform IR intensity while at the same time avoiding hotspots. Video surveillance in big areas has the potential for many incidents, SD9368-EHL's built-in Smart Tracking Advanced (our latest AI technology for Smart VCA) allows user to identify the risk and track the suspected person automatically in real time. SD9368-EHL's camera body is protected with IP66, IK10 and NEMA 4X certifications against rain, dust, and corrosion. It also supports a wide operating temperature from -40? to 60? (-40°F to 140°F) for operation in extreme weather conditions.
Product Type	Network Camera

Technical Information

Recording Formats	Full HD
HD Recording	Yes
Night Vision	Yes
Night Vision Distance	820.21 ft
Night Vision Type	Infrared
Number of IR LEDs	8

Display & Graphics

Image Sensor Type	CMOS
Image Sensor Size	1/2.8"
Color Supported	Color
Field of View	65.70° ~ 1.88° (Horizontal), 39.39° ~ 1.09° (Vertical), 73.03° ~2.13° (Diagonal)
Effective Camera Resolution	2 Megapixel

Video

Video Formats	H.264 H.265 MJPEG
Maximum Video Resolution	1920 x 1080
Maximum Frame Rate	60 fps

Lens

Lens Type	Varifocal
Minimum Focal Length	4.25 mm
Maximum Focal Length	170 mm
Lens Included	Yes
Minimum Aperture	f/1.6
Maximum Aperture	f/4.95
Optical Zoom	40x

Exposure

Shortest Shutter Speed	1/100000 Second
Longest Shutter Speed	1 Second

Network & Communication

Connectivity Technology	Wired
Remote Management	Yes

Storage

Storage Type

Memory Card

Interfaces/Ports

Network (RJ-45)

Yes

Power Description

Input Voltage	24 V AC 48 V DC
Power Source Type	AC DC PoE

Physical Characteristics

Mount Type	Wall Mount
Form Factor	Dome
Durability	Weather Resistant Weather Proof Vandal Proof Rain Resistant Dust Resistant Corrosion Resistant
Color Family	White
Product Color	White
Weight (Approximate)	15.65 lb

Environmental Conditions

Minimum Operating Temperature	-40°F (-40°C)
Maximum Operating Temperature	131°F (55°C)
Maximum Operating Humidity	98%

Miscellaneous

Features	Auto Tracking Cross Line Detection Face Detection Video Management System Wide Dynamic Range Day/Night Removable IR Cut-off Filter Mirror Auto Flip 3D Digital Noise Reduction Defog Privacy Masking Privacy Protection White Balance
Package Contents	SD9368-EHL Speed Dome Network Camera Wall mount bracket Quick installation guide Alignment sticker Screw pack Desiccant bag Waterproof accessory bag Conduit ring Terminal block
Impact Protection Rating	IK10
Ingress Protection Rating	IP66
Country of Origin	Taiwan

Warranty

Limited Warranty

36 Month
