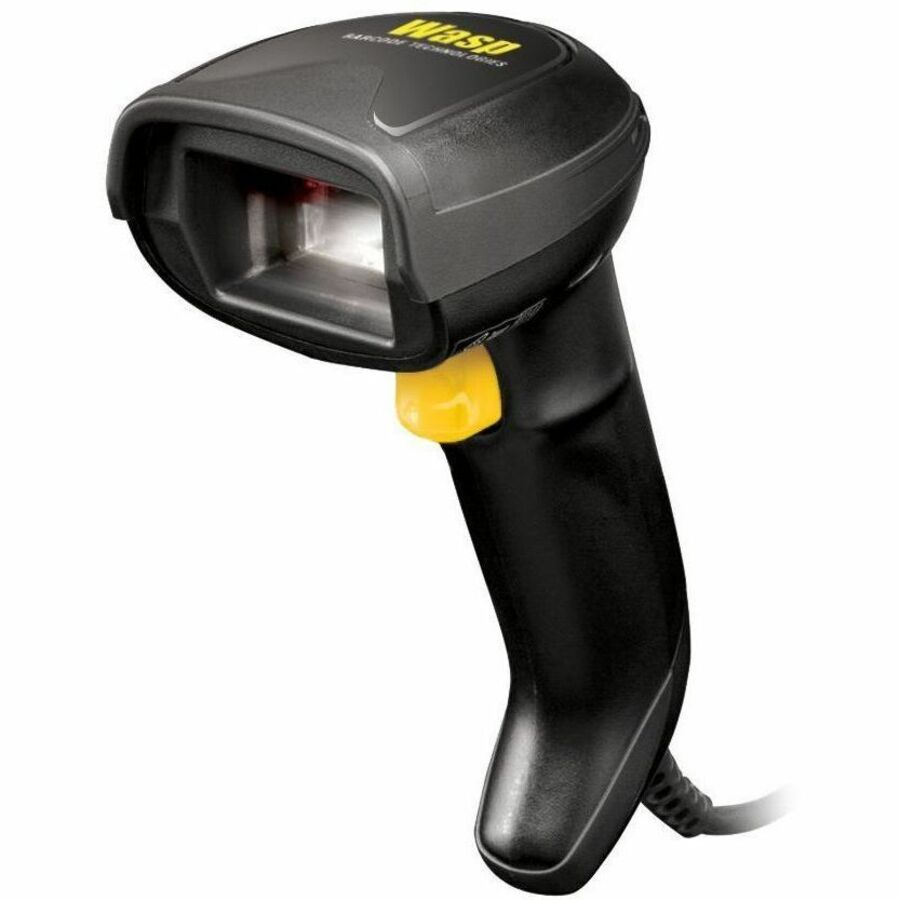

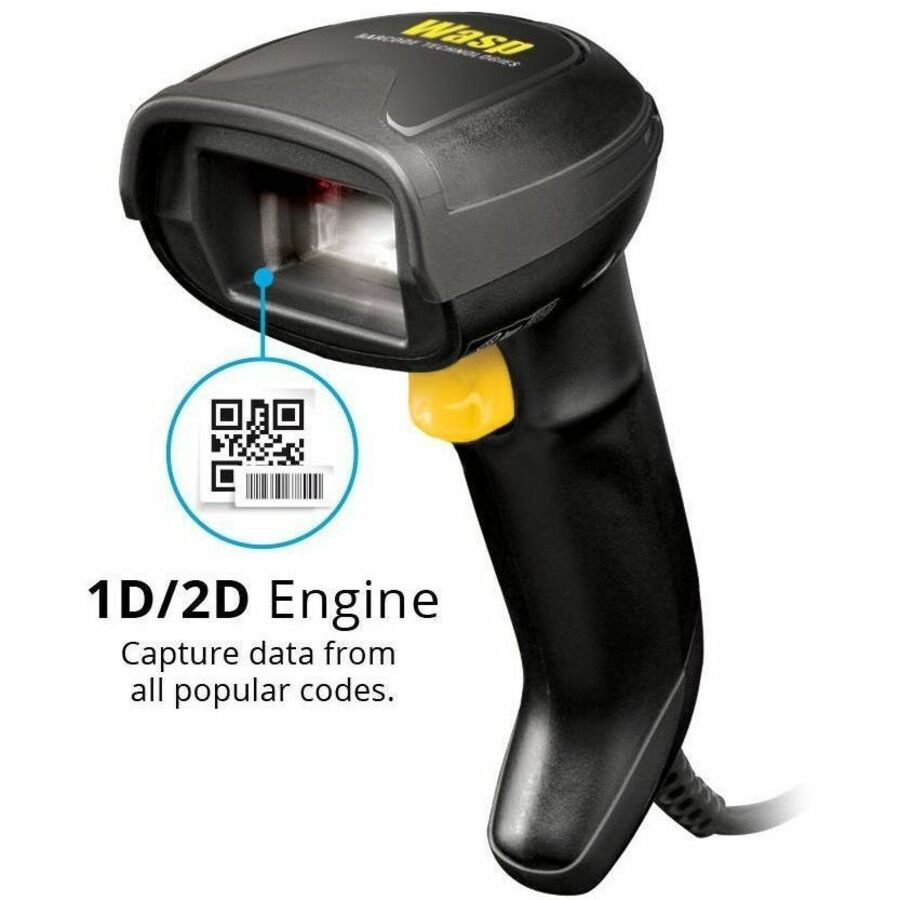

Wasp WDI4700 2D Barcode Scanner

Name: Wasp WDI4700 2D Barcode Scanner
Brand: WASP
SKU: 9679BC
Price: 256.13 USD
Availability: InStock

WASP

PCN#

9679BC

MFG#

633809007149

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$256.13

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Cable Connectivity
27.90" Scan Distance
1D, 2D
Laser
Imager
Omni
directional
USB
Black, Yellow
IP52
USB
Industrial, Ticketing, Retail, Light/Clean Manufacturing, Healthcare, Transportation, Entertainment, Commercial Service, Hospitality

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 1 lbs.

Wasp WDI4700 Industrial 2D Barcode Scanner w/USB cable

Overview

Tech Specs

Specifications

Manufacturer	Wasp Barcode Technologies
Manufacturer Part Number	633809007149
Manufacturer Website Address	http://www.waspbarcode.com
Brand Name	Wasp
Product Model	WDI4700
Product Name	WDI4700 2D Barcode Scanner
Marketing Information	Wasp WDI4700 2D Barcode Scanner The new Wasp WDI4700 2D barcode scanner is a multipurpose digital imager designed to offer an ergonomic scanning experience to the user, and an outstanding performance thanks to its megapixel sensor with white-illumination 2D technology. The WDI4700 motion-sensing technology detects the users movements to switch automatically between presentation and handheld reading without the need of a stand. It also allows the user to program the aimer and sensor according to the users preferences. Thanks to its highly visible 4-Dot aimer, the WDI4700 can define exact reading zones to reduce accidental reads, while the aimers center cross provides a locator for targeted scanning in a multiple barcode environment. In addition, its visible white illumination is easier on the eyes and reads colored labels better. The WDI4700 omnidirectional scanner can read 1D and 2D, postal and composite codes (PDF417) at a fast speed even from mobile devices. It also features enhanced optics to improve motion tolerance and high-speed imaging to read fast moving codes. This makes it ideal for a wide-range of industries such as: mobile marketing or ticketing applications, retail (POS), light manufacturing, healthcare, access control, transportation, entertainment, commercial services like postal, banks, public administration, utilities, etc.
Product Type	Barcode Scanner

Technical Information

Connectivity Technology	Cable
Scanning Capability	1D 2D
Barcode Symbology Supported	1D codes: GS1 DataBar™ linear codes. Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Code Australian Post British Post China Post IMB Japanese Post KIX Post Planet Code Planet Code Postnet Royal Mail Code (RM4SCC) EAN/JAN Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MacroPDF MicroPDF417 PDF417 UPC A/E Composites Digimarc Barcodes
Light Source	Laser
Image Sensor Type	Imager
Scan Mode	Trigger
Scan Pattern	Omni-directional
Scanning Distance	27.90"
Features	Scan Button Notification LED 3GL Beep Ergonomic Design
Cable Type Included	USB
Reading Angle (Skew)	65°
Reading Angle (Pitch)	65°
Reading Angle (Roll)	360°
Maximum Ambient Light	100000 lux
Drop Specification	6.0 ft. (1.8 m)
Minimum Print Contrast	15%
Minimum Element Resolution (Code 39)	5 mil
Maximum Element Resolution (Code 39)	10 mil
Minimum Element Resolution (DataMatrix)	7.5 mil
Maximum Element Resolution (DataMatrix)	15 mil
Minimum Element Resolution (PDF417)	5 mil
Maximum Element Resolution (PDF417)	10 mil
Image Sensor Resolution	1280 x 800
Illumination Type	LED
Illumination Color	White

Interfaces/Ports

Host Interface

USB

Environmental Conditions

Operating Temperature	32°F (0°C) to 122°F (50°C)
Storage Temperature	-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing)	0% to 95%

Physical Characteristics

Form Factor	Handheld
Color Family	Dual Color
Product Color	Black Yellow
Durability	Drop Resistant
Weight (Approximate)	5.68 oz

Miscellaneous

Package Contents	WDI4700 2D Barcode Scanner 6' USB cable Scanner programming guide 2-year warranty (Optional WaspProtect warranty available)
Ingress Protection (IP) Rating	IP52
Application/Usage	Industrial Ticketing Retail Light/Clean Manufacturing Healthcare Transportation Entertainment Commercial Service Hospitality
Country of Origin	Vietnam
Environmental Compliance	China Restriction of Hazardous Substances (China RoHS) Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
