WASP WPL308PLUS TT LABEL PRINTER 203 DPI

Name: WASP WPL308PLUS TT LABEL PRINTER 203 DPI
Brand: WASP
SKU: 8416BY
Price: 709.5 USD
Availability: InStock

WASP

PCN#

8416BY

MFG#

633809012723

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$709.50

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

3.5" LCD Display Screen
83.33 ft Print Length x 4.25" Print Width
8 in/s Mono
203 dpi
WPL, EPL, ZPL, ZPL II Emulation

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 9 lbs.

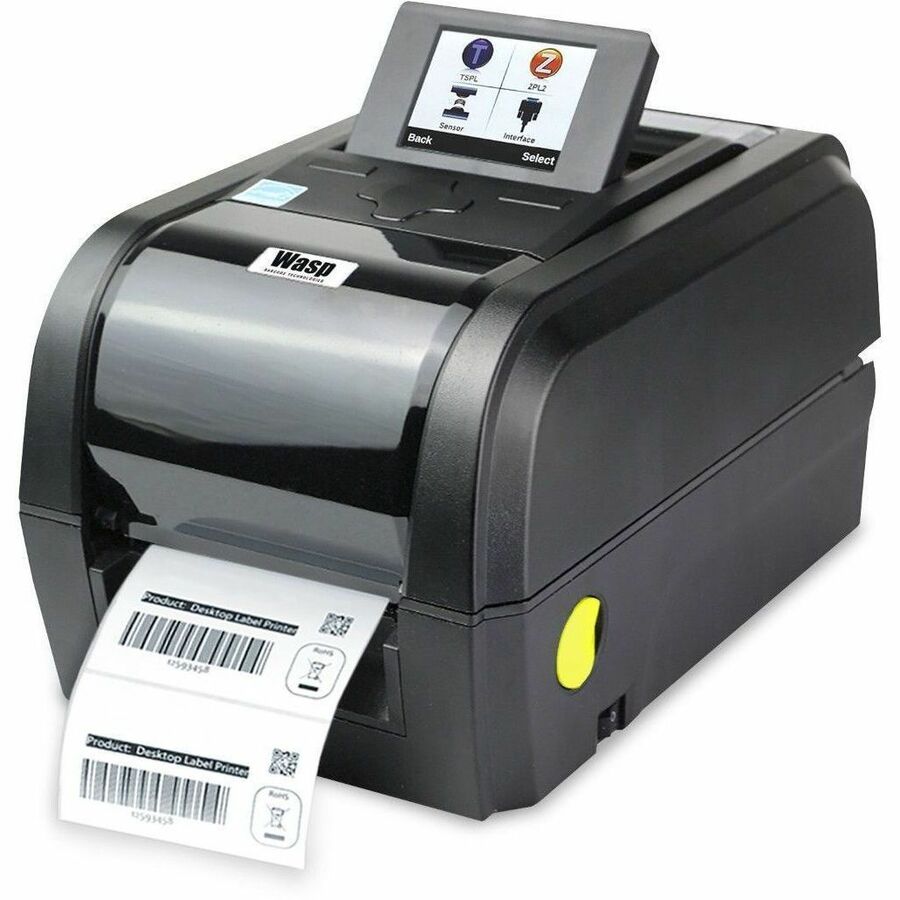

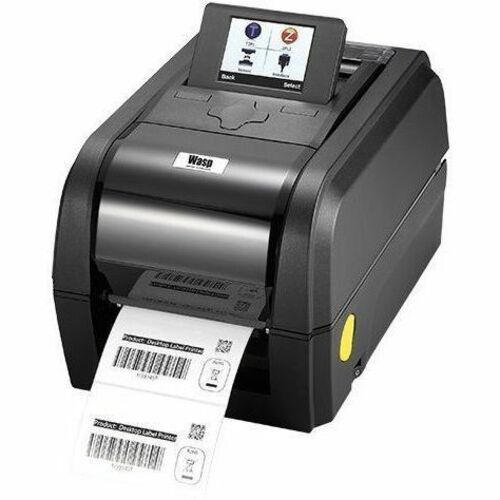

WPL308Plus Barcode Printer, 203 DPI

Overview

Tech Specs

Specifications

Manufacturer	Wasp Barcode Technologies
Manufacturer Part Number	633809012723
Manufacturer Website Address	http://www.waspbarcode.com
Brand Name	Wasp
Product Model	WPL308Plus
Product Name	WPL308Plus Barcode Printer, 203 DPI
Marketing Information	WPL308Plus Desktop Barcode Printer, 203 DPI The WPL308Plus is a high-performance desktop printer designed to handle a wide variety of applications ranging from high-volume shipping label production to intricate jewelry labeling and safety signage. It features a user-friendly clamshell design, 3.5-inch color LCD display as well as thermal transfer and direct thermal printing capabilities. It delivers crisp, clear output at a rapid speed of 8 inches per second. Boasting a resolution of 203 DPI, it ensures precision in every print job. The WPL308Plus features robust memory resources including 128 MB Flash memory and 128 MB SDRAM, it is primed to handle an extensive range of applications including generating higher volume 4x6 shipping labels to intricate product markings and graphic solutions as well as high resolution labels used in specialized electronics marking applications. The printer maximizes efficiency with its large 984-foot (300-meter) ribbon supply on a one-inch core, saving both time and money. It offers blazing fast printing speeds and boasts an easy-to-read multi-icon LED display as standard, with the option for a color LCD display. For maximum productivity, the WPL308Plus comes with built-in Ethernet connectivity or optional 802.11 a/b/g/n/ac Wi-Fi capabilities. Paired with SOTI Connect and TSC Console remote printer management, in empowers users to streamline workflows with ease. The Wasp WPL308Plus includes a 2-year manufacturers warranty covering material defects. If you would like to upgrade this coverage, WaspProtect extended service plans cover accidental breakage and can provide coverage beyond the original warranty.
Product Type	Direct Thermal/Thermal Transfer Printer

Technical Information

Recommended Use	Label Print
Print Color Capability	Monochrome
Maximum Mono Print Speed	8 in/s
Maximum Print Resolution (dpi)	203
Maximum Print Length	83.33 ft
Maximum Print Width	4.25"
Barcode Symbology Supported	1D Code 39 Code 93 Code 128 UCC Code 128 (A/B/C) Codabar Interleaved 2 of 5 EAN 128 UPC-A UPC-E EAN and UPC 2(5) Digits Add-On MSI Plessey POSTNET China Post ITF-14 Code 11 Telepen PLANET Code 49 Deutsche Post Identcode Deutsche Post Leitcode LOGMARS 2D TLC 39 CODABLOCK F Mode PDF-417 Maxi Code Data Matrix QR Code AZTEC Micro PDF-417 GS1 DataBar (RSS)
Application/Usage	Business Office Product Marking Asset Tracking Pharmacy Retail Industrial
Features	Plug and Play Clamshell Design
Connectivity Technology	Wired & Wireless
Fonts Included	8 alpha-numeric bitmap fonts Monotype Imaging true type font engine with one CG Triumvirate Bold Condensed scalable font
Print Technology	Direct Thermal /Thermal Transfer

Memory

Standard Memory	128 MB
Flash Memory	128 MB

Interfaces/Ports

USB Host	Yes
USB	Yes
USB Standard	USB 2.0

Network & Communication

Ethernet	Yes
Ethernet Technology	Fast Ethernet
Bluetooth	Yes
Bluetooth Version	4.2
Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11a/b/g/n/ac

Display & Graphics

Display Screen	Yes
Screen Size	3.5"
Display Screen Type	LCD

Media Types & Handling

Media Type	Die-cut Label Black Mark Fanfold Notch
Media Sensor	Multi-position Transmissive/Gap Sensor Moveable Reflective/Black Mark Sensor Ribbon Encode Sensor Head Open Sensor

Fonts & Emulation

Language Emulation

WPL
EPL
ZPL
ZPL II

Power Description

Power Source	AC Supply
Frequency	50 Hz 60 Hz

Environmental Conditions

Operating Temperature	41°F (5°C) - 104°F (40°C)
Storage Temperature	40°F (4.4°C) - 140°F (60°C)

Physical Characteristics

Form Factor	Desktop
Height	7.8"
Width	8.9"
Depth	13.1"
Weight (Approximate)	8.27 lb

Miscellaneous

Package Contents	WPL308Plus Desktop Barcode Printer 203 DPI Thermal Printhead WPL308Plus Power Cable Line Cord (connects to the Power Cable) USB Cable
Cables Included	USB RS-232 AC
Energy Star	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

2 Year
