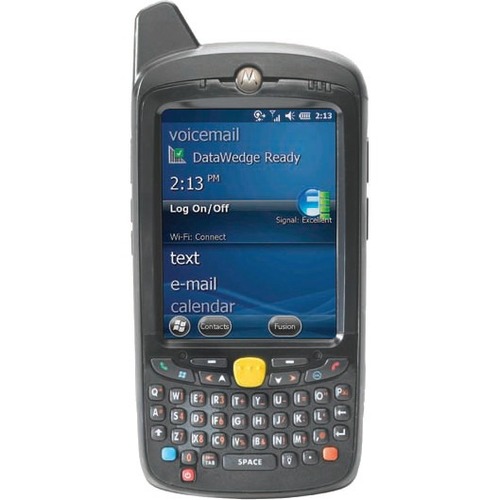

Zebra MC67 Mobile Computer

by
ZEBRA
PCN#
TG8016
MFG#
MC67NA-PDABAA00500
$2,145.81
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • OMAP 4 1 GHz
  • 1 GB RAM
  • 8 GB Flash

Show more

Product Condition: New and Factory Fresh
Limited Warranty1 Year
Shipping Weight: 2 lbs.
Zebra MC67 Mobile Computer
Tech Specs
Specifications

Manufacturer

Zebra Technologies Corporation

Manufacturer Part Number

MC67NA-PDABAA00500

Manufacturer Website Address

http://www.zebra.com

Brand Name

Zebra

Product Model

MC67

Product Name

MC67 Mobile Computer

Marketing Information

Give your field workforce all the tools they need to work faster and smarter with the rugged 3.75G HSPA MC67. With the MC67, your workers can do whatever it takes to get the job done. Access information in your backend system. Scan practically any bar code in almost any condition. Capture documents to simplify recordkeeping. Take and send video and photos for real-time repair support. Call a customer with an arrival window. All at 3.75G HSPA speed. So whether your workers are involved in sales, service, deliveries, inspections or issuing citations, they have the tools they need to improve efficiency, accuracy and customer service - all in one rugged device that loves life in the field.

Product Type

Handheld Terminal
Technical Information

Connectivity Technology

Wireless

Image Sensor Type

Imager

Scanner Range

Standard Range

Barcode Symbology Supported

  • 1D
  • 2D

Drop Specification

  • 8ft
  • 6ft @ -4°F to 122°F

Air Electrostatic Discharge (+/-)

15kV DC

Direct Electrostatic Discharge (+/-)

8kV DC

Indirect Electrostatic Discharge (+/-)

8kV DC
Processor & Chipset

Processor Type

OMAP 4

Processor Speed

1 GHz
Memory

Standard Memory

1 GB

Flash Memory

8 GB

Memory Card Slot

Yes

Memory Card Supported

microSD

Maximum Memory Card Size Supported

32 GB
Display & Graphics

Screen Size

3.5"

Screen Mode

VGA

Screen Resolution

640 x 480

Display Color

Color

Backlight Technology

LED
Touchscreen Information

Touchscreen

Yes

Touchscreen Type

Resistive
Keyboard/Keypad

Keyboard Layout

QWERTY
Network & Communication

Wireless LAN

Yes

Wireless LAN Standard

IEEE 802.11a/b/g/n

Cellular Data Connectivity Technology

HSPA+

Wireless Security

  • WPA2 (Personal or Enterprise)
  • 802.1x
  • EAP-TL S
  • TTL S CHAP
  • TTL S (MS-CHAP)
  • TTL S (MS-CHAPv2)
  • TTL S PAP or MD5
  • PEAP TL S
  • PEAP (MSCHAPv2)
  • PEAP EAP-GTC
  • LEAP
  • EAP-FAST TL S
  • EAP-FAST (MS-CHAPv2)
  • EAP-FAST EAP-GTC
Interfaces/Ports

USB

Yes
Camera

Rear Camera

Yes

Rear Camera Resolution

8 Megapixel
Software

Operating System

Microsoft Windows Embedded Handheld 6.5 Professional
Battery Information

Battery Capacity

3600 mAh

Battery Chemistry

Lithium Ion (Li-Ion)

Battery Included

Yes
Physical Characteristics

Width

3"

Depth

1.3"

Length

6.4"

Weight (Approximate)

13.50 oz
Miscellaneous

Package Contents

  • MC67 Mobile Computer
  • Battery

Certifications & Standards

  • IP65
  • IP67
  • MIL-STD 810G

Laser safety

  • EN 60825-1
  • IEC 60825-1
  • IEC Class 2/FDA Class II

Electrical safety

  • IEC/UL/CSA/EN 60950-1

RF exposure

  • EU: EN 50360
  • EN 62311

Wireless Wide Area Network: GSM-HSDPA/HSUPA

  • Global: 3GPP TS 51.010
  • 3GPP TS 34.121
  • 3GPP TS 34.123
  • GCF and PTCRB approved
  • EU: EN301 511
  • EN301 908

EMI/RFI

  • EU: EN55022 Class B
  • EN 55024
  • EN 301 489-1
  • EN 301 489-3
  • EN 301 489-7
  • EN 301 489-17
  • EN 301 489-24
  • EN 60601-1-2
  • EN 50121-3-2
  • EN 50121-4

WLAN and Bluetooth (PAN)

  • EU: EN 300 328
  • EN 301 893

Environmentally Friendly

Yes

Environmental Certification

  • RoHS
  • WEEE
Warranty

Limited Warranty

1 Year
