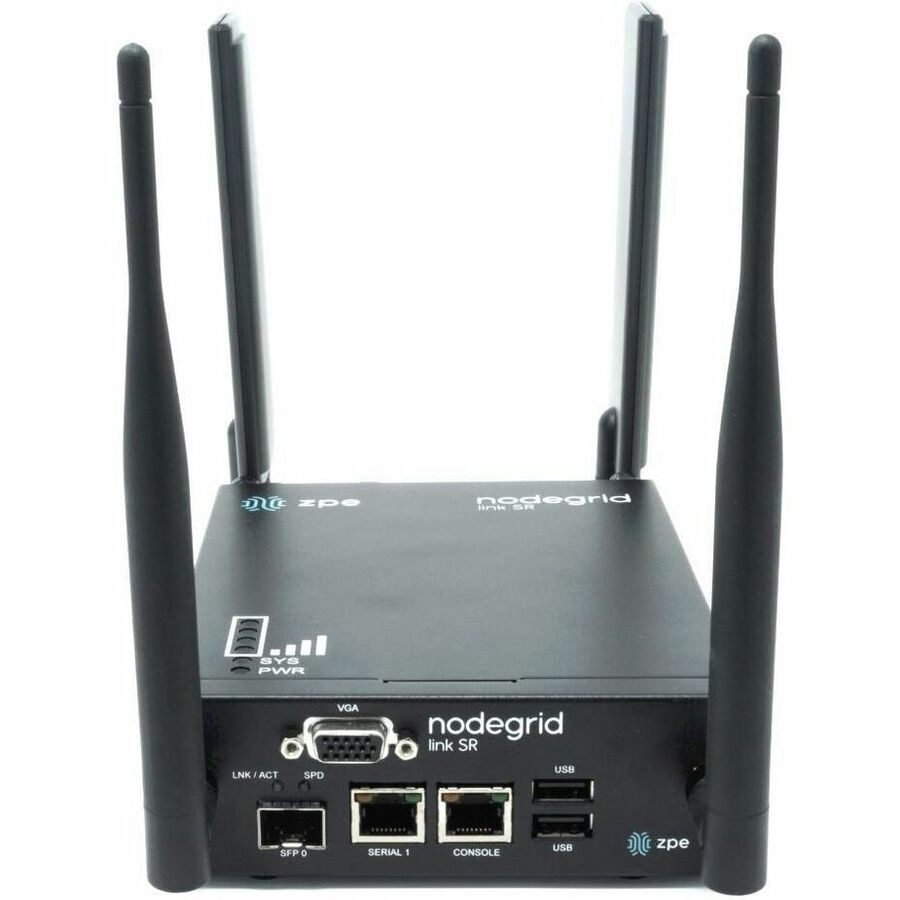

LINK SR, 1X RJ45 SERIAL ROLLED, 1XETH (POE IN), 1X SFP, 2 GPIO, 2 OUT, 2-CORES

Get the right networking, right where you need it with one powerful little box

The Nodegrid Link SR brings flexibility to your network operations. Its powerful components deliver customizable networking wherever you need it, while its compact design can be tucked away to save crucial space. Link server rooms, closets, and branch locations to the internet, and get critical services to keep your network running.

• Deploy fast using zero touch provisioning and ZPE Cloud
• Stay in control even during outages with OOB via cellular failover
• Manage every device thanks to vendor-neutral Nodegrid Manager software

• 10 V DC
• 57 V DC
• 120 V AC
• 230 V AC

• 50 Hz
• 60 Hz

• Rail-mountable
• Wall Mountable

• 1 x RJ45 Serial rolled
• 1 x ETH (PoE in)
• 1 x SFP (1G)
• 2 x GPIO Port
• 2 x Digital Out Port
• X86_64
• 2-Cores
• 4GB DDR3
• Disk1: 16GB
• 1 x VGA port
• Operation: 0 to 60° C (32 to 140° F), 20-90% RH, non-cond.
• Storage: -20 to 67° C (-4 to 153° F), 10-90% RH, non-cond.
• X.509 SSH certificate support, 4096-bit encryption keys
• Selectable cryptographic protocols for SSH and HTTPS (TLSv1.2, TLSv1.1, TLSv1)
• Selectable cypher suite levels: high, medium, low, custom
• SSL VPN - Client and Server
• IPsec with support for multi sites
• Local, AD/LDAP, RADIUS, TACACS+, Kerberos authentication
• Local, backup-user authentication support
• User-access lists per port
• Group/role-based authorization: AD/LDAP, RADIUS, TACACS+
• Fine grain and role based access control
• Firewall - IP packet and security filtering, IP forwarding support
• MD5 / SHA System Configuration Checksum™
• System event syslog and data logs
• Custom security settings
• Strong password enforcement
• Access Protocols: HTTPS, SSHv1 and SSHv2, optional HTTP and Telnet
